• Compiler support for M32R/X/D targets
• ABI summary for M32R/X/D targets
• Assembler support for M32R/X/D targets
• Linker support for M32R/X/D targets
• Debugger support for M32R/X/D targets
• Standalone simulator for M32R/X/D targets
• Overlays for the M32R/X/D targets

• Preprocessor symbol issues for M32R/X/D targets
• M32R/X/D-specific compiling attributes
• Data types and alignment for M32R/X/D targets
• CPU registers for M32R/X/D targets
• The stack frame for M32R/X/D targets

Generate code for the M32R processor (including M32R/D).

Generate code for the M32R/X processor.

Assume all objects live in the lower 16MB of memory (so that their addresses can be loaded with the ‘ld24’ instruction), and assume all subroutines are reachable with the ‘bl’ instruction. This is the default.

The addressability of a particular object can be set with the ‘model’ attribute in the source code. See M32R/X/D-specific compiling attributes.

Assume objects may be anywhere in the 32 bit address space (the compiler will generate ‘seth/add3’ instructions to load their addresses), and assume all subroutines are reachable with the ‘ bl’ instruction.

Assume objects may be anywhere in the 32 bit address space (the compiler will generate ‘seth/add3’ instructions to load their addresses), and assume subroutines may not be reachable with the ‘bl’ instruction (the compiler will generate the much slower ‘seth/add3/jl’ instruction sequence).

Disable use of the small data area. Variables will be put into one of ‘.data’, ‘bss’, or ‘.rodata’ (unless the ‘section’ attribute has been specified). This is the default.

The small data area consists of sections ‘.sdata’ and ‘.sbss’. Objects may be explicitly put in the small data area with the ‘section’ attribute using one of these sections.

Put small global and static data in the small data area, but do not generate special code to reference them. This is normally only used to build system libraries. It enables them to be used with both ‘-msdata=none ’ and ‘-msdata=use’.

Put small global and static data in the small data area, and generate special instructions to reference them.

Put global and static objects less than or equal to ‘num ’ bytes into the small data or bss sections instead of the normal data or bss sections. The default value of ‘num’ is 8.

The ‘-msdata ’ option must be set to one of ‘sdata’ or ‘use’ for this option to have any effect.

All modules should be compiled with the same ‘-G num’ value. Compiling with different values of ‘num’ may or may not work; if it does not work, the linker will give an error message. Incorrect code will not be generated.


Indicates the specified function is an interrupt handler. The compiler will generate prologue and epilogue sequences appropriate for an interrupt handler.

Use this attribute on the M32R/X/D to set the addressability of an object, and the code generated for a function. The identifier ‘<model-name> ’ is one of ‘small’, ‘medium’, or ‘large ’, representing each of the code models.

Small model objects live in the lower 16MB of memory (so that their addresses can be loaded with the ‘ld24’ instruction), and are callable with the ‘bl’ instruction.

Medium model objects may live anywhere in the 32 bit address space (the compiler will generate ‘seth/add3’ instructions to load their addresses), and are callable with the ‘bl’ instruction.

Large model objects may live anywhere in the 32 bit address space (the compiler will generate ‘seth/add3’ instructions to load their addresses), and may not be reachable with the ‘bl’ instruction (the compiler will generate the much slower ‘seth/add3/jl’ instruction sequence).

• Data types and alignment for M32R/X/D targets
• Allocation rules for structures and unions for M32R/X/D targets
• CPU registers for M32R/X/D targets
• The stack frame for M32R/X/D targets
• Argument passing for M32R/X/D targets
• Function return values for M32R/X/D targets
• Startup code for M32R/X/D targets
• Producing S-records for M32R/X/D targets

The stack is aligned to a four-byte boundary. One byte is used for characters (including structure/unions made entirely of chars), two bytes for shorts (including structure/unions made entirely of shorts), and four-byte alignment for everything else.

Allocation rules for structures and unions for M32R/X/D targets

• Structure and union packing can be controlled by attributes specified in the source code. In the absence of any attributes however, the following rules are obeyed:
• Fields that are shorts are aligned to 2 byte boundaries. Fields that are ints, longs, floats, doubles and long longs are aligned to 4 byte boundaries; char fields are not aligned.
• Composite fields (ones that are themselves structures or unions) are aligned to greatest alignment requirement of any of their component fields. So if a field is a structure that contains a char, a short and an int, the field will be aligned to a 4-byte boundary because of the int.
• Bit fields are packed in a big-endian fashion, and they are aligned so that they will not cross boundaries of their type. For instance, consider the following example’s structure.

.zero 3

.byte 0x0

.byte 0x0

.byte 0x0

.byte 0x6

So the ‘a’ field is stored in the top two bits of the first byte; with the most significant bit of ‘a’ being stored in the most significant bit of the byte. The bottom six bits of that byte and the next three bytes are all padding, so that the next bitfield ‘b’ does not cross a word boundary.

Consider the following example’s structure.



struct { short c:2, d:2, e:13; } s = { 0x2, 0x3, 0xf};

Such input is stored in memory as the following code example shows.



.byte 0xb0

.zero 1

.byte 0x0

.byte 0x78

So ‘c’ and ‘d’ fields are both held in the same byte, but the ‘e’ field starts two bytes further on, so that it will not cross a two byte boundary.

Fields in unions are treated in the same way as fields in structures. A union is aligned to the greatest alignment requirement of any of its members.

Used for passing arguments to functions. Additional arguments are passed on the stack (see below). ‘r0’, ‘r1’ is also used to return the result of function calls. The values of these registers are not preserved across function calls.

Temporary registers for expression evaluation. The values of these registers are not preserved across function calls.

‘r4’ is reserved for use as a temporary register in the prologue.

‘r6’ is also reserved for use as a temporary in the Position Independent Code (PIC) calling sequence (if ever necessary) and may not be used in the function calling sequence or prologue of functions.

‘r7’ is also used as the static chain pointer in nested functions (a GNU C extension) and may not be used in the function calling sequence or prologue of functions. In other contexts it is used as a temporary register.

Temporary registers for expression evaluation. The values of these registers are preserved across function calls.

Temporary register for expression evaluation. Its value is preserved across function calls. It is also reserved for use as potential global pointer.

Reserved for use as the frame pointer if one is needed. Otherwise it may be used for expression evaluation. Its value is preserved across function calls.

Link register. This register contains the return address in function calls. It may also be used for expression evaluation if the return address has been saved.

Stack pointer.

This register is not preserved across function calls.

The carry bit of the ‘psw’ is not preserved across function calls.

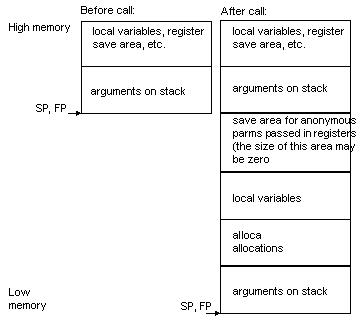

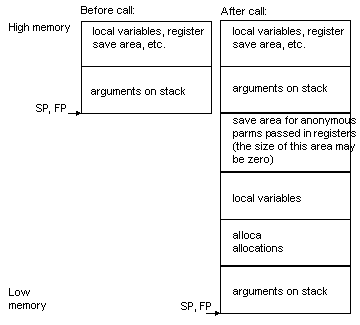

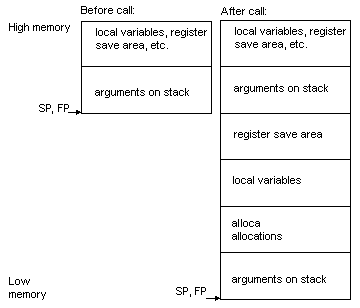

• The stack grows downwards from high addresses to low addresses.
• A leaf function need not allocate a stack frame if it does not need one.
• A frame pointer need not be allocated.
• The stack pointer shall always be aligned to 4-byte boundaries.
• The register save area shall be aligned to a 4-byte boundary.

• An argument, if it is less than or equal to 8 bytes in size, is passed in registers if available. However, if such an argument is a composite structure (one with more than one field and greater than 4 bytes in size) it is also passed on the stack, in addition to being passed in the registers. An argument, which is greater than 8 bytes in size, is always passed by reference, which means that a copy of the argument is placed on the stack and a pointer to that copy is passed in the register.
• If a data type would overflow the register arguments, then it is passed in registers and memory. A ‘long long’ data type passed in ‘r3’ would be passed in ‘r3’ and in the first 4 bytes of the stack.
• Arguments passed on the stack begin at ‘ sp’ with respect to the caller.
• Each argument passed on the stack is aligned on a 4 byte boundary.
• Space for all arguments is rounded up to a multiple of 4 bytes.

• Contain symbol ‘_start’
• Initialize the stack pointer
• Zeros the ‘bss’ section
• Runs constructors for any global objects that have them

.balign 4

.global _start

_start:

ld24 sp, _stack

ldi fp, #0

# Clear the BSS. Do it in two parts for efficiency: longwords first

# for most of it, then the remaining 0 to 3 bytes.

ld24 r2, __bss_start ; R2 = start of BSS

ld24 r3, _end ; R3 = end of BSS + 1

sub r3, r2 ; R3 = BSS size in bytes

mv r4, r3

srli r4, #2 ; R4 = BSS size in longwords (rounded down)

ldi r1, #0 ; clear R1 for longword store

addi r2, #-4 ; account for pre-inc store

beqz r4, .Lendloop1 ; any more to go?

.Lloop1:

st r1, @+r2 ; yep, zero out another longword

addi r4, #-1 ; decrement count

bnez r4, .Lloop1 ; go do some more

.Lendloop1:

and3 r4, r3, #3 ; get no. of remaining BSS bytes to clear

addi r2, #4 ; account for pre-inc store

beqz r4, .Lendloop2 ; any more to go?

.Lloop2:

stb r1, @r2 ; yep, zero out another byte

addi r2, #1 ; bump address

addi r4, #-1 ; decrement count

bnez r4, .Lloop2 ; go do some more

.Lendloop2:

# Run code in the .init section.

# This will queue the .fini section to be run with atexit.

bl __init

# Call main, then exit.

bl main

bl exit

# If that fails just loop.

.Lexit:

bra .Lexit

S00D000068656C6C6F2E7372656303

S11801002D7F2E7F1D8FF000E0006DF4FE0000FEFE001B281F54
S11801158D2EEF2DEF1FCEEF1000006D00F000E20075C0E300C8
S118012A75F4032214835402610042FCF000B0840003216244B4
S118013FFFB094FFFF84C300034204F000B08400042102420148

Support the extended m32rx instruction set

Try to combine instructions in parallel (M32R/X only)

Warn (or don’t warn with -no-warn-explict-parallel-conflicts or -Wnp ) when parallel instructions conflict. The default is to issue the warning.

Warn (or don’t warn with -no-warn-unmatched-high or -Wnuh ) if a ‘high’ or ‘shigh’ relocation has no matching ‘low’ relocation. The default is no warning.

Syntax for M32R/X/D is based on the syntax in Mitsubishi’s M32R Family Software Manual.

The M32R/X/D assembler supports ‘;’ (semi-colon) and ‘#’ (pound). Both characters are line comment characters when used in column zero. The semi-colon may also be used to start a comment anywhere within a line.

Specify that two instructions are executed in parallel by placing them on the same line, separated by ‘||’. Use the following example’s input, for instance.

mv r1,r2 || mv r2,r1

These two instructions are executed in parallel.

A new syntax has been added to explicitly allow specifying two instructions executed sequentially.

Specify that two instructions are executed sequentially by placing them on the same line, separated by ‘->’. This is useful when assembling with optimization turned on and you explicitly want to state that two instructions are to be executed sequentially and not in parallel.

Use the following example’s input, for instance.



mv r1,r2 -> ld r1,@r2

The ‘mv r1,r2 ’ instruction is first executed, and then the ‘ld r1,@r2’ instruction is executed.

Addressing modes for M32R/X/D targets

Floating point for M32R/X/D targets

Create a ‘ <label>’ label with the value of the next instruction that follows the pseudo opcode. Unlike normal labels, the label created with ‘.debugsym’ does not force the next instruction to be aligned to a 32-bit boundary (in other words, it does not generate a nop, if the previous instruction is a 16-bit instruction, and the instruction that follows is also a 16-bit instruction).

Writing assembler code for M32R/X/D targets

.section .rodata

.balign 4

.LC0:

.string"hello world!\n"

.balign 4

.LC1:

.string"%d + %d = %d\n"

.section .text

.balign 4

.globalmain

.type main,@function

main:

; BEGIN PROLOGUE ; vars= 0, regs= 2, args= 0, extra= 0

push r8

push lr

; END PROLOGUE

ld24 r8,#a

ldi r4,#3

st r4,@(r8)

ld24 r0,#.LC0

bl printf

ld24 r0,#.LC1

ld r1,@(r8)

ld24 r4,#c

ldi r2,#4

add3 r3,r1,#4

st r3,@(r4)

bl printf

; EPILOGUE

pop lr

pop r8

jmp lr

.Lfe1:

.size main,.Lfe1-main

.comma,4,4

.commc,4,4

.ident"GCC: (GNU) 2.7-m32r-970408"

m32r-elf-as hello.s -o hello.o

• To clear the ‘CBR’ register, just one instruction can be used:


cmpi Rx,#0 total 6 bytes and destroys ‘Rx’.

• To set the ‘CBR’ register, there are several methods. First, try using the following example’s input.

Alternatively, try using the following example’s input.



ldi Rx,#-2


addx R0,R0 total 4 bytes

The previous code examples are smaller than the following code example:



ldi Rx,#0


cmpi Rx,#1 total 6 bytes

• To set a comparison result to a register, there are some idioms for the M32R.

mvfc Rx,CBR total 4 byte

(b) ‘...flag = !(x op 0); ...’

To get the inverted result of comparison, first set ‘CBR’ using one of the methods above, then, try using the following example’s input.



subx Rx,Rx

addi Rx,#1 total 4 byte

The previous example will provide better results than than the following code.



mvfc Rx,CBR

xor3 Rx,Rx,#1 total 6-byte

Note:

neg Rx,Rx

The instruction is misspelled or there is a syntax error somewhere.

Error: expression too complex

Error: unresolved expression that must be resolved

The instruction contains an expression that is too complex; no relocation exists to handle it.

Error: relocation overflow

The instruction contains an expression that is too large to fit in the field.

Specify the initial value for the stack pointer. This assumes the application loads the stack pointer with the value of ‘_stack’ in the start up code.

The initial value for the stack pointer is defined in the linker script with the PROVIDE linker command. This allows the user to specify a new value on the command line with the standard linker option ‘--defsym’.

OUTPUT_ARCH(m32r)

ENTRY(_start)

SEARCH_DIR( <installation directory path> );

SECTIONS

{

/* Read-only sections, merged into text segment: */

. = 0x200000;

.interp : { *(.interp) }

.hash : { *(.hash) }

.dynsym : { *(.dynsym) }

.dynstr : { *(.dynstr) }

.rel.text : { *(.rel.text) }

.rela.text : { *(.rela.text) }

.rel.data : { *(.rel.data) }

.rela.data : { *(.rela.data) }

.rel.rodata : { *(.rel.rodata) }

.rela.rodata : { *(.rela.rodata) }

.rel.got : { *(.rel.got) }

.rela.got : { *(.rela.got) }

.rel.ctors : { *(.rel.ctors) }

.rela.ctors : { *(.rela.ctors) }

.rel.dtors : { *(.rel.dtors) }

.rela.dtors : { *(.rela.dtors) }

.rel.init : { *(.rel.init) }

.rela.init : { *(.rela.init) }

.rel.fini : { *(.rel.fini) }

.rela.fini : { *(.rela.fini) }

.rel.bss : { *(.rel.bss) }

.rela.bss : { *(.rela.bss) }

.rel.plt : { *(.rel.plt) }

.rela.plt : { *(.rela.plt) }

.init : { *(.init) } =0

.plt : { *(.plt) }

.text :

{

*(.text)

/* .gnu.warning sections are handled specially by

elf32.em. */

*(.gnu.warning)

*(.gnu.linkonce.t*)

} =0

_etext = .;

PROVIDE (etext = .);

.fini : { *(.fini) } =0

.rodata : { *(.rodata) *(.gnu.linkonce.r*) }

.rodata1 : { *(.rodata1) }

/* Adjust the address for the data segment. We want to

adjust up to the same address within the page on the

next page up. */

. = ALIGN(32) + (ALIGN(8) & (32 - 1));

.data :

{

*(.data)

*(.gnu.linkonce.d*)

CONSTRUCTORS

}

.data1 : { *(.data1) }

.ctors : { *(.ctors) }

.dtors : { *(.dtors) }

.got : { *(.got.plt) *(.got) }

.dynamic : { *(.dynamic) }

/* We want the small data sections together, so

single-instruction offsets can access them all, and

initialized data all before uninitialized, so we can

shorten the on-disk segment size. */

.sdata : { *(.sdata) }

_edata = .;

PROVIDE (edata = .);

__bss_start = .;

.sbss : { *(.sbss) *(.scommon) }

.bss : { *(.dynbss) *(.bss) *(COMMON) }

_end = . ;

PROVIDE (end = .);

/* Stabs debugging sections. */

.stab 0 : { *(.stab) }

.stabstr 0 : { *(.stabstr) }

.stab.excl 0 : { *(.stab.excl) }

.stab.exclstr 0 : { *(.stab.exclstr) }

.stab.index 0 : { *(.stab.index) }

.stab.indexstr 0 : { *(.stab.indexstr) }

.comment 0 : { *(.comment) }

/* DWARF debug sections.

Symbols in the .debug DWARF section are relative to the

beginning of the section so we begin .debug at 0. It’s

not clear yet what needs to happen for the others. */

.debug 0 : { *(.debug) }

.debug_srcinfo 0 : { *(.debug_srcinfo) }

.debug_aranges 0 : { *(.debug_aranges) }

.debug_pubnames 0 : { *(.debug_pubnames) }

.debug_sfnames 0 : { *(.debug_sfnames) }

.line 0 : { *(.line) }

PROVIDE (_stack = 0x3ffffc);

}

• The ‘-t’ command-line option to the stand-alone simulator turns on instruction level tracing as shown in the following segment.

0x00011c ld24 sp,0x100000 dr <- 0x100000
0x000120 ldi fp,0 dr <- 0x0
0x000122 nop
0x000124 ld24 r2,0x75c0 dr <- 0x75c0
0x000128 ld24 r3,0x75f4 dr <- 0x75f4
0x00012c sub r3,r2 dr <- 0x34
0x00012e mv r4,r3 dr <- 0x34
0x000130 srli r4,0x2 dr <- 0xd
0x000132 ldi r1,0 dr <- 0x0
0x000134 addi r2,-4 dr <- 0x75bc
0x000136 nop
0x000138
. . .

The ‘-v’ command-line option prints some simple statistics.


hello world!
3 + 4 = 7
Total: 3808 insns
Fill nops: 609

The ‘-p’ command prints profiling statistics.


Hello world!
3 + 4 = 7
Instruction Statistics

Total: 3796 insns

add: 75: *****
add3: 123: ********
and: 3:
and3: 61: ****
or: 28: *
or3: 3:
addi: 222: ***************
bc8: 9:
bc24: 3:
beq: 23: *
beqz: 131: ********
bgez: 8:
bgtz: 2:
blez: 42: **
bltz: 6:
bnez: 252: *****************
bl8: 11:
bl24: 82: *****
bnc8: 52: ***
bne: 1:
bra8: 29: *
bra24: 9:
cmp: 28: *
cmpu: 34: **
cmpui: 2:
jl: 7:
jmp: 100: ******
ld: 93: ******
ld-d: 277: ******************
ldb: 77: *****
ldb-d: 6:
ldh-d: 38: **
ldub: 23: *
lduh-d: 23: *
ld-plus: 158: **********
ld24: 55: ***
ldi8: 163: ***********
ldi16: 5:
mv: 282: *******************
neg: 26: *
nop: 584: ****************************************
sll: 3:
sll3: 7:
slli: 25: *
srai: 25: *
srli: 35: **
st: 52: ***
st-d: 195: *************
stb: 27: *
stb-d: 4:
sth: 25: *
sth-d: 11:
st-plus: 13:
st-minus: 164: ***********
sub: 52: ***
trap: 2:

Memory Access Statistics

Total read: 1891 accesses
Total write: 491 accesses

QI read: 83: **
QI write: 31: *
HI read: 38: *
HI write: 36: *
SI read: 528: *****************
SI write: 424: **************
UQI read: 23:
UHI read: 23:
USI read: 1196: ****************************************

Model m32r/d timing information:

Taken branches: 532
Untaken branches: 237
Cycles stalled due to branches: 1064
Cycles stalled due to loads: 670
Total cycles (approx): 4946

Fill nops: 584

Overlays for the M32R/X/D targets

{

OVERLAY 0x300000 : AT (0x400000)

{

.ovly0 { foo.o(.text) }

.ovly1 { bar.o(.text) }

}

OVERLAY 0x380000 : AT (0x480000)

{

.ovly2 { baz.o(.text) }

.ovly3 { grbx.o(.text) }

}

[...]

SECTIONS

{

.ovly0 0x300000 : AT (0x400000) { foo.o(.text) }

.ovly1 0x300000 : AT (0x410000) { bar.o(.text) }

.ovly2 0x380000 : AT (0x420000) { baz.o(.text) }

.ovly3 0x380000 : AT (0x430000) { grbx.o(.text) }

[...]

.data :

{
[...]
_ovly_table = .;
LONG(ABSOLUTE(ADDR(.ovly0)));
LONG(SIZEOF(.ovly0));
LONG(LOADADDR(.ovly0));
LONG(0);
LONG(ABSOLUTE(ADDR(.ovly1)));
LONG(SIZEOF(.ovly1));
LONG(LOADADDR(.ovly1));
LONG(0);
LONG(ABSOLUTE(ADDR(.ovly2)));
LONG(SIZEOF(.ovly2));
LONG(LOADADDR(.ovly2));
LONG(0);
LONG(ABSOLUTE(ADDR(.ovly3)));
LONG(SIZEOF(.ovly3));
LONG(LOADADDR(.ovly3));
LONG(0);
_novlys = .;
LONG((_novlys - _ovly_table) / 16);
[...]
}

Debugging the overlay program for M32R/X/D targets

Reading symbols from ovlydata...done.

(gdb) target sim

Connected to the simulator.

(gdb) load

Loading section .ovly0, size 0x28 lma 0x400000

Loading section .ovly1, size 0x28 lma 0x400028

Loading section .ovly2, size 0x28 lma 0x480000

Loading section .ovly3, size 0x28 lma 0x480028

Loading section .data00, size 0x4 lma 0x440000

Loading section .data01, size 0x4 lma 0x440004

Loading section .data02, size 0x4 lma 0x4c0000

Loading section .data03, size 0x4 lma 0x4c0004

Loading section .init, size 0x1c lma 0x208000

Loading section .text, size 0xa3c lma 0x20801c

Loading section .fini, size 0x14 lma 0x208a58

Loading section .rodata, size 0x24 lma 0x208a6c

Loading section .data, size 0x374 lma 0x208ab0

Loading section .ctors, size 0x8 lma 0x208e24

Loading section .dtors, size 0x8 lma 0x208e2c

Start address 0x20801c

Transfer rate: 30240 bits in <1 sec.

(gdb) overlay auto

(gdb) overlay list

No sections are mapped.

(gdb) info address foo

Symbol "foo" is a function at address 0x300000,

loaded at 0x400000 in overlay section .ovly0.

(gdb) info symbol 0x300000

foo in unmapped overlay section .ovly0

bar in unmapped overlay section .ovly1

(gdb) info address bar

Symbol "bar" is a function at address 0x300000,

loaded at 0x400028 in overlay section .ovly1.

(gdb) break main

Breakpoint 1 at 0x20839c: file maindata.c, line 12.

(gdb) run

Starting program: ovlydata

Breakpoint 1, main () at maindata.c:12

12 if (!OverlayLoad(0))

(gdb) next

14 if (!OverlayLoad(4))

(gdb) next

16 a = foo(1);

(gdb) overlay list

Section .ovly0, loaded at 00400000 - 00400028, mapped at 00300000 - 00300028

Section .data00, loaded at 00440000 - 00440004, mapped at 00340000 - 00340004

(gdb) info symbol 0x300000

foo in mapped overlay section .ovly0

bar in unmapped overlay section .ovly1

(gdb) step

foo (x=1) at foo.c:5

5 if (x)

(gdb) x /i $pc

0x300008 <foo+8>: ld r4, @fp || nop

(gdb) print foo

$1 = {int (int)} 0x300000 <foo>

(gdb) print bar

$2 = {int (int)} 0x400028 <*bar*>

(gdb) disassemble

Dump of assembler code for function foo:

0x300000 <foo>: st fp,@-sp -> addi sp,-4

0x300004 <foo+4>: mv fp,sp -> st r0,@fp

0x300008 <foo+8>: ld r4,@fp || nop

0x30000c <foo+12>: beqz r4,0x30001c <foo+28>

0x300010 <foo+16>: ld24 r4,0x340000 <foox>

0x300014 <foo+20>: ld r5,@r4 -> mv r0,r5

0x300018 <foo+24>: bra 0x300020 <foo+32> -> bra 0x300020 <foo+32>

0x30001c <foo+28>: ldi r0,0 -> bra 0x300020 <foo+32>

0x300020 <foo+32>: add3 sp,sp,4

0x300024 <foo+36>: ld fp,@sp+ -> jmp lr

End of assembler dump.

(gdb) disassemble bar

Dump of assembler code for function bar:

0x400028 <*bar*>: st fp,@-sp -> addi sp,-4

0x40002c <*bar+4*>: mv fp,sp -> st r0,@fp

0x400030 <*bar+8*>: ld r4,@fp || nop

0x400034 <*bar+12*>: beqz r4,0x400044 <*bar+28*>

0x400038 <*bar+16*>: ld24 r4,0x340000 <foox>

0x40003c <*bar+20*>: ld r5,@r4 -> mv r0,r5

0x400040 <*bar+24*>: bra 0x400048 <*bar+32*> -> bra 0x400048 <*bar+32*>

0x400044 <*bar+28*>: ldi r0,0 -> bra 0x400048 <*bar+32*>

0x400048 <*bar+32*>: add3 sp,sp,4

0x40004c <*bar+36*>: ld fp,@sp+ -> jmp lr

End of assembler dump.

(gdb) finish

Run till exit from #0 foo (x=1) at foo.c:5

0x2083cc in main () at maindata.c:16

16a = foo(1);

Value returned is $3 = 324

(gdb) next

17if (!OverlayLoad(1))

(gdb) next

19if (!OverlayLoad(5))

(gdb) next

21b = bar(1);

(gdb) overlay list

Section .ovly1, loaded at 00400028 - 00400050, mapped at 00300000 - 00300028

Section .data01, loaded at 00440004 - 00440008, mapped at 00340000 - 00340004

(gdb) info symbol 0x300000

foo in unmapped overlay section .ovly0

bar in mapped overlay section .ovly1

(gdb) step

bar (x=1) at bar.c:5

5 if (x)

(gdb) x /i $pc

0x300008 <bar+8>: ld r4,@fp || nop

(gdb) disassemble

Dump of assembler code for function bar:

0x300000 <bar>: st fp,@-sp -> addi sp,-4

0x300004 <bar+4>: mv fp,sp -> st r0,@fp

0x300008 <bar+8>: ld r4,@fp || nop

0x30000c <bar+12>: beqz r4,0x30001c <bar+28>

0x300010 <bar+16>: ld24 r4,0x340000 <barx>

0x300014 <bar+20>: ld r5,@r4 -> mv r0,r5

0x300018 <bar+24>: bra 0x300020 <bar+32> -> bra 0x300020 <bar+32>

0x30001c <bar+28>:    ldi r0,0 -> bra 0x300020 <bar+32>

0x300020 <bar+32>:    add3 sp,sp,4

0x300024 <bar+36>:    ld fp,@sp+ -> jmp lr

End of assembler dump.

(gdb) finish

Run till exit from #0 bar (x=1) at bar.c:5

0x208400 in main () at maindata.c:21

21b = bar(1);
Value returned is $4 = 309

(gdb) info addr bazx

Symbol "bazx" is static storage at address 0x3c0000,

loaded at 0x4c0000 in overlay section .data02.

(gdb) info sym 0x3c0000

bazx in unmapped overlay section .data02

grbxx in unmapped overlay section .data03

(gdb) info addr grbxx

Symbol "grbxx" is static storage at address 0x3c0000,

loaded at 0x4c0004 in overlay section .data03.

(gdb) break baz

Breakpoint 2 at 0x380008: file baz.c, line 5.

(gdb) break grbx

Breakpoint 3 at 0x380008: file grbx.c, line 5.

(gdb) cont

Continuing.

Breakpoint 2, baz (x=1) at baz.c:5

5 if (x)

(gdb) print &bazx

$5 = (int *) 0x3c0000

(gdb) x /d &bazx

0x3c0000 <bazx>: 317

(gdb) print &grbxx

$6 = (int *) 0x4c0004

(gdb) cont

Continuing.

Breakpoint 3, grbx (x=1) at grbx.c:5

5 if (x)

(gdb) print &grbxx

$7 = (int *) 0x3c0000

(gdb) x /d &grbxx

0x3c0000 <grbxx>: 435

(gdb) print &bazx

$7 = (int *) 0x4c0000

(gdb) x /d &bazx

0x4c0000 <*bazx*>: 317

The manual mode requires input from the user to specify what overlays are mapped into their runtime address regions at any given time. The ‘ overlay map’ command informs GDB that the overlay has been mapped by the target into its shared runtime address range. The ‘overlay unmap’ command informs GDB that the overlay is no longer resident in its runtime address region, and must be accessed from the load-time address region. If two overlays share the same runtime address region, then mapping one implies unmapping the other.

Automatic overlay debugging support in GDB works with the runtime overlay manager provided in the ‘examples’ directory.

When this mode is activated, GDB will automatically read and interpret the data structures maintained in target memory by the overlay manager. To learn what overlays are mapped at any time, use the ‘overlay list’ command.

Whenever the target program is allowed to run (by the ‘step’ command), GDB will refresh its overlay map by reading from the target’s overlay tables.

The automatic mapping may be temporarily overridden by the ‘overlay map’ and ‘ overlay unmap’ commands, but these mappings will last only until the next time the target is allowed to run. To explicitly take control of GDB’s overlay mapping, switch to the ‘overlay manual’ mode.

(gdb) x /x foo

0x300000 <foo>: 0x2d7f4ffc

(gdb) overlay unmap .ovly0

(gdb) x /x foo

0x400000 <*foo*>: 0x2d7f4ffc

(gdb) info addr foo

Symbol "foo" is a function at address 0x300000,

-- loaded at 0x400000 in overlay section .ovly0.

(gdb) info symbol 0x300000

foo in mapped overlay section .ovly0

bar in unmapped overlay section .ovly1

• Compiler support for M32R/D targets
• ABI summary for M32R/D targets
• Assembler features for the M32R/D targets
• Linker issues for M32R/D targets
• Debugger issues with M32R/D targets
• Stand-alone simulator for M32R/D targets
• Overlays for M32R/D targets

Assume all objects live in the lower 16MB of memory (so that their addresses can be loaded with the ‘ld24’ instruction), and assume all subroutines are reachable with the ‘bl’ instruction. This is the default.

The addressability of a particular object can be set with the ‘model’ attribute in the source code. See M32R/D-specific attributes for compiling.

-mmodel=medium

Assume objects may be anywhere in the 32 bit address space (the compiler will generate ‘seth/add3’ instructions to load their addresses), and assume all subroutines are reachable with the ‘bl’ instruction.

Assume objects may be anywhere in the 32 bit address space (the compiler will generate ‘seth/add3’ instructions to load their addresses), and assume subroutines may not be reachable with the ‘bl’ instruction (the compiler will generate the much slower ‘seth/add3/jl’ instruction sequence).

Disable use of the small data area. Variables will be put into one of ‘.data’, ‘bss’, or ‘.rodata’ (unless the ‘section’ attribute has been specified). This is the default. The small data area consists of sections ‘.sdata’ and ‘.sbss’. Objects may be explicitly put in the small data area with the ‘section’ attribute using one of these sections.

Put small global and static data in the small data area, but do not generate special code to reference them. This is normally only used to build system libraries. It enables them to be used with both ‘-msdata=none ’ and ‘-msdata=use’ options.

Put small global and static data in the small data area, and generate special instructions to reference them.

Put global and static objects less than or equal to ‘num’ bytes into the small data or bss sections instead of the normal data or bss sections. The default value of ‘num’ is 8.

The ‘-msdata ’ option must be set to one of ‘sdata’ or ‘use’ for this option to have any effect.

All modules should be compiled with the same ‘-G num’ value. Compiling with different values of ‘num’ may or may not work; if it does not work, the linker will give an error message. Incorrect code will not be generated.

Indicates the specified function is an interrupt handler. The compiler will generate prologue and epilogue sequences appropriate for an interrupt handler.

Use this attribute on the M32R/D to set the addressability of an object, and the code generated for a function. The identifier ‘<model-name> ’ is one of ‘small’, ‘medium’, or ‘large ’, representing each of the code models.

Small model objects live in the lower 16MB of memory (so that their addresses can be loaded with the ‘ld24’ instruction), and are callable with the ‘ bl’ instruction.

Medium model objects may live anywhere in the 32 bit address space (the compiler will generate ‘seth/add3’ instructions to load their addresses), and are callable with the ‘bl’ instruction.

Large model objects may live anywhere in the 32 bit address space (the compiler will generate ‘seth/add3’ instructions to load their addresses), and may not be reachable with the ‘bl’ instruction (the compiler will generate the much slower ‘seth/add3/jl’ instruction sequence).

• Data types and alignment for M32R/D targets
• Allocation rules for structures and unions for M32R/D targets
• CPU registers for M32R/D targets
• The stack frame for M32R/D targets
• Argument passing for M32R/D processors
• Function return values for M32R/D processors
• Startup code for M32R/D targets

The stack is aligned to a four-byte boundary. One byte is used for characters (including structure/unions made entirely of chars), two bytes for shorts (including structure/unions made entirely of shorts), and four-byte alignment for everything else.

Allocation rules for structures and unions for M32R/D targets

• Structure and union packing can be controlled by attributes specified in the source code. In the absence of any attributes however, the following rules are obeyed:
• Fields that are shorts are aligned to 2 byte boundaries. Fields that are ints, longs, floats, doubles and long longs are aligned to 4 byte boundaries. Char fields are not aligned.
• Composite fields (ie ones that are themselves structures or unions) are aligned to greatest alignment requirement of any of their component fields. So if a field is a structure that contains a char, a short and an int, the field will be aligned to a 4-byte boundary because of the int.
• Bit fields are packed in a big-endian fashion, and they are aligned so that they will not cross boundaries of their type.

.zero 3

.byte 0x0

.byte 0x0

.byte 0x0

.byte 0x6

struct { short c:2, d:2, e:13; } s = { 0x2, 0x3, 0xf};

.byte 0xb0

.zero 1

.byte 0x0

.byte 0x78

Used for passing arguments to functions. Additional arguments are passed on the stack (see The stack frame for M32R/D targets). ‘r0’, ‘r1’ is also used to return the result of function calls. The values of these registers are not preserved across function calls.

Temporary registers for expression evaluation. The values of these registers are not preserved across function calls.

‘r4’ is reserved for use as a temporary register in the prologue.

‘r6’ is also reserved for use as a temporary in the Position Independent Code (PIC) calling sequence (if ever necessary) and may not be used in the function calling sequence or prologue of functions.

‘r7’ is also used as the static chain pointer in nested functions (a GNU C extension) and may not be used in the function calling sequence or prologue of functions. In other contexts it is used as a temporary register.

Temporary registers for expression evaluation. The values of these registers are preserved across function calls.

Temporary register for expression evaluation. Its value is preserved across function calls. It is also reserved for use as potential global pointer.

Reserved for use as the frame pointer if one is needed. Otherwise it may be used for expression evaluation. Its value is preserved across function calls.

Link register. This register contains the return address in function calls. It may also be used for expression evaluation if the return address has been saved.

Stack pointer.

This register is not preserved across function calls.

The carry bit of the ‘psw’ is not preserved across function calls.

• The stack grows downwards from high addresses to low addresses.
• A leaf function need not allocate a stack frame if it does not need one.
• A frame pointer need not be allocated.
• The stack pointer shall always be aligned to 4-byte boundaries.
• The register save area shall be aligned to a 4-byte boundary.

• An argument, if it is less than or equal to 8 bytes in size, is passed in registers if available. However, if such an argument is a composite structure (one with more than one field and greater than 4 bytes in size) it is also passed on the stack, in addition to being passed in the registers. An argument, which is greater than 8 bytes in size, is always passed by reference, which means that a copy of the argument is placed on the stack and a pointer to that copy is passed in the register.
• If a data type would overflow the register arguments, then it is passed in registers and memory. A ‘long long ’ data type passed in ‘r3’ would be passed in ‘r3 ’ and in the first 4 bytes of the stack.
• Arguments passed on the stack begin at ‘ sp’ with respect to the caller.
• Each argument passed on the stack is aligned on a 4 byte boundary.
• Space for all arguments is rounded up to a multiple of 4 bytes.

• Contain ‘_start’ symbol
• Initialize the stack pointer
• Zeros the ‘bss’ section
• Runs constructors for any global objects that have them

.balign 4

.global _start

_start:

ld24 sp, _stack

ldi fp, #0

# Clear the BSS. Do it in two parts for efficiency: longwords first

# for most of it, then the remaining 0 to 3 bytes.

ld24 r2, __bss_start ; R2 = start of BSS

ld24 r3, _end ; R3 = end of BSS + 1

sub r3, r2 ; R3 = BSS size in bytes

mv r4, r3

srli r4, #2 ; R4 = BSS size in longwords (rounded down)

ldi r1, #0 ; clear R1 for longword store

addi r2, #-4 ; account for pre-inc store

beqz r4, .Lendloop1 ; any more to go?

.Lloop1:

st r1, @+r2 ; yep, zero out another longword

addi r4, #-1 ; decrement count

bnez r4, .Lloop1 ; go do some more

.Lendloop1:

and3 r4, r3, #3 ; get no. of remaining BSS bytes to clear

addi r2, #4 ; account for pre-inc store

beqz r4, .Lendloop2 ; any more to go?

.Lloop2:

stb r1, @r2 ; yep, zero out another byte

addi r2, #1 ; bump address

addi r4, #-1 ; decrement count

bnez r4, .Lloop2 ; go do some more

.Lendloop2:

# Run code in the .init section.

# This will queue the .fini section to be run with atexit.

bl __init

# Call main, then exit.

bl main

bl exit

# If that fails just loop.

.Lexit:

bra .Lexit

• Register names for the M32R/D targets
• Addressing modes for M32R/D targets
• Floating point for M32R/D targets
• Pseudo opcodes for M32R/D targets
• Opcodes for M32R/D targets
• Synthetic instructions for M32R/D targets
• Writing assembler code for M32R/D targets
• Writing assembler code for M32R/D targets
• Inserting assembly instructions into C code for M32R/D targets
• M32R/D-specific assembler error messages

Warn (or do not warn using -no-warn-unmatched-high or -Wnuh ), if a ‘high’ or ‘shigh’ relocation has no matching ‘low’ relocation. The default is no warning.

The M32R/D assembler syntax is based on the syntax in Mitsubishi’s M32R Family Software Manual.

The M32R/D assembler supports ‘;’ (semi-colon) and ‘#’ (pound). Both characters are line comment characters when used in column zero. The semi-colon may also be used to start a comment anywhere within a line.

Addressing modes for M32R/D targets

Floating point for M32R/D targets

Create a label ‘ <label>’ with the value of the next instruction that follows the pseudo op. Unlike normal labels, the label created with ‘.debugsym’ does not force the next instruction to be aligned to a 32-bit boundary (i.e., it does not generate a nop, if the previous instruction is a 16-bit instruction, and the instruction that follows is also a 16-bit instruction).

Writing assembler code for M32R/D targets

.section .rodata

.balign 4

.LC0:

.string"hello world!\n"

.balign 4

.LC1:

.string"%d + %d = %d\n"

.section .text

.balign 4

.globalmain

.type main,@function

main:

; BEGIN PROLOGUE ; vars= 0, regs= 2, args= 0, extra= 0

push r8

push lr

; END PROLOGUE

ld24 r8,#a

ldi r4,#3

st r4,@(r8)

ld24 r0,#.LC0

bl printf

ld24 r0,#.LC1

ld r1,@(r8)

ld24 r4,#c

ldi r2,#4

add3 r3,r1,#4

st r3,@(r4)

bl printf

; EPILOGUE

pop lr

pop r8

jmp lr

.Lfe1:

.size main,.Lfe1-main

.comma,4,4

.commc,4,4

.ident"GCC: (GNU) 2.7-m32r-970408"

m32r-elf-as hello.s -o hello.o

• To clear the ‘CBR’ register, just one instruction can be used:

cmpi Rx,#0 total 6 bytes and destroys ‘Rx’.

To set the ‘CBR’ register, there are several methods. First, try using the following example’s input.

Alternatively, try using the following example’s input.

ldi Rx,#-2

addx R0,R0 total 4 bytes

The previous code examples are smaller than the following code example:

ldi Rx,#0

cmpi Rx,#1 total 6 bytes

To set a comparison result to a register, there are some idioms for the M32R.

mvfc Rx,CBR total 4 byte

(b) ‘...flag = !(x op 0); ...’

To get the inverted result of comparison, first set ‘CBR’ using one of the methods above, then, try using the following example’s input.



subx Rx,Rx

addi Rx,#1 total 4 byte

The previous example will provide better results than than the following code.

mvfc Rx,CBR

xor3 Rx,Rx,#1 total 6-byte

Note:

The ‘subx Rx,Rx ’ operation is equivalent to the following code.

.section .rodata

.balign 4

.LC0:

.string"hello world!\n"

.balign 4

.LC1:

.string"%d + %d = %d\n"

.section .text

.balign 4

.globalmain

.type main,@function

main:

; BEGIN PROLOGUE ; vars= 0, regs= 2, args= 0, extra= 0

push r8

push lr

; END PROLOGUE

ld24 r8,#a

ldi r4,#3

st r4,@(r8)

ld24 r0,#.LC0

bl printf

ld24 r0,#.LC1

ld r1,@(r8)

ld24 r4,#c

ldi r2,#4

add3 r3,r1,#4

st r3,@(r4)

bl printf

; EPILOGUE

pop lr

pop r8

jmp lr

.Lfe1:

.size main,.Lfe1-main

.comma,4,4

.commc,4,4

.ident"GCC: (GNU) 2.7-m32r-970408"

m32r-elf-as hello.s -o hello.o

• To clear the ‘CBR’ register, just one instruction can be used:

• To set the ‘CBR’ register, there are several methods:

or

ldi Rx,#-2

addx R0,R0 total 4 bytes

The previous code examples are smaller than the following code example:

ldi Rx,#0

cmpi Rx,#1 total 6 bytes

To set a comparison result to a register, there are some idioms for the M32R.

mvfc Rx,CBR total 4 byte

(b) ‘...flag = !(x op 0); ...’

To get the inverted result of comparison, first set ‘CBR’ using one of the methods above, then:



subx Rx,Rx

addi Rx,#1 total 4 byte

rather than the following code



mvfc Rx,CBR

xor3 Rx,Rx,#1 total 6-byte

Note:

The ‘subx Rx,Rx’ operation is equivalent to:


mvfc Rx,CBR

neg Rx,Rx

asm (

".global foo\n"
"foo:\n"
".word 42\n"
);

asm ("\

.global foo
foo:
.word 42
");

Warning!

The statement was constructed with the following procedure.

1. 1. The text to create the assembler instruction is the first part of the ‘asm’ statement, as in the following example.

M32R/D-specific assembler error messages

The instruction is misspelled or there is a syntax error somewhere.

Error: expression too complex

Error: unresolved expression that must be resolved
The instruction contains an expression that is too complex; no relocation exists to handle it.

Error: relocation overflow
The instruction contains an expression that is too large to fit in the field.

Producing S-records for M32R/D targets

S11801002D7F2E7F1D8FF000E0006DF4FE0000FEFE001B281F54
S11801158D2EEF2DEF1FCEEF1000006D00F000E20075C0E300C8
S118012A75F4032214835402610042FCF000B0840003216244B4
S118013FFFB094FFFF84C300034204F000B08400042102420148

Linker issues for M32R/D targets

Specify the initial value for the stack pointer. This assumes the application loads the stack pointer with the value of ‘_stack’ in the start up code.

The initial value for the stack pointer is defined in the linker script with the PROVIDE linker command. This allows the user to specify a new value on the command line with the standard linker option ‘--defsym’.

Linker script for the M32R/D targets

OUTPUT_ARCH(m32r)
ENTRY(_start)
SEARCH_DIR( <installation directory path> );

SECTIONS
{
/* Read-only sections, merged into text segment: */
. = 0x200000;
.interp : { *(.interp) }
.hash : { *(.hash) }
.dynsym : { *(.dynsym) }
.dynstr : { *(.dynstr) }
.rel.text : { *(.rel.text) }
.rela.text : { *(.rela.text) }
.rel.data : { *(.rel.data) }
.rela.data : { *(.rela.data) }
.rel.rodata : { *(.rel.rodata) }
.rela.rodata : { *(.rela.rodata) }
.rel.got : { *(.rel.got) }
.rela.got : { *(.rela.got) }
.rel.ctors : { *(.rel.ctors) }
.rela.ctors : { *(.rela.ctors) }
.rel.dtors : { *(.rel.dtors) }
.rela.dtors : { *(.rela.dtors) }
.rel.init : { *(.rel.init) }
.rela.init : { *(.rela.init) }
.rel.fini : { *(.rel.fini) }
.rela.fini : { *(.rela.fini) }
.rel.bss : { *(.rel.bss) }
.rela.bss : { *(.rela.bss) }
.rel.plt : { *(.rel.plt) }
.rela.plt : { *(.rela.plt) }
.init : { *(.init) } =0
.plt : { *(.plt) }
.text :
{
*(.text)
/* .gnu.warning sections are handled specially by
elf32.em. */
*(.gnu.warning)
*(.gnu.linkonce.t*)
} =0

_etext = .;
PROVIDE (etext = .);
.fini : { *(.fini) } =0
.rodata : { *(.rodata) *(.gnu.linkonce.r*) }
.rodata1 : { *(.rodata1) }
/* Adjust the address for the data segment. We want to
adjust up to the same address within the page on the
next page up. */

. = ALIGN(32) + (ALIGN(8) & (32 - 1));
.data :
{
*(.data)
*(.gnu.linkonce.d*)
CONSTRUCTORS
}
.data1 : { *(.data1) }
.ctors : { *(.ctors) }
.dtors : { *(.dtors) }
.got : { *(.got.plt) *(.got) }
.dynamic : { *(.dynamic) }
/* We want the small data sections together, so
single-instruction offsets can access them all, and
initialized data all before uninitialized, so we can
shorten the on-disk segment size. */

.sdata : { *(.sdata) }
_edata = .;
PROVIDE (edata = .);
__bss_start = .;
.sbss : { *(.sbss) *(.scommon) }
.bss : { *(.dynbss) *(.bss) *(COMMON) }
_end = . ;
PROVIDE (end = .);
/* Stabs debugging sections. */
.stab 0 : { *(.stab) }
.stabstr 0 : { *(.stabstr) }
.stab.excl 0 : { *(.stab.excl) }
.stab.exclstr 0 : { *(.stab.exclstr) }
.stab.index 0 : { *(.stab.index) }
.stab.indexstr 0 : { *(.stab.indexstr) }
.comment 0 : { *(.comment) }

/* DWARF debug sections.
Symbols in the .debug DWARF section are relative to the
beginning of the section so we begin .debug at 0. It’s
not clear yet what needs to happen for the others. */

.debug 0 : { *(.debug) }
.debug_srcinfo 0 : { *(.debug_srcinfo) }
.debug_aranges 0 : { *(.debug_aranges) }
.debug_pubnames 0 : { *(.debug_pubnames) }
.debug_sfnames 0 : { *(.debug_sfnames) }
.line 0 : { *(.line) }

PROVIDE (_stack = 0x3ffffc);

}

Debugger issues with M32R/D targets

• Simulator

GDB’s built-in software simulation of the M32R/D processor allows the debugging of programs compiled for the M32R/D without requiring any access to actual hardware. Activate this mode in GDB by using the ‘target sim’ command. Then load code into the simulator by using the ‘ load’ command and debug it in the normal fashion.
• Remote target board, with remote stub linked directly to user program

The program being debugged must have the remote debugging protocol subprogram linked directly into it, to use this mode.

breakpoint();

If GDB is running on a Unix host computer, start the target program by simply using the ‘ run’ command at the ‘(gdb)’ prompt. Then GDB must be interrupted by using several Ctrl-c (^C ) characters. However, if GDB is being run on a Microsoft Windows 95 host computer, you must exit from GDB and connect to the M32R/D EVA target board with a terminal program such as Kermit or HyperTerminal. Use the Return key to get the ROM monitor’s ‘ok’ prompt; then use the ‘go’ command and use the Return key, as the following example input shows.

ok go

Then exit from the terminal program and start up GDB again. It is then possible to connect GDB to the target using GDB’s remote protocol, with the command ‘target remote <devicename>’ where ‘ <devicename>’, as before, is the name of a serial device. The debugging session can then proceed. GDB will initially report that the program has received a ‘ SIGTRAP’ while executing the call to the ‘breakpoint( ) ’ function . From there you can continue or single-step to get back into your own program.

• Remote target board, remote stub already loaded independently

In this mode, it is assumed that the remote protocol subprogram is already running on the target board. With the remote stub already running on the target board, use the ‘gdb’command to start the debugging, then use the ‘target remote <devicename>’ command, where ‘ <devicename>’ will be a serial device such as ‘/dev/ttya’(Unix) or ‘com2’ (Windows 95), and then download your program and begin debugging it. Downloading is from six to seven times faster using this method.

Note:

Stand-alone simulator for M32R/D targets

warning!

• The ‘-t’ command-line option to the stand-alone simulator turns on instruction level tracing as shown in the following segment:

• The ‘-v’ command-line option prints some simple statistics:

hello world!
3 + 4 = 7
Total: 3808 insns
Fill nops: 609

• The ‘-p’ command prints profiling statistics.

Hello world!
3 + 4 = 7
Instruction Statistics

Total: 3796 insns

add: 75: *****
add3: 123: ********
and: 3:
and3: 61: ****
or: 28: *
or3: 3:
addi: 222: ***************
bc8: 9:
bc24: 3:
beq: 23: *
beqz: 131: ********
bgez: 8:
bgtz: 2:
blez: 42: **
bltz: 6:
bnez: 252: *****************
bl8: 11:
bl24: 82: *****
bnc8: 52: ***
bne: 1:
bra8: 29: *
bra24: 9:
cmp: 28: *
cmpu: 34: **
cmpui: 2:
jl: 7:
jmp: 100: ******
ld: 93: ******
ld-d: 277: ******************
ldb: 77: *****
ldb-d: 6:
ldh-d: 38: **
ldub: 23: *
lduh-d: 23: *
ld-plus: 158: **********
ld24: 55: ***
ldi8: 163: ***********
ldi16: 5:
mv: 282: *******************
neg: 26: *
nop: 584: ****************************************
sll: 3:
sll3: 7:
slli: 25: *
srai: 25: *
srli: 35: **
st: 52: ***
st-d: 195: *************
stb: 27: *
stb-d: 4:
sth: 25: *
sth-d: 11:
st-plus: 13:
st-minus: 164: ***********
sub: 52: ***
trap: 2:

Memory Access Statistics

Total read: 1891 accesses
Total write: 491 accesses

QI read: 83: **
QI write: 31: *
HI read: 38: *
HI write: 36: *
SI read: 528: *****************
SI write: 424: **************
UQI read: 23:
UHI read: 23:
USI read: 1196: ****************************************

Model m32r/d timing information:

Taken branches: 532
Untaken branches: 237
Cycles stalled due to branches: 1064
Cycles stalled due to loads: 670
Total cycles (approx): 4946

Fill nops: 584

Overlays for M32R/D targets

• Sample runtime overlay manager for M32R/D (below)
• Linker script for overlays for the M32R/D targets
• Debugging the example program for M32R/D targets
• GDB overlay support for M32R/D targets
• Manual mode commands for M32R/D targets
• Auto mode commands for M32R/D targets
• Debugging with overlays for M32R/D targets
• Breakpoints for M32R/D targets

Sample runtime overlay manager for M32R/D

Linker script for overlays for the M32R/D targets

The ‘OVERLAY’ command has two arguments: first, the base address where all of the overlay sections link and run; second, the address where the first overlay section loads. In the example, the ‘.ovly1’ section will load at ‘0x400000 + SIZEOF(.ovly0)’. For a full description of the ‘OVERLAY ’ linker command, see Output section type and Overlay description in Using ld in GNUPro Utilities.

The ‘OVERLAY’ command is really just a syntactic convenience. For finer control over where the individual sections will load, use the following example’s syntax

SECTIONS

{
.ovly0 0x300000 : AT (0x400000) { foo.o(.text) }
.ovly1 0x300000 : AT (0x410000) { bar.o(.text) }
.ovly2 0x380000 : AT (0x420000) { baz.o(.text) }
.ovly3 0x380000 : AT (0x430000) { grbx.o(.text) }
[...]

The second addition to the linker script actually builds the ‘_ovly_table’ table, which the sample runtime overlay manager uses. This table has several entries for each overlay, and must be located somewhere in the ‘.data ’ section.

.data :
{
[...]
_ovly_table = .;
LONG(ABSOLUTE(ADDR(.ovly0)));
LONG(SIZEOF(.ovly0));
LONG(LOADADDR(.ovly0));
LONG(0);
LONG(ABSOLUTE(ADDR(.ovly1)));
LONG(SIZEOF(.ovly1));
LONG(LOADADDR(.ovly1));
LONG(0);
LONG(ABSOLUTE(ADDR(.ovly2)));
LONG(SIZEOF(.ovly2));
LONG(LOADADDR(.ovly2));
LONG(0);
LONG(ABSOLUTE(ADDR(.ovly3)));
LONG(SIZEOF(.ovly3));
LONG(LOADADDR(.ovly3));
LONG(0);
_novlys = .;
LONG((_novlys - _ovly_table) / 16);
[...]
}

The example program has four functions; ‘foo’, ‘bar’, ‘baz’, and ‘ grbx’. Each is in a separate overlay section. Functions ‘foo ’ and ‘bar’ are both linked to run at address ‘0x300000 ’, while functions ‘baz’ and ‘grbx’ are both linked to run at ‘0x380000’.

The main program calls ‘ OverlayLoad’ once before calling each of the overlaid functions, giving it the overlay number of the respective overlay. The overlay manager, using the ‘_ovly_table’ table that was built up by the linker script, copies each overlayed function into the appropriate region of memory before it is called.

In order to compile and link the example overlay manager, use the following example’s input.

m32r-elf-gcc -g -Tm32rdata.ld -oovlydata maindata.c ovlymgr.c

Debugging the example program for M32R/D targets

Reading symbols from ovlydata...done.

(gdb) target sim
Connected to the simulator.

(gdb) load
Loading section .ovly0, size 0x28 lma 0x400000
Loading section .ovly1, size 0x28 lma 0x400028
Loading section .ovly2, size 0x28 lma 0x480000
Loading section .ovly3, size 0x28 lma 0x480028
Loading section .data00, size 0x4 lma 0x440000
Loading section .data01, size 0x4 lma 0x440004
Loading section .data02, size 0x4 lma 0x4c0000
Loading section .data03, size 0x4 lma 0x4c0004
Loading section .init, size 0x1c lma 0x208000
Loading section .text, size 0xa3c lma 0x20801c
Loading section .fini, size 0x14 lma 0x208a58
Loading section .rodata, size 0x24 lma 0x208a6c
Loading section .data, size 0x374 lma 0x208ab0
Loading section .ctors, size 0x8 lma 0x208e24
Loading section .dtors, size 0x8 lma 0x208e2c
Start address 0x20801c
Transfer rate: 30240 bits in <1 sec.

(gdb) overlay auto

(gdb) overlay list
No sections are mapped.

(gdb) info address foo
Symbol "foo" is a function at address 0x300000,
loaded at 0x400000 in overlay section .ovly0.

(gdb) info symbol 0x300000
foo in unmapped overlay section .ovly0
bar in unmapped overlay section .ovly1

(gdb) info address bar
Symbol "bar" is a function at address 0x300000,
loaded at 0x400028 in overlay section .ovly1.

(gdb) break main
Breakpoint 1 at 0x20839c: file maindata.c, line 12.


(gdb) run
Starting program: ovlydata
Breakpoint 1, main () at maindata.c:12
12 if (!OverlayLoad(0))

(gdb) next
14 if (!OverlayLoad(4))

(gdb) next
16 a = foo(1);

(gdb) overlay list
Section .ovly0, loaded at 00400000 - 00400028, mapped at 00300000 - 00300028
Section .data00, loaded at 00440000 - 00440004, mapped at 00340000 - 00340004

(gdb) info symbol 0x300000
foo in mapped overlay section .ovly0
bar in unmapped overlay section .ovly1

The overlay containing the ‘foo’ function is now mapped.

(gdb) step
foo (x=1) at foo.c:5
5 if (x)

(gdb) x /i $pc
0x300008 <foo+8>: ld r4, @fp || nop

(gdb) print foo
$1 = {int (int)} 0x300000 <foo>

(gdb) print bar
$2 = {int (int)} 0x400028 <*bar*>

GDB uses labels such as ‘ <*bar*>’ (with asterisks) to distinguish overlay load addresses from the symbol’s runtime address (where it will be when used by the program).

(gdb) disassemble
Dump of assembler code for function foo:
0x300000 <foo>: st fp,@-sp -> addi sp,-4
0x300004 <foo+4>: mv fp,sp -> st r0,@fp
0x300008 <foo+8>: ld r4,@fp || nop
0x30000c <foo+12>: beqz r4,0x30001c <foo+28>
0x300010 <foo+16>: ld24 r4,0x340000 <foox>
0x300014 <foo+20>: ld r5,@r4 -> mv r0,r5
0x300018 <foo+24>: bra 0x300020 <foo+32> -> bra 0x300020 <foo+32>
0x30001c <foo+28>: ldi r0,0 -> bra 0x300020 <foo+32>
0x300020 <foo+32>: add3 sp,sp,4
0x300024 <foo+36>: ld fp,@sp+ -> jmp lr
End of assembler dump.

(gdb) disassemble bar
Dump of assembler code for function bar:
0x400028 <*bar*>: st fp,@-sp -> addi sp,-4
0x40002c <*bar+4*>: mv fp,sp -> st r0,@fp
0x400030 <*bar+8*>: ld r4,@fp || nop
0x400034 <*bar+12*>: beqz r4,0x400044 <*bar+28*>
0x400038 <*bar+16*>: ld24 r4,0x340000 <foox>
0x40003c <*bar+20*>: ld r5,@r4 -> mv r0,r5
0x400040 <*bar+24*>: bra 0x400048 <*bar+32*> -> bra 0x400048 <*bar+32*>
0x400044 <*bar+28*>: ldi r0,0 -> bra 0x400048 <*bar+32*>
0x400048 <*bar+32*>: add3 sp,sp,4
0x40004c <*bar+36*>: ld fp,@sp+ -> jmp lr
End of assembler dump.

Since the overlay containing ‘bar’ is not currently mapped, GDB finds ‘bar’ at its load address, and disassembles it there.

(gdb) finish
Run till exit from #0 foo (x=1) at foo.c:5
0x2083cc in main () at maindata.c:16
16a = foo(1);
Value returned is $3 = 324

(gdb) next
17if (!OverlayLoad(1))

(gdb) next
19if (!OverlayLoad(5))

(gdb) next
21b = bar(1);

(gdb) overlay list
Section .ovly1, loaded at 00400028 - 00400050, mapped at 00300000 - 00300028
Section .data01, loaded at 00440004 - 00440008, mapped at 00340000 - 00340004

(gdb) info symbol 0x300000
foo in unmapped overlay section .ovly0
bar in mapped overlay section .ovly1

(gdb) step
bar (x=1) at bar.c:5
5 if (x)

(gdb) x /i $pc
0x300008 <bar+8>: ld r4,@fp || nop

Now ‘bar’ is mapped, and ‘foo’ is not. Even though the PC is at the same address as before, GDB recognizes that we are in ‘bar’ rather than ‘ foo’.

(gdb) disassemble
Dump of assembler code for function bar:
0x300000 <bar>: st fp,@-sp -> addi sp,-4
0x300004 <bar+4>: mv fp,sp -> st r0,@fp
0x300008 <bar+8>: ld r4,@fp || nop
0x30000c <bar+12>: beqz r4,0x30001c <bar+28>
0x300010 <bar+16>: ld24 r4,0x340000 <barx>
0x300014 <bar+20>: ld r5,@r4 -> mv r0,r5
0x300018 <bar+24>: bra 0x300020 <bar+32> -> bra 0x300020 <bar+32>
0x30001c <bar+28>: ldi r0,0 -> bra 0x300020 <bar+32>
0x300020 <bar+32>: add3 sp,sp,4
0x300024 <bar+36>: ld fp,@sp+ -> jmp lr
End of assembler dump.

(gdb) finish
Run till exit from #0 bar (x=1) at bar.c:5
0x208400 in main () at maindata.c:21
21b = bar(1);
Value returned is $4 = 309

The ‘bazx’ and ‘ grbxx’ variables are now both mapped to the same runtime address. With the automatic overlay debugging mode, GDB always knows which variable is using an address.

(gdb) info addr bazx
Symbol "bazx" is static storage at address 0x3c0000,
loaded at 0x4c0000 in overlay section .data02.

(gdb) info sym 0x3c0000
bazx in unmapped overlay section .data02
grbxx in unmapped overlay section .data03

(gdb) info addr grbxx
Symbol "grbxx" is static storage at address 0x3c0000,
loaded at 0x4c0004 in overlay section .data03.

(gdb) break baz
Breakpoint 2 at 0x380008: file baz.c, line 5.

(gdb) break grbx
Breakpoint 3 at 0x380008: file grbx.c, line 5.

The two breakpoints are actually set at the same address, yet GDB will correctly distinguish between them when it hits them. If only one overlay function has a breakpoint on it, GDB will not stop at that address in other overlay functions.

(gdb) cont
Continuing.

Breakpoint 2, baz (x=1) at baz.c:5
5 if (x)

(gdb) print &bazx
$5 = (int *) 0x3c0000

(gdb) x /d &bazx
0x3c0000 <bazx>: 317

(gdb) print &grbxx
$6 = (int *) 0x4c0004

(gdb) cont
Continuing.

Breakpoint 3, grbx (x=1) at grbx.c:5
5 if (x)

(gdb) print &grbxx
$7 = (int *) 0x3c0000

(gdb) x /d &grbxx
0x3c0000 <grbxx>: 435

(gdb) print &bazx
$7 = (int *) 0x4c0000

(gdb) x /d &bazx
0x4c0000 <*bazx*>: 317

GDB overlay support for M32R/D targets

Manual mode commands for M32R/D targets

The manual mode requires input from the user to specify what overlays are mapped into their runtime address regions at any given time. The ‘ overlay map’ command informs GDB that the overlay has been mapped by the target into its shared runtime address range. The ‘overlay unmap’ command informs GDB that the overlay is no longer resident in its runtime address region, and must be accessed from the load-time address region. If two overlays share the same runtime address region, then mapping one implies unmapping the other.

Auto mode commands for M32R/D targets

Automatic overlay debugging support in GDB works with the runtime overlay manager provided in the ‘examples’ directory.

When this mode is activated, GDB will automatically read and interpret the data structures maintained in target memory by the overlay manager. To learn what overlays are mapped at any time, use the ‘overlay list’ command.

Whenever the target program is allowed to run (by the ‘step’ command), GDB will refresh its overlay map by reading from the target’s overlay tables.

The automatic mapping may be temporarily overridden by the ‘overlay map’ and ‘ overlay unmap’ commands, but these mappings will last only until the next time the target is allowed to run. To explicitly take control of GDB’s overlay mapping, switch to the ‘overlay manual’ mode.

Debugging with overlays for M32R/D targets

(gdb) overlay unmap .ovly0

(gdb) x /x foo
0x400000 <*foo*>: 0x2d7f4ffc

The asterisks (* ) around the ‘foo’ label may be interpreted as meaning that this is where ‘foo’ is, but not where it will be when it is in use by the target program.

The ‘INFO ADDRESS ’ command can tell you what overlay a symbol is in, as well as where it is loaded and mapped. The ‘INFO SYMBOL’ command can list all of the symbols that are mapped to an address.

(gdb) info addr foo
Symbol "foo" is a function at address 0x300000,
-- loaded at 0x400000 in overlay section .ovly0.

(gdb) info symbol 0x300000
foo in mapped overlay section .ovly0
bar in unmapped overlay section .ovly1

Breakpoints for M32R/D targets
