Developing for the V_R4100, V_R4300, and V_R5xxx processors

The following documentation details the V_R4100, V_R4300, and V_R5xxx processors.

Developing for the V_R4100 processors
Developing for the V_R4300 processors
Developing for the V_R5xxx processors

Developing for the V_R4100 processors

The following documentation describes developing with the V_R4100 MIPS processors.

Compiler features for V_R4100 processors
ABI summary for V_R4100 processors
Assembler features for V_R4100 processors
Linker issues for V_R4100 processors
Debugger issues for V_R4100 processors
Stand-alone simulator issues for V_R4100 processors

The following documentation can serve as additional resource for working with the V_R4100 processors.

DDB-V_R4100 Evaluation Board

(NEC document #U11852EU1V0UM00, September 1996)

VR4100 MIPS Microprocessor User's Manual

(MIPS Technologies, Inc., 1995)

MIPS R4000 User's Manual

(Joseph Heinrich, Prentice-Hall, 1993, ISBN 0-13-105925-4)

MIPS RISC Architecture

(Gerry Kane & Joe Heinrich, Prentice-Hall, 1992, ISBN 0-13-590472-2)

Address Allocation for Private Internets, RFC 1918

(de Groot, G. J. and Lear, E., February 1996)

System V Application Binary Interface

(Prentice-Hall, 1991, ISBN 0-13-880170-3)

System V Application Binary Interface MIPS Processor Supplement

(Prentice-Hall, 1991, ISBN 0-13-880170-3)

Compiler features for V_R4100 processors

For a list of available generic compiler options, see GNU CC command options and Option summary for GCC in Using GNU CC in GNUPro Compiler Tools. In addition, the following V_R4100-specific command-line options are supported.

-EL

Compile code for the processor in little endian mode.

-EB

Compile code for the processor in big-endian mode.

Preprocessor symbols for V_R4100 processors

See Preprocessors symbols and their definitions for V_R4100 processors for preprocessors symbols and their definitions with the GNU compiler options.

Preprocessors symbols and their definitions for V_R4100 processors

Symbol	Compiler options which define the symbol
`mips`	Only if ``-ansi`' not used.
`_mips`	Only if ``-ansi`' not used.
`__mips`	Always defined.
`__mips_soft_float`	Always defined.
`MIPSEB`	Only if ``-ansi`' and ``-EL`' are not used.
`_MIPSEB`	Only if ``-EL`' is not used.
`__MIPSEB`	Only if ``-EL`' is not used.
`__MIPSEB__`	Only if ``-EL`' is not used.
`R4100`	Only if ``-ansi`' not used.
`_R4100`	Always defined.
`MIPSEL`	Only if ``-ansi`' is not used and ``-EL`' is used.
`_MIPSEL`	Only if ``-EL`' is used.
`__MIPSEL`	Only if ``-EL`' is used.
`__MIPSEL__`	Only if ``-EL`' is used.

note:

If neither `-EL' or `-EB' are defined, big-endian is the default.

ABI summary for V_R4100 processors

The following documentation discusses the Application Binary Interface (ABI) issues for the VR4100 processors.

Data types and alignment for V_R4100 processors
Register allocation for V_R4100 processors
The stack frame for V_R4100 processors
Argument passing for V_R4100 processors
Function return values for V_R4100 processors

GNUPro Toolkit for the MIPS16 does not comply with the proposed MIPS Embedded Application Binary Interface (EABI) because that EABI has not yet been finalized.

Data types and alignment for V_R4100 processors

See Data type sizes and alignments for V_R4100 processors for the data type sizes and alignments for V_R4100 processors.

Data type sizes and alignments for V_R4100 processors

Data type	Size
`char`	1 byte
`short`	2 bytes
`int`	4 bytes
`long`	4 bytes
`long long`	8 bytes
`float`	4 bytes
`double`	8 bytes
`long double`	8 bytes
pointer	4 bytes

Register allocation for V_R4100 processors

See for register allocation for the V_R4100 processors.

Register allocation for the V_R4100 processors

General purpose (integer) register	Usage
Constant zero	`$0`
Volatile	`$1` through `$15` , `$24` , `$25`
Saved	`$16` through `$23` , `$30`
Parameters	`$4` through `$7`
Kernel reserved	`$26` , `$27`
Global pointer	`$28`
Stack pointer	`$29`
Frame pointer	`$30`
Return address	`$31`

note:

Do not depend on this order. Instead, use GCC's `asm( )' extension and allow the compiler to schedule registers.

The stack frame for V_R4100 processors

The stack frame specifics for the V_R4100 processors have the following guidelines. See Stack frame guidelines for the V_R4100 processors for stack frame specifics for the V_R4100 processors.

The stack grows downwards from high addresses to low addresses.
A leaf function need not allocate a stack frame if it does not need one.
A frame pointer need not be allocated.
The stack pointer shall always be aligned to 8 byte boundaries.

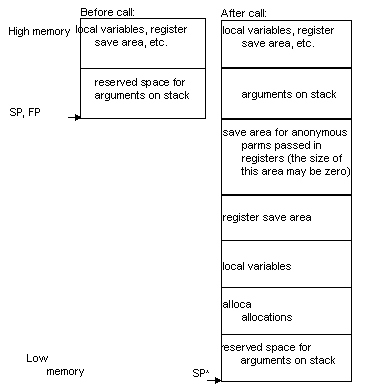

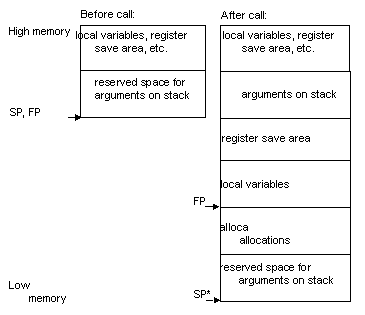

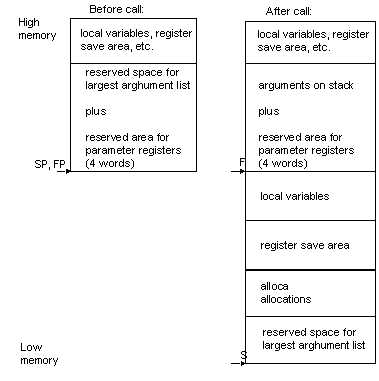

Stack frame guidelines for the V_R4100 processors

Argument passing for V_R4100 processors

The compiler passes arguments to a function using a combination of integer general registers, and the stack. The number, type, and relative position of arguments in the calling functions argument list define the combination of registers and memory used. The general registers ` $4..$7' pass the first few arguments.

If the function being called returns a structure or union, the calling function passes the address of an area large enough to hold the structure to the function in `$4'. The function being called copies the returned structure into this area before returning. The address in `$4' becomes the first argument to the function for the purpose of argument register allocation. All user arguments are then shifted down by one.

The compiler always allocates space on the stack for all arguments even when some or all of the arguments to a function are passed in registers. This stack space is a large enough structure to contain all the arguments. After promotion and structure return pointer insertion, the arguments are aligned according to normal structure rules. Locations used for arguments within the stack frame are referred to as the home locations.

Floating point numbers are handled the same way as integers of equivalent size.

The compiler passes structures and unions as if they were very wide integers with their size rounded up to an integral number of words. The "fill bits" necessary for rounding up are undefined. A structure can be split so that a portion is passed in registers and the remainder passed on the stack. In this case, the first words are passed in `$4', `$5', `$6', and `$7' as needed, with additional words passed on the stack.

Function return values for V_R4100 processors

A function can return "no value", an integral or pointer value, a floating-point value (single or double precision), or a structure; unions are treated the same as structures.

A function that returns no value puts no particular value in any register.

A function that returns an integral, a pointer value, or a floating-point value places its result in register `$2'.

The caller to a function that returns a structure or a union passes the address of an area large enough to hold the structure in register `$4'. The function returns a pointer to the returned structure in register `$2'.

Assembler features for V_R4100 processors

For a list of available generic assembler options, see Command-line options in Using asin GNUPro Utilities.

-EB

-EL

Any MIPS configuration of the assembler can select big-endian or little-endian output at run time.

Use `-EB' to select big-endian output, and `-EL' for little-endian. The default is big-endian.

For information about the MIPS instruction set, see MIPS RISC Architecture (Kane and Heindrich, Prentice-Hall). For an overview of MIPS assembly conventions, see "Appendix D: Assembly Language Programming" in MIPS RISC Architecture.

There are 32 64-bit general (integer) registers, named `$0 ' through ` $31'.

For specific assembler mnemonics, see MIPS RISC Architecture or MIPS R4000 User's Manual.

Linker issues for V_R4100 processors

For a list of available generic linker options, see Linker scripts in Using ldin GNUPro Utilities. In addition, the following V_R4100-specific command-line options are supported.

-EL

Link objects for the processor in little endian mode.

-EB

Link objects for the processor in big-endian mode.

Linker script for V_R4100 processors

The GNU linker uses a linker script to determine how to process each section in an object file, and how to lay out the executable. The linker script is a declarative program consisting of a number of directives. For instance, the ENTRY( ) directive specifies which symbol in the executable will be designated the executable's entry point. Since linker scripts can be complicated to write, the linker includes one built-in script that defines the default linking process.

The following `pmon.ld' linker script should be used when linking programs for the NEC DDB- VR4100 board. It can also be used to link programs for execution in the MIPS simulator.

/* The following TEXT start address leaves space for the monitor workspace. */

ENTRY(_start)

OUTPUT_ARCH("mips:4000")

OUTPUT_FORMAT("elf32-bigmips", "elf32-bigmips", "elf32-littlemips")

GROUP(-lc -lpmon -lgcc)

SEARCH_DIR(.)

__DYNAMIC = 0;

/* Allocate the stack to be at the top of memory, since the stack grows down

*/

PROVIDE (__stack = 0);

/* PROVIDE (__global = 0); */

/*Initalize some symbols to be zero so we can reference them in the crt0 without core dumping. These functions are all optional, but we do this so we can have our crt0 always use them if they exist. This is so BSPs work better when using the crt0 installed with gcc. We have to initalize them twice, so we multiple object file formats, as some prepend an underscore.

*/

PROVIDE (hardware_init_hook = 0);

PROVIDE (software_init_hook = 0);

SECTIONS

. = 0xA0020000;

.text : {

_ftext = . ;

*(.init)

eprol = .;

*(.text)

*(.mips16.fn.*)

*(.mips16.call.*)

PROVIDE (__runtime_reloc_start = .);

*(.rel.sdata)

PROVIDE (__runtime_reloc_stop = .);

*(.fini)

etext = .;

_etext = .;

. = .;

.rdata : {

*(.rdata)

_fdata = ALIGN(16);

.data : {

*(.data)

CONSTRUCTORS

. = ALIGN(8);

_gp = . + 0x8000;

__global = _gp;

.lit8 : {

*(.lit8)

.lit4 : {

*(.lit4)

.sdata : {

*(.sdata)

. = ALIGN(4);

edata = .;

_edata = .;

_fbss = .;

.sbss : {

*(.sbss)

*(.scommon)

.bss : {

_bss_start = . ;

*(.bss)

*(COMMON)

end = .;

_end = .;

Debugger issues for V_R4100 processors

The following documentation discusses debugging with V_R4100 processors.

To connect GDB to the DDB-V_R4100 board, start GDB with the `ddb' target. DDB boards are little-endian and use the PMON monitor. GDB uses the MIPS remote debugging protocol to talk to this target via a serial port. Additionally, the `ddb' target supports network downloading using the TFTP protocol.

To run a program on the DDB-VR4100 board, start up GDB with the name of your program as the argument. To connect to the DDB-V_R4100 board, for instance, use the `target ddb <port>' command, where `<port>'is the name of the serial port connected to the board.

If the program has not already been downloaded to the board, you can use the `load' command to download it. You can then use all the usual GDB commands. For example, the following example's input connects the target board through a Unix serial port, and loads and runs a program called `prog' through the debugger.

% mips64vr4100-elf-gdb prog
GDB is free software and . . .

(gdb)target ddb /dev/ttyb
(gdb)load prog
(gdb)run

On PC platforms substitute the specific COM port, using the following example's input.

C:\> gdb prog
GDB is free software and . . .

(gdb)target ddb com3
(gdb)load prog
(gdb)run

You can speed up loading of programs on the DDB board by installing a network card on the board and using TFTP (trivial file transfer protocol) to download programs to the board. You must first configure the DDB board manually for network use.

Target command options for V_R4100 processors

The following documentation discusses debugger commands for targeting with V_R4100 board s.

target ddb <hostname>:<portnumber>

On all GDB Unix host configurations, you can specify a TCP connection (for instance, to a serial line managed by a terminal concentrator) instead of a serial port, using the syntax `<hostname>:<portnumber>'.

target ddb <port> <remote-tftp-name>

target ddb <hostname>:<portnumber> <remote-tftp-name>
Specify a `<remote-tftp-name>' in the target command to enable TFTP downloading in GDB. This name must be in the format: `<host>:<filename>'. Here `<host>' is either the name or the IP address of the host system that is running a TFTP server (typically your host Unix workstation). Here `<filename>' is the name of a temporary file that GDB will create during downloading. The directory containing the temporary file must be world-readable; the `/tmp' directory is usually a good choice.

target ddb <port> <remote-tftp-name> <local-tftp-name>

target ddb <hostname>:<portnumber> <remote-tftp-name> <local-tftp-name>
You can also specify an optional `<local-tftp-name>', which is a simple filename (without the `<host>' prefix). This tells GDB the name of the temporary filename as seen by the host machine that is running GDB. This is necessary only if the name of the file as seen by the host machine is different from the name of that same file as seen via TFTP from the target board. This might be the case if the TFTP server is running on a different machine than the GDB host, and has a different name for the same temporary file because of NFS mounting or symbolic links.

The following example shows input for a TFTP download. The host machine running the TFTP server has the IP address `192.168.1.1'. The temporary file that GDB will create for TFTP downloading is `/tmp/download.tmp'.

% mips64vr4100-elf-gdb prog
GDB is free software and . . .

(gdb)target ddb /dev/ttyb 192.168.1.1:/tmp/download.tmp
(gdb)load prog
(gdb)run

In the next example, both a remote TFTP name and a local TFTP are specified, because the TFTP server is running on a different machine, and has a different name for the same temporary file than the host machine that is running GDB. The name of the temporary file as seen by the TFTP server is `/mymachine/tmp/download.tmp', but the name of that same file as seen by the host running GDB is `/tmp/download.tmp'.

% mips64vr4100-elf-gdb prog
GDB is free software and . . .

(gdb)target ddb /dev/ttyb \
192.168.1.1:/mymachine/tmp/download.tmp /tmp/download.tmp
(gdb)load prog
(gdb)run

Special debugging commands for V_R4100 boards

GDB also supports the following special commands for MIPS targets.

set remotedebug num

show remotedebug

For this to be useful, you must know something about the MIPS debugging protocol, also called `rmtdbg'. An informal description can be found in the GDB source files, specifically in the file:
`remote-mips.c'.

You can see some debugging information about communications with the board by setting the `remotedebug'variable. If you set it to 1 using
`set remotedebug 1', every packet is displayed. If you set it to 2, every character is displayed. You can check the current value at any time with the command `showremotedebug'.

set timeout seconds

set retransmit-timeout seconds

show timeout

show retransmit-timeout
You can control the timeout used while waiting for a packet, in the MIPS debugging protocol, with the `set timeout seconds' command. The default is 5 seconds. Similarly, you can control the timeout used while waiting for an acknowledgment of a packet with:

set retransmit-timeout seconds
The default is 3 seconds. You can inspect both values with `show timeout' and `show retransmit-timeout'.

The timeout set by `set timeout' does not apply when GDB is waiting for your program to stop. In that case, GDB waits forever because it has no way of knowing how long the program is going to run before stopping.

Stand-alone simulator issues for V_R4100 processors

The following documentation discusses the three run-time command-line options for the stand-alone simulator: -t, -vand -m. Before you can download a program to the DDB board, without GDB, the program must be converted into S-records. See also Producing S-records for V_R4100 boards.

The `-t' command-line option to the stand-alone simulator turns on tracing of all memory fetching and storing in the simulator:

C:\>run -t hello.xl

C:\>

The simulator writes the trace information to the file `trace.din'. Here are the first few lines of a trace file:

The `-v' command-line option prints some simple statistics.

C:\>run -v hello.xl

Hello, world!
3 + 4 = 7
MIPS 64-bit simulator
Big endian memory model
0x00100000 bytes of memory at 0x00000000A0000000
Instruction fetches = 20653
Pipeline ticks = 20653

The `-m' command-line option sets the size of the simulated memory area. The default size is 1048576 bytes (1 megabyte). The simulator rounds up the size you request to the next power of two.

C:\>run -v -m 200000 hello.xl

Hello, world!
3 + 4 = 7
MIPS 64-bit simulator
Big endian memory model
0x00040000 bytes of memory at 0x00000000A0000000
Instruction fetches = 20341
Pipeline ticks = 20341

Producing S-records for V_R4100 boards

The following documentation describes how to download and run directly on the DDB board. Before you can download a program to the DDB board, without GDB, the program must be converted into S-records.

First, compile a little-endian executable (`hello.xl') using the `-EL' option to GCC.

mips64vr4100-elf-gcc -g hello.c -o hello.xl -EL

Then, with the following command, read the contents of the `hello.x1'executable, convert the code and data into S-records, and put the result into the `hello.srec' file.

mips64vr4100-elf-objcopy -O srec hello.x1 hello.srec

The following first few lines are from the resulting `hello.srec' download.

S00D000068656C6C6F2E7372656303
S31AA00200001024023CE00042340060824000688040AAAA0A3C5534
S31AA0020015554A3500008A44000880440000084400080944000011
S31AA002002A000005000A1500000000030020150000000014000497
S31AA002003F08000000001004023CE00042340060824010A0023C36

Downloading to the DDB board for V_R4100 boards

Use the Unix `tip' program to download a program to the DDB. In the following example, the DDB board is connected to serial port `/dev/ttya' on a Unix host.

%tip /dev/ttya

NEC010>load tty0
Downloading from tty0, ^C to abort
~>hello.srec
NEC010> g

Downloading a program via Ethernet is similar. First, convert the program to S-records; see Producing S-records for V_R4100 boards (above). Then, copy the S-record file to a directory that is readable by all users, and use the `chmod o+r' Unix command to make the S-record file readable. A good choice is a `/tmp' directory, since it is likely to be already readable by all users.

PMON uses the TFTP protocol to download programs via Ethernet. You must have a TFTP server running on your Unix host in order to use net downloads. This server can be installed by your system administrator.

The following example shows a net download (`%' being a shell prompt). Substitute your Unix host's name or IP address for `host' in the `load' command.

%cp hello.srec /tmp

%chmod o+r /tmp/hello.srec

%tip /dev/ttya

NEC010>load host:/tmp/hello.srec
Downloading from host:/tmp/hello.srec, ^C to abort
~>hello.srec
Entry address is a0020000
total = 0x7588 bytes
NEC010>g

Developing for the V_R4300 processors

The following documentation describes developing with the V_R4300 MIPS processors.

Compiler features for the V_R4300 processors
Assembler issues for the V^R4300 processors
Linker issues for the V_R4300 processors
Debugger issues for V_R4300 processors
Stand-alone simulator features for V_R4300 processors

The following documentation serves as reference material for using the V_R4300 MIPS processors.

DDB-V_R4300 Evaluation Board

(NEC document #U11852EU1V0UM00 September 1996)

V_R4300 MIPS Microprocessor User's Manual

(MIPS Technologies, Inc. 1995)

MIPS R4000 User's Manual

(Joseph Heinrich, Prentice-Hall, 1993,

ISBN 0-13-105925-4)

MIPS RISC Architecture

(Gerry Kane & Joe Heinrich, Prentice-Hall, 1992, ISBN 0-13-590472-2)

Address Allocation for Private Internets, RFC 1918

(de Groot, G. J. and Lear, E. , February 1996)

System V Application Binary Interface

(Prentice-Hall, 1991, ISBN 0-13-880170-3)

System V Application Binary Interface MIPS Processor Supplement

(Prentice-Hall, 1991, ISBN 0-13-880170-3)

Compiler features for the V_R4300 processors

The following documentation discusses the compiler features for the V_R4300 processors.

Preprocessor symbols for V_R4300 processors
Data types and alignment for V_R4300 processors
Argument passing for V_R4300 processors
Function return values for V_R4300 processors
Register allocation for V_R4300 processors

For a list of available generic compiler options, GNU CC command options and Option summary for GCC in Using GNU CC in GNUPro Compiler Tools. In addition, the following V_R4300-specific command-line options are supported.

-EL

Compile code for the processor in little endian mode.

-EB

Compile code for the processor in big-endian mode.

GNUPro Toolkit for the V_R4300 does not comply with the proposed MIPS Embedded Application Binary Interface (EABI) because that EABI has not yet been finalized.

Preprocessor symbols for V_R4300 processors

See Preprocessors symbols and their definitions for the V_R4300 processor for preprocessor symbols and their definitions with the GNU compiler options.

Preprocessors symbols and their definitions for the V_R4300 processor

*Symbol*	*Compiler options which define the symbol*
`mips`	Only if ``-ansi`' not used.
`_mips`	Only if ``-ansi`' not used.
`__mips`	Always defined.
`__mips_soft_float`	Always defined.
`MIPSEB`	Only if ``-ansi`' and ``-EL`' are not used.
`_MIPSEB`	Only if ``-EL`' is not used.
`__MIPSEB`	Only if ``-EL`' is not used.
`__MIPSEB__`	Only if ``-EL`' is not used.
`R4300`	Only if ``-ansi`' not used.
`_R4300`	Always defined.
`MIPSEL`	Only if ``-ansi`' is not used and ``-EL`' is used.
`_MIPSEL`	Only if ``-EL`' is used.
`__MIPSEL`	Only if ``-EL`' is used.
`__MIPSEL__`	Only if ``-EL`' is used.

Note:

If neither `-EL' or `-EB' are defined, big-endian is the default.

Data types and alignment for V_R4300 processors

See Data type sizes and alignments for V_R4300 processors for data type sizes and alignments for V_R4300processors.

Data type sizes and alignments for V_R4300 processors

*Data type*	*Size*
`char`	1 byte
`short`	2 bytes
`int`	4 bytes
`long`	4 bytes
`long long`	8 bytes
`float`	4 bytes
`double`	8 bytes
`long double`	8 bytes
pointer	4 bytes

The stack is aligned on eight-byte boundaries.

Argument passing for V_R4300 processors

The compiler passes arguments to a function using a combination of integer general registers, floating-point registers, and the stack. The number, type, and relative position of arguments in the calling functions argument list define the combination of registers and memory used. The general registers `$4..$7' and the floating-point registers `$f12' and `$f13' pass the first few arguments.

Whenever possible, arguments declared in variable argument lists, as with those defined using a `va_list' declaration, are passed in the integer registers, even when they are floating-point numbers.

If the first argument is an integer, remaining arguments are passed in the integer registers.

The rules for assigning which arguments go into registers and which arguments must be passed on the stack can be explained by considering the list of arguments itself as a structure, aligned according to normal structure rules. Mapping of this structure into the combination of registers and stack is as follows: up to two leading floating-point (but not `va_list') arguments can be passed in `$f12' and `$f13'; everything else with a structure offset greater than or equal to 32 is passed on the stack. The remainder of the arguments are passed in `$4..$7' based on their structure offset. Any holes left in the structure for alignment are unused, whether in registers or on the stack.

Function return values for V_R4300 processors

A function can return no value, an integral or pointer value, a floating-point value (single or double precision), or a structure; unions are treated the same as structures. A function that returns no value puts no particular value in any register. A function that returns an integral or pointer value places its result in register `$2'. A function that returns a floating-point value places its result in floating-point register `$f0'.

Register allocation for V_R4300 processors

See Register allocation for V_R4300 processors for register allocations for V_R4300 processors .

Register allocation for V_R4300 processors

*General purpose (integer) register*	*Usage*
Constant zero	`$0`
Volatile	`$1` through `$15` , `$24` , `$25`
Saved	`$16` through `$23` , `$30`
Parameters	`$4` through `$7`
Kernel reserved	`$26`, `$27`
Global pointer	`$28`
Stack pointer	`$29`
Frame pointer	`$30`
Return address	`$31`

See Floating point register usage for V_R4300 processors for floating point register usage for V_R4300 processors.

Floating point register usage for V_R4300 processors

*Floating point register*	*Usage*
Volatile	`$f0 through $f11` `$f14 through $f19`
Parameter	`$f12, $f13`
Saved	`$f20 through $f31`

Note:

Do not depend on this order. Instead, use GCC's `asm( )' extension and allow the compiler to schedule registers.

Assembler issues for the V_R4300 processors

For a list of available generic assembler options, see Command-line options in Using asin GNUPro Utilities.

-EB

-EL

Any MIPS configuration of the assembler can select big-endian or little-endian output at run time.
Use `-EB' to select big-endian output, and `-EL' for little-endian. The default is big-endian.

For information about the MIPS instruction set, see MIPS RISC Architecture (Kane and Heindrich, Prentice-Hall). For an overview of MIPS assembly conventions, see "Appendix D: Assembly Language Programming" in MIPS RISC Architecture.

There are 32 64-bit general (integer) registers, named `$0 ' through ` $31'.

For specific assembler mnemonics, see MIPS RISC Architecture or MIPS R4000 User's Manual.

Linker issues for the V_R4300 processors

For a list of available generic linker options, see Linker scripts in Using ldin GNUPro Utilities. In addition, the following V_R4300-specific command-line options are supported.

-EL

Link objects for the processor in little endian mode.

-EB
Link objects for the processor in big-endian mode.

Linker script for V_R4300 processors

This linker script (`ddb.ld') should be used when linking programs for the NEC DDB-VR4300 board. It can also be used to link programs for execution in the MIPS simulator.

/* The following TEXT start address leaves space for the monitor workspace. */

ENTRY(_start)

OUTPUT_ARCH("mips:4000")

OUTPUT_FORMAT("elf32-bigmips", "elf32-bigmips", "elf32-littlemips")

GROUP(-lc -lpmon -lgcc)

SEARCH_DIR(.)

__DYNAMIC = 0;

/* Allocate the stack to be at the top of memory, since the stack grows down.

*/

PROVIDE (__stack = 0);

/* PROVIDE (__global = 0); */

/* Initialize some symbols to be zero so we can reference them in the crt0 without core dumping. These functions are all optional, but we do this so we can have our crt0 always use them if they exist. This is so BSPs work better when using the crt0 installed with gcc. We have to initialize them twice, so we multiple object file formats, as some prepend an underscore.

*/

PROVIDE (hardware_init_hook = 0);

PROVIDE (software_init_hook = 0);

SECTIONS

. = 0xA0100000;

.text : {

_ftext = . ;

*(.init)

eprol = .;

*(.text)

PROVIDE (__runtime_reloc_start = .);

*(.rel.sdata)

PROVIDE (__runtime_reloc_stop = .);

*(.fini)

etext = .;

_etext = .;

. = .;

.rdata : {

*(.rdata)

_fdata = ALIGN(16);

.data : {

*(.data)

CONSTRUCTORS

_gp = ALIGN(16) + 0x8000;

__global = _gp;

.lit8 : {

*(.lit8)

.lit4 : {

*(.lit4)

.sdata : {

*(.sdata)

edata = .;

_edata = .;

_fbss = .;

.sbss : {

*(.sbss)

*(.scommon)

.bss : {

_bss_start = . ;

*(.bss)

*(COMMON)

end = .;

_end = .;

Debugger issues for V_R 4300 processors

To connect GDB to the DDB-VR4300 board start GDB with the `ddb' target. DDB boards are little-endian and use the PMON monitor. GDB uses the MIPS remote debugging protocol to talk to this target via a serial port. Additionally, the `ddb' target supports network downloading using the TFTP protocol.

To run a program on the DDB-VR4300 board, start up GDB with the name of your program as the argument. To connect to the DDB-VR4300 board, use the `target ddb <port>' command , where `<port>'is the name of the serial port connected to the board.

If the program has not already been downloaded to the board, you can use the `load' command to download it. You can then use all the usual GDB commands.

For example, the following sequence connects to the target board through a Unix serial port, and loads and runs a program called `prog' through the debugger:

mips64vr4300-elf-gdb prog
GDB is free software and . . .

(gdb)target ddb /dev/ttyb
(gdb)load prog
(gdb)run

On PC platforms substitute the specific COM port:

C:\> gdb prog
GDB is free software and . . .

(gdb)target ddb com3
(gdb)load prog
(gdb)run

Target command options for V_R4300 processors

The following command options are available for the VR4300 processors.

target ddb <hostname>:<portnumber>

On all GDB Unix host configurations, you can specify a TCP connection (for instance, to a serial line managed by a terminal concentrator) instead of a serial port, using the `<hostname>:<portnumber>' syntax.

target ddb <port> <remote-tftp-name>

target ddb <port> <remote-tftp-name> <local-tftp-name>

The following example shows a TFTP download. The host machine running the TFTP server has the `192.168.1.1' IP address . The temporary file that GDB will create for TFTP downloading is the `/tmp/download.tmp' file.

mips64vr4300-elf-gdb prog
GDB is free software and . . .

(gdb)target ddb /dev/ttyb 192.168.1.1:/tmp/download.tmp
(gdb)load prog
(gdb)run

In the next example both a remote TFTP name and a local TFTP are specified, because the TFTP server is running on a different machine, and has a different name for the same temporary file than the host machine that is running GDB. The name of the temporary file as seen by the TFTP server is `/mymachine/tmp/download.tmp', but the name of that same file as seen by the host running GDB is `/tmp/download.tmp'.

mips64vr4300-elf-gdb prog
GDB is free software and . . .

(gdb)target ddb /dev/ttyb \
192.168.1.1:/mymachine/tmp/download.tmp /tmp/download.tmp
(gdb)load prog
(gdb)run

Special commands for V R 4300 processors

GDB also supports the following special commands for MIPS targets.

set remotedebug num

show remotedebug

set timeout seconds

set retransmit-timeout seconds

show timeout

set retransmit-timeout seconds
The default is 3 seconds. You can inspect both values with `show timeout' and `show retransmit-timeout'.

Stand-alone simulator features for V_R4300 processors

The following three run-time command-line options are for the stand-alone simulator: -t, -v, and -m.

The `-t' command-line option to the stand-alone simulator turns on tracing of all memory fetching and storing in the simulator:

C:\>run -t hello.xl

C:\>

The simulator writes the trace information to the file `trace.din'. The following example shows the first few lines of a trace file.

2 00000000a0020000 ; width 4 ; load instruction
2 00000000a0020004 ; width 4 ; load instruction
2 00000000a0020008 ; width 4 ; load instruction
2 00000000a002000c ; width 4 ; load instruction
2 00000000a0020010 ; width 4 ; load instruction
2 00000000a0020014 ; width 4 ; load instruction
2 00000000a0020018 ; width 4 ; load instruction
2 00000000a002001c ; width 4 ; load instruction
2 00000000a0020020 ; width 4 ; load instruction
2 00000000a0020024 ; width 4 ; load instruction

The `-v' command-line option prints some simple statistics.

C:\>run -v hello.xl

Hello, world!
3 + 4 = 7
MIPS 64-bit simulator
Big endian memory model
0x00100000 bytes of memory at 0x00000000A0000000
Instruction fetches = 20653
Pipeline ticks = 20653

The `-m' command-line option sets the size of the simulated memory area. The default size is 1048576 bytes (1 megabyte). The simulator rounds up the size you request to the next power of two.

C:\>run -v -m 200000 hello.xl

Hello, world!
3 + 4 = 7
MIPS 64-bit simulator
Big endian memory model
0x00040000 bytes of memory at 0x00000000A0000000
Instruction fetches = 20341
Pipeline ticks = 20341

Producing S-records for V_R4300 processors

Before you can download a program to the DDB board, without GDB, the program must be converted into S-records.

First, compile a little-endian executable (`hello.xl') using the `-EL' option to GCC, as the following example input shows.

mips64vr4300-elf-gcc -g hello.c -o hello.xl -EL

The following command reads the contents of the `hello.x1' file, converts the code and data into S-records, and puts the result into the `hello.srec' file.

mips64vr4300-elf-objcopy -O srec hello.x1 hello.srec

The following example output shows the first few lines of the `hello.srec' file.

S00D000068656C6C6F2E7372656303
S31AA01000001024023CE00042340060824000688040AAAA0A3C5534
S31AA0100015554A3500008A44000880440000084400080944000011
S31AA010002A000005000A1500000000030020150000000014000497
S31AA010003F08000000001004023CE00042340060824010A0023C36

Downloading to the DDB board for V_R4300 processors

You can download programs to the DDB board for execution directly on the board, without GDB. The DDB board has a standalone ROM monitor called PMON that supports loading of programs via a serial port or Ethernet. Use the Unix `tip' program to download a program to the DDB. In the following example, the DDB board is connected to serial port `/dev/ttya' on a Unix host.

tip /dev/ttya

NEC010>load tty0
Downloading from tty0, ^C to abort
~>hello.srec
NEC010> g

Downloading a program via Ethernet is similar. First, convert the program to S-records as described earlier. Then copy the S-record file to a directory that is readable by all users, and use the Unix command `chmod o+r' to make the S-record file readable. A good choice for a directory is `/tmp', since it is likely to be already readable by all users. PMON uses the TFTP protocol to download programs via Ethernet. You must have a TFTP server running on your Unix host in order to use net downloads. This server can be installed by your system administrator. The following example shows a net download. Substitute your Unix host's name or IP address for `host' in the `load' command:

% cp hello.srec /tmp

% chmod o+r /tmp/hello.srec

% tip /dev/ttya

NEC010> load host:/tmp/hello.srec
Downloading from host:/tmp/hello.srec, ^C to abort
~>hello.srec
Entry address is a0100000
total = 0x7588 bytes
NEC010> g

Developing for the V_R5`xxx` processors

The following documentation describes developing with V_R5xxx MIPS processors. The actual development targets that have support are the 5000, 5400, 5432 and 5464 series processors.

Compiler issues for the V_R5xxx processors
ABI issues for the V_R5xxx processors
Assembler issues for the V_R5xxx processors
Linker issues for V_R5xxx processors
Debugger features for the V_R5xxx processors
Simulator features for the V_R5xxx processors

Compiler issues for the V_R5xxx processors

The following documentation discusses the compiler features and issues for the VR5xxx processors.

Preprocessor issues for V_R5xxx processors
Attributes for V_R5xxx processors

For a list of available generic compiler options, GNU CC command options and Option summary for GCC in Using GNU CC in GNUPro Compiler Tools.

The following V_R5xxx-specific command-line options have support.

-mcpu=vr5000

Targets the V_R5xxxprocessors. This is the default setting for all V_R5xxxprocessors.

-mcpu=vr5400
Targets the V_R5400 processor.

-mabi=o64
Uses O32-extended for 64 bit registers.

-mips2
Generates code for 32-bit registers. If combined with `-mabi=eabi' this will use 32-bit mode EABI. If combined with one of the above `-mcpu' options, the combination allows the use of those machine specific instructions, which are not reserved in 32-bit mode.

-EL
Generate little-endian code.

-EB
Generate big-endian code.

If neither `-EL' nor `-EB' are defined, little-endian is the default.

Preprocessor issues for V R 5 xxx processors

The compiler supports the following preprocessor symbols:

__mips__

Defines the symbol when preprocessing.

__R5400__
Defines the symbol when preprocessing if specifying `-mcpu=vr5400' for VR5 xxx processors .

__R5000__
Defines the symbol when preprocessing if specifying `-mcpu=vr5000' for VR5 xxx processors , or if no other `-mcpu=' option has been specified.

__MIPSEB__
Defines the symbol when preprocessing if specifying `-EB' for big-endian code.

__MIPSEL__
Defines the symbol when preprocessing if specifying `-EL' for little-endian code, or if not specifying `-EB' for big-endian code.

Attributes for V_R5`xxx`processors

There are no V_R5xxx-specific attributes. See Declaring attributes of functions and Specifying attributes of variables in Extensions to the C language family in Using GNU CC in GNUPro Compiler Tools for more information.

ABI issues for the V_R5`xxx` processors

The V R 5 xxxprocessors have the following issues for its ABI.

The stack frame for VR5xxx processors
Parameter assignment to registers for VR5xxx
Structure passing for VR5xxx
Varargs handling for VR5xxx
Function return values for VR5xxx

V R 5 xxxsupports two types of ABI depending on the value of the `-mabi=' compiler flag (see also Compiler issues for the VR5xxx processors ).

O32

See 032 ABI summary for VR5xxx processors.

EABI

See EABI summary for VR5xxx processors .

032 ABI summary for V_R5xxx processors

The following documentation describes the 032 ABI for V_R5xxxprocessors.

Calling conventions for VR5xxx processors using 032
Register allocation for VR5xxx processors with 032 ABI

Size and alignment for V_R5xxx processors using 032 ABI shows the size and alignment for all data types of V_R5xxxprocessors with the 032 ABI.

Size and alignment for V_R5xxxprocessors using 032 ABI

Data type	Size (bytes)	Alignment (bytes)
`char`	1 byte	1 byte
`short`	2 bytes	2 bytes
`int`	4 bytes	4 bytes
`long`	4 bytes	4 bytes
`long long`	8 bytes	8 bytes
`float`	4 bytes	4 bytes
`double`	8 bytes	8 bytes
`long double`	8 bytes	8 bytes
pointer	4 bytes	4 bytes

The stack is aligned on eight-byte boundaries.

Calling conventions for V_R5xxx processors using 032

The following documentation discusses the calling conventions for the V_R5xxxprocessors.

Argument passing for V_R5xxx pr ocessors using 032 ABI
Function return values for V_R5xxxprocessors with 032 ABI

Argument passingfor V_R5xxx processors using 032 ABI

The compiler passes arguments to a function using a combination of integer general registers, floating-point registers, and the stack. The number, type, and relative position of arguments in the calling functions argument list define the combination of registers and memory used. The general registers `$4' through `$7' and the floating-point registers `$f12' and `$f13' pass the first few arguments.

If the first argument is an integer, remaining arguments are passed in the integer registers.

The rules for assigning which arguments go into registers and which arguments must be passed on the stack can be explained by considering the list of arguments itself as a structure, aligned according to normal structure rules. Mapping of this structure into the combination of registers and stack is as follows: up to two leading floating-point (but not `va_list') arguments can be passed in `$f12' and `$f13'; everything else with a structure offset greater than or equal to 32 is passed on the stack. The remainder of the arguments are passed in `$4' through `$7', based on their structure offset. Any holes left in the structure for alignment are unused, whether in registers or on the stack.

Function return values for V_R5xxx processors with 032 ABI

A function can return no value, an integral or pointer value, a floating-point value (single or double precision), or a structure; unions are treated the same as structures. The following documentation describes the return values in more detail.

A function that returns no value puts no particular value in any register.
A function that returns an integral or pointer value places its result in a `$2' register.
A function that returns a floating-point value places its result in a `$f0' floating-point register.
The caller to a function that returns a structure or a union passes the address of an area large enough to hold the structure in a `$4' register. The function returns a pointer to the returned structure in a `$2' register.

Register allocation for V_R5xxx processors with 032 ABI

The following documentation describes register allocation for the V_R5xxx processors using 032 ABI.

See General purpose (integer) registers for their usage and see Floating point registers for their usage.

General purpose (integer) registers and usage for V_R5xxxwith 032 ABI

*General purpose (integer) register*	*Usage*
Constant zero	`$0`
Volatile	`$1 through $15, $24, $25`
Saved	`$16 through $23, $30`
Parameters	`$4 through $7`
Kernel reserved	`$26, $27`
Global pointer	`$28`
Stack pointer	`$29`
Frame pointer	`$30`
Return address	`$31`

Floating point registers and usage for V_R5xxxwith 032 ABI

*Floating point register*	*Usage*
Volatile	`$f0` through `$f11` , $f14 through $f19
Parameter	`$f12` , `$f13`
Saved	`$f20` - `$f31`

Note:

Do not depend on the order shown in Floating point registers. Instead, use the `asm( )' compiler extension to schedule registers.

EABI summary for V_R5`xxx` processors

The following documentation describes the MIPS EABI for V_R5xxxprocessors.

Data type sizes and alignments for V_R5xxxusing MIPS EABI
Subroutine calls for V_R5xxx processors using MIPS ABI

Data type sizes and alignments for V R 5 xxx using MIPS EABI

See size and alignment for all data types for V_R5xxxprocessors using MIPS ABI.

Size and alignment for data types with V_R5xxxprocessors using MIPS ABI

*Type*	*Size (bytes)*	*Alignment (bytes)*
`char`	1 byte	1 byte
`short`	2 bytes	2 bytes
`int`	4 bytes	4 bytes
`unsigned`	4 bytes	4 bytes
`long (32-bit mode)`	4 bytes	4 bytes
`long (64-bit mode)`	8 bytes	8 bytes
`long long`	8 bytes	8 bytes
`float`	4 bytes	4 bytes
`double`	8 bytes	8 bytes
pointer (32-bit mode)	4 bytes	4 bytes
pointer (64-bit mode)	8 bytes	8 bytes

The following rules also apply for data types for V_R5xxxprocessors using MIPS ABI.

Alignment within aggregates (structs and unions) is as above, with padding added if needed
Aggregates have alignment equal to that of their most aligned member
Aggregates have sizes which are a multiple of their alignment

Subroutine calls for V_R5xxx processors using MIPS ABI

The following documentation describes the calling conventions for subroutine calls for V_R5xxxprocessors using MIPS ABI.

See register usages for passing parameters.

See more register usage.

Parameter registers and their usage for V_R5xxxprocessors using MIPS ABI

*Parameter registers*
General-purpose	`r4 through r11`
Floating point (hard-float mode)	`f12 through f19`

General registers and their usage for V_R5xxxwith 032 ABI

*General register usage*
Fixed 0 value	`r0`
Volatile	`r1 through r15, r24, r25`
Non-volatile	`r16 through r23, r30`
Kernel reserved	`r26, r27`
`gp`(SDA base)	`r28`
Stack pointer	`r29`
Frame pointer	`r30` (if needed)
Return address	`r31`

Use the following rules for subroutine calls.

General-purpose and floating-point parameter registers allocate independently.
Structures that are less than or equal to 32 bits pass as values.
Structures that are greater than 32 bits pass as pointers.
In 32-bit mode, aggregates that are less than or equal to 32 bits pass as values. In 64-bit mode, aggregates that are less than or equal to 64 bits pass as values.
Otherwise, larger aggregates pass as pointers.

The stack frame for V_R5`xxx` processors

T he following documentation describes the stack frame for V_R5xxxprocessors.

The stack grows downwards from high addresses to low addresses.
A leaf function does not need to allocate a stack frame if it does not need one.
A frame pointer does not need allocating.
The stack pointer should always have alignment with 8 byte boundaries.

See Stack frames for functions that take a fixed number of arguments for V_R5xxxprocessors.

Stack frames for functions that take a fixed number of arguments for V_R5xxxprocessors

*If no `alloca ' region the frame pointer (FP) points to the same place as SP.

See Stack frames for functions that take a variable number of arguments for V_R5xxxprocessors.

Stack frames for functions that take a variable number of arguments for V_R5xxxprocessors

*If no `alloca ' region the frame pointer (FP) points to the same place as SP.

Parameter assignment to registers for V_R5`xxx` processors

Consider the parameters in a function call as ordered from left (first parameter) to right. In this algorithm, `FR' contains the number of the next available floating-point register (or register pair for modes in which floating-point registers hold only 32 bits). `GR' contains the number of the next available general-purpose register. `STARG' is the address of the next available stack parameter word.

INITIALIZE

Set GR=r4, FR=f12, and STARG to point to parameter word, 1.

SCAN

If there are no more parameters, terminate. Otherwise, select one of the following depending on the type of the next parameter: DOUBLEor FLOAT, SIMPLE ARG, LONG LONG, or STACK.

DOUBLEor FLOAT

If FR > f19, go to STACK. Otherwise, load the parameter value into the `FR' floating-point register and advance `FR' to the next floating-point register (or register pair in 32-bit mode). Then go to SCAN.

SIMPLE ARG

A SIMPLE ARGis one of the following types:

One of the simple integer types which will fit in 32 bits in 32-bit mode, or which will fit in 64 bits in 64-bit mode
A pointer to an object of any type
A struct or union small enough to fit in a register
A larger struct or union, which shall be treated as a pointer to the object or to a copy of the object; see Structure passing for V_R5xxx for when copies are made

If GR > r11, go to STACK. Otherwise, load the parameter value into the `GR' general-purpose register and advance `GR' to the next general-purpose register. Values shorter than the register size are sign-extended or zero-extended depending on whether they are signed or unsigned. Then go to SCAN.

LONG LONGin 32-bit mode

If GR > r10, go to STACK. Otherwise, if `GR' is odd, advance `GR' to the next register. Load the 64-bit `long long' value into register pair, GRand GR+1. Advance `GR' to `GR+2' and go to SCAN.

STACK

Parameters not otherwise handled like DOUBLEor FLOAT, SIMPLE ARG, LONG LONG, or SCANare passed in the parameter words of the caller's stack frame. SIMPLE ARG, (see SIMPLE ARGdefinition), is considered to have size and alignment equal to the size of a general-purpose register, with simple argument types shorter than this sign- or zero-extended to this width. Float arguments are considered to have size and alignment equal to the size of a floating-point register. In 64-bit mode, floats are stored in the low-order 32 bits of the 64-bit space allocated to them. `double' and `long long' are considered to have 64-bit size and alignment. Round `STARG' up to a multiple of the alignment requirement of the parameter and copy the argument byte-for-byte into STARG, STARG+1, and son through STARG+size-1. Set `STARG' to `STARG+size' and go to SCAN.

Structure passing for V_R5`xxx`

Code that passes structures and unions by value is implemented specially. (In this documentaion, structwill refer to structs and unions inclusively.) Structs small enough to fit in a register are passed by value in a single register or in a stack frame slot which is the size of a register. Larger structs are handled by passing the address of the structure. In this case, a copy of the structure will be made if necessary in order to preserve the pass-by-value semantics. See also Parameter assignment to registers for V_R5xxx.

See Structure passing for the rules for copies of large structs for V_R5xxxprocessors.

Structure passing for the V_R5xxxprocessors

Parameter	ANSI mode	K&R mode
Normal `param`	Callee copies if needed	Caller copies
Varargs (...) `param`	Caller copies	Caller copies

In the case of normal (non-varargs) large-struct parameters in ANSI mode, the callee is responsible for producing the same effect as if a copy of the structure were passed, preserving the pass-by-value semantics. Have the callee make a copy; however, in some cases, the callee can determine that a copy is unnecessary to produce the same results. In such cases, the callee can choose to avoid making a copy of the parameter.

Varargs handling for V_R5`xxx`

No special changes are needed for handling varargs parameters other than the caller knowing that a copy is needed on struct parameters larger than a register (see Structure passing).

The varargs macros set up a two-part register save area, one part for the general-purpose registers and one part for floating-point registers. Maintain separate pointers for these two areas and for the stack parameter area. The register save area lies between the caller and callee stack frame areas.

In the case of software floating-point, only the general-purpose registers need saving. Because the save area lies between the two stack frames, the saved register parameters are contiguous with parameters passed on the stack, simplifying the varargs macros. Only one pointer is needed, which advances from the register save area into the caller's stack frame.

Function return values for V_R5`xxx`

See data types and register usage for return values for V_R5xxxprocessors.

Data types and register usage for return values for V_R5xxxprocessors

*Type*	*Register*
`int`	`r2`
`short`	`r2`
`long`	`r2`
`long long`	`r2` through `r3`(32-bit mode)
`long long`	`r2` (64-bit mode)
`float`	`f0`
`double`	`f0 through f1` (32-bit mode)
`double`	`f0` (64-bit mode)
`struct/union`	1

Software floating-point for V_R5`xxx`

For software floating-point implementations, floats shall be passed and returned like int, and double passes and returns like long long. This implies that, in 32-bit mode, floatwill pass in a single integer register and doublewill pass in an even/odd register pair. Similarly, float will return in a single register, r2, and double will return in a r2/r3 register pair.

Assembler issues for the V_R5`xxx` processors

The following documentation describes V_R5xxx-specific features of the assembler.

Symbols and registers for the V_R5xxx
Assembler directives for the V_R5xxx
MIPS synthetic instructions for the V_R5xxx

For a list of available generic assembler options, see Command-line options in Using asin GNUPro Utilities. The assembler accepts the same set of 5xxx options as the compiler.

-mcpu=vr5000

Targets the VR5000. Default setting.

-mcpu=vr5400
Targets the VR5400.

-mabi=o64
Uses O32 extended for 64 bit registers.

-EL
Generates little-endian code.

-EB
Generates big-endian code.

If neither `-EL' nor `-EB' are defined, little-endian is the default.

For information about the MIPS instruction set, see MIPS RISC Architecture (Kane and Heindrich, Prentice-Hall). For an overview of MIPS assembly conventions, see "Appendix D: Assembly Language Programming" in MIPS RISC Architecture.

There are 32 64-bit general (integer) registers, named `$0 through$31'. There are 32 64-bit floating-point registers, named `$f0 through$f31'.

The `$0' through `$31' symbols refer to the general-purpose registers.

Symbols and registers for the V_R5`xxx` processors

See Symbols and registers for definitions of symbols used as aliases for individual registers.

Symbols and registers for V_R5xxx

*Symbol*	*Register*
`$at`	`$1`
`$kt0`	`$26`
`$kt1`	`$27`
`$gp`	`$28`
`$sp`	`$29`
`$fp`	`$30`

Assembler directives for V_R5`xxx`

See the Assembler directives for the V_R5xxxprocessors.

V_R5`xxx`**assembler directives**
`.abicalls`	`.dcb.b`	`.fail`	`.irepc`	`.psize`
`.abort`	`.dcb.d`	`.file`	`.irp`	`.purgem`
`.aent`	`.dcb.l`	`.fill`	`.irpc`	`.quad`
`.align`	`.dcb.s`	`.float`	`.lcomm`	`.rdata`
`.appfile`	`.dcb.w`	`.fmask`	`.lflags`	`.rep`
`.appline`	`.dcb.x`	`.format`	`.linkonce`	`.rept`
`.ascii`	`.debug`	`.frame`	`.list`	`.rva`
`.asciiz`	`.double`	`.global`	`.livereg`	`.sbttl`
`.asciz`	`.ds`	`.globl`	`.llen`	`.sdata`
`.balign`	`.ds.b`	`.gpword`	`.loc`	`.set`
`.balignl`	`.ds.d`	`.half`	`.long`	`.short`
`.balignw`	`.ds.l`	`.hword`	`.lsym`	`.single`
`.bgnb`	`.ds.p`	`.if`	`.macro`	`.skip`
`.bss`	`.ds.s`	`.ifc`	`.mask`	`.space`
`.byte`	`.ds.w`	`.ifdef`	`.mexit`	`.spc`
`.comm`	`.ds.x`	`.ifeq`	`.mri`	`.stabd`
`.common`	`.dword`	`.ifeqs`	`.name`	`.stabn`
`.common.s`	`.eject`	`.ifge`	`.noformat`	`.stabs`
`.cpadd`	`.else`	`.ifgt`	`.nolist`	`.string`
`.cpload`	`.elsec`	`.ifle`	`.nopage`	`.struct`
`.cprestore`	`.end`	`.iflt`	`.octa`	`.text`
`.data`	`.endb`	`.ifnc`	`.offset`	`.title`
`.dc`	`.endc`	`.ifndef`	`.option`	`.ttl`
`.dc.b`	`.endif`	`.ifne`	`.org`	`.verstamp`
`.dc.d`	`.ent`	`.ifnes`	`.p2align`	`.word`
`.dc.l`	`.equ`	`.ifnotdef`	`.p2alignl`	`.xcom`
`.dc.s`	`.equiv`	`.include`	`.p2alignw`	`.xdef`
`.dc.w`	`.err`	`.insn`	`.page`	`.xref`
`.dc.x`	`.exitm`	`.int`	`.plen`	`.xstabs`
`.dcb`	`.extern`	`.irep`	`.print`	`.zero`

MIPS synthetic instructions for the V_R5`xxx`

For the V_R5xxxprocessors, the assembler supports the typical MIPS synthetic instructions (macros). See a list of synthetic instructions supported by the assembler, as well as an example expansion of each instruction. The following information serves as a guide to the corresponding code in the the list.

R1

R2

R3
Integer registers

F1

F2

F3
Floating point registers

I1

I2

I3
Immediate integer values

MIPS synthetic instructions for the assembler for V_R5xxx

Instruction

Expansion

abs R1 R2

bgez R2,abs_1

move R1,R2
neg R1,R2
abs_1

add R1 R2 I1

addi R1,R2,I1

addu R1 R2 I1

addiu R1,R2,I1

and R1 R2 I1

andi R1,R2,I1

beq R1 I1 I2

li $at,I1

beq R1,$at,+I2

beql R1 I1 I2

li $at,I1

beql R1,$at,+I2

bge R1 R2 I1

slt $at,R1,R2

beqz $at,+I1

bge R1 I1 I2

slti $at,R1,I1

beqz $at,+I2

bgel R1 R2 I1

slt $at,R1,R2

beqzl $at,+I1

bgel R1 I1 I2

slti $at,R1,I1

beqzl $at,+I2

bgeu R1 R2 I1

sltu $at,R1,R2

beqz $at,+I1

bgeu R1 I1 I2

sltiu $at,R1,I1

beqz $at,+I2

bgeul R1 R2 I1

sltu $at,R1,R2

beqzl $at,+I1

bgeul R1 I1 I2

sltiu $at,R1,I1

beqzl $at,+I2

bgt R1 R2 I1

slt $at,R2,R1

bnez $at,+I1

bgt R1 I1 I2

slti $at,R1,I1+1

beqz $at,+I2

bgtl R1 R2 I1

slt $at,R2,R1

bnezl $at,+I1

bgtl R1 I1 I2

slti $at,R1,I1+1

beqzl $at,+I2

bgtu R1 R2 I1

sltu $at,R2,R1

bnez $at,+I1

bgtu R1 I1 I2

sltiu $at,R1,I1+1

beqz $at,+I2

bgtul R1 R2 I1

sltu $at,R2,R1

bnezl $at,+I1

bgtul R1 I1 I2

sltiu $at,R1,I1+1

beqzl $at,+I2

ble R1 R2 I1

slt $at,R2,R1

beqz $at,+I1

ble R1 I1 I2

slti $at,R1,I1+1

bnez $at,+I2

blel R1 R2 I1

slt $at,R2,R1

beqzl $at,+I1

blel R1 I1 I2

slti $at,R1,I1+1

bnezl $at,+I2

bleu R1 R2 I1

sltu $at,R2,R1

beqz $at,+I1

bleu R1 I1 I2

sltiu $at,R1,I1+1

bnez $at,+I2

bleul R1 R2 I1

sltu $at,R2,R1

beqzl $at,+I1

bleul R1 I1 I2

sltiu $at,R1,I1+1

bnezl $at,+I2

blt R1 R2 I1

slt $at,R1,R2

bnez $at,+I1

blt R1 I1 I2

slti $at,R1,I1

bnez $at,+I2

bltl R1 R2 I1

slt $at,R1,R2

bnezl $at,+I1

bltl R1 I1 I2

slti $at,R1,I1

bnezl $at,+I2

bltu R1 R2 I1

sltu $at,R1,R2

bnez $at,+I1

bltu R1 I1 I2

sltiu $at,R1,I1

bnez $at,+I2

bltul R1 R2 I1

sltu $at,R1,R2

bnezl $at,+I1

bltul R1 I1 I2

sltiu $at,R1,I1

bnezl $at,+I2

bne R1 I1 I2

li $at,I1

bne R1,$at,+I2

bnel R1 I1 I2

li $at,I1

bnel R1,$at,+I2

dabs R1 R2

bgez R2,dabs_1

move R1,R2
dneg R1,R2
dabs_1:

dadd R1 R2 I1

daddi R1,R2,I1

daddu R1 R2 I1

daddiu R1,R2,I1

ddiv R1 R2 R3

bnez R3,ddiv_1

ddiv $zero,R2,R3
break 0x7
ddiv_1:
daddiu $at,$zero,-1
bne R3,$at,ddiv_2
daddiu $at,$zero,1
dsll32 $at,$at,0x1f
bne R2,$at,ddiv_2
nop
break 0x6
ddiv_2
mflo R1

ddiv R1 R2 I1

li $at,I1

ddiv $zero,R2,$at
mflo R1

ddivu R1 R2 R3

bnez R3,ddivu_1

ddivu $zero,R2,R3
break 0x7
ddivu_1:
mflo R1

ddivu R1 R2 I1

li $at,I1

ddivu $zero,R2,$at
mflo R1

div R1 R2 R3

bnez R3,div_1

div $zero,R2,R3
break 0x7
div_1:
li $at,-1
bne R3,$at,div_2
lui $at,0x8000
bne R2,$at,div_2
nop
break 0x6
div_2:
mflo R1

div R1 R2 I1

li $at,I1

div $zero,R2,$at
mflo R1

divu R1 R2 R3

bnez R3,divu_1

divu $zero,R2,R3
break 0x7
divu_1:
mflo R1

divu R1 R2 I1

li $at,I1

divu $zero,R2,$at
mflo R1

dla R1 I1(R2)

li R1,I1

daddu R1,R1,R2

dli R1 I1

li R1,I1

drem R1 R2 R3

bnez R3,drem_1

ddiv $zero,R2,R3
break 0x7
drem_1:
daddiu $at,$zero,-1
bne R3,$at,drem_2
daddiu $at,$zero,1
dsll32 $at,$at,0x1f
bne R2,$at,drem_2
nop
break 0x6
drem_2:
mfhi R1

drem R1 R2 I1

li $at,I1

ddiv $zero,R2,$at
mfhi R1

dremu R1 R2 R3

bnez R3,dremu_1

ddivu $zero,R2,R3
break 0x7
dremu_1:
mfhi R1

dremu R1 R2 I1

li $at,I1

ddivu $zero,R2,$at
mfhi R1

dsub R1 R2 I1

daddi R1,R2,-I1

dsubu R1 R2 I1

daddiu R1,R2,-I1

jal R1 R2

jalr R1,R2

jal R1

jalr R1

la R1 I1(R2)

li R1,I1

daddu R1,R1,R2

l.d F1 I1(R1)

ldc1 F1,I1(R1)

ldc3 R1 I1(R2)

ld R1,I1(R2)

li.d R1 I1

li R1,0x8066

dsll32 R1,R1,0xf

li.d F1 I1

li $at,0x8066

dsll32 $at,$at,0xf
dmtc1 $at,F1

li.s R1 I1

lui R1,0x4198

li.s F1 I1

lui $at,0x4198

mtc1 $at,F1

lwc0 R1 I1(R2)

ll R1,I1(R2)

l.s F1 I1(R1)

lwc1 F1,I1(R1)

lcache R1 I1(R2)

lwl R1,I1(R2)

flush R1 I1(R2)

lwr R1,I1(R2)

nor R1 R2 I1

ori R1,R2,I1

nor R1,R1,$zero

or R1 R2 I1

ori R1,R2,I1

rem R1 R2 R3

bnez R3,rem_1

div $zero,R2,R3
break 0x7
rem_1:
li $at,-1
bne R3,$at,rem_2
lui $at,0x8000
bne R2,$at,rem_2
nop
break 0x6
rem_2:
mfhi R1

rem R1 R2 I1

li $at,I1

div $zero,R2,$at
mfhi R1

remu R1 R2 R3

bnez R3,remu_1

divu $zero,R2,R3
break 0x7
remu_1:
mfhi R1

remu R1 R2 I1

li $at,I1

divu $zero,R2,$at
mfhi R1

rol R1 R2 R3

negu $at,R3

srlv $at,R2,$at
sllv R1,R2,R3
or R1,R1,$at

rol R1 R2 I1

sll $at,R2,I1

srl R1,R2,32-I1
or R1,R1,$at

ror R1 R2 R3

negu $at,R3

sllv $at,R2,$at
srlv R1,R2,R3
or R1,R1,$at

ror R1 R2 I1

srl $at,R2,I1

sll R1,R2,32-I1
or R1,R1,$at

sdc3 R1 I1(R2)

sd R1,I1(R2)

s.d F1 I1(R1)

sdc1 F1,I1(R1)

seq R1 R2 R3

xor R1,R2,R3

sltiu R1,R1,1

seq R1 R2 I1

xori R1,R2,I1

sltiu R1,R1,1

sge R1 R2 R3

slt R1,R2,R3

xori R1,R1,0x1

sge R1 R2 I1

slti R1,R2,I1

xori R1,R1,0x1

sgeu R1 R2 R3

sltu R1,R2,R3

xori R1,R1,0x1

sgeu R1 R2 I1

sltiu R1,R2,I1

xori R1,R1,0x1

sgt R1 R2 R3

slt R1,R3,R2

sgt R1 R2 I1

li $at,I1

slt R1,$at,R2

sgtu R1 R2 R3

sltu R1,R3,R2

sgtu R1 R2 I1

li $at,I1

sltu R1,$at,R2

sle R1 R2 R3

slt R1,R3,R2

xori R1,R1,0x1

sle R1 R2 I1

li $at,I1

slt R1,$at,R2
xori R1,R1,0x1

sleu R1 R2 R3

sltu R1,R3,R2

xori R1,R1,0x1

sleu R1 R2 I1

li $at,I1

sltu R1,$at,R2
xori R1,R1,0x1

slt R1 R2 I1

slti R1,R2,I1

sltu R1 R2 I1

sltiu R1,R2,I1

sne R1 R2 R3

xori R1,R2,R3

sltu R1,$zero,R1

sne R1 R2 I1

xori R1,R2,I1

sltu R1,$zero,R1

sub R1 R2 I1

addi R1,R2,-I1

subu R1 R2 I1

addiu R1,R2,-I1

swc0 R1 I1(R2)

sc R1,I1(R2)

s.s F1 I1(R1)

swc1 F1,I1(R1)

scache R1 I1(R2)

swl R1,I1(R2)

invalidate R1 I1(R2)

swr R1,I1(R2)

teq R1 I1

teqi R1,I1

tge R1 I1

tgei R1,I1

tgeu R1 I1

tgeiu R1,I1

tlt R1 I1

tlti R1,I1

tltu R1 I1

tltiu R1,I1

tne R1 I1

tnei R1,I1

trunc.w.d F1 F2 R1

trunc.w.d F1,F2

trunc.w.s F1 F2 R1

trunc.w.s F1,F2

uld R1 I1(R2)

ldl R1,I1(R2)

ldr R1,I1+7(R2)

ulh R1 I1(R2)

lb R1,I1(R2)

lbu $at,I1+1(R2)
sll R1,R1,0x8
or R1,R1,$at

ulhu R1 I1(R2)

lbu R1,I1(R2)

lbu $at,I1+1(R2)
sll R1,R1,0x8
or R1,R1,$at

ulw R1 I1(R2)

lwl R1,I1(R2)

lwr R1,I1+3(R2)

usd R1 I1(R2)

sdl R1,I1(R2)

sdr R1,I1+7(R2)

ush R1 I1(R2)

sb R1,I1+1(R2)

srl $at,R1,0x8
sb $at,I1(R2)

usw R1 I1(R2)

swl R1,I1(R2)

swr R1,I1+3(R2)

xor R1 R2 I1

xori R1,R2,I1

**MIPS synthetic instructions for the assembler for** V_R5`xxx`
Instruction	Expansion
`abs R1 R2`	`bgez R2,abs_1` `move R1,R2` `neg R1,R2` `abs_1`
`add R1 R2 I1`	`addi R1,R2,I1`
`addu R1 R2 I1`	`addiu R1,R2,I1`
`and R1 R2 I1`	`andi R1,R2,I1`
`beq R1 I1 I2`	`li $at,I1` `beq R1,$at,+I2`
`beql R1 I1 I2`	`li $at,I1` `beql R1,$at,+I2`
`bge R1 R2 I1`	`slt $at,R1,R2` `beqz $at,+I1`
`bge R1 I1 I2`	`slti $at,R1,I1` `beqz $at,+I2`
`bgel R1 R2 I1`	`slt $at,R1,R2` `beqzl $at,+I1`
`bgel R1 I1 I2`	`slti $at,R1,I1` `beqzl $at,+I2`
`bgeu R1 R2 I1`	`sltu $at,R1,R2` `beqz $at,+I1`
`bgeu R1 I1 I2`	`sltiu $at,R1,I1` `beqz $at,+I2`
`bgeul R1 R2 I1`	`sltu $at,R1,R2` `beqzl $at,+I1`
`bgeul R1 I1 I2`	`sltiu $at,R1,I1` `beqzl $at,+I2`
`bgt R1 R2 I1`	`slt $at,R2,R1` `bnez $at,+I1`
`bgt R1 I1 I2`	`slti $at,R1,I1+1` `beqz $at,+I2`
`bgtl R1 R2 I1`	`slt $at,R2,R1` `bnezl $at,+I1`
`bgtl R1 I1 I2`	`slti $at,R1,I1+1` `beqzl $at,+I2`
`bgtu R1 R2 I1`	`sltu $at,R2,R1` `bnez $at,+I1`
`bgtu R1 I1 I2`	`sltiu $at,R1,I1+1` `beqz $at,+I2`
`bgtul R1 R2 I1`	`sltu $at,R2,R1` `bnezl $at,+I1`
`bgtul R1 I1 I2`	`sltiu $at,R1,I1+1` `beqzl $at,+I2`
`ble R1 R2 I1`	`slt $at,R2,R1` `beqz $at,+I1`
`ble R1 I1 I2`	`slti $at,R1,I1+1` `bnez $at,+I2`
`blel R1 R2 I1`	`slt $at,R2,R1` `beqzl $at,+I1`
`blel R1 I1 I2`	`slti $at,R1,I1+1` `bnezl $at,+I2`
`bleu R1 R2 I1`	`sltu $at,R2,R1` `beqz $at,+I1`
`bleu R1 I1 I2`	`sltiu $at,R1,I1+1` `bnez $at,+I2`
`bleul R1 R2 I1`	`sltu $at,R2,R1` `beqzl $at,+I1`
`bleul R1 I1 I2`	`sltiu $at,R1,I1+1` `bnezl $at,+I2`
`blt R1 R2 I1`	`slt $at,R1,R2` `bnez $at,+I1`
`blt R1 I1 I2`	`slti $at,R1,I1` `bnez $at,+I2`
`bltl R1 R2 I1`	`slt $at,R1,R2` `bnezl $at,+I1`
`bltl R1 I1 I2`	`slti $at,R1,I1` `bnezl $at,+I2`
`bltu R1 R2 I1`	`sltu $at,R1,R2` `bnez $at,+I1`
`bltu R1 I1 I2`	`sltiu $at,R1,I1` `bnez $at,+I2`
`bltul R1 R2 I1`	`sltu $at,R1,R2` `bnezl $at,+I1`
`bltul R1 I1 I2`	`sltiu $at,R1,I1` `bnezl $at,+I2`
`bne R1 I1 I2`	`li $at,I1` `bne R1,$at,+I2`
`bnel R1 I1 I2`	`li $at,I1` `bnel R1,$at,+I2`
`dabs R1 R2`	`bgez R2,dabs_1` `move R1,R2` `dneg R1,R2` `dabs_1:`
`dadd R1 R2 I1`	`daddi R1,R2,I1`
`daddu R1 R2 I1`	`daddiu R1,R2,I1`
`ddiv R1 R2 R3`	`bnez R3,ddiv_1` `ddiv $zero,R2,R3` `break 0x7` `ddiv_1:` `daddiu $at,$zero,-1` `bne R3,$at,ddiv_2` `daddiu $at,$zero,1` `dsll32 $at,$at,0x1f` `bne R2,$at,ddiv_2` `nop` `break 0x6` `ddiv_2` `mflo R1`
`ddiv R1 R2 I1`	`li $at,I1` `ddiv $zero,R2,$at` `mflo R1`
`ddivu R1 R2 R3`	`bnez R3,ddivu_1` `ddivu $zero,R2,R3` `break 0x7` `ddivu_1:` `mflo R1`
`ddivu R1 R2 I1`	`li $at,I1` `ddivu $zero,R2,$at` `mflo R1`
`div R1 R2 R3`	`bnez R3,div_1` `div $zero,R2,R3` `break 0x7` `div_1:` `li $at,-1` `bne R3,$at,div_2` `lui $at,0x8000` `bne R2,$at,div_2` `nop` `break 0x6` `div_2:` `mflo R1`
`div R1 R2 I1`	`li $at,I1` `div $zero,R2,$at` `mflo R1`
`divu R1 R2 R3`	`bnez R3,divu_1` `divu $zero,R2,R3` `break 0x7` `divu_1:` `mflo R1`
`divu R1 R2 I1`	`li $at,I1` `divu $zero,R2,$at` `mflo R1`
`dla R1 I1(R2)`	`li R1,I1` `daddu R1,R1,R2`
`dli R1 I1`	`li R1,I1`
`drem R1 R2 R3`	`bnez R3,drem_1` `ddiv $zero,R2,R3` `break 0x7` `drem_1:` `daddiu $at,$zero,-1` `bne R3,$at,drem_2` `daddiu $at,$zero,1` `dsll32 $at,$at,0x1f` `bne R2,$at,drem_2` `nop` `break 0x6` `drem_2:` `mfhi R1`
`drem R1 R2 I1`	`li $at,I1` `ddiv $zero,R2,$at` `mfhi R1`
`dremu R1 R2 R3`	`bnez R3,dremu_1` `ddivu $zero,R2,R3` `break 0x7` `dremu_1:` `mfhi R1`
`dremu R1 R2 I1`	`li $at,I1` `ddivu $zero,R2,$at` `mfhi R1`
`dsub R1 R2 I1`	`daddi R1,R2,-I1`
`dsubu R1 R2 I1`	`daddiu R1,R2,-I1`
`jal R1 R2`	`jalr R1,R2`
`jal R1`	`jalr R1`
`la R1 I1(R2)`	`li R1,I1` `daddu R1,R1,R2`
`l.d F1 I1(R1)`	`ldc1 F1,I1(R1)`
`ldc3 R1 I1(R2)`	`ld R1,I1(R2)`
`li.d R1 I1`	`li R1,0x8066` `dsll32 R1,R1,0xf`
`li.d F1 I1`	`li $at,0x8066` `dsll32 $at,$at,0xf` `dmtc1 $at,F1`
`li.s R1 I1`	`lui R1,0x4198`
`li.s F1 I1`	`lui $at,0x4198` `mtc1 $at,F1`
`lwc0 R1 I1(R2)`	`ll R1,I1(R2)`
`l.s F1 I1(R1)`	`lwc1 F1,I1(R1)`
`lcache R1 I1(R2)`	`lwl R1,I1(R2)`
`flush R1 I1(R2)`	`lwr R1,I1(R2)`
`nor R1 R2 I1`	`ori R1,R2,I1` `nor R1,R1,$zero`
`or R1 R2 I1`	`ori R1,R2,I1`
`rem R1 R2 R3`	`bnez R3,rem_1` `div $zero,R2,R3` `break 0x7` `rem_1:` `li $at,-1` `bne R3,$at,rem_2` `lui $at,0x8000` `bne R2,$at,rem_2` `nop` `break 0x6` `rem_2:` `mfhi R1`
`rem R1 R2 I1`	`li $at,I1` `div $zero,R2,$at` `mfhi R1`
`remu R1 R2 R3`	`bnez R3,remu_1` `divu $zero,R2,R3` `break 0x7` `remu_1:` `mfhi R1`
`remu R1 R2 I1`	`li $at,I1` `divu $zero,R2,$at` `mfhi R1`
`rol R1 R2 R3`	`negu $at,R3` `srlv $at,R2,$at` `sllv R1,R2,R3` `or R1,R1,$at`
`rol R1 R2 I1`	`sll $at,R2,I1` `srl R1,R2,32-I1` `or R1,R1,$at`
`ror R1 R2 R3`	`negu $at,R3` `sllv $at,R2,$at` `srlv R1,R2,R3` `or R1,R1,$at`
`ror R1 R2 I1`	`srl $at,R2,I1` `sll R1,R2,32-I1` `or R1,R1,$at`
`sdc3 R1 I1(R2)`	`sd R1,I1(R2)`
`s.d F1 I1(R1)`	`sdc1 F1,I1(R1)`
`seq R1 R2 R3`	`xor R1,R2,R3` `sltiu R1,R1,1`
`seq R1 R2 I1`	`xori R1,R2,I1` `sltiu R1,R1,1`
`sge R1 R2 R3`	`slt R1,R2,R3` `xori R1,R1,0x1`
`sge R1 R2 I1`	`slti R1,R2,I1` `xori R1,R1,0x1`
`sgeu R1 R2 R3`	`sltu R1,R2,R3` `xori R1,R1,0x1`
`sgeu R1 R2 I1`	`sltiu R1,R2,I1` `xori R1,R1,0x1`
`sgt R1 R2 R3`	`slt R1,R3,R2`
`sgt R1 R2 I1`	`li $at,I1` `slt R1,$at,R2`
`sgtu R1 R2 R3`	`sltu R1,R3,R2`
`sgtu R1 R2 I1`	`li $at,I1` `sltu R1,$at,R2`
`sle R1 R2 R3`	`slt R1,R3,R2` `xori R1,R1,0x1`
`sle R1 R2 I1`	`li $at,I1` `slt R1,$at,R2` `xori R1,R1,0x1`
`sleu R1 R2 R3`	`sltu R1,R3,R2` `xori R1,R1,0x1`
`sleu R1 R2 I1`	`li $at,I1` `sltu R1,$at,R2` `xori R1,R1,0x1`
`slt R1 R2 I1`	`slti R1,R2,I1`
`sltu R1 R2 I1`	`sltiu R1,R2,I1`
`sne R1 R2 R3`	`xori R1,R2,R3` `sltu R1,$zero,R1`
`sne R1 R2 I1`	`xori R1,R2,I1` `sltu R1,$zero,R1`
`sub R1 R2 I1`	`addi R1,R2,-I1`
`subu R1 R2 I1`	`addiu R1,R2,-I1`
`swc0 R1 I1(R2)`	`sc R1,I1(R2)`
`s.s F1 I1(R1)`	`swc1 F1,I1(R1)`
`scache R1 I1(R2)`	`swl R1,I1(R2)`
`invalidate R1 I1(R2)`	`swr R1,I1(R2)`
`teq R1 I1`	`teqi R1,I1`
`tge R1 I1`	`tgei R1,I1`
`tgeu R1 I1`	`tgeiu R1,I1`
`tlt R1 I1`	`tlti R1,I1`
`tltu R1 I1`	`tltiu R1,I1`
`tne R1 I1`	`tnei R1,I1`
`trunc.w.d F1 F2 R1`	`trunc.w.d F1,F2`
`trunc.w.s F1 F2 R1`	`trunc.w.s F1,F2`
`uld R1 I1(R2)`	`ldl R1,I1(R2)` `ldr R1,I1+7(R2)`
`ulh R1 I1(R2)`	`lb R1,I1(R2)` `lbu $at,I1+1(R2)` `sll R1,R1,0x8` `or R1,R1,$at`
`ulhu R1 I1(R2)`	`lbu R1,I1(R2)` `lbu $at,I1+1(R2)` `sll R1,R1,0x8` `or R1,R1,$at`
`ulw R1 I1(R2)`	`lwl R1,I1(R2)` `lwr R1,I1+3(R2)`
`usd R1 I1(R2)`	`sdl R1,I1(R2)` `sdr R1,I1+7(R2)`
`ush R1 I1(R2)`	`sb R1,I1+1(R2)` `srl $at,R1,0x8` `sb $at,I1(R2)`
`usw R1 I1(R2)`	`swl R1,I1(R2)` `swr R1,I1+3(R2)`
`xor R1 R2 I1`	`xori R1,R2,I1`

Linker issues for V_R5`xxx` processors

The following documentation describes V_R5xxx-specific features when working with ld, the GNUPro linker.

For a list of available generic linker options, see Linker scripts in Using ldin GNUPro Utilities. There are no V_R5xxx-specific command-line linker options.

Linker script for V_R5`xxx` targets

The linker uses a linker script to determine how to process each section in an object file, and how to lay out the executable. The linker script is a declarative program consisting of a number of directives. For instance, the `ENTRY()' directive specifies the symbol in the executable that will be the executable's entry point.

The following linker script is `ddb.ld', a linker script for the V_R5xxx.

/* The following TEXT start address leaves space for the monitor workspace. */

ENTRY(_start)

OUTPUT_ARCH("mips:4000")

OUTPUT_FORMAT("elf32-bigmips", "elf32-bigmips", "elf32-littlemips")

GROUP(-lc -lpmon -lgcc)

SEARCH_DIR(.)

__DYNAMIC = 0;

/* Allocate the stack to be at the top of memory, since the stack grows down.

*/

PROVIDE (__stack = 0);

/* PROVIDE (__global = 0); */

/* Initialize some symbols to be zero so we can reference them in the crt0 without core dumping. These functions are all optional, but we do this so we can have our crt0 always use them if they exist. This is so BSPs work better when using the crt0 installed with gcc. We have to initialize them twice, so we multiple object file formats, as some prepend an underscore.

*/

PROVIDE (hardware_init_hook = 0);

PROVIDE (software_init_hook = 0);

SECTIONS

. = 0xA0100000;

.text : {

_ftext = . ;

*(.init)

eprol = .;

*(.text)

PROVIDE (__runtime_reloc_start = .);

*(.rel.sdata)

PROVIDE (__runtime_reloc_stop = .);

*(.fini)

etext = .;

_etext = .;

. = .;

.rdata : {

*(.rdata)

_fdata = ALIGN(16);

.data : {

*(.data)

CONSTRUCTORS

_gp = ALIGN(16) + 0x8000;

__global = _gp;

.lit8 : {

*(.lit8)

.lit4 : {

*(.lit4)

.sdata : {

*(.sdata)

edata = .;

_edata = .;

_fbss = .;

.sbss : {

*(.sbss)

*(.scommon)

.bss : {

_bss_start = . ;

*(.bss)

*(COMMON)

end = .;

_end = .;

Debugger features for the V_R5`xxx` processors

The following documentation describes V_R5xxx-specific features of the GNUPro debugger. There are three ways for GDB to talk to a V_R5xxx target, depending upon the configuration of the specific evaluation board.

Simulator

GDB's built-in software simulation of the

xxx processor allows the debugging of programs compiled for the

xxx without requiring any access to actual hardware. To activate this mode in GDB type `

target sim

'. Then load the code into the simulator by typing `

load

' and debug it in the normal fashion.

Remote target board by serial connection

To connect to the target board in GDB, using the command

target remote<devicename>

' where `<devicename>' will be a serial device such as `

/dev/ttya

' (Unix) or `

com2

' (Windows NT). Then load the code onto the target board by typing 'load'. After being downloaded, the program can be executed.

Remote target board by ethernet connection

Connecting to the ethernet port with GDB is very similar to connecting to a serial port.

If the system administrator has assigned a host name to the board, you can use that name in the target command instead of the dotted IP address. It is important to specify the port number. The exact number is not important, but it must be the same number that you used to configure the board.

No special GDB commands are necessary to perform fast downloading of programs via the ethernet. Simply use the normal `load' command. GDB recognizes that the board is connected via ethernet, and will use a fast binary downloading method.

For the available generic debugger options, see Debugging with GDB in GNUPro Debugging Tools. There are no V_R5xxx-specific debugger command-line options.

Simulator features for the V_R5`xxx` processors

The simulator implements the 64 bit MIPS ISA, which includes 32 64-bit integer registers and 32 64-bit floating-point registers. The user program is provided with a single 2mb block of memory at address `0xa0000000' (shadowed at address `0x80000000').

The following general options, are supported by the simulator:

--architecture=<machine>

This selects a specific MIPS instruction set architectur (ISA). Valid ISAs are `mips:5000' and `mips:5400'. By default the `mips:5000' is simulated.

--help
This provides a complete list of options recognized simulators. Some specific options in the list may not be applicable to this simulator.

--dinero-trace=[on|off]
This creates a file called `trace.din' that contains tracing information. Use the `--dinero-file' switch (discussed below) to change the name of the output file.

%mips64vr5xxxel-elf-run --dinero-trace hello
Hello, world!
3 + 4 = 7

The resulting first 10 lines of the file produced by the previous output file's input:

2 a0040004 ; width 4 ; load instruction
2 a0040008 ; width 4 ; load instruction
2 a004000c ; width 4 ; load instruction
2 a0040010 ; width 4 ; load instruction
2 a0040014 ; width 4 ; load instruction
2 a0040018 ; width 4 ; load instruction
2 a004001c ; width 4 ; load instruction
2 a0040020 ; width 4 ; load instruction
2 a0040024 ; width 4 ; load instruction
2 a0040028 ; width 4 ; load instruction

--dinero-file=<file>
This changes the name of the file to which trace information will be written.

%mips64vr5xxxel-elf-run --dinero-trace --dinero-file=trace.out hello
Placing trace information into file "trace.out"
Hello, world!
3 + 4 = 7

--profile-pc
This option creates a file called `gmon.out' that contains profiling information. This file can be used as input to gprof, the GNU profiler.

%mips64vr5xxxel-elf-run --profile-pc hello
Hello, world!
3 + 4 = 7

--profile-pc-frequency=<frequency>
By default, the simulator samples the running program every 256 instructions. This option allows you to change this profiling frequency to some other number. Smaller numbers increasing the accuracy of the profile, but make the simulator run slightly slower. Also, because the counters used in the profile are only 16 bits, a high sampling frequency may cause the counters to overflow.

%mips64vr5xxxel-elf-run --profile-pc --profile-pc-frequency=128 hello
Hello, world!
3 + 4 = 7

--profile-pc-size=<size>
By default, the simulator uses a profiling sample size of 131072 (128K). This option allows you to change the sample size. Increasing the sample size will make the profile more accurate, but will also increase the size of the profile output file, `gmon.out'. The simulator rounds the sample size up the next power of two.

%mips64vr5xxxel-elf-run --profile-pc --profile-pc-size=20000 hello
Hello, world!
3 + 4 = 7

1.Structures and unions, up to the size of a long are returned in the same registers as longs. Larger structures and unions up to the size of long longs are returned in the same registers as long longs. They are aligned within the register according to the endianness of the processor; e.g., on a big-endian processor the first byte of the struct is returned in the most significant byte of ` r2 ', while on a little-endian processor the first byte is returned in the least significant byte of ` r2 '. Structures and unions larger than a long long are handled by the caller passing as a hidden first argument a pointer to space allocated to receive the return value.

Top|Contents|Index|Previous|Next

Compiler features for VR4100 processors

Preprocessor symbols for VR4100 processors

note:

ABI summary for VR4100 processors

Data types and alignment for VR4100 processors

Data type sizes and alignments for VR4100 processors

Register allocation for VR4100 processors

note:

The stack frame for VR4100 processors

Stack frame guidelines for the VR4100 processors

Argument passing for VR4100 processors

Function return values for VR4100 processors

Assembler features for VR4100 processors

Linker issues for VR4100 processors

Linker script for VR4100 processors

Debugger issues for VR4100 processors

Target command options for VR4100 processors

Special debugging commands for VR4100 boards

Stand-alone simulator issues for VR4100 processors

Producing S-records for VR4100 boards

Downloading to the DDB board for VR4100 boards

Developing for the VR4300 processors

Compiler features for the VR4300 processors

Preprocessor symbols for VR4300 processors

Note:

Argument passing for VR4300 processors

Function return values for VR4300 processors

Register allocation for VR4300 processors

Assembler issues for the VR4300 processors

Linker issues for the VR4300 processors

Linker script for VR4300 processors

Debugger issues for VR 4300 processors

Target command options for VR4300 processors

Special commands for V R 4300 processors

Stand-alone simulator features for VR4300 processors

Producing S-records for VR4300 processors

Downloading to the DDB board for VR4300 processors

Developing for the VR5xxx processors

Preprocessor issues for V R 5 xxx processors

Attributes for VR5xxxprocessors

ABI issues for the VR5xxx processors

Volatile

Parameter

Saved

Note:

EABI summary for VR5xxx processors

Data type sizes and alignments for V R 5 xxx using MIPS EABI

The stack frame for VR5xxx processors

Parameter assignment to registers for VR5xxx processors

INITIALIZE

SCAN

DOUBLEor FLOAT

SIMPLE ARG

LONG LONGin 32-bit mode

STACK

Structure passing for VR5xxx

Varargs handling for VR5xxx

Function return values for VR5xxx

Software floating-point for VR5xxx

Assembler issues for the VR5xxx processors

Symbols and registers for the VR5xxx processors

Assembler directives for VR5xxx

MIPS synthetic instructions for the VR5xxx

Linker issues for VR5xxx processors

Linker script for VR5xxx targets

Debugger features for the VR5xxx processors

Simulator features for the VR5xxx processors

Compiler features for V_R4100 processors

Preprocessor symbols for V_R4100 processors

ABI summary for V_R4100 processors

Data types and alignment for V_R4100 processors

Data type sizes and alignments for V_R4100 processors

Register allocation for V_R4100 processors

The stack frame for V_R4100 processors

Stack frame guidelines for the V_R4100 processors

Argument passing for V_R4100 processors

Function return values for V_R4100 processors

Assembler features for V_R4100 processors

Linker issues for V_R4100 processors

Linker script for V_R4100 processors

Debugger issues for V_R4100 processors

Target command options for V_R4100 processors

Special debugging commands for V_R4100 boards

Stand-alone simulator issues for V_R4100 processors

Producing S-records for V_R4100 boards

Downloading to the DDB board for V_R4100 boards

Developing for the V_R4300 processors

Compiler features for the V_R4300 processors

Preprocessor symbols for V_R4300 processors

Argument passing for V_R4300 processors

Function return values for V_R4300 processors

Register allocation for V_R4300 processors

Assembler issues for the V_R4300 processors

Linker issues for the V_R4300 processors

Linker script for V_R4300 processors

Debugger issues for V_R 4300 processors

Target command options for V_R4300 processors

Stand-alone simulator features for V_R4300 processors

Producing S-records for V_R4300 processors

Downloading to the DDB board for V_R4300 processors

Developing for the V_R5`xxx` processors

Attributes for V_R5`xxx`processors

ABI issues for the V_R5`xxx` processors

EABI summary for V_R5`xxx` processors

The stack frame for V_R5`xxx` processors

Parameter assignment to registers for V_R5`xxx` processors

Structure passing for V_R5`xxx`

Varargs handling for V_R5`xxx`

Function return values for V_R5`xxx`

Software floating-point for V_R5`xxx`

Assembler issues for the V_R5`xxx` processors

Symbols and registers for the V_R5`xxx` processors

Assembler directives for V_R5`xxx`

MIPS synthetic instructions for the V_R5`xxx`

Linker issues for V_R5`xxx` processors

Linker script for V_R5`xxx` targets

Debugger features for the V_R5`xxx` processors

Simulator features for the V_R5`xxx` processors
