5 Using PL/SQL Collections and Records

Many programming techniques use collection types such as arrays, bags, lists, nested tables, sets, and trees. You can model these types in database applications using the PL/SQL datatypes TABLE and VARRAY, which enable you to declare nested tables, associative arrays, and variable-size arrays. This chapter shows how to reference and manipulate collections of data as local variables. You also learn how the RECORD datatype lets you manipulate related values of different types as a logical unit.

Topics:

What Are PL/SQL Collections and Records?

Collections and records are composite types that have internal components that can be manipulated individually, such as the elements of an array, record, or table.

A collection is an ordered group of elements, all of the same type. It is a general concept that encompasses lists, arrays, and other datatypes used in classic programming algorithms. Each element is addressed by a unique subscript.

A record is a group of related data items stored in fields, each with its own name and datatype. You can think of a record as a variable that can hold a table row, or some columns from a table row. The fields correspond to table columns.

Topics:

Understanding PL/SQL Collections

PL/SQL offers these collection types:

  • Associative arrays, also known as index-by tables, let you look up elements using arbitrary numbers and strings for subscript values. These are similar to hash tables in other programming languages.

  • Nested tables hold an arbitrary number of elements. They use sequential numbers as subscripts. You can define equivalent SQL types, allowing nested tables to be stored in database tables and manipulated through SQL.

  • Varrays (short for variable-size arrays) hold a fixed number of elements (although you can change the number of elements at run time). They use sequential numbers as subscripts. You can define equivalent SQL types, allowing varrays to be stored in database tables. They can be stored and retrieved through SQL, but with less flexibility than nested tables.

Although collections have only one dimension, you can model multi-dimensional arrays by creating collections whose elements are also collections.

To use collections in an application, you define one or more PL/SQL types, then define variables of those types. You can define collection types in a subprogram or package. You can pass collection variables as parameters to stored subprograms.

To look up data that is more complex than single values, you can store PL/SQL records or SQL object types in collections. Nested tables and varrays can also be attributes of object types.

Topics:

Understanding PL/SQL Nested Tables

PL/SQL nested tables represent sets of values. You can think of them as one-dimensional arrays with no declared number of elements. You can model multi-dimensional arrays by creating nested tables whose elements are also nested tables.

Within the database, nested tables are column types that hold sets of values. Oracle stores the rows of a nested table in no particular order. When you retrieve a nested table from the database into a PL/SQL variable, the rows are given consecutive subscripts starting at 1. That gives you array-like access to individual rows.

Nested tables differ from arrays in two important ways:

  1. Nested tables do not have a declared number of elements, while arrays have a predefined number as illustrated in Figure 5-1. The size of a nested table can increase dynamically; however, a maximum limit is imposed. See "Referencing Collection Elements".

  2. Nested tables might not have consecutive subscripts, while arrays are always dense (have consecutive subscripts). Initially, nested tables are dense, but they can become sparse (have nonconsecutive subscripts). You can delete elements from a nested table using the built-in procedure DELETE. The built-in function NEXT lets you iterate over all the subscripts of a nested table, even if the sequence has gaps.

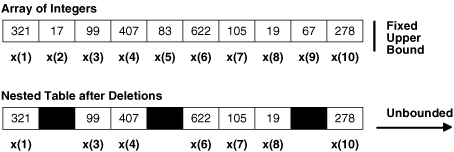

Figure 5-1 Array and Nested Table

Description of Figure 5-1 follows
Description of "Figure 5-1 Array and Nested Table"

Understanding PL/SQL Varrays

Items of type VARRAY are called varrays. They let you reference individual elements for array operations, or manipulate the collection as a whole. To reference an element, you use standard subscripting syntax (see Figure 5-2). For example, Grade(3) references the third element in varray Grades.

Figure 5-2 Varray of Size 10

Description of Figure 5-2 follows
Description of "Figure 5-2 Varray of Size 10"

A varray has a maximum size, which you specify in its type definition. Its index has a fixed lower bound of 1 and an extensible upper bound. For example, the current upper bound for varray Grades is 7, but you can increase its upper bound to maximum of 10. A varray can contain a varying number of elements, from zero (when empty) to the maximum specified in its type definition.

Understanding PL/SQL Associative Arrays (Index-By Tables)

Associative arrays are sets of key-value pairs, where each key is unique and is used to locate a corresponding value in the array. The key can be an integer or a string.

Assigning a value using a key for the first time adds that key to the associative array. Subsequent assignments using the same key update the same entry. It is important to choose a key that is unique. For example, key values might come from the primary key of a database table, from a numeric hash function, or from concatenating strings to form a unique string value.

For example, here is the declaration of an associative array type, and two arrays of that type, using keys that are strings:

Example 5-1 Declaring Collection Types

DECLARE TYPE population_type
  IS TABLE OF NUMBER INDEX BY VARCHAR2(64);
  country_population population_type;
  continent_population population_type;
  howmany NUMBER;
  which VARCHAR2(64);
BEGIN
  country_population('Greenland') := 100000; -- Creates new entry
  country_population('Iceland') := 750000;   -- Creates new entry
-- Looks up value associated with a string
  howmany := country_population('Greenland');
  continent_population('Australia') := 30000000;
  continent_population('Antarctica') := 1000; -- Creates new entry
  continent_population('Antarctica') := 1001;
    -- Replaces previous value
-- Returns 'Antarctica' as that comes first alphabetically.
  which := continent_population.FIRST;
-- Returns 'Australia' as that comes last alphabetically.
  which := continent_population.LAST;
-- Returns the value corresponding to the last key, in this
-- case the population of Australia.
  howmany := continent_population(continent_population.LAST);
END;
/

Associative arrays help you represent data sets of arbitrary size, with fast lookup for an individual element without knowing its position within the array and without having to loop through all the array elements. It is like a simple version of a SQL table where you can retrieve values based on the primary key. For simple temporary storage of lookup data, associative arrays let you avoid using the disk space and network operations required for SQL tables.

Because associative arrays are intended for temporary data rather than storing persistent data, you cannot use them with SQL statements such as INSERT and SELECT INTO. You can make them persistent for the life of a database session by declaring the type in a package and assigning the values in a package body.

How Globalization Settings Affect VARCHAR2 Keys for Associative Arrays

If settings for national language or globalization change during a session that uses associative arrays with VARCHAR2 key values, the program might encounter a run-time error. For example, changing the NLS_COMP or NLS_SORT initialization parameters within a session might cause methods such as NEXT and PRIOR to raise exceptions. If you need to change these settings during the session, make sure to set them back to their original values before performing further operations with these kinds of associative arrays.

When you declare an associative array using a string as the key, the declaration must use a VARCHAR2, STRING, or LONG type. You can use a different type, such as NCHAR or NVARCHAR2, as the key value to reference an associative array. You can even use a type such as DATE, as long as it can be converted to VARCHAR2 by the TO_CHAR function. Note that the LONG datatype is supported only for backward compatibility; see "LONG and LONG RAW Datatypes" for more information.

However, you must be careful when using other types that the values used as keys are consistent and unique. For example, the string value of SYSDATE might change if the NLS_DATE_FORMAT initialization parameter changes, so that array_element(SYSDATE) does not produce the same result as before. Two different NVARCHAR2 values might turn into the same VARCHAR2 value (containing question marks instead of certain national characters). In that case, array_element(national_string1) and array_element(national_string2) might refer to the same element. Two different CHAR or VARCHAR2 values that differ in terms of case, accented characters, or punctuation characters might also be considered the same if the value of the NLS_SORT initialization parameter ends in _CI (case-insensitive comparisons) or _AI (accent- and case-insensitive comparisons).

When you pass an associative array as a parameter to a remote database using a database link, the two databases can have different globalization settings. When the remote database performs operations such as FIRST and NEXT, it uses its own character order even if that is different from the order where the collection originated. If character set differences mean that two keys that were unique are not unique on the remote database, the program receives a VALUE_ERROR exception.

Understanding PL/SQL Records

Records are composed of a group of fields, similar to the columns in a row. The %ROWTYPE attribute lets you declare a PL/SQL record that represents a row in a database table, without listing all the columns. Your code keeps working even after columns are added to the table. If you want to represent a subset of columns in a table, or columns from different tables, you can define a view or declare a cursor to select the right columns and do any necessary joins, and then apply %ROWTYPE to the view or cursor.

For information on using records in PL/SQL, see the following sections in this chapter:

Choosing Which PL/SQL Collection Types to Use

If you already have code or business logic that uses some other language, you can usually translate that language's array and set types directly to PL/SQL collection types.

When you are writing original code or designing the business logic from the start, consider the strengths of each collection type to decide which is appropriate for each situation.

Topics:

Choosing Between Nested Tables and Associative Arrays

Both nested tables and associative arrays (formerly known as index-by tables) use similar subscript notation, but they have different characteristics when it comes to persistence and ease of parameter passing.

Nested tables can be stored in a database column, but associative arrays cannot. Nested tables can simplify SQL operations in which you typically join a single-column table with a larger table.

Associative arrays are appropriate for relatively small lookup tables where the collection can be constructed in memory each time a subprogram is invoked or a package is initialized. They are good for collecting information whose volume is unknown beforehand, because there is no fixed limit on their size. Their index values are more flexible, because associative array subscripts can be negative, can be nonsequential, and can use string values instead of numbers.

PL/SQL automatically converts between host arrays and associative arrays that use numeric key values. The most efficient way to pass collections to and from the database server is to set up data values in associative arrays, then use those associative arrays with bulk constructs (the FORALL statement or BULK COLLECT clause).

Choosing Between Nested Tables and Varrays

Varrays are a good choice when:

  • The number of elements is known in advance.

  • The elements are usually all accessed in sequence.

When stored in the database, varrays keep their ordering and subscripts.

Each varray is stored as a single object, either inside the table of which it is a column (if the varray is less than 4KB) or outside the table but still in the same tablespace (if the varray is greater than 4KB). You must update or retrieve all elements of the varray at the same time, which is most appropriate when performing some operation on all the elements at once. But you might find it impractical to store and retrieve large numbers of elements this way.

Nested tables are a good choice when:

  • Index values are not consecutive.

  • There is no set number of index values. However, a maximum limit is imposed. See "Referencing Collection Elements".

  • You must delete or update some elements, but not all the elements at once.

  • You would typically create a separate lookup table, with multiple entries for each row of the main table, and access it through join queries.

Nested tables can be sparse: you can delete arbitrary elements, rather than just removing an item from the end.

Nested table data is stored in a separate store table, a system-generated database table associated with the nested table. The database joins the tables for you when you access the nested table. This makes nested tables suitable for queries and updates that only affect some elements of the collection.

You cannot rely on the order and subscripts of a nested table remaining stable as the nested table is stored in and retrieved from the database, because the order and subscripts are not preserved in the database.

Defining Collection Types

To create collections, you define a collection type, then declare variables of that type. Collections follow the same scoping and instantiation rules as other types and variables. Collections are instantiated when you enter a block or subprogram, and cease to exist when you exit. In a package, collections are instantiated when you first reference the package and cease to exist when you end the database session.

Note:

For information on the CREATE TYPE SQL statement, see Oracle Database SQL Language Reference. For information on the CREATE TYPE BODY SQL statement, see Oracle Database SQL Language Reference.

You can define TABLE and VARRAY types in the declarative part of any PL/SQL block, subprogram, or package using a TYPE definition. For the syntax information, see "Collection Definition".

For nested tables and varrays declared within PL/SQL, the element type of the table or varray can be any PL/SQL datatype except REF CURSOR.

When defining a VARRAY type, you must specify its maximum size with a positive integer. In the following example, you define a type that stores up to 366 dates:

DECLARE
   TYPE Calendar IS VARRAY(366) OF DATE;

Associative arrays (also known as index-by tables) let you insert elements using arbitrary key values. The keys do not have to be consecutive.

The key datatype can be PLS_INTEGER, VARCHAR2, or one of VARCHAR2 subtypes VARCHAR, STRING, or LONG.

You must specify the length of a VARCHAR2-based key, except for LONG which is equivalent to declaring a key type of VARCHAR2(32760). The types RAW, LONG RAW, ROWID, CHAR, and CHARACTER are not allowed as keys for an associative array. Note that the LONG and LONG RAW datatypes are supported only for backward compatibility; see "LONG and LONG RAW Datatypes" for more information.

An initialization clause is not allowed. There is no constructor notation for associative arrays. When you reference an element of an associative array that uses a VARCHAR2-based key, you can use other types, such as DATE or TIMESTAMP, as long as they can be converted to VARCHAR2 with the TO_CHAR function.

Associative arrays can store data using a primary key value as the index, where the key values are not sequential. Example 5-2 creates a single element in an associative array, with a subscript of 100 rather than 1.

Example 5-2 Declaring an Associative Array

DECLARE
   TYPE EmpTabTyp IS TABLE OF employees%ROWTYPE
      INDEX BY PLS_INTEGER;
   emp_tab EmpTabTyp;
BEGIN
   /* Retrieve employee record. */
   SELECT * INTO emp_tab(100) FROM employees
     WHERE employee_id = 100;
END;
/

Declaring Collection Variables

After defining a collection type, you declare variables of that type. You use the new type name in the declaration, the same as with predefined types such as NUMBER.

Example 5-3 Declaring Nested Tables, Varrays, and Associative Arrays

DECLARE
   TYPE nested_type IS TABLE OF VARCHAR2(30);
   TYPE varray_type IS VARRAY(5) OF INTEGER;
   TYPE assoc_array_num_type
     IS TABLE OF NUMBER INDEX BY PLS_INTEGER;
   TYPE assoc_array_str_type
     IS TABLE OF VARCHAR2(32) INDEX BY PLS_INTEGER;
   TYPE assoc_array_str_type2
     IS TABLE OF VARCHAR2(32) INDEX BY VARCHAR2(64);
   v1 nested_type;
   v2 varray_type;
   v3 assoc_array_num_type;
   v4 assoc_array_str_type;
   v5 assoc_array_str_type2;
BEGIN
-- an arbitrary number of strings can be inserted v1
   v1 := nested_type('Shipping','Sales','Finance','Payroll');
   v2 := varray_type(1, 2, 3, 4, 5); -- Up to 5 integers
   v3(99) := 10; -- Just start assigning to elements
   v3(7) := 100; -- Subscripts can be any integer values
   v4(42) := 'Smith'; -- Just start assigning to elements
   v4(54) := 'Jones'; -- Subscripts can be any integer values
   v5('Canada') := 'North America';
     -- Just start assigning to elements
   v5('Greece') := 'Europe';
     -- Subscripts can be string values
END;
/

As shown in Example 5-4, you can use %TYPE to specify the datatype of a previously declared collection, so that changing the definition of the collection automatically updates other variables that depend on the number of elements or the element type.

Example 5-4 Declaring Collections with %TYPE

DECLARE
   TYPE few_depts IS VARRAY(10) OF VARCHAR2(30);
   TYPE many_depts IS VARRAY(100) OF VARCHAR2(64);
   some_depts few_depts;
-- If we change the type of some_depts from few_depts to many_depts,
-- local_depts and global_depts will use the same type
-- when this block is recompiled
   local_depts some_depts%TYPE;
   global_depts some_depts%TYPE;
BEGIN
   NULL;
END;
/

You can declare collections as the formal parameters of subprograms. That way, you can pass collections to stored subprograms and from one subprogram to another. Example 5-5 declares a nested table as a parameter of a packaged subprogram.

Example 5-5 Declaring a Procedure Parameter as a Nested Table

CREATE PACKAGE personnel AS
   TYPE staff_list IS TABLE OF employees.employee_id%TYPE;
   PROCEDURE award_bonuses (empleos_buenos IN staff_list);
END personnel;
/

CREATE PACKAGE BODY personnel AS
 PROCEDURE award_bonuses (empleos_buenos staff_list) IS
  BEGIN
    FOR i IN empleos_buenos.FIRST..empleos_buenos.LAST
    LOOP
     UPDATE employees SET salary = salary + 100
         WHERE employees.employee_id = empleos_buenos(i);
   END LOOP;
  END;
 END;
/

To invoke personnel.award_bonuses from outside the package, you declare a variable of type personnel.staff_list and pass that variable as the parameter.

Example 5-6 Invoking a Procedure with a Nested Table Parameter

DECLARE
  good_employees personnel.staff_list;
BEGIN
  good_employees :=  personnel.staff_list(100, 103, 107);
  personnel.award_bonuses (good_employees);
END;
/

You can also specify a collection type in the RETURN clause of a function specification.

To specify the element type, you can use %TYPE, which provides the datatype of a variable or database column. Also, you can use %ROWTYPE, which provides the rowtype of a cursor or database table. See Example 5-7 and Example 5-8.

Example 5-7 Specifying Collection Element Types with %TYPE and %ROWTYPE

DECLARE
-- Nested table type that can hold an arbitrary number
--   of employee IDs.
-- The element type is based on a column from the EMPLOYEES table.
-- We do not need to know whether the ID is a number or a string.
   TYPE EmpList IS TABLE OF employees.employee_id%TYPE;
-- Declare a cursor to select a subset of columns.
   CURSOR c1 IS SELECT employee_id FROM employees;
-- Declare an Array type that can hold information
--   about 10 employees.
-- The element type is a record that contains all the same
-- fields as the EMPLOYEES table.
   TYPE Senior_Salespeople IS VARRAY(10) OF employees%ROWTYPE;
-- Declare a cursor to select a subset of columns.
   CURSOR c2 IS SELECT first_name, last_name FROM employees;
-- Array type that can hold a list of names. The element type
-- is a record that contains the same fields as the cursor
-- (that is, first_name and last_name).
   TYPE NameList IS VARRAY(20) OF c2%ROWTYPE;
BEGIN
   NULL;
END;
/

Example 5-8 uses a RECORD type to specify the element type. See "Defining and Declaring Records".

Example 5-8 VARRAY of Records

DECLARE TYPE name_rec
  IS RECORD ( first_name VARCHAR2(20), last_name VARCHAR2(25));
   TYPE names IS VARRAY(250) OF name_rec;
BEGIN
   NULL;
END;
/

You can also impose a NOT NULL constraint on the element type, as shown in Example 5-9.

Example 5-9 NOT NULL Constraint on Collection Elements

DECLARE TYPE EmpList
  IS TABLE OF employees.employee_id%TYPE NOT NULL;
  v_employees EmpList := EmpList(100, 150, 160, 200);
BEGIN
   v_employees(3) := NULL; -- assigning NULL raises an error
END;
/

Initializing and Referencing Collections

Until you initialize it, a nested table or varray is atomically null; the collection itself is null, not its elements. To initialize a nested table or varray, you use a constructor, a system-defined function with the same name as the collection type. This function constructs collections from the elements passed to it.

You must explicitly call a constructor for each varray and nested table variable. Associative arrays, the third kind of collection, do not use constructors. Constructor calls are allowed wherever function calls are allowed.

Example 5-10 initializes a nested table using a constructor, which looks like a function with the same name as the collection type:

Example 5-10 Constructor for a Nested Table

DECLARE
   TYPE dnames_tab IS TABLE OF VARCHAR2(30);
   dept_names dnames_tab;
BEGIN
   dept_names := dnames_tab('Shipping','Sales','Finance','Payroll');
END;
/

Because a nested table does not have a declared size, you can put as many elements in the constructor as necessary.

Example 5-11 initializes a varray using a constructor, which looks like a function with the same name as the collection type:

Example 5-11 Constructor for a Varray

DECLARE
-- In the varray, we put an upper limit on the number of elements
   TYPE dnames_var IS VARRAY(20) OF VARCHAR2(30);
   dept_names dnames_var;
BEGIN
-- Because dnames is declared as VARRAY(20),
-- we can put up to 10elements in the constructor
   dept_names := dnames_var('Shipping','Sales','Finance','Payroll');
END;
/

Unless you impose the NOT NULL constraint in the type declaration, you can pass null elements to a constructor as in Example 5-12.

Example 5-12 Collection Constructor Including Null Elements

DECLARE
   TYPE dnames_tab IS TABLE OF VARCHAR2(30);
   dept_names dnames_tab;
   TYPE dnamesNoNulls_type IS TABLE OF VARCHAR2(30) NOT NULL;
BEGIN
   dept_names := dnames_tab('Shipping', NULL,'Finance', NULL);
-- If dept_names were of type dnamesNoNulls_type,
--  we could not include null values in the constructor
END;
/

You can initialize a collection in its declaration, which is a good programming practice, as shown in Example 5-13. In this case, you can invoke the collection's EXTEND method to add elements later.

Example 5-13 Combining Collection Declaration and Constructor

DECLARE
   TYPE dnames_tab IS TABLE OF VARCHAR2(30);
   dept_names dnames_tab :=
     dnames_tab('Shipping','Sales','Finance','Payroll');
BEGIN
   NULL;
END;
/

If you call a constructor without arguments, you get an empty but non-null collection as shown in Example 5-14.

Example 5-14 Empty Varray Constructor

DECLARE
   TYPE dnames_var IS VARRAY(20) OF VARCHAR2(30);
   dept_names dnames_var;
BEGIN
   IF dept_names IS NULL THEN
      DBMS_OUTPUT.PUT_LINE
        ('Before initialization, the varray is null.');
-- While the varray is null, we cannot check its COUNT attribute.
--   DBMS_OUTPUT.PUT_LINE
--     ('It has ' || dept_names.COUNT || ' elements.');
   ELSE
      DBMS_OUTPUT.PUT_LINE
        ('Before initialization, the varray is not null.');
   END IF;
   dept_names := dnames_var(); -- initialize empty varray
   IF dept_names IS NULL THEN
      DBMS_OUTPUT.PUT_LINE
        ('After initialization, the varray is null.');
   ELSE
      DBMS_OUTPUT.PUT_LINE
        ('After initialization, the varray is not null.');
      DBMS_OUTPUT.PUT_LINE
        ('It has ' || dept_names.COUNT || ' elements.');
   END IF;
END;
/

Referencing Collection Elements

Every reference to an element includes a collection name and a subscript enclosed in parentheses. The subscript determines which element is processed. To reference an element, you specify its subscript using the following syntax:

collection_name (subscript)

where subscript is an expression that yields an integer in most cases, or a VARCHAR2 for associative arrays declared with strings as keys.

The allowed subscript ranges are:

Example 5-15 shows how to reference an element in a nested table.

Example 5-15 Referencing a Nested Table Element

DECLARE
  TYPE Roster IS TABLE OF VARCHAR2(15);
  names Roster :=
    Roster('D Caruso', 'J Hamil', 'D Piro', 'R Singh');
  PROCEDURE verify_name(the_name VARCHAR2) IS
  BEGIN
    DBMS_OUTPUT.PUT_LINE(the_name);
  END;
BEGIN
  FOR i IN names.FIRST .. names.LAST
  LOOP
      IF names(i) = 'J Hamil' THEN
        DBMS_OUTPUT.PUT_LINE(names(i));
          -- reference to nested table element
      END IF;
  END LOOP;
  verify_name(names(3));
    -- procedure call with reference to element
END;
/

Example 5-16 shows how you can reference the elements of an associative array in a function call.

Example 5-16 Referencing an Element of an Associative Array

DECLARE
  TYPE sum_multiples IS TABLE OF PLS_INTEGER INDEX BY PLS_INTEGER;
  n  PLS_INTEGER := 5;   -- number of multiples to sum for display
  sn PLS_INTEGER := 10;  -- number of multiples to sum
  m  PLS_INTEGER := 3;   -- multiple
FUNCTION get_sum_multiples
  (multiple IN PLS_INTEGER, num IN PLS_INTEGER)
  RETURN sum_multiples IS
  s sum_multiples;
  BEGIN
      FOR i IN 1..num LOOP
        s(i) := multiple * ((i * (i + 1)) / 2);
           -- sum of multiples
      END LOOP;
    RETURN s;
  END get_sum_multiples;
BEGIN
-- invok function to retrieve
-- element identified by subscript (key)
  DBMS_OUTPUT.PUT_LINE
    ('Sum of the first ' || TO_CHAR(n) || ' multiples of ' ||
     TO_CHAR(m) || ' is ' || TO_CHAR(get_sum_multiples (m, sn)(n)));
END;
/

Assigning Collections

One collection can be assigned to another by an INSERT, UPDATE, FETCH, or SELECT statement, an assignment statement, or a subprogram call. You can assign the value of an expression to a specific element in a collection using the syntax:

collection_name (subscript) := expression;

where expression yields a value of the type specified for elements in the collection type definition.

You can use operators such as SET, MULTISET UNION, MULTISET INTERSECT, and MULTISET EXCEPT to transform nested tables as part of an assignment statement.

Assigning a value to a collection element can cause exceptions, such as:

For more information on collection exceptions, see "Avoiding Collection Exceptions", Example 5-38, and "Summary of Predefined PL/SQL Exceptions".

Example 5-17 shows that collections must have the same datatype for an assignment to work. Having the same element type is not enough.

Example 5-17 Datatype Compatibility for Collection Assignment

DECLARE
   TYPE last_name_typ IS VARRAY(3) OF VARCHAR2(64);
   TYPE surname_typ IS VARRAY(3) OF VARCHAR2(64);
-- These first two variables have the same datatype.
   group1 last_name_typ := last_name_typ('Jones','Wong','Marceau');
   group2 last_name_typ := last_name_typ('Klein','Patsos','Singh');
-- This third variable has a similar declaration,
-- but is not the same type.
   group3 surname_typ := surname_typ('Trevisi','Macleod','Marquez');
BEGIN
-- Allowed because they have the same datatype
   group1 := group2;
-- Not allowed because they have different datatypes
--   group3 := group2; -- raises an error
END;
/

If you assign an atomically null nested table or varray to a second nested table or varray, the second collection must be reinitialized, as shown in Example 5-18. In the same way, assigning the value NULL to a collection makes it atomically null.

Example 5-18 Assigning a Null Value to a Nested Table

DECLARE
   TYPE dnames_tab IS TABLE OF VARCHAR2(30);
-- This nested table has some values
   dept_names dnames_tab :=
     dnames_tab('Shipping','Sales','Finance','Payroll');
-- This nested table is not initialized ("atomically null").
   empty_set dnames_tab;
BEGIN
-- At first, the initialized variable is not null.
   if dept_names IS NOT NULL THEN
      DBMS_OUTPUT.PUT_LINE('OK, at first dept_names is not null.');
   END IF;
-- Then we assign a null nested table to it.
   dept_names := empty_set;
-- Now it is null.
   if dept_names IS NULL THEN
      DBMS_OUTPUT.PUT_LINE('OK, now dept_names has become null.');
   END IF;
-- We must use another constructor to give it some values.
   dept_names := dnames_tab('Shipping','Sales','Finance','Payroll');
END;
/

Example 5-19 shows some of the ANSI-standard operators that you can apply to nested tables.

Example 5-19 Assigning Nested Tables with Set Operators

DECLARE
  TYPE nested_typ IS TABLE OF NUMBER;
  nt1 nested_typ := nested_typ(1,2,3);
  nt2 nested_typ := nested_typ(3,2,1);
  nt3 nested_typ := nested_typ(2,3,1,3);
  nt4 nested_typ := nested_typ(1,2,4);
  answer nested_typ;
-- The results might be in a different order than you expect.
-- Do not rely on the order of elements in nested tables.
  PROCEDURE print_nested_table(the_nt nested_typ) IS
     output VARCHAR2(128);
  BEGIN
     IF the_nt IS NULL THEN
        DBMS_OUTPUT.PUT_LINE('Results: <NULL>');
        RETURN;
     END IF;
     IF the_nt.COUNT = 0 THEN
        DBMS_OUTPUT.PUT_LINE('Results: empty set');
        RETURN;
     END IF;
     FOR i IN the_nt.FIRST .. the_nt.LAST
     LOOP
        output := output || the_nt(i) || ' ';
     END LOOP;
     DBMS_OUTPUT.PUT_LINE('Results: ' || output);
  END;
BEGIN
  answer := nt1 MULTISET UNION nt4; -- (1,2,3,1,2,4)
  print_nested_table(answer);
  answer := nt1 MULTISET UNION nt3; -- (1,2,3,2,3,1,3)
  print_nested_table(answer);
  answer := nt1 MULTISET UNION DISTINCT nt3; -- (1,2,3)
  print_nested_table(answer);
  answer := nt2 MULTISET INTERSECT nt3; -- (3,2,1)
  print_nested_table(answer);
  answer := nt2 MULTISET INTERSECT DISTINCT nt3; -- (3,2,1)
  print_nested_table(answer);
  answer := SET(nt3); -- (2,3,1)
  print_nested_table(answer);
  answer := nt3 MULTISET EXCEPT nt2; -- (3)
  print_nested_table(answer);
  answer := nt3 MULTISET EXCEPT DISTINCT nt2; -- ()
  print_nested_table(answer);
END;
/

Example 5-20 shows an assignment to a VARRAY of records with an assignment statement.

Example 5-20 Assigning Values to VARRAYs with Complex Datatypes

DECLARE
  TYPE emp_name_rec is RECORD (
    firstname    employees.first_name%TYPE,
    lastname     employees.last_name%TYPE,
    hiredate     employees.hire_date%TYPE
    );

-- Array type that can hold information 10 employees
   TYPE EmpList_arr IS VARRAY(10) OF emp_name_rec;
   SeniorSalespeople EmpList_arr;

-- Declare a cursor to select a subset of columns.
   CURSOR c1 IS SELECT first_name, last_name, hire_date
     FROM employees;
   Type NameSet IS TABLE OF c1%ROWTYPE;
   SeniorTen NameSet;
   EndCounter NUMBER := 10;

BEGIN
  SeniorSalespeople := EmpList_arr();
  SELECT first_name, last_name, hire_date
    BULK COLLECT INTO SeniorTen
    FROM employees
    WHERE job_id = 'SA_REP'
    ORDER BY hire_date;
  IF SeniorTen.LAST > 0 THEN
    IF SeniorTen.LAST < 10 THEN EndCounter := SeniorTen.LAST;
    END IF;
    FOR i in 1..EndCounter LOOP
      SeniorSalespeople.EXTEND(1);
      SeniorSalespeople(i) := SeniorTen(i);
      DBMS_OUTPUT.PUT_LINE(SeniorSalespeople(i).lastname || ', '
       || SeniorSalespeople(i).firstname || ', ' ||
       SeniorSalespeople(i).hiredate);
    END LOOP;
  END IF;
END;
/

Example 5-21 shows an assignment to a nested table of records with a FETCH statement.

Example 5-21 Assigning Values to Tables with Complex Datatypes

DECLARE
  TYPE emp_name_rec is RECORD (
    firstname    employees.first_name%TYPE,
    lastname     employees.last_name%TYPE,
    hiredate     employees.hire_date%TYPE
    );

-- Table type that can hold information about employees
   TYPE EmpList_tab IS TABLE OF emp_name_rec;
   SeniorSalespeople EmpList_tab;

-- Declare a cursor to select a subset of columns.
   CURSOR c1 IS SELECT first_name, last_name, hire_date
     FROM employees;
   EndCounter NUMBER := 10;
   TYPE EmpCurTyp IS REF CURSOR;
   emp_cv EmpCurTyp;

BEGIN
  OPEN emp_cv FOR SELECT first_name, last_name, hire_date
   FROM employees
   WHERE job_id = 'SA_REP' ORDER BY hire_date;

  FETCH emp_cv BULK COLLECT INTO SeniorSalespeople;
  CLOSE emp_cv;

-- for this example, display a maximum of ten employees
  IF SeniorSalespeople.LAST > 0 THEN
    IF SeniorSalespeople.LAST < 10 THEN
      EndCounter := SeniorSalespeople.LAST;
    END IF;
    FOR i in 1..EndCounter LOOP
      DBMS_OUTPUT.PUT_LINE
        (SeniorSalespeople(i).lastname || ', '
         || SeniorSalespeople(i).firstname || ', ' || SeniorSalespeople(i).hiredate);
    END LOOP;
  END IF;
END;
/

Comparing Collections

You can check whether a collection is null. Comparisons such as greater than, less than, and so on are not allowed. This restriction also applies to implicit comparisons. For example, collections cannot appear in a DISTINCT, GROUP BY, or ORDER BY list.

If you want to do such comparison operations, you must define your own notion of what it means for collections to be greater than, less than, and so on, and write one or more functions to examine the collections and their elements and return a true or false value.

For nested tables, you can check whether two nested table of the same declared type are equal or not equal, as shown in Example 5-23. You can also apply set operators (CARDINALITY, MEMBER OF, IS A SET, IS EMPTY) to check certain conditions within a nested table or between two nested tables, as shown in Example 5-24.

Because nested tables and varrays can be atomically null, they can be tested for nullity, as shown in Example 5-22.

Example 5-22 Checking if a Collection Is Null

DECLARE
  TYPE emp_name_rec is RECORD (
    firstname    employees.first_name%TYPE,
    lastname     employees.last_name%TYPE,
    hiredate     employees.hire_date%TYPE
    );
   TYPE staff IS TABLE OF emp_name_rec;
   members staff;
BEGIN
  -- Condition yields TRUE because we have not used a constructor.
   IF members IS NULL THEN
     DBMS_OUTPUT.PUT_LINE('NULL');
   ELSE
     DBMS_OUTPUT.PUT_LINE('Not NULL');
   END IF;
END;
/

Example 5-23 shows that nested tables can be compared for equality or inequality. They cannot be ordered, because there is no greater than or less than comparison.

Example 5-23 Comparing Two Nested Tables

DECLARE
   TYPE dnames_tab IS TABLE OF VARCHAR2(30);
   dept_names1 dnames_tab :=
     dnames_tab('Shipping','Sales','Finance','Payroll');
   dept_names2 dnames_tab :=
     dnames_tab('Sales','Finance','Shipping','Payroll');
   dept_names3 dnames_tab :=
     dnames_tab('Sales','Finance','Payroll');
BEGIN
-- We can use = or !=, but not < or >.
-- These 2 are equal even though members are in different order.
   IF dept_names1 = dept_names2 THEN
     DBMS_OUTPUT.PUT_LINE
      ('dept_names1 and dept_names2 have the same members.');
   END IF;
   IF dept_names2 != dept_names3 THEN
      DBMS_OUTPUT.PUT_LINE
        ('dept_names2 and dept_names3 have different members.');
   END IF;
END;
/

You can test certain properties of a nested table, or compare two nested tables, using ANSI-standard set operations, as shown in Example 5-24.

Example 5-24 Comparing Nested Tables with Set Operators

DECLARE
  TYPE nested_typ IS TABLE OF NUMBER;
  nt1 nested_typ := nested_typ(1,2,3);
  nt2 nested_typ := nested_typ(3,2,1);
  nt3 nested_typ := nested_typ(2,3,1,3);
  nt4 nested_typ := nested_typ(1,2,4);
  answer BOOLEAN;
  howmany NUMBER;
  PROCEDURE testify
    (truth BOOLEAN DEFAULT NULL
     quantity NUMBER DEFAULT NULL) IS
  BEGIN
    IF truth IS NOT NULL THEN
      DBMS_OUTPUT.PUT_LINE
        (CASE truth WHEN TRUE THEN 'True' WHEN FALSE THEN 'False' END);
    END IF;
    IF quantity IS NOT NULL THEN
        DBMS_OUTPUT.PUT_LINE(quantity);
    END IF;
  END;
BEGIN
  answer := nt1 IN (nt2,nt3,nt4); -- true, nt1 matches nt2
  testify(truth => answer);
  answer := nt1 SUBMULTISET OF nt3; -- true, all elements match
  testify(truth => answer);
  answer := nt1 NOT SUBMULTISET OF nt4; -- also true
  testify(truth => answer);
  howmany := CARDINALITY(nt3); -- number of elements in nt3
  testify(quantity => howmany);
  howmany := CARDINALITY(SET(nt3)); -- number of distinct elements
  testify(quantity => howmany);
  answer := 4 MEMBER OF nt1; -- false, no element matches
  testify(truth => answer);
  answer := nt3 IS A SET; -- false, nt3 has duplicates
  testify(truth => answer);
  answer := nt3 IS NOT A SET; -- true, nt3 has duplicates
  testify(truth => answer);
  answer := nt1 IS EMPTY; -- false, nt1 has some members
  testify(truth => answer);
END;
/

Using Multilevel Collections

In addition to collections of scalar or object types, you can also create collections whose elements are collections. For example, you can create a nested table of varrays, a varray of varrays, a varray of nested tables, and so on.

When creating a nested table of nested tables as a column in SQL, check the syntax of the CREATE TABLE statement to see how to define the storage table.

Example 5-25, Example 5-26, and Example 5-27 are some examples showing the syntax and possibilities for multilevel collections.

Example 5-25 Multilevel VARRAY

DECLARE
  TYPE t1 IS VARRAY(10) OF INTEGER;
  TYPE nt1 IS VARRAY(10) OF t1; -- multilevel varray type
  va t1 := t1(2,3,5);
  -- initialize multilevel varray
  nva nt1 := nt1(va, t1(55,6,73), t1(2,4), va);
  i INTEGER;
  va1 t1;
BEGIN
  -- multilevel access
  i := nva(2)(3); -- i will get value 73
  DBMS_OUTPUT.PUT_LINE('I = ' || i);
  -- add a new varray element to nva
  nva.EXTEND;
  -- replace inner varray elements
  nva(5) := t1(56, 32);
  nva(4) := t1(45,43,67,43345);
  -- replace an inner integer element
  nva(4)(4) := 1; -- replaces 43345 with 1
  -- add a new element to the 4th varray element
  -- and store integer 89 into it.
  nva(4).EXTEND;
  nva(4)(5) := 89;
END;
/

Example 5-26 Multilevel Nested Table

DECLARE
  TYPE tb1 IS TABLE OF VARCHAR2(20);
  TYPE Ntb1 IS TABLE OF tb1; -- table of table elements
  TYPE Tv1 IS VARRAY(10) OF INTEGER;
  TYPE ntb2 IS TABLE OF tv1; -- table of varray elements
  vtb1 tb1 := tb1('one', 'three');
  vntb1 ntb1 := ntb1(vtb1);
  vntb2 ntb2 := ntb2(tv1(3,5), tv1(5,7,3));
  -- table of varray elements
BEGIN
  vntb1.EXTEND;
  vntb1(2) := vntb1(1);
  -- delete the first element in vntb1
  vntb1.DELETE(1);
  -- delete the first string
  -- from the second table in the nested table
  vntb1(2).DELETE(1);
END;
/

Example 5-27 Multilevel Associative Array

DECLARE
  TYPE tb1 IS TABLE OF INTEGER INDEX BY PLS_INTEGER;
  -- the following is index-by table of index-by tables
  TYPE ntb1 IS TABLE OF tb1 INDEX BY PLS_INTEGER;
  TYPE va1 IS VARRAY(10) OF VARCHAR2(20);
  -- the following is index-by table of varray elements
  TYPE ntb2 IS TABLE OF va1 INDEX BY PLS_INTEGER;
  v1 va1 := va1('hello', 'world');
  v2 ntb1;
  v3 ntb2;
  v4 tb1;
  v5 tb1; -- empty table
BEGIN
  v4(1) := 34;
  v4(2) := 46456;
  v4(456) := 343;
  v2(23) := v4;
  v3(34) := va1(33, 456, 656, 343);
  -- assign an empty table to v2(35) and try again
  v2(35) := v5;
  v2(35)(2) := 78; -- it works now
END;
/

Using Collection Methods

Collection methods make collections easier to use, and make your applications easier to maintain. These methods include COUNT, DELETE, EXISTS, EXTEND, FIRST, LAST, LIMIT, NEXT, PRIOR, and TRIM.

A collection method is a built-in subprogram that operates on collections and is invoked using dot notation. The following apply to collection methods:

For more information, see "Collection Methods".

Topics:

Checking If a Collection Element Exists (EXISTS Method)

EXISTS(n) returns TRUE if the nth element in a collection exists. Otherwise, EXISTS(n) returns FALSE. By combining EXISTS with DELETE, you can work with sparse nested tables. You can also use EXISTS to avoid referencing a nonexistent element, which raises an exception. When passed an out-of-range subscript, EXISTS returns FALSE instead of raising SUBSCRIPT_OUTSIDE_LIMIT.

Example 5-28 Checking Whether a Collection Element EXISTS

DECLARE
   TYPE NumList IS TABLE OF INTEGER;
   n NumList := NumList(1,3,5,7);
BEGIN
   n.DELETE(2); -- Delete the second element
   IF n.EXISTS(1) THEN
      DBMS_OUTPUT.PUT_LINE('OK, element #1 exists.');
   END IF;
   IF n.EXISTS(2) = FALSE THEN
      DBMS_OUTPUT.PUT_LINE('OK, element #2 was deleted.');
   END IF;
   IF n.EXISTS(99) = FALSE THEN
      DBMS_OUTPUT.PUT_LINE('OK, element #99 does not exist at all.');
   END IF;
END;
/

Counting the Elements in a Collection (COUNT Method)

COUNT returns the number of elements that a collection currently contains.

Example 5-29 Counting Collection Elements with COUNT

DECLARE
   TYPE NumList IS TABLE OF NUMBER;
   n NumList := NumList(2,4,6,8);
     -- Collection starts with 4 elements.
BEGIN
   DBMS_OUTPUT.PUT_LINE
     ('There are ' || n.COUNT || ' elements in N.');
   n.EXTEND(3); -- Add 3 new elements at the end.
   DBMS_OUTPUT.PUT_LINE
     ('Now there are ' || n.COUNT || ' elements in N.');
   n := NumList(86,99); -- Assign a completely new value with 2 elements.
   DBMS_OUTPUT.PUT_LINE
     ('Now there are ' || n.COUNT || ' elements in N.');
   n.TRIM(2); -- Remove the last 2 elements, leaving none.
   DBMS_OUTPUT.PUT_LINE
     ('Now there are ' || n.COUNT || ' elements in N.');
END;
/

COUNT is useful because the current size of a collection is not always known. For example, you can fetch a column of Oracle data into a nested table, where the number of elements depends on the size of the result set.

For varrays, COUNT always equals LAST. You can increase or decrease the size of a varray using the EXTEND and TRIM methods, so the value of COUNT can change, up to the value of the LIMIT method.

For nested tables, COUNT normally equals LAST. But, if you delete elements from the middle of a nested table, COUNT becomes smaller than LAST. When tallying elements, COUNT ignores deleted elements. Using DELETE with no parameters sets COUNT to 0.

Checking the Maximum Size of a Collection (LIMIT Method)

For nested tables and associative arrays, which have no declared size, LIMIT returns NULL. For varrays, LIMIT returns the maximum number of elements that a varray can contain. You specify this limit in the type definition, and can change it later with the TRIM and EXTEND methods.

Example 5-30 Checking the Maximum Size of a Collection with LIMIT

DECLARE
   TYPE dnames_var IS VARRAY(7) OF VARCHAR2(30);
   dept_names dnames_var :=
     dnames_var('Shipping','Sales','Finance','Payroll');
BEGIN
   DBMS_OUTPUT.PUT_LINE
     ('dept_names has ' || dept_names.COUNT || ' elements now');
   DBMS_OUTPUT.PUT_LINE
     ('dept_names''s type can hold a maximum of '
      || dept_names.LIMIT || ' elements');
   DBMS_OUTPUT.PUT_LINE
    ('The maximum number you can use with '
     || 'dept_names.EXTEND() is '
     || (dept_names.LIMIT - dept_names.COUNT));
END;
/

Finding the First or Last Collection Element (FIRST and LAST Methods)

FIRST and LAST return the first and last (smallest and largest) index numbers in a collection that uses integer subscripts.

For an associative array with VARCHAR2 key values, the lowest and highest key values are returned. By default, the order is based on the binary values of the characters in the string. If the NLS_COMP initialization parameter is set to ANSI, the order is based on the locale-specific sort order specified by the NLS_SORT initialization parameter.

If the collection is empty, FIRST and LAST return NULL. If the collection contains only one element, FIRST and LAST return the same index value.

Example 5-31 shows how to use FIRST and LAST to iterate through the elements in a collection that has consecutive subscripts.

Example 5-31 Using FIRST and LAST with a Collection

DECLARE
   TYPE NumList IS TABLE OF NUMBER;
   n NumList := NumList(1,3,5,7);
   counter INTEGER;
BEGIN
   DBMS_OUTPUT.PUT_LINE('N''s first subscript is ' || n.FIRST);
   DBMS_OUTPUT.PUT_LINE('N''s last subscript is ' || n.LAST);
-- When the subscripts are consecutive starting at 1,
-- it's simple to loop through them.
   FOR i IN n.FIRST .. n.LAST
   LOOP
      DBMS_OUTPUT.PUT_LINE('Element #' || i || ' = ' || n(i));
   END LOOP;
   n.DELETE(2); -- Delete second element.
-- When the subscripts have gaps
-- or the collection might be uninitialized,
-- the loop logic is more extensive.
-- Start at the first element
-- and look for the next element until there are no more.
   IF n IS NOT NULL THEN
      counter := n.FIRST;
      WHILE counter IS NOT NULL
      LOOP
         DBMS_OUTPUT.PUT_LINE
           ('Element #' || counter || ' = ' || n(counter));
         counter := n.NEXT(counter);
      END LOOP;
   ELSE
      DBMS_OUTPUT.PUT_LINE('N is null, nothing to do.');
   END IF;
END;
/

For varrays, FIRST always returns 1 and LAST always equals COUNT.

For nested tables, normally FIRST returns 1 and LAST equals COUNT. But if you delete elements from the beginning of a nested table, FIRST returns a number larger than 1. If you delete elements from the middle of a nested table, LAST becomes larger than COUNT.

When scanning elements, FIRST and LAST ignore deleted elements.

Looping Through Collection Elements (PRIOR and NEXT Methods)

PRIOR(n) returns the index number that precedes index n in a collection. NEXT(n) returns the index number that succeeds index n. If n has no predecessor, PRIOR(n) returns NULL. If n has no successor, NEXT(n) returns NULL.

For associative arrays with VARCHAR2 keys, these methods return the appropriate key value; ordering is based on the binary values of the characters in the string, unless the NLS_COMP initialization parameter is set to ANSI, in which case the ordering is based on the locale-specific sort order specified by the NLS_SORT initialization parameter.

These methods are more reliable than looping through a fixed set of subscript values, because elements might be inserted or deleted from the collection during the loop. This is especially true for associative arrays, where the subscripts might not be in consecutive order and so the sequence of subscripts might be (1,2,4,8,16) or ('A','E','I','O','U').

Example 5-32 Using PRIOR and NEXT to Access Collection Elements

DECLARE
   TYPE NumList IS TABLE OF NUMBER;
   n NumList := NumList(1966,1971,1984,1989,1999);
BEGIN
   DBMS_OUTPUT.PUT_LINE('The element after #2 is #' || n.NEXT(2));
   DBMS_OUTPUT.PUT_LINE('The element before #2 is #' || n.PRIOR(2));
   n.DELETE(3);
     -- Delete an element to show how NEXT can handle gaps.
   DBMS_OUTPUT.PUT_LINE
     ('Now the element after #2 is #' || n.NEXT(2));
   IF n.PRIOR(n.FIRST) IS NULL THEN
      DBMS_OUTPUT.PUT_LINE
        ('Can''t get PRIOR of the first element or NEXT of the last.');
   END IF;
END;
/

You can use PRIOR or NEXT to traverse collections indexed by any series of subscripts. Example 5-33 uses NEXT to traverse a nested table from which some elements were deleted.

Example 5-33 Using NEXT to Access Elements of a Nested Table

DECLARE
   TYPE NumList IS TABLE OF NUMBER;
   n NumList := NumList(1,3,5,7);
   counter INTEGER;
BEGIN
   n.DELETE(2); -- Delete second element.
-- When the subscripts have gaps,
-- loop logic is more extensive.
-- Start at first element and look for next element
-- until there are no more.
   counter := n.FIRST;
   WHILE counter IS NOT NULL
   LOOP
      DBMS_OUTPUT.PUT_LINE
        ('Counting up: Element #' || counter || ' = ' || n(counter));
      counter := n.NEXT(counter);
   END LOOP;
-- Run the same loop in reverse order.
   counter := n.LAST;
   WHILE counter IS NOT NULL
   LOOP
      DBMS_OUTPUT.PUT_LINE
        ('Counting down: Element #' || counter || ' = ' || n(counter));
      counter := n.PRIOR(counter);
   END LOOP;
END;
/

When traversing elements, PRIOR and NEXT skip over deleted elements.

Increasing the Size of a Collection (EXTEND Method)

To increase the size of a nested table or varray, use EXTEND.

This procedure has three forms:

  • EXTEND appends one null element to a collection.

  • EXTEND(n) appends n null elements to a collection.

  • EXTEND(n,i) appends n copies of the ith element to a collection.

You cannot use EXTEND with index-by tables. You cannot use EXTEND to add elements to an uninitialized collection. If you impose the NOT NULL constraint on a TABLE or VARRAY type, you cannot apply the first two forms of EXTEND to collections of that type.

EXTEND operates on the internal size of a collection, which includes any deleted elements. This refers to deleted elements after using DELETE(n), but not DELETE without parameters which completely removes all elements. If EXTEND encounters deleted elements, it includes them in its tally. PL/SQL keeps placeholders for deleted elements, so that you can re-create them by assigning new values.

Example 5-34 Using EXTEND to Increase the Size of a Collection

DECLARE
   TYPE NumList IS TABLE OF INTEGER;
   n NumList := NumList(2,4,6,8);
   x NumList := NumList(1,3);
   PROCEDURE print_numlist(the_list NumList) IS
      output VARCHAR2(128);
   BEGIN
      FOR i IN the_list.FIRST .. the_list.LAST
      LOOP
         output :=
           output || NVL(TO_CHAR(the_list(i)),'NULL') || ' ';
      END LOOP;
      DBMS_OUTPUT.PUT_LINE(output);
   END;
BEGIN
   DBMS_OUTPUT.PUT_LINE
     ('At first, N has ' || n.COUNT || ' elements.');
   n.EXTEND(5); -- Add 5 elements at the end.
   DBMS_OUTPUT.PUT_LINE
     ('Now N has ' || n.COUNT || ' elements.');
-- Elements 5, 6, 7, 8, and 9 are all NULL.
   print_numlist(n);
   DBMS_OUTPUT.PUT_LINE
     ('At first, X has ' || x.COUNT || ' elements.');
   x.EXTEND(4,2); -- Add 4 elements at the end.
   DBMS_OUTPUT.PUT_LINE
     ('Now X has ' || x.COUNT || ' elements.');
-- Elements 3, 4, 5, and 6 are copies of element #2.
   print_numlist(x);
END;
/

When it includes deleted elements, the internal size of a nested table differs from the values returned by COUNT and LAST. This refers to deleted elements after using DELETE(n), but not DELETE without parameters which completely removes all elements. For example, if you initialize a nested table with five elements, then delete elements 2 and 5, the internal size is 5, COUNT returns 3, and LAST returns 4. All deleted elements, regardless of position, are treated alike.

Decreasing the Size of a Collection (TRIM Method)

This procedure has two forms:

  • TRIM removes one element from the end of a collection.

  • TRIM(n) removes n elements from the end of a collection.

If you want to remove all elements, use DELETE without parameters.

For example, this statement removes the last three elements from nested table courses:

Example 5-35 Using TRIM to Decrease the Size of a Collection

DECLARE
   TYPE NumList IS TABLE OF NUMBER;
   n NumList := NumList(1,2,3,5,7,11);
   PROCEDURE print_numlist(the_list NumList) IS
      output VARCHAR2(128);
   BEGIN
      IF n.COUNT = 0 THEN
         DBMS_OUTPUT.PUT_LINE('No elements in collection.');
      ELSE
         FOR i IN the_list.FIRST .. the_list.LAST
         LOOP
            output :=
              output || NVL(TO_CHAR(the_list(i)),'NULL') || ' ';
         END LOOP;
         DBMS_OUTPUT.PUT_LINE(output);
      END IF;
   END;
BEGIN
   print_numlist(n);
   n.TRIM(2); -- Remove last 2 elements.
   print_numlist(n);
   n.TRIM; -- Remove last element.
   print_numlist(n);
   n.TRIM(n.COUNT); -- Remove all remaining elements.
   print_numlist(n);
-- If too many elements are specified,
-- TRIM raises the exception SUBSCRIPT_BEYOND_COUNT.
   BEGIN
      n := NumList(1,2,3);
      n.TRIM(100);
      EXCEPTION
        WHEN SUBSCRIPT_BEYOND_COUNT THEN
          DBMS_OUTPUT.PUT_LINE
            ('There weren''t 100 elements to be trimmed.');
   END;
-- When elements are removed by DELETE,
-- placeholders are left behind.
--  TRIM counts these placeholders
--  as it removes elements from the end.
   n := NumList(1,2,3,4);
   n.DELETE(3);  -- delete element 3
-- At this point, n contains elements (1,2,4).
-- TRIMming the last 2 elements
-- removes the 4 and the placeholder, not 4 and 2.
   n.TRIM(2);
   print_numlist(n);
END;
/

If n is too large, TRIM(n) raises SUBSCRIPT_BEYOND_COUNT.

TRIM operates on the internal size of a collection. If TRIM encounters deleted elements, it includes them in its tally. This refers to deleted elements after using DELETE(n), but not DELETE without parameters which completely removes all elements.

Example 5-36 Using TRIM on Deleted Elements

DECLARE
   TYPE CourseList IS TABLE OF VARCHAR2(10);
   courses CourseList;
BEGIN
   courses := CourseList('Biol 4412', 'Psyc 3112', 'Anth 3001');
   courses.DELETE(courses.LAST);  -- delete element 3
   /* At this point, COUNT equals 2, the number of valid
      elements remaining. So, you might expect the next
      statement to empty the nested table by trimming
      elements 1 and 2. Instead, it trims valid element 2
      and deleted element 3 because TRIM includes deleted
      elements in its tally. */
   courses.TRIM(courses.COUNT);
   DBMS_OUTPUT.PUT_LINE(courses(1));  -- prints 'Biol 4412'
END;
/

In general, do not depend on the interaction between TRIM and DELETE. It is better to treat nested tables like fixed-size arrays and use only DELETE, or to treat them like stacks and use only TRIM and EXTEND.

Because PL/SQL does not keep placeholders for trimmed elements, you cannot replace a trimmed element simply by assigning it a new value.

Deleting Collection Elements (DELETE Method)

This procedure has various forms:

  • DELETE with no parameters removes all elements from a collection, setting COUNT to 0.

  • DELETE(n) removes the nth element from an associative array with a numeric key or a nested table. If the associative array has a string key, the element corresponding to the key value is deleted. If n is null, DELETE(n) does nothing.

  • DELETE(m,n) removes all elements in the range m..n from an associative array or nested table. If m is larger than n or if m or n is NULL, DELETE(m,n) does nothing.

For example:

Example 5-37 Using the DELETE Method on a Collection

DECLARE
   TYPE NumList IS TABLE OF NUMBER;
   n NumList := NumList(10,20,30,40,50,60,70,80,90,100);
   TYPE NickList IS TABLE OF VARCHAR2(64) INDEX BY VARCHAR2(32);
   nicknames NickList;
BEGIN
   n.DELETE(2);    -- deletes element 2
   n.DELETE(3,6);  -- deletes elements 3 through 6
   n.DELETE(7,7);  -- deletes element 7
   n.DELETE(6,3);  -- does nothing since 6 > 3
   n.DELETE;      -- deletes all elements
   nicknames('Bob') := 'Robert';
   nicknames('Buffy') := 'Esmerelda';
   nicknames('Chip') := 'Charles';
   nicknames('Dan') := 'Daniel';
   nicknames('Fluffy') := 'Ernestina';
   nicknames('Rob') := 'Robert';
-- following deletes element denoted by this key
   nicknames.DELETE('Chip');
-- following deletes elements with keys in this alphabetic range
   nicknames.DELETE('Buffy','Fluffy');
END;
/

Varrays always have consecutive subscripts, so you cannot delete individual elements except from the end by using the TRIM method. You can use DELETE without parameters to delete all elements.

If an element to be deleted does not exist, DELETE(n) simply skips it; no exception is raised. PL/SQL keeps placeholders for deleted elements, so you can replace a deleted element by assigning it a new value. This refers to deleted elements after using DELETE(n), but not DELETE without parameters which completely removes all elements.

DELETE lets you maintain sparse nested tables. You can store sparse nested tables in the database, just like any other nested tables.

The amount of memory allocated to a nested table can increase or decrease dynamically. As you delete elements, memory is freed page by page. If you delete the entire table, all the memory is freed.

Applying Methods to Collection Parameters

Within a subprogram, a collection parameter assumes the properties of the argument bound to it. You can apply the built-in collection methods (FIRST, LAST, COUNT, and so on) to such parameters. You can create general-purpose subprograms that take collection parameters and iterate through their elements, add or delete elements, and so on. For varray parameters, the value of LIMIT is always derived from the parameter type definition, regardless of the parameter mode.

Avoiding Collection Exceptions

Example 5-38 shows various collection exceptions that are predefined in PL/SQL. The example also includes notes on how to avoid the problems.

Example 5-38 Collection Exceptions

DECLARE
  TYPE WordList IS TABLE OF VARCHAR2(5);
  words WordList;
  err_msg VARCHAR2(100);
  PROCEDURE display_error IS
  BEGIN
    err_msg := SUBSTR(SQLERRM, 1, 100);
    DBMS_OUTPUT.PUT_LINE('Error message = ' || err_msg);
  END;
BEGIN
  BEGIN
    words(1) := 10; -- Raises COLLECTION_IS_NULL
--  A constructor has not been used yet.
--  Note: This exception applies to varrays and nested tables,
--  but not to associative arrays which do not need a constructor.
    EXCEPTION
      WHEN OTHERS THEN display_error;
  END;
--  After using a constructor, we can assign values to the elements.
    words := WordList('1st', '2nd', '3rd'); -- 3 elements created
--  Any expression that returns a VARCHAR2(5) is valid.
    words(3) := words(1) || '+2';
  BEGIN
    words(3) := 'longer than 5 characters'; -- Raises VALUE_ERROR
--  The assigned value is too long.
    EXCEPTION
      WHEN OTHERS THEN display_error;
  END;
  BEGIN
    words('B') := 'dunno'; -- Raises VALUE_ERROR
--  The subscript (B) of a nested table must be an integer.
--  Note: Also, NULL is not allowed as a subscript.
    EXCEPTION
      WHEN OTHERS THEN display_error;
  END;
  BEGIN
    words(0) := 'zero'; -- Raises SUBSCRIPT_OUTSIDE_LIMIT
--  Subscript 0 is outside the allowed subscript range.
    EXCEPTION
      WHEN OTHERS THEN display_error;
  END;
  BEGIN
    words(4) := 'maybe'; -- Raises SUBSCRIPT_BEYOND_COUNT
--  The subscript (4) exceeds the number of elements in the table.
--  To add new elements, invoke the EXTEND method first.
    EXCEPTION
      WHEN OTHERS THEN display_error;
  END;
  BEGIN
    words.DELETE(1);
    IF words(1) = 'First' THEN NULL; END IF;
      -- Raises NO_DATA_FOUND
--  The element with subcript (1) was deleted.
    EXCEPTION
      WHEN OTHERS THEN display_error;
  END;
END;
/

Execution continues in Example 5-38 because the raised exceptions are handled in sub-blocks. See "Continuing Execution After an Exception Is Raised". For information about the use of SQLERRM with exception handling, see "Retrieving the Error Code and Error Message (SQLCODE and SQLERRM Functions)".

The following list summarizes when a given exception is raised.

Collection Exception Raised when...
COLLECTION_IS_NULL you try to operate on an atomically null collection.
NO_DATA_FOUND a subscript designates an element that was deleted, or a nonexistent element of an associative array.
SUBSCRIPT_BEYOND_COUNT a subscript exceeds the number of elements in a collection.
SUBSCRIPT_OUTSIDE_LIMIT a subscript is outside the allowed range.
VALUE_ERROR a subscript is null or not convertible to the key type. This exception might occur if the key is defined as a PLS_INTEGER range, and the subscript is outside this range.

In some cases, you can pass invalid subscripts to a method without raising an exception. For example, when you pass a null subscript to DELETE(n), it does nothing. You can replace deleted elements by assigning values to them, without raising NO_DATA_FOUND. This refers to deleted elements after using DELETE(n), but not DELETE without parameters which completely removes all elements. For example:

Example 5-39 How Invalid Subscripts are Handled with DELETE(n)

DECLARE
   TYPE NumList IS TABLE OF NUMBER;
   nums NumList := NumList(10,20,30);  -- initialize table
BEGIN
   nums.DELETE(-1);  -- does not raise SUBSCRIPT_OUTSIDE_LIMIT
   nums.DELETE(3);   -- delete 3rd element
   DBMS_OUTPUT.PUT_LINE(nums.COUNT);  -- prints 2
   nums(3) := 30;    -- allowed; does not raise NO_DATA_FOUND
   DBMS_OUTPUT.PUT_LINE(nums.COUNT);  -- prints 3
END;
/

Packaged collection types and local collection types are never compatible. For example, suppose you want to invoke the following packaged procedure:

Example 5-40 Incompatibility Between Package and Local Collection Types

CREATE PACKAGE pkg AS
   TYPE NumList IS TABLE OF NUMBER;
   PROCEDURE print_numlist (nums NumList);
END pkg;
/
CREATE PACKAGE BODY pkg AS
  PROCEDURE print_numlist (nums NumList) IS
  BEGIN
    FOR i IN nums.FIRST..nums.LAST LOOP
      DBMS_OUTPUT.PUT_LINE(nums(i));
    END LOOP;
  END;
END pkg;
/

DECLARE
   TYPE NumList IS TABLE OF NUMBER;
   n1 pkg.NumList := pkg.NumList(2,4); -- type from the package.
   n2 NumList := NumList(6,8);         -- local type.
BEGIN
   pkg.print_numlist(n1); -- type from pkg is legal
-- The packaged procedure cannot accept
-- a value of the local type (n2)
-- pkg.print_numlist(n2);  -- Causes a compilation error.
END;
/

The second procedure call fails, because the packaged and local VARRAY types are incompatible despite their identical definitions.

Defining and Declaring Records

To create records, you define a RECORD type, then declare records of that type. You can also create or find a table, view, or PL/SQL cursor with the values you want, and use the %ROWTYPE attribute to create a matching record.

You can define RECORD types in the declarative part of any PL/SQL block, subprogram, or package. When you define your own RECORD type, you can specify a NOT NULL constraint on fields, or give them default values. See "Record Definition".

Example 5-42 and Example 5-42 illustrate record type declarations.

Example 5-41 Declaring and Initializing a Simple Record Type

DECLARE
   TYPE DeptRecTyp IS RECORD (
      deptid NUMBER(4) NOT NULL := 99,
      dname  departments.department_name%TYPE,
      loc    departments.location_id%TYPE,
      region regions%ROWTYPE );
   dept_rec DeptRecTyp;
BEGIN
   dept_rec.dname := 'PURCHASING';
END;
/

Example 5-42 Declaring and Initializing Record Types

DECLARE
-- Declare a record type with 3 fields.
  TYPE rec1_t IS RECORD
    (field1 VARCHAR2(16), field2 NUMBER, field3 DATE);
-- For any fields declared NOT NULL, we must supply a default value.
  TYPE rec2_t IS RECORD (id INTEGER NOT NULL := -1,
  name VARCHAR2(64) NOT NULL := '[anonymous]');
-- Declare record variables of the types declared
  rec1 rec1_t;
  rec2 rec2_t;
-- Declare a record variable that can hold
-- a row from the EMPLOYEES table.
-- The fields of the record automatically match the names and
-- types of the columns.
-- Don't need a TYPE declaration in this case.
  rec3 employees%ROWTYPE;
-- Or mix fields that are table columns with user-defined fields.
  TYPE rec4_t IS RECORD (first_name employees.first_name%TYPE,
                         last_name employees.last_name%TYPE,
                         rating NUMBER);
  rec4 rec4_t;
BEGIN
-- Read and write fields using dot notation
  rec1.field1 := 'Yesterday';
  rec1.field2 := 65;
  rec1.field3 := TRUNC(SYSDATE-1);
-- Didn't fill name field, so it takes default value
  DBMS_OUTPUT.PUT_LINE(rec2.name);
END;
/

To store a record in the database, you can specify it in an INSERT or UPDATE statement, if its fields match the columns in the table:

You can use %TYPE to specify a field type corresponding to a table column type. Your code keeps working even if the column type is changed (for example, to increase the length of a VARCHAR2 or the precision of a NUMBER). Example 5-43 defines RECORD types to hold information about a department:

Example 5-43 Using %ROWTYPE to Declare a Record

DECLARE
-- Best: use %ROWTYPE instead of specifying each column.
-- Use <cursor>%ROWTYPE instead of <table>%ROWTYPE because
-- we only want some columns.
-- Declaring cursor doesn't run query or affect performance.
   CURSOR c1 IS
     SELECT department_id, department_name, location_id
     FROM departments;
   rec1 c1%ROWTYPE;
-- Use <column>%TYPE in field declarations to avoid problems if
-- the column types change.
   TYPE DeptRec2 IS RECORD
     (dept_id   departments.department_id%TYPE,
      dept_name departments.department_name%TYPE,
      dept_loc  departments.location_id%TYPE);
   rec2 DeptRec2;
-- Write each field name, specifying type directly
-- (clumsy and unmaintainable for working with table data
-- use only for all-PL/SQL code).
   TYPE DeptRec3 IS RECORD (dept_id NUMBER,
                            dept_name VARCHAR2(14),
                            dept_loc VARCHAR2(13));
   rec3 DeptRec3;
BEGIN
   NULL;
END;
/

PL/SQL lets you define records that contain objects, collections, and other records (called nested records). However, records cannot be attributes of object types.

Using Records as Subprogram Parameters and Function Return Values

Records are easy to process using stored subprograms because you can pass just one parameter, instead of a separate parameter for each field. For example, you can fetch a table row from the EMPLOYEES table into a record, and then pass that row as a parameter to a function that computes that employee's vacation allowance. The function can access all the information about that employee by referring to the fields in the record.

The next example shows how to return a record from a function. To make the record type visible across multiple stored subprograms, declare the record type in a package specification.

Example 5-44 Returning a Record from a Function

DECLARE
   TYPE EmpRecTyp IS RECORD (
     emp_id       NUMBER(6),
     salary       NUMBER(8,2));
   CURSOR desc_salary RETURN EmpRecTyp IS
      SELECT employee_id, salary
      FROM employees
      ORDER BY salary DESC;
   emp_rec     EmpRecTyp;
   FUNCTION nth_highest_salary (n INTEGER) RETURN EmpRecTyp IS
   BEGIN
      OPEN desc_salary;
      FOR i IN 1..n LOOP
         FETCH desc_salary INTO emp_rec;
      END LOOP;
      CLOSE desc_salary;
      RETURN emp_rec;
   END nth_highest_salary;
BEGIN
   NULL;
END;
/

Like scalar variables, user-defined records can be declared as the formal parameters of subprograms:

Example 5-45 Using a Record as Parameter to a Procedure

DECLARE
   TYPE EmpRecTyp IS RECORD (
      emp_id       NUMBER(6),
      emp_sal      NUMBER(8,2) );
   PROCEDURE raise_salary (emp_info EmpRecTyp) IS
   BEGIN
      UPDATE employees SET salary = salary + salary * .10
             WHERE employee_id = emp_info.emp_id;
   END raise_salary;
BEGIN
   NULL;
END;
/

You can declare and reference nested records. That is, a record can be the component of another record.

Example 5-46 Declaring a Nested Record

DECLARE
   TYPE TimeTyp IS RECORD ( minutes SMALLINT, hours SMALLINT );
   TYPE MeetingTyp IS RECORD (
      day     DATE,
      time_of TimeTyp,             -- nested record
      dept    departments%ROWTYPE,
        -- nested record representing a table row
      place   VARCHAR2(20),
      purpose VARCHAR2(50) );
   meeting MeetingTyp;
   seminar MeetingTyp;
BEGIN
-- Can assign one nested record to another
-- if they are of the same datatype
   seminar.time_of := meeting.time_of;
END;
/

Such assignments are allowed even if the containing records have different datatypes.

Assigning Values to Records

To set all the fields in a record to default values, assign to it an uninitialized record of the same type, as shown in Example 5-47.

Example 5-47 Assigning Default Values to a Record

DECLARE
   TYPE RecordTyp IS RECORD (field1 NUMBER,
                             field2 VARCHAR2(32) DEFAULT 'something');
   rec1 RecordTyp;
   rec2 RecordTyp;
BEGIN
-- At first, rec1 has the values we assign.
   rec1.field1 := 100; rec1.field2 := 'something else';
-- Assigning an empty record to rec1
-- resets fields to their default values.
-- Field1 is NULL and field2 is 'something'
-- due to the DEFAULT clause
   rec1 := rec2;
   DBMS_OUTPUT.PUT_LINE
     ('Field1 = ' || NVL(TO_CHAR(rec1.field1),'<NULL>') || ',
      field2 = ' || rec1.field2);
END;
/

You can assign a value to a field in a record using an assignment statement with dot notation:

emp_info.last_name := 'Fields';

Note that values are assigned separately to each field of a record in Example 5-47. You cannot assign a list of values to a record using an assignment statement. There is no constructor-like notation for records.

You can assign values to all fields at once only if you assign a record to another record with the same datatype. Having fields that match exactly is not enough, as shown in Example 5-48.

Example 5-48 Assigning All the Fields of a Record in One Statement

DECLARE
-- Two identical type declarations.
   TYPE DeptRec1 IS RECORD
     (dept_num  NUMBER(2), dept_name VARCHAR2(14));
   TYPE DeptRec2 IS RECORD
    (dept_num  NUMBER(2), dept_name VARCHAR2(14));
   dept1_info DeptRec1;
   dept2_info DeptRec2;
   dept3_info DeptRec2;
BEGIN
-- Not allowed; different datatypes,
-- even though fields are the same.
--      dept1_info := dept2_info;
-- This assignment is OK because the records have the same type.
   dept2_info := dept3_info;
END;
/

You can assign a %ROWTYPE record to a user-defined record if their fields match in number and order, and corresponding fields have the same datatypes:

DECLARE
   TYPE RecordTyp IS RECORD (last employees.last_name%TYPE,
                             id employees.employee_id%TYPE);
   CURSOR c1 IS SELECT last_name, employee_id FROM employees;
-- Rec1 and rec2 have different types,
-- but because rec2 is based on a %ROWTYPE,
-- we can assign it to rec1 as long as they have
-- the right number of fields and
-- the fields have the right datatypes.
   rec1 RecordTyp;
   rec2 c1%ROWTYPE;
BEGIN
  SELECT last_name, employee_id INTO rec2
    FROM employees WHERE ROWNUM < 2;
    WHERE ROWNUM < 2;
  rec1 := rec2;
  DBMS_OUTPUT.PUT_LINE
    ('Employee #' || rec1.id || ' = ' || rec1.last);
END;
/

You can also use the SELECT or FETCH statement to fetch column values into a record. The columns in the select-list must appear in the same order as the fields in your record.

Example 5-49 Using SELECT INTO to Assign Values in a Record

DECLARE
   TYPE RecordTyp IS RECORD (last employees.last_name%TYPE,
                             id employees.employee_id%TYPE);
   rec1 RecordTyp;
BEGIN
  SELECT last_name, employee_id INTO rec1
     FROM employees WHERE ROWNUM < 2;
     WHERE ROWNUM < 2;
   DBMS_OUTPUT.PUT_LINE
     ('Employee #' || rec1.id || ' = ' || rec1.last);
END;
/

Topics:

Comparing Records

Records cannot be tested for nullity, or compared for equality, or inequality. If you want to make such comparisons, write your own function that accepts two records as parameters and does the appropriate checks or comparisons on the corresponding fields.

Inserting Records Into the Database

A PL/SQL-only extension of the INSERT statement lets you insert records into database rows, using a single variable of type RECORD or %ROWTYPE in the VALUES clause instead of a list of fields. That makes your code more readable and maintainable.

If you issue the INSERT through the FORALL statement, you can insert values from an entire collection of records. The number of fields in the record must equal the number of columns listed in the INTO clause, and corresponding fields and columns must have compatible datatypes. To make sure the record is compatible with the table, you might find it most convenient to declare the variable as the type table_name%ROWTYPE.

Example 5-50 declares a record variable using a %ROWTYPE qualifier. You can insert this variable without specifying a column list. The %ROWTYPE declaration ensures that the record attributes have exactly the same names and types as the table columns.

Example 5-50 Inserting a PL/SQL Record Using %ROWTYPE

DECLARE
  dept_info departments%ROWTYPE;
BEGIN
  -- department_id, department_name, and location_id
  -- are the table columns
  -- The record picks up these names from the %ROWTYPE
     dept_info.department_id := 300;
     dept_info.department_name := 'Personnel';
     dept_info.location_id := 1700;
  -- Using the %ROWTYPE means we can leave out the column list
  -- (department_id, department_name, and location_id)
  -- from the INSERT statement
  INSERT INTO departments VALUES dept_info;
END;
/

Updating the Database with Record Values

A PL/SQL-only extension of the UPDATE statement lets you update database rows using a single variable of type RECORD or %ROWTYPE on the right side of the SET clause, instead of a list of fields.

If you issue the UPDATE through the FORALL statement, you can update a set of rows using values from an entire collection of records. Also with an UPDATE statement, you can specify a record in the RETURNING clause to retrieve new values into a record. If you issue the UPDATE through the FORALL statement, you can retrieve new values from a set of updated rows into a collection of records.

The number of fields in the record must equal the number of columns listed in the SET clause, and corresponding fields and columns must have compatible datatypes.

You can use the keyword ROW to represent an entire row, as shown in Example 5-51.

Example 5-51 Updating a Row Using a Record

DECLARE
   dept_info departments%ROWTYPE;
BEGIN
-- department_id, department_name, and location_id
-- are the table columns
-- The record picks up these names from the %ROWTYPE.
  dept_info.department_id := 300;
  dept_info.department_name := 'Personnel';
  dept_info.location_id := 1700;
-- The fields of a %ROWTYPE
-- can completely replace the table columns
-- The row will have values for the filled-in columns, and null
-- for any other columns
   UPDATE departments SET ROW = dept_info WHERE department_id = 300;
END;
/

The keyword ROW is allowed only on the left side of a SET clause. The argument to SET ROW must be a real PL/SQL record, not a subquery that returns a single row. The record can also contain collections or objects.

The INSERT, UPDATE, and DELETE statements can include a RETURNING clause, which returns column values from the affected row into a PL/SQL record variable. This eliminates the need to SELECT the row after an insert or update, or before a delete.

By default, you can use this clause only when operating on exactly one row. When you use bulk SQL, you can use the form RETURNING BULK COLLECT INTO to store the results in one or more collections.

Example 5-52 updates the salary of an employee and retrieves the employee's name, job title, and new salary into a record variable.

Example 5-52 Using the RETURNING INTO Clause with a Record

DECLARE
   TYPE EmpRec IS RECORD (last_name  employees.last_name%TYPE,
                          salary     employees.salary%TYPE);
   emp_info EmpRec;
   emp_id   NUMBER := 100;
BEGIN
   UPDATE employees SET salary = salary * 1.1
     WHERE employee_id = emp_id
     RETURNING last_name, salary INTO emp_info;
   DBMS_OUTPUT.PUT_LINE
     ('Just gave a raise to ' || emp_info.last_name ||
      ', who now makes ' || emp_info.salary);
   ROLLBACK;
END;
/

Restrictions on Record Inserts and Updates

Currently, the following restrictions apply to record inserts/updates:

  • Record variables are allowed only in the following places:

    • On the right side of the SET clause in an UPDATE statement

    • In the VALUES clause of an INSERT statement

    • In the INTO subclause of a RETURNING clause

    Record variables are not allowed in a SELECT list, WHERE clause, GROUP BY clause, or ORDER BY clause.

  • The keyword ROW is allowed only on the left side of a SET clause. Also, you cannot use ROW with a subquery.

  • In an UPDATE statement, only one SET clause is allowed if ROW is used.

  • If the VALUES clause of an INSERT statement contains a record variable, no other variable or value is allowed in the clause.

  • If the INTO subclause of a RETURNING clause contains a record variable, no other variable or value is allowed in the subclause.

  • The following are not supported:

    • Nested record types

    • Functions that return a record

    • Record inserts and updates using the EXECUTE IMMEDIATE statement.

Querying Data Into Collections of Records

You can use the BULK COLLECT clause with a SELECT INTO or FETCH statement to retrieve a set of rows into a collection of records.

Example 5-53 Using BULK COLLECT with a SELECT INTO Statement

DECLARE
   TYPE EmployeeSet IS TABLE OF employees%ROWTYPE;
   underpaid EmployeeSet;
     -- Holds set of rows from EMPLOYEES table.
   CURSOR c1 IS SELECT first_name, last_name FROM employees;
   TYPE NameSet IS TABLE OF c1%ROWTYPE;
   some_names NameSet;
     -- Holds set of partial rows from EMPLOYEES table.
BEGIN
-- With one query,
-- bring all relevant data into collection of records.
   SELECT * BULK COLLECT INTO underpaid FROM employees
      WHERE salary < 5000 ORDER BY salary DESC;
-- Process data by examining collection or passing it to
-- eparate procedure, instead of writing loop to FETCH each row.
   DBMS_OUTPUT.PUT_LINE
     (underpaid.COUNT || ' people make less than 5000.');
   FOR i IN underpaid.FIRST .. underpaid.LAST
   LOOP
     DBMS_OUTPUT.PUT_LINE
       (underpaid(i).last_name || ' makes ' || underpaid(i).salary);
   END LOOP;
-- We can also bring in just some of the table columns.
-- Here we get the first and last names of 10 arbitrary employees.
   SELECT first_name, last_name
     BULK COLLECT INTO some_names
     FROM employees
     WHERE ROWNUM < 11;
   FOR i IN some_names.FIRST .. some_names.LAST
   LOOP
      DBMS_OUTPUT.PUT_LINE
        ('Employee = ' || some_names(i).first_name
         || ' ' || some_names(i).last_name);
   END LOOP;
END;
/
