Using Secure Global Desktop with firewalls

Problem

You have a number of firewalls protecting various parts of your network and you want to use Secure Global Desktop.

Solution

Configure your firewalls to allow packets to be sent between client devices used for Secure Global Desktop and your Secure Global Desktop servers, and between your Secure Global Desktop servers and your application servers. Ensure that the DNS names of web servers and Secure Global Desktop servers are configured correctly for the clients you want to use to log in to Secure Global Desktop.

Note We recommend you use the Sun Secure Global Desktop Security Pack for secure firewall traversal.

Case study

Indigo Insurance currently uses two firewalls:

Indigo Insurance is installing an array of Secure Global Desktop servers and wants to configure the firewalls to ensure access by client devices, both inside and outside the external firewall, to any application server, using Secure Global Desktop. Also, Indigo Insurance wants to protect the Secure Global Desktop servers behind their own firewall. Each host on which a Secure Global Desktop server is installed has a single network card.

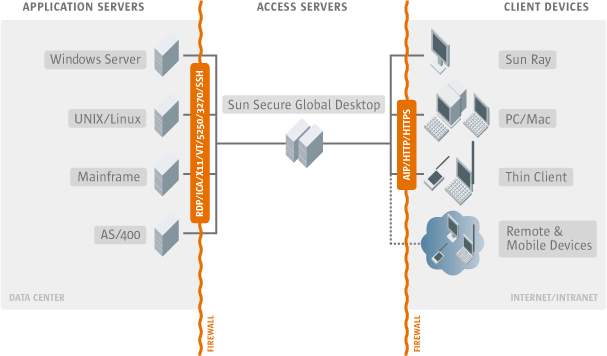

Here's a diagram of the intended network structure:

Network structure for Indigo Insurance

Solution

  1. The external firewall and the Secure Global Desktop firewall must both allow network traffic for the web server and Secure Global Desktop server for all array members.

    Typically, you would open either ports 80/tcp and 3144/tcp or ports 443/tcp and 5307/tcp.

    You should close port 5427/tcp. This is used for essential network traffic between Secure Global Desktop servers only.

    You can expose only a subset of Secure Global Desktop array members on the Internet. However, if users typically log in to Secure Global Desktop from both inside and outside the external firewall then they may be unable to resume some applications when logging in from the Internet.

  2. The application server firewall must allow network traffic between the Secure Global Desktop server and the application server for all array members. The ports you need to open depend on the types of application you're using.
  3. To support printing, the application server firewall must allow network traffic between all array members and the application server on port 515/tcp.
  4. The application server firewall should deny connections to ports 3144/tcp, 5307/tcp and 5427/tcp: these are not used for network traffic to and from application servers.
  5. Systems may be known by different names inside and outside firewalls. For each Secure Global Desktop array member:
    1. Find out the DNS name to use inside the Secure Global Desktop firewall for the Secure Global Desktop host, and the DNS name to use outside the Secure Global Desktop firewall for the Secure Global Desktop host. (The names may be the same.)
    2. Configure the web server to bind to the DNS name used inside the Secure Global Desktop firewall (this is the DNS name the web server binds to when it starts). Consult your web server documentation for help.
    3. Configure the Secure Global Desktop server with the name used outside the Secure Global Desktop firewall (this is the DNS name the client device uses to contact the web server). You configure this name in Array Manager, in the array member's General properties.
