4 Diagrams

This chapter contains diagrams of sample schemas. The first diagram shows the build order and prerequisites for sample schemas. The remaining diagrams illustrate the configuration of the components of each schema.

4.1 Sample Schema Diagrams

This diagram shows the build order and prerequisites of sample schemas.

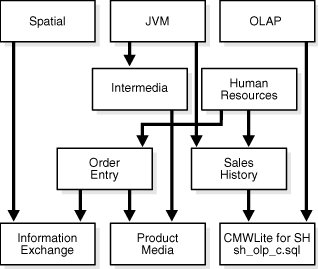

schema dependecies
Description of the illustration comsc001.gif

The following diagrams illustrate the configuration of the components of each schema.

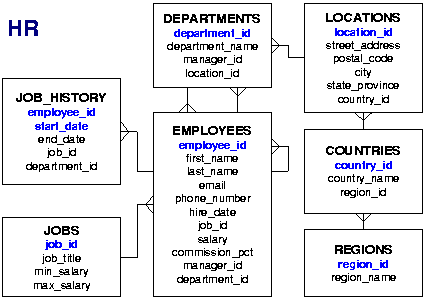

Tables in HR schema
Description of the illustration comsc002.gif

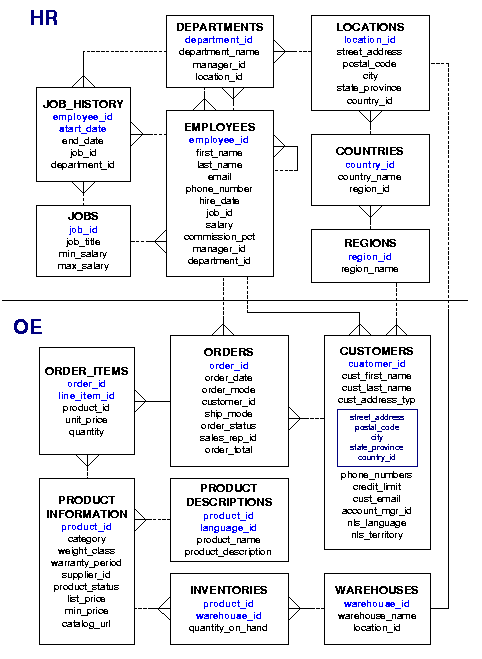

HR and OE schemas
Description of the illustration comsc003.gif

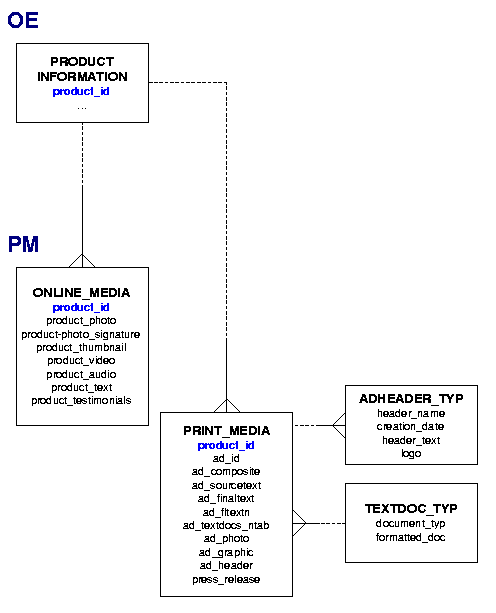

structure of PM schema
Description of the illustration comsc004.gif

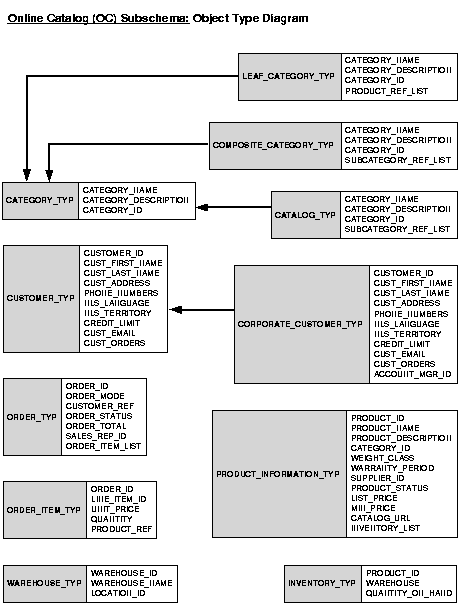

Oc subschema
Description of the illustration comsc005.gif

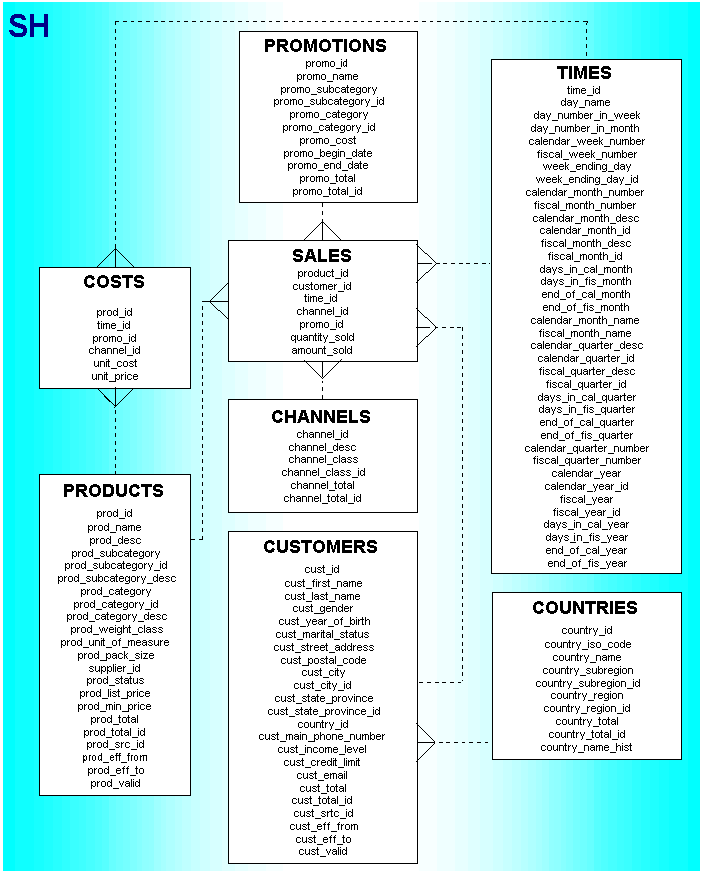

SH schema
Description of the illustration comsc007.gif
