Use the RECOVER command to perform one of the following distinct tasks:

See Also:

Oracle Database Backup and Recovery User's Guide to learn how to recover datafiles


All redo or incremental changes required for the recovery must exist on disk or in SBT. If RMAN needs to restore incremental backups or archived redo logs during recovery, then you must either have automatic channels configured or manually allocate channels of the same type that created these backups.

If you perform media recovery on an encrypted tablespace, then the Oracle wallet must be open when performing media recovery of this tablespace. See Oracle Database Administrator's Guide to learn about encrypted tablespaces.

The following prerequisites apply to RECOVER BLOCK:

For RMAN to be able to search the flashback logs for good copies of corrupt blocks, Flashback Database must be enabled on the target database.

Usage Notes

By default, RMAN performs complete recovery. For point-in-time recovery, the best practice is to enter a SET UNTIL command before both the RESTORE and RECOVER commands in a RUN command so that the UNTIL time applies to both commands. If you run SET UNTIL after restoring the database, then you may not be able to recover the database to the target time because the restored files may have timestamps later than the target time. Note that you must open the database with the RESETLOGS option after incomplete recovery or recovery with a backup control file.

Incremental Backups and Archived Redo Log Files

With the exception of RECOVER BLOCK, RMAN can use both incremental backups and archived redo logs for recovery. RMAN uses the following search order:

  1. Incremental backup sets on disk or tape

  2. Archived redo logs on disk

  3. Archived redo log backups on disk

  4. Archived redo log backup sets on tape

When RMAN chooses a destination to restore archived redo logs, it uses the following order of precedence:


  2. The LOG_ARCHIVE_DEST_n parameter whose value is set to LOCATION=USE_DB_RECOVERY_FILE_DEST


RMAN can apply incremental backups to datafiles that were not restored from an incremental backup. If overlapping levels of incremental backup exist, then RMAN automatically chooses the level covering the longest period of time.

Recovery Through RESETLOGS

You must RESTORE datafiles before you can recover them. RMAN can recover through RESETLOGS operations transparently if the datafiles to be recovered are from a parent incarnation. If required, the RECOVER command can also restore and apply archived logs and incremental backups from previous database incarnations, even if those logs were generated in previous releases of Oracle Database.

When recovering through an OPEN RESETLOGS, ensure that you have all logs needed for recovery. In a previous database incarnation, you must have the logs from the time of the backup until the SCN that is 1 less than the RESETLOGS SCN. The incarnation table must have a complete history of RESETLOGS operations from the creation time of the database backup. If the complete metadata is not found in V$DATABASE_INCARNATION, then you can re-create this metadata by using CATALOG for the archived redo logs from the missing incarnations.

See Also:

RESTORE command for explanation of the default location for restoring archived redo logs. Note that RMAN automatically specifies the MAXSIZE option when staging logs in the flash recovery area.



Description of recover.gif follows
Description of the illustration recover.gif

(deviceSpecifier::=, recoverObject::=, recoverOptionList::=)


Description of recoverspec.gif follows
Description of the illustration recoverspec.gif

(recoverObject::=, blockObject::=, recoverOptionList::=)

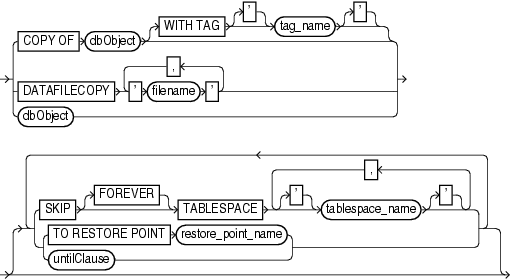

Description of recoverobject.gif follows
Description of the illustration recoverobject.gif

(dbObject::=, blockObject::=, untilClause::=)

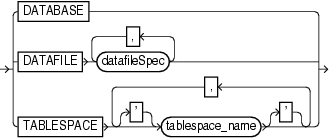

Description of dbobject.gif follows
Description of the illustration dbobject.gif

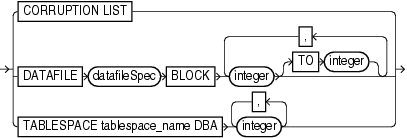

Description of blockobject.gif follows
Description of the illustration blockobject.gif

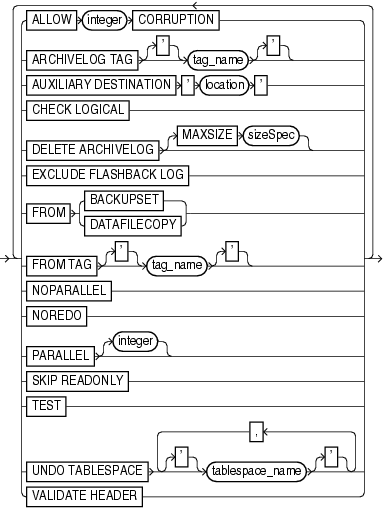

Description of recoveroptionlist.gif follows
Description of the illustration recoveroptionlist.gif


Description of sizespec.gif follows
Description of the illustration sizespec.gif



Syntax Element Description
DEVICE TYPE deviceSpecifier Allocates automatic channels for the specified device type only. For example, if you configure automatic disk and tape channels, and if you issue RECOVER DEVICE TYPE DISK, then RMAN allocates only disk channels.

You must have already configured a device type with the CONFIGURE DEVICE TYPE command (except for DISK, which is preconfigured) before specifying the DEVICE TYPE option.

Note: You cannot manually allocate channels and then run RECOVER DEVICE TYPE.

See Also: deviceSpecifier

Specifies the type of object being recovered.


Syntax Element Description
Specifies the type of object being recovered.
Specifies the blocks to be recovered with block media recovery.
Specifies recovery options.


This subclause specifies which files to recover. Refer to recoverObject::= for the syntax diagram.

Syntax Element Description
COPY OF dbObject Applies incremental backups to the specified image copy to roll it forward to any time equal to or before the most recent incremental backup of the file. The existing image copy is overwritten and remains in a fuzzy state during the recovery. RMAN makes an autobackup after recovering the image copy.

This command updates a datafile copy and is not a media recovery of a current database file. This command is meant to be used in conjunction with the BACKUP ... FOR RECOVER OF COPY syntax to implement a strategy using incrementally updated backups.

The following requirements must be met:

  • At least one copy of each datafile that you are recovering must exist.

  • Incremental backups taken after the image copy that you are recovering must exist.

RMAN selects one suitable copy if there are multiple possible copies to which the incrementals can be applied to carry out the operation.

Note: RMAN issues a warning (not an error) if it cannot recover to the specified time (or current time if none is specified) because no incrementals are available.

   WITH TAG tag_name Specifies a tag name to identify the image copy to be rolled forward.
DATAFILECOPY 'filename' Applies incremental backups to the specified datafile image copy (see Example 2-98). Refer to description of RECOVER COPY OF.
Specifies the data blocks that require recovery.

See Also: dbObject

SKIP Takes the datafiles in the specified tablespaces offline before starting media recovery. These files are left offline after the media recovery is complete.

This option is useful for avoiding recovery of tablespaces containing only temporary data or for postponing recovery of some tablespaces.

   FOREVER Takes the datafiles offline with the DROP option (see Example 2-97). Use SKIP FOREVER TABLESPACE when you intend to drop the specified tablespaces after opening the database with the RESETLOGS option.

Note: If you perform incomplete recovery, then SKIP requires the FOREVER option.



Specifies the name of the tablespace to take offline.
TO RESTORE POINT restore_point_name Specifies a restore point for termination of the RECOVER command, with the SCN at which the restore point was created as the upper, inclusive limit. Because the limit is inclusive, RMAN selects only files that can be used to recover up to and including the SCN corresponding to the restore point.
Specifies a past time, SCN, or log sequence number for termination of the RECOVER command.

When used with one or more tablespaces, the clause indicates a tablespace point-in-time recovery (TSPITR) operation for the named tablespaces. The clause cannot be used with RECOVER DATAFILE. It should not be used for RECOVER DATABASE (see "Usage Notes" for details). After database point-in-time recovery (DBPITR), you must open the database with the RESETLOGS option.

See Also: untilClause


This subclause specifies whether to recover the database or a subset of the database. Refer to dbObject::= for the syntax diagram.

Syntax Element Description
DATABASE Specifies that the entire database is to be recovered (see Example 2-97). The database must be mounted but not open.

By default, the RECOVER DATABASE command does not recover files that are offline normal at the point in time to which the files are being recovered. RMAN omits offline normal files with no further checking.

When recovering after the loss of control files, RMAN automatically updates the control file to point to the actual location of the datafiles on disk (see Example 2-99).

Note: If the RMAN encounters redo for adding a datafile, then RMAN automatically creates a new datafile unless the tablespace containing the added datafile is skipped during recovery. This situation can arise when a backup control file is restored prior to recovery and the backup control file does not contain a record of the recently-added datafile.

DATAFILE datafileSpec Specifies a list of one or more datafiles to recover by either filename or absolute datafile number. The target database must be mounted or open. If the database is open, then the datafiles to be recovered must be offline.

If you are not using a recovery catalog, then the filename must be the name of the datafile as recorded in the control file. If you are using a recovery catalog, then the filename of the datafile must be the most recent name recorded in the catalog, even if the name in the control file has been updated more recently. For example, assume that a datafile was renamed in the control file, but the instance fails before you resynchronize the catalog. Specify the old name of the datafile in the RECOVER command because this is the name recorded in the catalog.

Note: You cannot arbitrarily recover individual datafiles to different points in time, although you can recover the whole database to a single point in time or recover wholly contained tablespaces to a point in time different from the rest of the database (TSPITR). For more information on TSPITR, see the procedure described inOracle Database Backup and Recovery User's Guide.

See Also: datafileSpec

TABLESPACE tablespace_name Specifies a list of one or more tablespaces to recover (see Example 2-95 and Example 2-96). The target database must be mounted or open. If the database is open, then the tablespaces to be recovered must be offline.

Note: If the RMAN encounters redo for adding a datafile, then RMAN automatically creates a new datafile. This situation can arise when a backup control file is restored prior to recovery and the backup control file does not contain a record of the recently-added datafile.


This subclause specifies the data blocks that require recovery. Refer to blockObject::= for the syntax diagram. Refer to "Prerequisites" for prerequisites specific to block media recovery.

You can either use RECOVER CORRUPTION LIST to recover all blocks reported in the V$DATABASE_BLOCK_CORRUPTION view, or specify the datafile number and block number or the tablespace and data block address (DBA). You can only perform complete recovery of individual blocks.

Syntax Element Description
CORRUPTION LIST Recovers all physically corrupt blocks listed in the V$DATABASE_BLOCK_CORRUPTION view. Logical corruption cannot be repaired using block media recovery. To repair logical corruption, restore the datafile from backup and perform media recovery.

The V$DATABASE_BLOCK_CORRUPTION view displays blocks marked corrupt by Oracle Database components such as RMAN commands, ANALYZE, dbv, SQL queries, and so on. In short, any process that encounters an ORA-1578 error records the block corruption in this view. The following types of corruption result in rows added to this view:

  • Physical corruption (sometimes called media corruption). The database does not recognize the block at all: the checksum is invalid, the block contains all zeros, or the header and footer of the block do not match.

  • Logical corruption. The block has a valid checksum, the header and footer match, and so forth, but the contents are logically inconsistent.

The view does not record corruptions that can be detected by validating relationships between blocks and segments, but cannot be detected by a check of an individual block.

Note: Any RMAN command that fixes or detects that a block is repaired updates V$DATABASE_BLOCK_CORRUPTION. For example, RMAN updates the repository at end of successful block media recovery. If a BACKUP, RESTORE, or VALIDATE command detects that a block is no longer corrupted, then it removes the repaired block from the view.

DATAFILE datafileSpec BLOCK integer TO integer Recovers an individual data block or set of data blocks within a datafile. Note that the TO range is inclusive, so that BLOCK 10 TO BLOCK 20 includes both block 10 and block 20.

Block media recovery is useful when the data loss or corruption applies to a small number of blocks rather than to an entire datafile. Typically, block corruption is reported in error messages in trace files or by the ADVISE FAILURE command. Block-level data loss usually results from:

  • I/O errors causing minor data loss

  • Memory corruptions that get written to disk

If you do not specify an option from recoverOptionList, and if Flashback Database is enabled on the database, then RECOVER BLOCK first searches the flashback logs and then the backups for a good version of the block to restore.

Blocks marked media corrupt are not accessible until recovery completes.

Note: You can only perform complete recovery of individual blocks. In other words, you cannot stop recovery before all redo has been applied to the block.

See Also: datafileSpec

TABLESPACE tablespace_name DBA integer Specifies the tablespace name or number containing the corrupt blocks and the data block address (DBA) of the corrupt block. You can only perform block media recovery on corrupt blocks.

Note: The datafile header block (block 1) cannot be recovered.


This subclause specifies various recovery options. Refer to recoverOptionList::= for the syntax diagram.

Syntax Element Description
ALLOW integer CORRUPTION Specifies the number of corrupt blocks that can be tolerated while allowing recovery to proceed.You can set this parameter in case of redo log corruption.

When you use this clause during trial recovery (that is, in conjunction with the TEST clause), integer can exceed 1. When using this clause during normal recovery, integer can only be 0 or 1.

ARCHIVELOG TAG tag_name Specifies the tag for an archived log backup to be used during recovery. Tag names are not case sensitive and display in all uppercase. If the tagged backup does not contain all the necessary archived redo logs for recovery, then RMAN uses logs or incremental backups as needed from whatever is available.
AUXILIARY DESTINATION 'location' Specifies a location where auxiliary set datafiles, control files, and online redo logs are created during TSPITR if another location for an individual file is not explicitly specified.

If you do not specify AUXILIARY DESTINATION for a TSPITR, then you must specify the naming of individual auxiliary set datafiles, control files, and online redo logs before executing RECOVER TABLESPACE with the UNTIL clause. Otherwise, TSPITR fails.

See also: The chapter on TSPITR in Oracle Database Backup and Recovery User's Guide for more details about the auxiliary destination

CHECK LOGICAL Tests data and index blocks that pass physical corruption checks for logical corruption, for example, corruption of a row piece or index entry. If RMAN finds logical corruption, then it logs the block in the alert.log and server session trace file.

The SET MAXCORRUPT setting represents the total number of physical and logical corruptions permitted on a file. By default, MAXCORRUPT is 0, so that if any corrupt blocks exist, media recovery fails. If recovery including corrupt blocks is permissible, then set MAXCORRUPT to the smallest number of corrupt blocks that causes media recovery to fail. For example, to tolerate one corrupt block, set MAXCORRUPT to 1.

If the total number of physical and logical corruptions detected for a file is less than its MAXCORRUPT setting, then the RMAN command completes and the database populates V$DATABASE_BLOCK_CORRUPTION with corrupt block ranges. Otherwise, the command terminates without populating V$DATABASE_BLOCK_CORRUPTION.

DELETE ARCHIVELOG Deletes archived logs restored from backups or copies that are no longer needed. RMAN does not delete archived logs that were already on disk before the RESTORE command started. If you do not specify MAXSIZE, then RMAN deletes restored archived logs as they are applied.

Note: If archived redo logs are restored to the flash recovery area, then the DELETE ARCHIVELOG option is enabled by default.



Does not use more than sizeSpec amount of disk space for restored archived redo logs. If recovery requires the restore of a log larger than the MAXSIZE value, then RMAN reports an error indicating that you should increase the MAXSIZE value. If MAXSIZE is smaller than the backup set containing the logs, then RMAN must read the backup set more than once to extract the logs. In this situation, RMAN issues a warning that MAXSIZE should be increased.
EXCLUDE FLASHBACK LOG Specifies that the flashback logs should not be searched for blocks to restore. By default, RMAN searches the flashback logs if Flashback Database is enabled.
FROM BACKUPSET Specifies that only backup sets should be restored.
FROM DATAFILECOPY Specifies that only datafile image copies should be restored.
FROM TAG 'tag_name' Specifies the tag for an incremental backup to be used during recovery. If the tagged backup does not contain all the necessary incrementals for recovery, then RMAN uses logs or incremental backups as needed from whatever is available. Tag names are not case sensitive and display in all uppercase.

See Also: BACKUP to learn how a tag can be applied to an individual copy of a duplexed backup set, and to learn about the default filename format for backup tags

NOPARALLEL Specifies that media recovery should not be performed in parallel. Parallel execution is the default for RECOVER (see the description of the RECOVER ... PARALLEL option).
NOREDO Suppresses the application of redo logs during recovery. Only incremental backups are applied.

One use of this option is to use incremental backups to update full backups of NOARCHIVELOG databases (see Example 2-100). The NOREDO options is required if redo logs are not available. If you do not specify NOREDO when recovering a NOARCHIVELOG database, then RMAN ends recovery and issues an error.

Note: Incremental backups of NOARCHIVELOG databases can only be taken after a consistent shutdown.

Another use is to update standby or duplicate databases. Incremental backups created with the BACKUP INCREMENTAL FROM SCN command can be applied at a standby or duplicate database. The standby database procedure is described in Oracle Data Guard Concepts and Administration.

PARALLEL Specifies parallel recovery (default).

By default, the database uses parallel media recovery to improve performance of the roll forward phase of media recovery. To override the default behavior of performing parallel recovery, use the RECOVER with the NOPARALLEL option, or RECOVER PARALLEL 0.

In parallel media recovery, the database uses a "division of labor" approach to allocate different processes to different data blocks while rolling forward, thereby making the operation more efficient. The number of processes is derived from the CPU_COUNT initialization parameter, which by default equals the number of CPUs on the system. For example, if parallel recovery is performed on a system where CPU_COUNT is 4, and only one datafile is recovered, then four spawned processes read blocks from the datafile and apply redo.

Typically, recovery is I/O-bound on reads from and writes to data blocks. Parallelism at the block level may only help recovery performance if it increases total I/Os, for example, by bypassing operating system restrictions on asynchronous I/Os. Systems with efficient asynchronous I/O see little benefit from parallel media recovery.

Note: The RECOVERY_PARALLELISM initialization parameter controls instance or crash recovery only. Media recovery is not affected by the value used for RECOVERY_PARALLELISM.

See Also: The description of the PARALLEL clause in the discussion of CREATE TABLE in Oracle Database SQL Language Reference

   integer Specifies the integer degree of parallelism.

Each parallel thread may use one or two parallel execution servers. Typically, it is not necessary for you to specify the degree of parallelism.

SKIP READONLY Omits read-only files from the recovery.
TEST Initiates a trial recovery.

A trial recovery is useful if a normal recovery procedure has encountered a problem. It enables the database to look ahead into the redo stream to detect possible problems. The trial recovery applies redo in a way similar to normal recovery, but it does not write changes to disk and it rolls back its changes at the end of the trial recovery.

Note: You can use this clause only if you have restored a backup taken since the last RESETLOGS operation. Otherwise, the database returns an error.

UNDO TABLESPACE 'tablespace_name' Specifies a list of tablespaces with undo segments at the target time. Only for use with RECOVER TABLESPACE.

During TSPITR, RMAN needs information about which tablespaces had undo segments at the TSPITR target time. This information is usually available in the recovery catalog, if one is used.

If there is no recovery catalog, or if the information is not found in the recovery catalog, then RMAN proceeds assuming that the set of tablespaces with undo segments at the target time is the same as the set of tablespaces with undo segments at the present time. If this assumption is not correct, TSPITR fails with an error. In such a case, you can use UNDO TABLESPACE.

VALIDATE HEADER Reports and validates—but does not restore—the backups that RMAN could use to restore files needed for the recovery.

When you run RECOVER with VALIDATE HEADER, RMAN performs the same functions as when you specify the RESTORE ... PREVIEW option. However, in addition to listing the files needed for restore and recovery, RMAN validates the backup file headers to determine whether the files on disk or in the media management catalog correspond to the metadata in the RMAN repository.

See Also: The description of the RESTORE ... PREVIEW option


Example 2-95 Recovering a Tablespace in an Open Database

Assume that the disk containing the datafiles for tablespace users becomes unavailable because of a hardware error, but is repaired after a few minutes. This example takes tablespace users offline, uses automatic channels to restore the datafiles to their default location and recover them (deleting the logs that it restored from tape), then brings the tablespace back online.


Example 2-96 Recovering Datafiles Restored to New Locations

This example uses the preconfigured disk channel and manually allocates one media management channel to use datafile copies on disk and backups on tape, and restores one of the datafiles in tablespace users to a different location.

  SET NEWNAME FOR DATAFILE '/disk1/oradata/prod/users01.dbf'
    TO '/disk2/users01.dbf';

Example 2-97 Performing DBPITR with a Backup Control File and Recovery Catalog

Assume that all datafiles and control files as well as archived redo log 58 were lost due to a disk failure. Also assume that you do not have incremental backups. You need to recover the database with available archived redo logs. You do not need to restore tablespace tools because it has been read-only since before the most recent backup. After connecting to the target and recovery catalog, issue the following commands:

  SET UNTIL SEQUENCE 40 THREAD 1;  # Recover database until log sequence 40

Note that RMAN automatically skips the restore and recovery of datafile 8, which is the datafile in the read-only tablespace. The following portion of sample output indicates the skip:

using channel ORA_DISK_1
allocated channel: ORA_SBT_TAPE_1
channel ORA_SBT_TAPE_1: SID=104 device type=SBT_TAPE
channel ORA_SBT_TAPE_1: Oracle Secure Backup
skipping datafile 8; already restored to file /disk1/oradata/prod/tools01.dbf
channel ORA_DISK_1: starting datafile backup set restore
Finished restore at 19-FEB-07

Starting recover at 19-FEB-07
using channel ORA_DISK_1
using channel ORA_SBT_TAPE_1
datafile 8 not processed because file is read-only

Example 2-98 Incrementally Updating Backups

By incrementally updating backups, you can avoid the overhead of making full image copy backups of datafiles, while also minimizing time required for media recovery of your database. This example enables you to recover to any SCN within the previous week, but enables you to avoid having to apply more than one day of redo.

Assume you run the following script daily. On first execution, the script creates an image copy backup of the database on disk with the specified tag. On the second through the seventh execution, the script creates a level 1 backup of the database. On the eighth and all subsequent executions, RMAN applies the level 1 incremental to the datafile copy made 7 days ago and then makes a new level 1 backup with the changes from the previous day.

    WITH TAG 'incr_update'
    FOR RECOVER OF COPY WITH TAG 'incr_update'

Example 2-99 Recovery from Loss of a Control File on a Standby Database

Assume that the standby database dgprod3 control files are lost because of a media failure. The primary and standby database share SBT storage. A backup of the primary database control file exists on tape. The following commands restore a control file that is usable by the standby database, update the filenames to existing files on disk, and recover the database:

CONNECT TARGET SYS/password@dgprod3
CONNECT CATALOG rman/password@catdb

You can then start redo apply on the standby database.

Example 2-100 Recovering a NOARCHIVELOG Database

You can perform limited recovery of changes to a database running in NOARCHIVELOG mode by applying incremental backups. The incremental backups must be consistent, like all backups of a database run in NOARCHIVELOG mode, so you cannot back up the database when it is open.

Assume that you run database prod in NOARCHIVELOG mode with a recovery catalog. You shut down the database consistently and make a level 0 backup of database prod to tape on Sunday afternoon. You shut down the database consistently and make a level 1 differential incremental backup to tape at 3:00 a.m. on Wednesday and Friday.

On Saturday, a media failure destroys half of the datafiles as well as the online redo logs. Because the online logs are lost, you must specify the NOREDO option in the RECOVER command. Otherwise, RMAN searches for the redo logs after applying the Friday incremental backup and issues an error message when it does not find them.

After connecting to prod and the catalog database, recover as follows:

RESTORE CONTROLFILE;  # restore control file from consistent backup
RESTORE DATABASE;  # restore datafiles from consistent backup
RECOVER DATABASE NOREDO;  # specify NOREDO because online redo logs are lost

The recovered database reflects only changes up through the time of the Friday incremental backup. Because there are no archived redo logs, there is no way to recover changes made after the incremental backup.

Example 2-101 Recovering All Block Corruption in the Database

This example runs a backup validation to populate the V$DATABASE_BLOCK_CORRUPTION view, then recovers any corrupt blocks recorded in the view. Sample output is included for both commands.

Starting validate at 19-FEB-07
using channel ORA_DISK_1
channel ORA_DISK_1: starting validation of datafile
channel ORA_DISK_1: specifying datafile(s) for validation
List of Datafiles
File Status Marked Corrupt Empty Blocks Blocks Examined High SCN
---- ------ -------------- ------------ --------------- ----------
1    FAILED 0              4070         57600           555975
  File Name: /disk1/oradata/prod/system01.dbf
  Block Type Blocks Failing Blocks Processed
  ---------- -------------- ----------------
  Data       1              41550
  Index      0              7677
  Other      0              4303
Starting recover at 19-FEB-07
using channel ORA_DISK_1
allocated channel: ORA_SBT_TAPE_1
channel ORA_SBT_TAPE_1: SID=104 device type=SBT_TAPE
channel ORA_SBT_TAPE_1: Oracle Secure Backup
searching flashback logs for block images until SCN 547548
finished flashback log search, restored 1 blocks
starting media recovery
media recovery complete, elapsed time: 00:00:03
Finished recover at 19-FEB-07
