E Embedded SQL Statements and Precompiler Directives

This appendix describes of both SQL92 embedded SQL statements and directives as well as the Oracle9i embedded SQL extensions. These statements and directives are prefaced in your source code with the keywords, EXEC SQL.

Note: Only statements which differ in syntax from non-embedded SQL are described in this appendix. For details of the non-embedded SQL statements, see the Oracle Database SQL Language Reference.

This appendix contains the following sections:

Summary of Precompiler Directives and Embedded SQL Statements

Embedded SQL statements place DDL, DML, and Transaction Control statements within a procedural language program. Embedded SQL is supported by the Oracle Precompilers. Table E-2 provides a functional summary of the embedded SQL statements and directives.

The Source/Type column in Table E-2 is displayed in the format source/type where:

Table E-1 Source/Type Column Meaning

SQL Statements Directives

source

Is either SQL92 standard SQL (S) or an Oracle extension (O).

type

Is either an executable (E) statement or a directive (D).


Table E-2 Precompiler Directives and Embedded SQL Statements and Clauses

EXEC SQL Statement Source/Type Purpose

ALLOCATE

O/E

To allocate memory for a cursor variable, LOB locator or ROWID.

ALLOCATE DESCRIPTOR

S/E

To allocate a descriptor for ANSI dynamic SQL.

CALL

S/E

Call a stored procedure.

CLOSE

S/E

To disable a cursor.

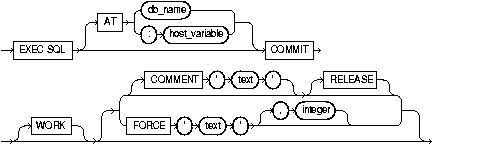

COMMIT

S/E

To make all database changes permanent.

CONNECT

O/E

To log on to a database instance.

CONTEXT ALLOCATE

O/E

To allocate memory for a SQLLIB runtime context.

CONTEXT FREE

O/E

To free memory for a SQLLIB runtime context.

CONTEXT USE

O/E

To specify a SQLLIB runtime context.

DEALLOCATE DESCRIPTOR

S/E

To deallocate a descriptor area to free memory.

DECLARE CURSOR

S/D

To declare a cursor, associating it with a query.

DECLARE DATABASE

O/D

To declare an identifier for a nondefault database to be accessed in subsequent embedded SQL statements.

DECLARE STATEMENT

S/D

To assign a SQL variable name to a SQL statement.

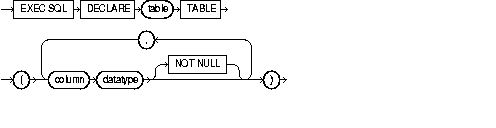

DECLARE TABLE

O/D

To declare the table structure for semantic checking of embedded SQL statements by the Oracle Precompiler.

DELETE

S/E

To remove rows from a table or from a view's base table.

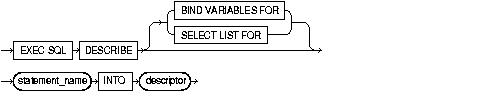

DESCRIBE

S/E

To initialize a descriptor, a structure holding host variable descriptions.

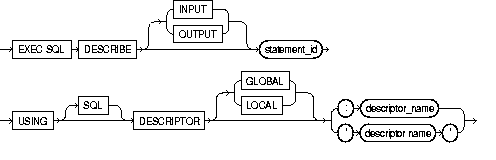

DESCRIBE DECRIPTOR

S/E

To obtain information about an ANSI SQL statement, and store it in a descriptor.

ENABLE THREADS

O/E

To initialize a process that supports multiple threads.

EXECUTE...END-EXEC

O/E

To execute an anonymous PL/SQL block.

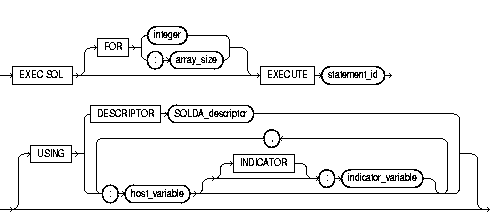

EXECUTE

S/E

To execute a prepared dynamic SQL statement.

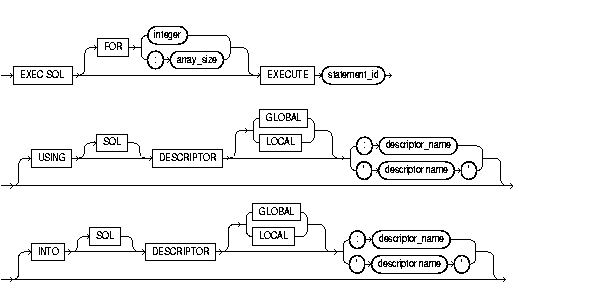

EXECUTE DESCRIPTOR

S/E

To execute a prepared statement using ANSI Dynamic SQL.

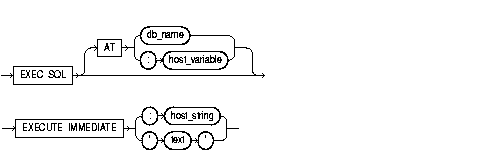

EXECUTE IMMEDIATE

S/E

To prepare and execute a SQL statement with no host variables.

FETCH

S/E

To retrieve rows selected by a query.

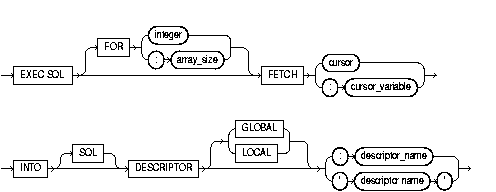

FETCH DESCRIPTOR

S/E

To retrieve rows selected by a query using ANSI Dynamic SQL.

FREE

S/E

To free memory used by a cursor, LOB locator, or ROWID.

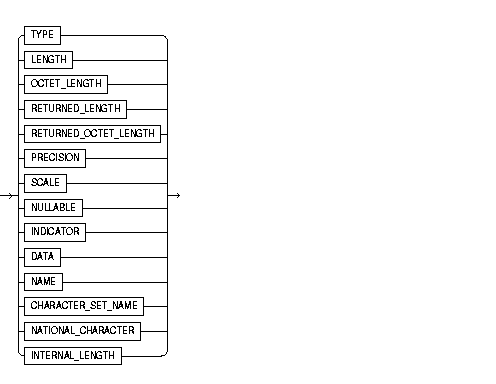

GET DESCRIPTOR

S/E

To move information from an ANSI SQL descriptor area into host variables.

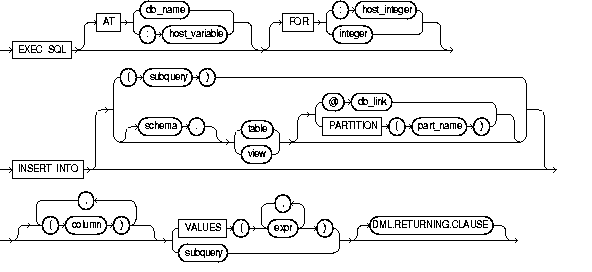

INSERT

S/E

To add rows to a table or to a view's base table.

LOB APPEND

O/E

To append a LOB to the end of another lOB.

LOB ASSIGN

O/E

To assign a LOB or BFILE locator to another locator.

LOB CLOSE

O/E

To close an open LOB or BFILE.

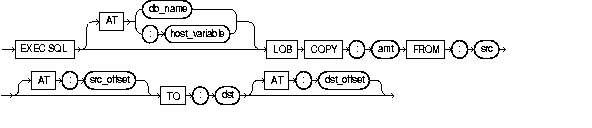

LOB COPY

O/E

To copy all or part of a LOB value into another LOB.

LOB CREATE TEMPORARY

O/E

To create a temporary LOB.

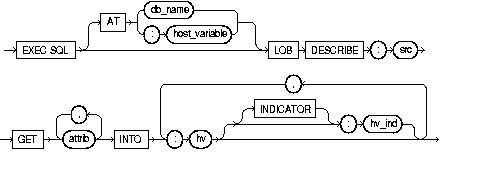

LOB DESCRIBE

O/E

To retrieve attributes from a LOB.

LOB DISABLE BUFFERING

O/E

To disable LOB buffering.

LOB ENABLE BUFFERING

O/E

To enable LOB buffering.

LOB ERASE

O/E

To erase a given amount of LOB data starting from a given offset.

LOB FILE CLOSE ALL

O/E

To close all open BFILE.

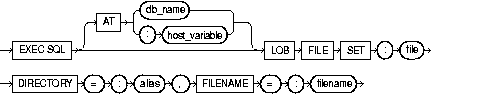

LOB FILE SET

O/E

To set DIRECTORY and FILENAME in a BFILE locator.

LOB FLUSH BUFFER

O/E

To write the LOB buffers to the database server.

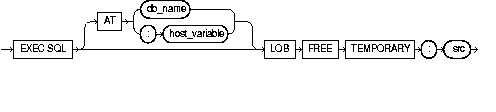

LOB FREE TEMPORARY

O/E

To free temporary space for the LOB locator.

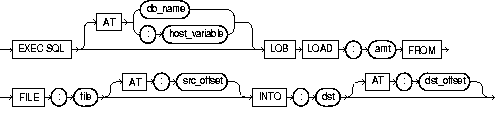

LOB LOAD

O/E

To copy all or part of a BFILE into an internal LOB.

LOB OPEN

O/E

To open a LOB or BFILE to read or read/write access.

LOB READ

O/E

To read all or part of a LOB or BFILE into a buffer.

LOB TRIM

O/E

To truncate a lob value.

LOB WRITE

O/E

To write the contents of a buffer to a LOB.

OPEN

S/E

To execute the query associated with a cursor.

OPEN DESCRIPTOR

S/E

To execute the query associated with a cursor in ANSI Dynamic SQL.

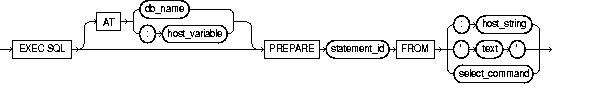

PREPARE

S/E

To parse a dynamic SQL statement.

ROLLBACK

S/E

To end the current transaction and discard all changes.

SAVEPOINT

S/E

To identify a point in a transaction to which you can later roll back.

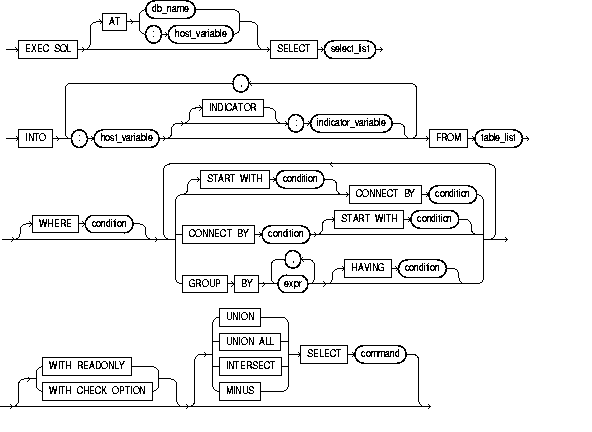

SELECT

S/E

To retrieve data from one or more tables, views, or snapshots, assigning the selected values to host variables.

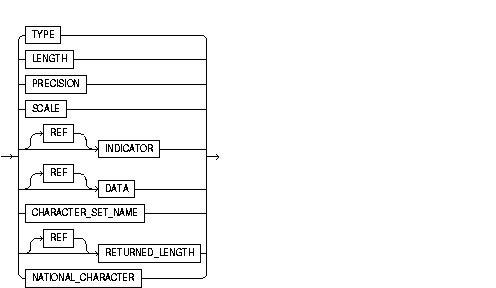

SET DESCRIPTOR

S/E

To set information in the ANSI SQL descriptor area from host variables.

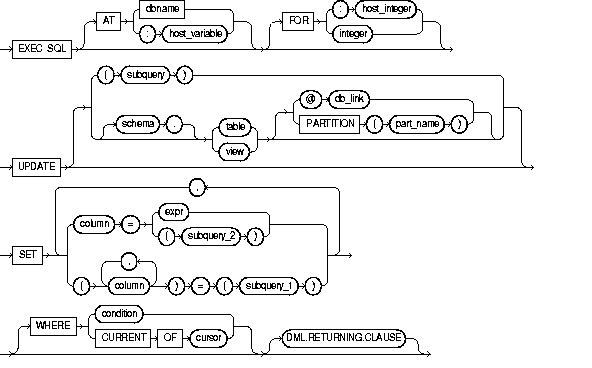

UPDATE

S/E

To change existing values in a table or in a view's base table.

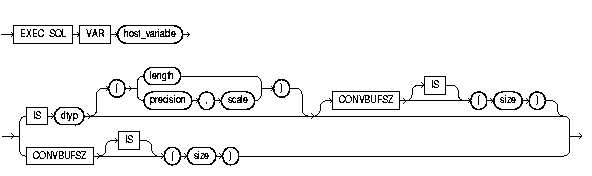

VAR

O/D

To override the default datatype and assign a specific Oracle9i external datatype to a host variable.

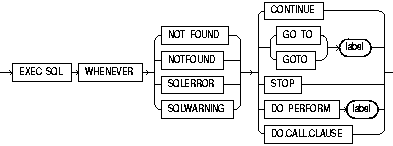

WHENEVER

S/D

To specify handling for error and warning conditions.


About the Statement Descriptions

The directives, and statements appear alphabetically. The description of each contains the following sections:

Directives Description
Purpose Describes the basic uses of the statement.
Prerequisites Lists privileges you must have and steps that you must take before using the statement. Unless otherwise noted, most statements also require that the database be open by your instance.
Syntax Shows the syntax diagram with the keywords and parameters of the statement.
Keywords and Parameters Describes the purpose of each keyword and parameter.
Usage Notes Discusses how and when to use the statement.
Prerequisites Lists privileges you must have and steps that you must take before using the statement. Unless otherwise noted, most statements also require that the database be open by your instance.
Syntax Shows the syntax diagram with the keywords and parameters of the statement.

How to Read Syntax Diagrams

Syntax diagrams are used to illustrate embedded SQL syntax. They are drawings that depict valid syntax.

Trace each diagram from left to right, in the direction shown by the arrows.

Statements keywords appear in UPPER CASE inside rectangles. Type them exactly as shown in the rectangles. Parameters appear in lower case inside ovals. Variables are used for the parameters. Operators, delimiters, and terminators appear inside circles.

If the syntax diagram has more than one path, you can choose any path to travel.

If you have the choice of more than one keyword, operator, or parameter, your options appear in a vertical list. In the following example, you can travel down the vertical line as far as you like, then continue along any horizontal line:

Syntax Diagrams
Description of the illustration first.gif

According to the diagram, all of the following statements are valid:

EXEC SQL WHENEVER NOT FOUND ...
EXEC SQL WHENEVER SQLERROR ...
EXEC SQL WHENEVER SQLWARNING ...

Statement Terminator

In all Pro*COBOL EXEC SQL diagrams, each statement is understood to end with the token END-EXEC.

Required Keywords and Parameters

Required keywords and parameters can appear singly or in a vertical list of alternatives. Single required keywords and parameters appear on the main path, that is, on the horizontal line you are currently traveling. In the following example, cursor is a required parameter:

Required Keywords and Parameters
Description of the illustration reqp.gif

If there is a cursor named EMPCURSOR, then, according to the diagram, the following statement is valid:

EXEC SQL CLOSE EMPCURSOR END-EXEC.

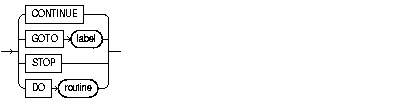

If any of the keywords or parameters in a vertical list appears on the main path, one of them is required. That is, you must choose one of the keywords or parameters, but not necessarily the one that appears on the main path. In the following example, you must choose one of the four actions:

Syntax Diagram
Description of the illustration reqp1.gif

Optional Keywords and Parameters

If keywords and parameters appear in a vertical list preceding the main path, they are optional. In the following example, instead of traveling down a vertical line, you can continue along the main path:

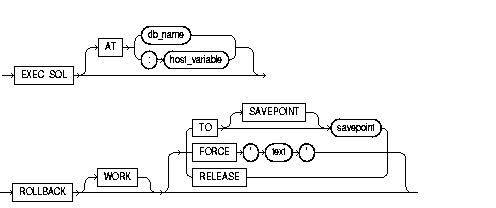

Optional Keywords and Parameters
Description of the illustration optional.gif

If there is a database named oracle2, then, according to the diagram, all of the following statements are valid:

EXEC SQL ROLLBACK END-EXEC.
     EXEC SQL ROLLBACK WORK END-EXEC.
     EXEC SQL AT ORACLE2 ROLLBACK END-EXEC.

Syntax Loops

Loops let you repeat the syntax within them as many times as you like. In the following example, column_name is inside a loop. So, after choosing one column name, you can go back repeatedly to choose another.

Syntax Loops
Description of the illustration syntax.gif

If DEBIT, CREDIT, and BALANCE are column names, then, according to the diagram, all of the following statements are valid:

EXEC SQL SELECT DEBIT INTO ...
EXEC SQL SELECT CREDIT, BALANCE INTO ...
EXEC SQL SELECT DEBIT, CREDIT, BALANCE INTO ...

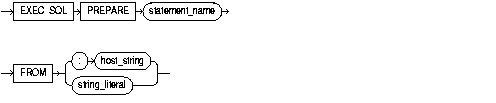

Multi-part Diagrams

Read a multi-part diagram as if all the main paths were joined end-to-end. The following example is a two-part diagram:

Multi-part Diagrams
Description of the illustration part.gif

According to the diagram, the following statement is valid:

EXEC SQL PREPARE statement_name FROM :host_string END-EXEC.

Oracle Names

The names of Oracle database objects, such as tables and columns, must not exceed 30 characters in length. The first character must be a letter, but the rest can be any combination of letters, numerals, dollar signs ($), pound signs (#), and underscores (_).

However, if a name is enclosed by quotation marks ("), it can contain any combination of legal characters, including spaces but excluding quotation marks.

Oracle names are not case-sensitive except when enclosed by quotation marks.

ALLOCATE (Executable Embedded SQL Extension)

Purpose

To allocate a cursor variable to be referenced in a PL/SQL block, or to allocate a LOB locator, or a ROWID .

Prerequisites

A cursor variable (see Chapter 6, "Embedded PL/SQL") of type SQL-CURSOR must be declared before allocating memory for the cursor variable.

Syntax

ALLOCATE
Description of the illustration allocob.gif

Keywords and Parameters

Keywords and Parameters Description
cursor_variable A cursor variable of type SQL-CURSOR
host_ptr A variable of type SQL-ROWID for a ROWID, or SQL-BLOB, SQL-CLOB, or SQL-NCLOB for a LOB

Usage Notes

Whereas a cursor is static, a cursor variable is dynamic because it is not tied to a specific query. You can open a cursor variable for any type-compatible query.

For more information on this statement, see Oracle Database PL/SQL Language Reference and Oracle Database SQL Language Reference.

Example

This partial example illustrates the use of the ALLOCATE statement:

...
 01  EMP-CUR       SQL-CURSOR.
 01  EMP-REC.
     ...
     EXEC SQL ALLOCATE :EMP-CUR END-EXEC.
     ...

Related Topics

CLOSE (Executable Embedded SQL).

EXECUTE (Executable Embedded SQL).

FETCH (Executable Embedded SQL).

FREE (Executable Embedded SQL Extension).

ALLOCATE DESCRIPTOR (Executable Embedded SQL)

Purpose

An ANSI dynamic SQL statement that allocates a descriptor.

Prerequisites

None.

Syntax

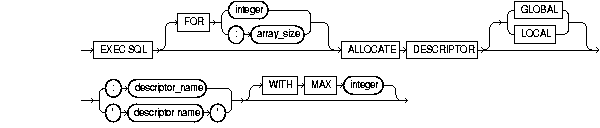

ALLOCATE DESCRIPTOR
Description of the illustration alldesc.gif

Keywords and Parameters

Keywords and Parameters Description
array_size

integer

Host variable containing number of rows to be processed.

Number of rows to be processed.

descriptor_name

descriptor name

Host variable containing number of rows to be processed.

Number of rows to be processed.

GLOBAL | LOCAL LOCAL (the default) means file scope, as opposed to GLOBAL, which means application scope.
WITH MAX integer Maximum number of host variables. The default is 100.

Usage Notes

Use DYNAMIC=ANSI precompiler option. For information on using this statement, see "ALLOCATE DESCRIPTOR".

Example

EXEC SQL
       FOR :batch ALLOCATE DESCRIPTOR GLOBAL :binddes WITH MAX 25
     END-EXEC.

Related Topics

DESCRIBE DESCRIPTOR (Executable Embedded SQL).

GET DESCRIPTOR (Executable Embedded SQL).

SET DESCRIPTOR (Executable Embedded SQL).

CALL (Executable Embedded SQL)

Purpose

To call a stored procedure.

Prerequisites

An active database connection must exist.

Syntax

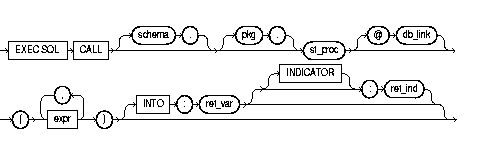

CALL
Description of the illustration call.gif

Keywords and Parameters

Keywords and Parameters Description
schema Is the schema containing the procedure. If you omit schema, Oracle9i assumes the procedure is in your own schema.
pkg The package where the procedure is stored.
st_proc The stored procedure to be called.
db_link The complete or partial name of a database link to a remote database where the procedure is located. For information on referring to database links, see the Oracle Database SQL Language Reference.
expr The list of expressions that are the parameters of the procedure.
ret_var The host variable that receives the returned value of a function.
ret_ind The indicator variable for ret_var.

Usage Notes

For more about this statement, see Calling a Stored PL/SQL or Java Subprogram.

For a complete discussion of stored procedures, see: Oracle Database Advanced Application Developer's Guide, "External Routines" chapter.

Example

...
     05  EMP-NAME      PIC X(10) VARYING.
     05  EMP-NUMBER    PIC S9(4) COMP VALUE ZERO.
     05  SALARY        PIC S9(5)V99 COMP-3 VALUE ZERO.
...
      05  D-EMP-NUMBER  PIC 9(4).
...
      ACCEPT D-EMP-NUMBER.
      EXEC SQL
        CALL mypkge.getsal(:EMP-NUMBER, :D-EMP-NUMBER, :EMP-NAME) INTO :SALARY
      END-EXEC.
...

Related Topics

None

CLOSE (Executable Embedded SQL)

Purpose

To disable a cursor, freeing the resources acquired by opening the cursor, and releasing parse locks.

Prerequisites

The cursor or cursor variable must be open and MODE=ANSI.

Syntax

CLOSE
Description of the illustration close.gif

Keywords and Parameters

Keywords and Parameters Description
cursor The cursor to be closed
cursor_variable The cursor variable to be closed.

Usage Notes

Rows cannot be fetched from a closed cursor. A cursor need not be closed to be reopened. The HOLD_CURSOR and RELEASE_CURSOR precompiler options alter the effect of the CLOSE statement. For information on these options, see Chapter 14, "Precompiler Options".

Example

This example illustrates the use of the CLOSE statement:

EXEC SQL CLOSE EMP-CUR END-EXEC.

Related Topics

DECLARE CURSOR (Embedded SQL Directive).

OPEN (Executable Embedded SQL).

PREPARE (Executable Embedded SQL).

COMMIT (Executable Embedded SQL)

Purpose

To end your current transaction, making permanent all its changes to the database and optionally freeing all resources and disconnecting from the database server.

Prerequisites

To commit your current transaction, no privileges are necessary.

To manually commit a distributed in-doubt transaction that you originally committed, you must have FORCE TRANSACTION system privilege. To manually commit a distributed in-doubt transaction that was originally committed by another user, you must have FORCE ANY TRANSACTION system privilege.

Syntax

COMMIT
Description of the illustration commit.gif

Keyword and Parameters

Keywords and Parameters Description


AT Identifies the database to which the COMMIT statement is issued. The database can be identified by either:
db_name A database identifier declared in a previous DECLARE DATABASE statement or used in a CONNECT statement.
host_variable If you omit this clause, Oracle9i issues the statement to your default database.
WORK Is supported only for compliance with standard SQL. The statements COMMIT and COMMIT WORK are equivalent.
COMMENT Specifies a comment to be associated with the current transaction. The 'text' is a quoted literal of up to 50 characters that Oracle9i stores in the data dictionary view DBA_2PC_PENDING along with the transaction ID if the transaction becomes in-doubt.
RELEASE Frees all resources and disconnects the application from the Oracle9i Server.
FORCE Manually commits an in-doubt distributed transaction. The transaction is identified by the 'text' containing its local or global transaction ID. To find the IDs of such transactions, query the data dictionary view DBA_2PC_PENDING. You can also use the optional integer to explicitly assign the transaction a system change number (SCN). If you omit the integer, the transaction is committed using the current SCN.

Usage Notes

Always explicitly commit or rollback the last transaction in your program by using the COMMIT or ROLLBACK statement and the RELEASE option. Oracle9i automatically rolls back changes if the program terminates abnormally.

The COMMIT statement has no effect on host variables or on the flow of control in the program. For more information on this statement, see "Using the COMMIT Statement".

Example

This example illustrates the use of the embedded SQL COMMIT statement:

EXEC SQL AT SALESDB COMMIT RELEASE END-EXEC.

Related Topics

ROLLBACK (Executable Embedded SQL).

SAVEPOINT (Executable Embedded SQL).

CONNECT (Executable Embedded SQL Extension)

Purpose

To logon to an Oracle9i database.

Prerequisites

You must have CREATE SESSION system privilege in the specified database.

Syntax

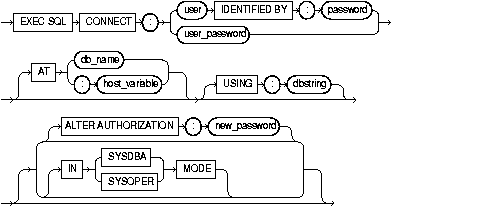

CONNECT
Description of the illustration connect.gif

Keyword and Parameters

Keywords and Parameters Description
user

password

Specifies your username and password separately.
user_password Is a single host variable containing the connect string username/password[@dbname].

To allow Oracle9i to verify your connection through your operating system, specify "/" as the :user_password value.

AT Identifies the database to which the connection is made. The database can be identified by either:
db_name A database identifier declared in a previous DECLARE DATABASE statement.
host_variable A host variable whose value is a previously declared db_name.
USING Specifies the Oracle Net database specification string used to connect to a nondefault database. If you omit this clause, you are connected to your default database.
ALTER AUTHORIZATION Change password to the following string.
new_password New password string.
IN SYSDBA MODE

IN SYSOPER MODE

Connect with SYSDBA or SYSOPER system privileges. Not allowed when ALTER AUTHORIZATION is used, or precompiler option AUTO_CONNECT is set to YES.

Usage Notes

A program can have multiple connections, but can only connect once to your default database. For more information on this statement, see: "Concurrent Logons".

Example

The following example illustrate the use of CONNECT:

EXEC SQL CONNECT :USERNAME
          IDENTIFIED BY :PASSWORD
     END-EXEC.

You can also use this statement in which the value of :userid is the value of :username and :password separated by a "/" such as 'SCOTT/TIGER':

EXEC SQL CONNECT :USERID END-EXEC.

Related Topics

COMMIT (Executable Embedded SQL).

DECLARE DATABASE (Oracle Embedded SQL Directive).

ROLLBACK (Executable Embedded SQL).

CONTEXT ALLOCATE (Executable Embedded SQL Extension)

Purpose

To initialize a SQLLIB runtime context that is referenced in an EXEC SQL CONTEXT USE statement.

Prerequisites

The runtime context must be declared of type SQL-CONTEXT.

Syntax

CONTEXT ALLOCATE
Description of the illustration conall.gif

Keywords and Parameters

Keywords and Parameters Description
context The SQLLIB runtime context for which memory is to be allocated.

Usage Notes

For more information on this statement, see "Embedded SQL Statements and Directives for Runtime Contexts".

Example

This example illustrates the use of a CONTEXT ALLOCATE statement in a Pro*COBOL embedded SQL program:

EXEC SQL CONTEXT ALLOCATE :ctx1 END-EXEC.

Related Topics

CONTEXT FREE (Executable Embedded SQL Extension).

CONTEXT USE (Oracle Embedded SQL Directive).

CONTEXT FREE (Executable Embedded SQL Extension)

Purpose

To free all memory associated with a runtime context and place a null pointer in the host program variable.

Prerequisites

The CONTEXT ALLOCATE statement must be used to allocate memory for the specified runtime context before the CONTEXT FREE statement can free the memory allocated for it.

Syntax

CONTEXT FREE
Description of the illustration confree.gif

Keywords and Parameters

Keywords and Parameters Description
context The allocated runtime context for which the memory is to be deallocated.

Usage Notes

For more information on this statement, see "Embedded SQL Statements and Directives for Runtime Contexts".

Example

This example illustrates the use of a CONTEXT FREE statement in a Pro*COBOL embedded SQL program:

EXEC SQL CONTEXT FREE :ctx1 END-EXEC.

Related Topics

CONTEXT ALLOCATE (Executable Embedded SQL Extension).

CONTEXT USE (Oracle Embedded SQL Directive).

CONTEXT USE (Oracle Embedded SQL Directive)

Purpose

To instruct the precompiler to use the specified SQLLIB runtime context on subsequent executable SQL statements

Prerequisites

The runtime context specified by the CONTEXT USE directive must be previously declared.

Syntax

CONTEXT USE
Description of the illustration conuse.gif

Keywords and Parameters

Keywords and Parameters Description
context The allocated runtime context to use for subsequent executable SQL statements that follow it. For example, after specifying in your source code which context to use (multiple contexts can be allocated), you can connect to the Oracle Server and perform database operations within the scope of that context.
DEFAULT Indicates that the global context is to be used.

Usage Notes

This statement has no effect on declarative statements such as EXEC SQL INCLUDE or EXEC ORACLE OPTION. It works similarly to the EXEC SQL WHENEVER directive in that it affects all executable SQL statements which positionally follow it in a given source file without regard to standard C scope rules.

For more information on this statement, see "Embedded SQL Statements and Directives for Runtime Contexts".

Example

This example illustrates the use of a CONTEXT USE directive in a Pro*COBOL program:

EXEC SQL CONTEXT USE :ctx1 END-EXEC.

Related Topics

CONTEXT ALLOCATE (Executable Embedded SQL Extension).

CONTEXT FREE (Executable Embedded SQL Extension).

DEALLOCATE DESCRIPTOR (Embedded SQL Statement)

Purpose

An ANSI dynamic SQL statement that deallocates a descriptor area to free memory.

Prerequisites

The descriptor specified by the DEALLOCATE DESCRIPTOR statement must be previously allocated using the ALLOCATE DESCRIPTOR statement.

Syntax

DEALLOCATE DESCRIPTOR
Description of the illustration dealdesc.gif

Keywords and Parameters

Keywords and Parameters Description
GLOBAL | LOCAL LOCAL (the default) means file scope, as opposed to GLOBAL, which means application scope.
descriptor_name

'descriptor name'

Host variable containing the name of the allocated ANSI descriptor.

Name of the allocated ANSI descriptor.


Usage Notes

Use DYNAMIC=ANSI precompiler option.

For more information on this statement, see "DEALLOCATE DESCRIPTOR".

Example

EXEC SQL DEALLOCATE DESCRIPTOR GLOBAL 'SELDES'  END-EXEC.

Related Topics

ALLOCATE DESCRIPTOR (Executable Embedded SQL).

DESCRIBE DESCRIPTOR (Executable Embedded SQL).

GET DESCRIPTOR (Executable Embedded SQL).

PREPARE (Executable Embedded SQL).

SET DESCRIPTOR (Executable Embedded SQL).

DECLARE CURSOR (Embedded SQL Directive)

Purpose

To declare a cursor, giving it a name and associating it with a SQL statement or a PL/SQL block.

Prerequisites

If you associate the cursor with an identifier for a SQL statement or PL/SQL block, you must have declared this identifier in a previous DECLARE STATEMENT statement.

Syntax

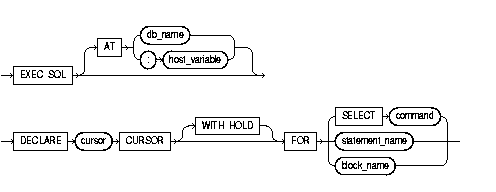

DECLARE CURSOR
Description of the illustration dclco.gif

Keywords and Parameters

Keywords and Parameters Description
AT Identifies the database on which the cursor is declared. The database can be identified by either:
db_name Database identifier declared in a previous DECLARE DATABASE statement.
host_variable Host variable whose value is a previously declared db_name.

If you omit this clause, Oracle9i declares the cursor on your default database.

cursor Name of the cursor to be declared.
WITH HOLD Cursor remains open after a COMMIT or a ROLLBACK. The cursor must not be declared for UPDATE.
SELECT statement Is a SELECT statement to be associated with the cursor. The following statement cannot contain an INTO clause.
statement_name Identifies a SQL statement or PL/SQL block to be associated with the cursor. The statement_name or block_name must be previously declared in a DECLARE STATEMENT statement.

Usage Notes

You must declare a cursor before referencing it in other embedded SQL statements. The scope of a cursor declaration is global within its precompilation unit and the name of each cursor must be unique in its scope. You cannot declare two cursors with the same name in a single precompilation unit.

You can reference the cursor in the WHERE clause of an UPDATE or DELETE statement using the CURRENT OF syntax, if the cursor has been opened with an OPEN statement and positioned on a row with a FETCH statement. For more information on this statement, see "WITH HOLD Clause in DECLARE CURSOR Statements".

Example

This example illustrates the use of a DECLARE CURSOR statement:

EXEC SQL DECLARE EMPCURSOR CURSOR
         FOR SELECT ENAME, EMPNO, JOB, SAL
         FROM EMP
         WHERE DEPTNO = :DEPTNO
     END-EXEC.

Related Topics

CLOSE (Executable Embedded SQL).

DECLARE DATABASE (Oracle Embedded SQL Directive).

DECLARE STATEMENT (Embedded SQL Directive).

DELETE (Executable Embedded SQL).

FETCH (Executable Embedded SQL).

OPEN (Executable Embedded SQL).

PREPARE (Executable Embedded SQL).

SELECT (Executable Embedded SQL).

UPDATE (Executable Embedded SQL).

DECLARE DATABASE (Oracle Embedded SQL Directive)

Purpose

To declare an identifier for a nondefault database to be accessed in subsequent embedded SQL statements.

Prerequisites

You must have access to a username on the nondefault database.

Syntax

DECLARE DATABASE
Description of the illustration dcldbase.gif

Keywords and Parameters

Keywords and Parameters Description
db_name The identifier established for the nondefault database.

Usage Notes

You declare a db_name for a nondefault database so that other embedded SQL statements can refer to that database using the AT clause. Before issuing a CONNECT statement with an AT clause, you must declare a db_name for the nondefault database with a DECLARE DATABASE statement.

For more information on this statement, see "Using Username/Password".

Example

This example illustrates the use of a DECLARE DATABASE directive:

EXEC SQL DECLARE ORACLE3 DATABASE END-EXEC.

Related Topics

COMMIT (Executable Embedded SQL)

CONNECT (Executable Embedded SQL Extension).

DECLARE CURSOR (Embedded SQL Directive).

DECLARE STATEMENT (Embedded SQL Directive).

DELETE (Executable Embedded SQL).

EXECUTE (Executable Embedded SQL).

EXECUTE IMMEDIATE (Executable Embedded SQL).

INSERT (Executable Embedded SQL).

SELECT (Executable Embedded SQL).

UPDATE (Executable Embedded SQL).

DECLARE STATEMENT (Embedded SQL Directive)

Purpose

To declare an identifier for a SQL statement or PL/SQL block to be used in other embedded SQL statements.

Prerequisites

None.

Syntax

DECLARE STATEMENT
Description of the illustration dcl_stmt.gif

Keywords and Parameters

Keywords and Parameters Description
AT Identifies the database on which the SQL statement or PL/SQL block is declared. The database can be identified by either:
db_name Database identifier declared in a previous DECLARE DATABASE statement.
host_variable Host variable whose value is a previously declared db_name. If you omit this clause, Oracle Database 10g declares the SQL statement or PL/SQL block on your default database.
statement_name Is the declared identifier for the statement or PL/SQL block.

Usage Notes

You must declare an identifier for a SQL statement or PL/SQL block with a DECLARE STATEMENT statement only if a DECLARE CURSOR statement referencing the identifier appears physically (not logically) in the embedded SQL program before the PREPARE statement that parses the statement or block and associates it with its identifier.

The scope of a statement declaration is global within its precompilation unit, like a cursor declaration. For more information on this statement, see "DECLARE".

Example I

This example illustrates the use of the DECLARE STATEMENT statement:

EXEC SQL AT REMOTEDB
         DECLARE MYSTATEMENT STATEMENT
     END-EXEC.
     EXEC SQL PREPARE MYSTATEMENT FROM :MY-STRING
     END-EXEC.
     EXEC SQL EXECUTE MYSTATEMENT END-EXEC.

Example II

In this example, the DECLARE STATEMENT statement is required because the DECLARE CURSOR statement precedes the PREPARE statement:

EXEC SQL DECLARE MYSTATEMENT STATEMENT END-EXEC.
     ...
     EXEC SQL DECLARE EMPCURSOR CURSOR FOR MYSTATEMENT END-EXEC.
     ...
     EXEC SQL PREPARE MYSTATEMENT FROM :MY-STRING END-EXEC.
     ...

Related Topics

CLOSE (Executable Embedded SQL).

DECLARE DATABASE (Oracle Embedded SQL Directive).

FETCH (Executable Embedded SQL).

OPEN (Executable Embedded SQL).

PREPARE (Executable Embedded SQL).

DECLARE TABLE (Oracle Embedded SQL Directive)

Purpose

To define the structure of a table or view, including each column's datatype, default value, and NULL or NOT NULL specification for semantic checking by the precompiler when option SQLCHECK=SEMANTICS (or FULL).

Prerequisites

None.

Syntax

DECLARE TABLE
Description of the illustration dcltab.gif

Keywords and Parameters

Keywords and Parameters Description
table The name of the declared table.
column A column of the table.
datatype The datatype of a column. For information on Oracle9i datatypes, see "The Oracle Database 10g Datatypes".
NOT NULL Specifies that a column cannot contain nulls.

Usage Notes

Datatypes can only use integers (not expressions) for length, precision, scale. For more information on using this statement, see "Specifying SQLCHECK=SEMANTICS".

Example

The following statement declares the PARTS table with the PARTNO, BIN, and QTY columns:

EXEC SQL DECLARE PARTS TABLE
         (PARTNO  NUMBER  NOT NULL,
          BIN     NUMBER,
          QTY     NUMBER)
     END-EXEC.

Related Topics

None.

DELETE (Executable Embedded SQL)

Purpose

To remove rows from a table or from a view's base table.

Prerequisites

For you to delete rows from a table, the table must be in your own schema or you must have DELETE privilege on the table.

For you to delete rows from the base table of a view, the owner of the schema containing the view must have DELETE privilege on the base table. Also, if the view is in a schema other than your own, you must be granted DELETE privilege on the view.

The DELETE ANY TABLE system privilege also enables you to delete rows from any table or any view's base table.

Syntax

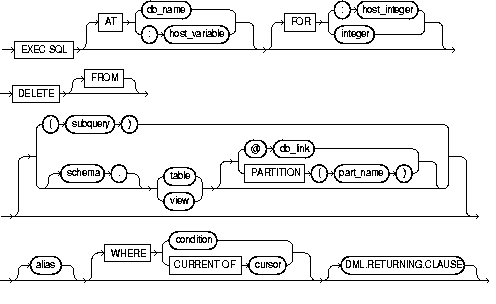

DELETE
Description of the illustration delete.gif

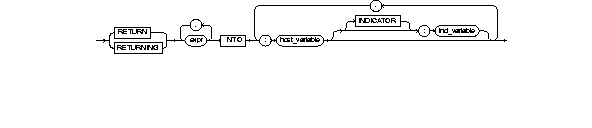

where the DML Returning clause is:

return clause
Description of the illustration return.gif

Keywords and Parameters

Keywords and Parameters Description
AT Identifies the database to which the DELETE statement is issued. The database can be identified by either:
db_name A database identifier declared in a previous DECLARE DATABASE statement.
host_variable A host variable whose value is a previously declared db_name. If you omit this clause, the DELETE statement is issued to your default database.
host_integer

integer

Limits the number of times the statement is executed if the WHERE clause contains array host variables. If you omit this clause, Oracle9i executes the statement once for each component of the smallest array.
schema The schema containing the table or view. If you omit schema, Oracle9i assumes the table or view is in your own schema.
table view The name of a table from which the rows are to be deleted. If you specify view, Oracle9i deletes rows from the view's base table.
dblink The complete or partial name of a database link to a remote database where the table or view is located. For information on referring to database links, see Chapter 2 of the Oracle Database SQL Language Reference. You can only delete rows from a remote table or view if you are using Oracle9i with the distributed option.

If you omit dblink, Oracle9 assumes that the table or view is located on the local database.

part_name Name of partition in the table
alias The alias assigned to the table. Aliases are generally used in DELETE statements with correlated queries.
WHERE Specifies which rows are deleted:

condition

CURRENT OF

If you omit this clause entirely, Oracle9i deletes all rows from the table or view.
DML returning clause See "DML Returning Clause" for a discussion.

Usage Notes

The host variables in the WHERE clause should be either all scalars or all arrays. If they are scalars, Oracle9i executes the DELETE statement only once. If they are arrays, Oracle9i executes the statement once for each set of array components. Each execution may delete zero, one, or multiple rows.

Array host variables in the WHERE clause can have different sizes. In this case, the number of times Oracle9i executes the statement is determined by the smaller of the following values:

If no rows satisfy the condition, no rows are deleted and the SQLCODE returns a NOT_FOUND condition.

The cumulative number of rows deleted is returned through the SQLCA. If the WHERE clause contains array host variables, this value reflects the total number of rows deleted for all components of the array processed by the DELETE statement.

If no rows satisfy the condition, Oracle9i returns an error through the SQLCODE of the SQLCA. If you omit the WHERE clause, Oracle9i raises a warning flag in the fifth component of SQLWARN in the SQLCA. For more information on this statement and the SQLCA, see "Using the SQL Communications Area".

You can use comments in a DELETE statement to pass instructions, or hints, to the Oracle9i optimizer. The optimizer uses hints to choose an execution plan for the statement. For more information on hints, see Oracle Database Performance Tuning Guide.

Example

This example illustrates the use of the DELETE statement:

EXEC SQL DELETE FROM EMP
        WHERE DEPTNO = :DEPTNO
        AND JOB = :JOB
    END-EXEC.
    EXEC SQL DECLARE EMPCURSOR CURSOR
        FOR SELECT EMPNO, COMM
        FROM EMP
    END-EXEC.
    EXEC SQL OPEN EMPCURSOR END-EXEC.
    EXEC SQL FETCH EMPCURSOR
        INTO :EMP-NUMBER, :COMMISSION
    END-EXEC.
    EXEC SQL DELETE FROM EMP
        WHERE CURRENT OF EMPCURSOR
    END-EXEC.

Related Topics

DECLARE DATABASE (Oracle Embedded SQL Directive).

DECLARE STATEMENT (Embedded SQL Directive).

DESCRIBE (Executable Embedded SQL)

Purpose

To initialize a descriptor to hold descriptions of host variables for an Oracle dynamic SQL statement or PL/SQL block.

Prerequisites

You must have prepared the SQL statement or PL/SQL block in a previous embedded SQL PREPARE statement.

Syntax

DESCRIBE
Description of the illustration describe.gif

Keywords and Parameters

Keywords and Parameters Description
BIND VARIABLES FOR Initializes the descriptor to hold information about the input variables for the SQL statement or PL/SQL block.
SELECT LIST FOR Initializes the descriptor to hold information about the select list of a SELECT statement.
- The default is SELECT LIST FOR.
statement_name Identifies a SQL statement or PL/SQL block previously prepared with a PREPARE statement.
descriptor The name of the descriptor to be initialized.

Usage Notes

You must issue a DESCRIBE statement before manipulating the bind or select descriptor within an embedded SQL program.

You cannot describe both input variables and output variables into the same descriptor.

The number of variables found by a DESCRIBE statement is the total number of placeholders in the prepare SQL statement or PL/SQL block, rather than the total number of uniquely named placeholders. For more information on this statement, see "The DESCRIBE Statement".

Example

This example illustrates the use of the DESCRIBE statement in a Pro*COBOL embedded SQL program:

EXEC SQL PREPARE MYSTATEMENT FROM :MY-STRING END-EXEC.
     EXEC SQL DECLARE EMPCURSOR
         FOR SELECT EMPNO, ENAME, SAL, COMM
         FROM EMP
         WHERE DEPTNO = :DEPT-NUMBER
     END-EXEC.
     EXEC SQL DESCRIBE BIND VARIABLES FOR MYSTATEMENT
         INTO BINDDESCRIPTOR
     END-EXEC.
     EXEC SQL OPEN EMPCURSOR
         USING BINDDESCRIPTOR
     END-EXEC.
     EXEC SQL DESCRIBE SELECT LIST FOR MY-STATEMENT
         INTO SELECTDESCRIPTOR
     END-EXEC.
     EXEC SQL FETCH EMPCURSOR
         INTO SELECTDESCRIPTOR
     END-EXEC.

Related Topics

PREPARE (Executable Embedded SQL).

DESCRIBE DESCRIPTOR (Executable Embedded SQL)

Purpose

Used to obtain information about an ANSI SQL statement, and to store it in a descriptor.

Prerequisites

You must have prepared the SQL statement in a previous embedded SQL PREPARE statement.

Syntax

DESCRIBE DESCRIPTOR
Description of the illustration descans.gif

Keywords and Parameters

Keywords and Parameters Description
statement_id The name of the previously prepared SQL statement or PL/SQL block. OUTPUT is the default.
desc_name Host variable containing the name of the descriptor that will hold information about the SQL statement.
'descriptor name' Name of the descriptor
GLOBAL | LOCAL LOCAL is the default. It means file scope, as opposed to GLOBAL, which means application scope.

Usage Notes

Use DYNAMIC=ANSI precompiler option. Only COUNT and NAME are implemented for the INPUT descriptor.

The number of variables found by a DESCRIBE statement is the total number of place-holders in the prepare SQL statement or PL/SQL block, rather than the total number of uniquely named place-holders. For more information on this statement, see Chapter 10, "ANSI Dynamic SQL".

Example

EXEC SQL PREPARE s FROM :my_stament END-EXEC.
     EXEC SQL DESCRIBE INPUT s USING DESCRIPTOR 'in' END-EXEC.

Related Topics

ALLOCATE DESCRIPTOR (Executable Embedded SQL).

DEALLOCATE DESCRIPTOR (Embedded SQL Statement).

GET DESCRIPTOR (Executable Embedded SQL).

PREPARE (Executable Embedded SQL).

SET DESCRIPTOR (Executable Embedded SQL).

ENABLE THREADS (Executable Embedded SQL Extension)

Purpose

To initialize a process that supports multiple threads.

Prerequisites

You must be developing a precompiler application for and compiling it on a platform that supports multithreaded applications, and THREADS=YES must be specified on the command line.

Syntax

ENABLE THREADS
Description of the illustration enable_t.gif

Keywords and Parameters

None.

Usage Notes

The ENABLE THREADS statement must be executed once, and only once, before any other executable SQL statement and before spawning any threads. This statement does not require a host-variable specification.

Example

This example illustrates the use of the ENABLE THREADS statement in a Pro*COBOL program:

EXEC SQL ENABLE THREADS END-EXEC.

Related Topics

CONTEXT ALLOCATE (Executable Embedded SQL Extension).

CONTEXT FREE (Executable Embedded SQL Extension).

CONTEXT USE (Oracle Embedded SQL Directive).

EXECUTE ... END-EXEC (Executable Embedded SQL Extension)

Purpose

To embed an anonymous PL/SQL block into an Oracle Pro*COBOL program.

Prerequisites

None.

Syntax

EXECUTE ... END-EXEC
Description of the illustration execeex.gif

Keywords and Parameters

Keywords and Parameters Description
AT Identifies the database on which the PL/SQL block is executed. The database can be identified by either:
db_name A database identifier declared in a previous DECLARE DATABASE statement.
host_variable A host variable whose value is a previously declared db_name.

If you omit this clause, the PL/SQL block is executed on your default database.
pl/sql_block For information on PL/SQL, including how to write PL/SQL blocks, see the Oracle Database PL/SQL Language Reference.
END-EXEC Must appear after the embedded PL/SQL block.

Usage Notes

Since the Oracle Precompilers treat an embedded PL/SQL block like a single embedded SQL statement, you can embed a PL/SQL block anywhere in an Oracle Precompiler program that you can embed a SQL statement. For more information on embedding PL/SQL blocks in Oracle Precompiler programs, see Chapter 6, "Embedded PL/SQL".

Example

Placing this EXECUTE statement in an Oracle Precompiler program embeds a PL/SQL block in the program:

EXEC SQL EXECUTE
     BEGIN
        SELECT ENAME, JOB, SAL
            INTO :EMP-NAME:IND-NAME, :JOB-TITLE, :SALARY
            FROM EMP
            WHERE EMPNO = :EMP-NUMBER;
        IF :EMP-NAME:IND-NAME IS NULL
            THEN RAISE NAME-MISSING;
        END IF;
     END;
     END-EXEC.

Related Topics

EXECUTE IMMEDIATE (Executable Embedded SQL).

EXECUTE (Executable Embedded SQL)

Purpose

In Oracle dynamic SQL, to execute a DELETE, INSERT, or UPDATE statement or a PL/SQL block that has been previously prepared with an embedded SQL PREPARE statement.

Prerequisites

You must first prepare the SQL statement or PL/SQL block with an embedded SQL PREPARE statement.

Syntax

EXECUTE
Description of the illustration execo.gif

Keywords and Parameters

Keywords and Parameters Description
FOR :array_size

FOR integer

Host variable containing the number of rows to be processed.

Number of rows to be processed.

Limits the number of times the statement is executed when the USING clause contains array host variables If you omit this clause, Oracle9i executes the statement once for each component of the smallest array.

statement_id A precompiler identifier associated with the SQL statement or PL/SQL block to be executed. Use the embedded SQL PREPARE statement to associate the precompiler identifier with the statement or PL/SQL block.
USING DESCRIPTOR SQLDA_descriptor Uses an Oracle descriptor.

CANNOT be used together with an ANSI descriptor (INTO clause).

USING Specifies a list of host variables with optional indicator variables that Oracle9i substitutes as input variables into the statement to be executed. The host and indicator variables must be either all scalars or all arrays.
host_variable Host variables.
indicator_variable Indicator variables.

Usage Note

For more information on this statement, see Chapter 9, "Oracle Dynamic SQL".

Example

This example illustrates the use of the EXECUTE statement in a Pro*COBOL embedded SQL program:

EXEC SQL PREPARE MY-STATEMENT FROM MY-STRING END-EXEC.
     EXEC SQL EXECUTE MY-STATEMENT USING :MY-VAR END-EXEC.

Related Topics

DECLARE DATABASE (Oracle Embedded SQL Directive).

PREPARE (Executable Embedded SQL).

EXECUTE DESCRIPTOR (Executable Embedded SQL

Purpose

In ANSI SQL Method 4, to execute a DELETE, INSERT, or UPDATE statement or a PL/SQL block that has been previously prepared with an embedded SQL PREPARE statement.

Prerequisites

You must first prepare the SQL statement or PL/SQL block with an embedded SQL PREPARE statement.

Syntax

EXECUTE DESCRIPTOR
Description of the illustration execa.gif

Keywords and Parameters

Keywords and Parameters Description
FOR :array_size

FOR integer

Host variable containing the number of rows to be processed.

Number of rows to be processed.

Limits the number of times the statement is executed. Oracle9i executes the statement once for each component of the smallest array.

statement_id A precompiler identifier associated with the SQL statement or PL/SQL block to be executed. Use the embedded SQL PREPARE statement to associate the precompiler identifier with the statement or PL/SQL block.
USING

descriptor_name

descriptor name

An ANSI input descriptor.

Host variable containing name of the input descriptor.

Name of the input descriptor.

INTO

descriptor_name

descriptor name

An ANSI output descriptor.

Host variable containing the name of the output descriptor.

Name of the output descriptor.

GLOBAL | LOCAL LOCAL (the default) means file scope, as opposed to GLOBAL, which means application scope.

Usage Notes

For more information on this statement, see "EXECUTE".

Examples

The ANSI dynamic SQL Method 4 enables DML RETURNING in a SELECT to be supported by the INTO clause in EXECUTE:

EXEC SQL EXECUTE S2 USING DESCRIPTOR :bv1 INTO DESCRIPTOR 'SELDES' END-EXEC.

Related Topics

DECLARE DATABASE (Oracle Embedded SQL Directive).

PREPARE (Executable Embedded SQL).

EXECUTE IMMEDIATE (Executable Embedded SQL)

Purpose

To prepare and execute a DELETE, INSERT, or UPDATE statement or a PL/SQL block containing no host variables.

Prerequisites

None.

Syntax

EXECUTE IMMEDIATE
Description of the illustration execi.gif

Keywords and Parameters

Keywords and Parameters Description
AT Identifies the database on which the SQL statement or PL/SQL block is executed. The database can be identified by either:
db_name A database identifier declared in a previous DECLARE DATABASE statement.
host_variable A host variable whose value is a previously declared db_name.

If you omit this clause, the statement or block is executed on your default database.
host_string A host variable whose value is the SQL statement or PL/SQL block to be executed.
text A text literal containing the SQL statement or PL/SQL block to be executed. The quotes may be omitted.

The SQL statement can only be a DELETE, INSERT, or UPDATE statement.

Usage Notes

When you issue an EXECUTE IMMEDIATE statement, Oracle9i parses the specified SQL statement or PL/SQL block, checking for errors, and executes it. If any errors are encountered, they are returned in the SQLCODE component of the SQLCA.

For more information on this statement, see "The EXECUTE IMMEDIATE Statement".

Example

This example illustrates the use of the EXECUTE IMMEDIATE statement:

EXEC SQL
         EXECUTE IMMEDIATE 'DELETE FROM EMP WHERE EMPNO = 9460'
     END-EXEC.

Related Topics

PREPARE (Executable Embedded SQL).

EXECUTE (Executable Embedded SQL).

FETCH (Executable Embedded SQL)

Purpose

To retrieve one or more rows returned by a query, assigning the select list values to host variables. For ANSI Dynamic SQL Method 4, see "FETCH DESCRIPTOR (Executable Embedded SQL)".

Prerequisites

You must first open the cursor with an the OPEN statement.

Syntax

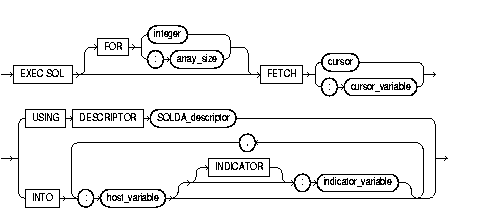

FETCH
Description of the illustration fetcho.gif

Keywords and Parameters

Keywords and Parameters Description
FOR :array_size

FOR integer

Host variable containing the number of rows to be processed.

Number of rows to be processed.

Limits the number of rows fetched if you are using array host variables. If you omit this clause, Oracle9i fetches enough rows to fill the smallest array.

cursor A cursor that is declared by a DECLARE CURSOR statement. The FETCH statement returns one of the rows selected by the query associated with the cursor.
cursor_variable A cursor variable is allocated an ALLOCATE statement. The FETCH statement returns one of the rows selected by the query associated with the cursor variable.
INTO Specifies a list of host variables and optional indicator variables into which data is fetched. These host variables and indicator variables must be declared within the program.
USING SQLDA_variable Specifies the Oracle descriptor referenced in a previous DESCRIBE statement. Only use this clause with dynamic embedded SQL, method 4. The USING clause does not apply when a cursor variable is used.
host_variable The host variable into which data is returned.
indicator_variable The host indicator variable.

Usage Notes

The FETCH statement reads the rows of the active set and names the output variables which contain the results. Indicator values are set to -1 if their associated host variable is null.

The number of rows retrieved is specified by the size of the output host variables or the value specified in the FOR clause. The host variables to receive the data should be either all scalars or all arrays. If they are scalars, Oracle9i fetches only one row. If they are arrays, Oracle9i fetches enough rows to fill the arrays.

Array host variables can have different sizes. In this case, the number of rows Oracle9i fetches is determined by the smaller of the following values:

Of course, the number of rows fetched can be further limited by the number of rows that actually satisfy the query.

If a FETCH statement does not retrieve all rows returned by the query, the cursor is positioned on the next returned row. When the last row returned by the query has been retrieved, the next FETCH statement results in an warning code returned in the SQLCODE element of the SQLCA.

If the array is not completely filled then the warning is issued and you should check SQLERRD(3) to see how many rows were actually fetched.

Note that the FETCH statement does not contain an AT clause. You must specify the database accessed by the cursor in the DECLARE CURSOR statement.

You can only move forward through the active set with FETCH statements. If you want to revisit any of the previously fetched rows, you must reopen the cursor and fetch each row in turn. If you want to change the active set, you must assign new values to the input host variables in the cursor's query and reopen the cursor.

Example

This example illustrates the FETCH statement in a Pro*COBOL embedded SQL program:

EXEC SQL DECLARE EMPCURSOR CURSOR FOR
         SELECT JOB, SAL FROM EMP WHERE DEPTNO = 30
     END-EXEC.
     ...
     EXEC SQL WHENEVER NOT FOUND GOTO ...
 LOOP.
     EXEC SQL FETCH EMPCURSOR INTO :JOB-TITLE1, :SALARY1 END-EXEC.
     EXEC SQL FETCH EMPCURSOR INTO :JOB-TITLE2, :SALARY2 END-EXEC.
     ...
     GO TO LOOP.
     ...

Related Topics

CLOSE (Executable Embedded SQL).

DECLARE CURSOR (Embedded SQL Directive).

OPEN (Executable Embedded SQL).

PREPARE (Executable Embedded SQL).

FETCH DESCRIPTOR (Executable Embedded SQL)

Purpose

To retrieve one or more rows returned by a query, assigning the select list values to host variables. Used in ANSI Dynamic SQL Method 4.

Prerequisites

You must first open the cursor with an the OPEN statement.

Syntax

FETCH DESCRIPTOR
Description of the illustration fetcha.gif

Keywords and Parameters

Keywords and Parameters Description
FOR :array_size

FOR integer

Host variable containing the number of rows to be processed.

Number of rows to be processed.

Limits the number of rows fetched if you are using array host variables. If you omit this clause, Oracle9i fetches enough rows to fill the smallest array.

cursor A cursor that is declared by a DECLARE CURSOR statement. The FETCH statement returns one of the rows selected by the query associated with the cursor.
cursor_variable A cursor variable is allocated an ALLOCATE statement. The FETCH statement returns one of the rows selected by the query associated with the cursor variable.
INTO Specifies a list of host variables and optional indicator variables into which data is fetched. These host variables and indicator variables must be declared within the program.
INTO 'descriptor name'

INTO :descriptor_name

Name of the output ANSI descriptor.

Host variable containing the name of the output descriptor.

GLOBAL | LOCAL LOCAL (the default) means file scope, as opposed to GLOBAL, which means application scope.

Usage Notes

The number of rows retrieved is specified by the size of the output host variables and the value specified in the FOR clause. The host variables to receive the data should be either all scalars or all arrays. If they are scalars, Oracle9i fetches only one row. If they are arrays, Oracle9i fetches enough rows to fill the arrays.

Array host variables can have different sizes. In this case, the number of rows Oracle9i fetches is determined by the smaller of the following values:

If a FETCH statement does not retrieve all rows returned by the query, the cursor is positioned on the next returned row. When the last row returned by the query has been retrieved, the next FETCH statement results in a warning code returned in the SQLCODE element of the SQLCA.

If the array is not completely filled then the warning is issued and you should check SQLERRD(3) to see how many rows were actually fetched.

Note that the FETCH statement does not contain an AT clause. You must specify the database accessed by the cursor in the DECLARE CURSOR statement.

You can only move forward through the active set with FETCH statements. If you want to revisit any of the previously fetched rows, you must reopen the cursor and fetch each row in turn. If you want to change the active set, you must assign new values to the input host variables in the cursor's query and reopen the cursor.

Use DYNAMIC=ANSI precompiler option for the ANSI SQL Method 4 application. For more information, see "FETCH" for the ANSI SQL Method 4 application.

Example

...
EXEC SQL ALLOCATE DESCRIPTOR 'output_descriptor' END-EXEC.
...
EXEC SQL PREPARE S FROM :dyn_statement END-EXEC.
EXEC SQL DECLARE mycursor CURSOR FOR S END-EXEC.
...
EXEC SQL FETCH mycursor INTO DESCRIPTOR 'output_descriptor' END-EXEC.
...

Related Topics

PREPARE statement.

FREE (Executable Embedded SQL Extension)

Purpose

To free memory used by a cursor, LOB locator, or ROWID.

Prerequisites

The memory has to have been already allocated.

Syntax

FREE
Description of the illustration freecob.gif

Keywords and Parameters

Keywords and Parameters Description
cursor_variable A cursor variable that has previously been allocated in an ALLOCATE statement. It is of type SQL-CURSOR.

The FETCH statement returns one of the rows selected by the query associated with the cursor variable.

host_ptr A variable of type SQL-ROWID for a ROWID, or SQL-BLOB, SQL-CLOB, or SQL-NCLOB for a LOB.

Usage Notes

See "Cursors" and "Cursor Variables".

Example

* CURSOR VARIABLE EXAMPLE
...
 01  CUR      SQL-CURSOR.
...
     EXEC SQL ALLOCATE :CUR END-EXEC.
...
     EXEC SQL CLOSE :CUR END-EXEC.
     EXEC SQL FREE  :CUR END-EXEC.
...

Related Topics

ALLOCATE (Executable Embedded SQL Extension).

CLOSE (Executable Embedded SQL).

DECLARE CURSOR (Embedded SQL Directive).

GET DESCRIPTOR (Executable Embedded SQL)

Purpose

To obtain information about host variables from a SQL descriptor area.

Prerequisites

Use only with value semantics and ANSI dynamic SQL Method 4.

Syntax

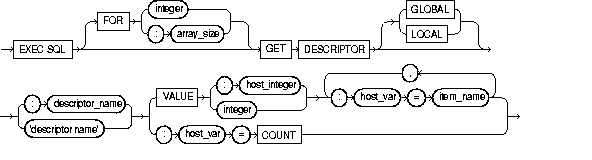

GET DESCRIPTOR
Description of the illustration getdesc.gif

where item_name can be one of these choices:

example
Description of the illustration getdncob.gif

Keywords and Parameters

Keywords and Parameters Description
array_size

integer

Host variable containing the number of rows to be processed.

Number of rows to be processed.

:descriptor_name Host variable containing the name of the allocated ANSI descriptor.
'descriptor name' Name of the allocated ANSI descriptor.
GLOBAL | LOCAL LOCAL (the default) means file scope, as opposed to GLOBAL, which means application scope.
host_var=COUNT Host variable containing the total number of input or output variables.
integer Total number of input or output variables.
VALUE :host_integer Host variable containing the position of the referenced input or output variable.
VALUE integer The position of the referenced input or output variable.
host_var Host variable which will receive the item's value.
item_name The item_name is found in Table 10-4, and Table 10-5, under the "Descriptor Item Name" column heading.

Usage Notes

Use DYNAMIC=ANSI precompiler option. The array size clause can be used with DATA, RETURNED_LENGTH, and INDICATOR item names. See "GET DESCRIPTOR".

Example

EXEC SQL GET DESCRIPTOR GLOBAL 'mydesc' :mydesc_num_vars = COUNT END-EXEC.

Related Topics

ALLOCATE DESCRIPTOR (Executable Embedded SQL).

DESCRIBE DESCRIPTOR (Executable Embedded SQL).

SET DESCRIPTOR (Executable Embedded SQL).

INSERT (Executable Embedded SQL)

Purpose

To add rows to a table or to a view's base table.

Prerequisites

For you to insert rows into a table, the table must be in your own schema or you must have INSERT privilege on the table.

For you to insert rows into the base table of a view, the owner of the schema containing the view must have INSERT privilege on the base table. Also, if the view is in a schema other than your own, you must have INSERT privilege on the view.

The INSERT ANY TABLE system privilege also enables you to insert rows into any table or any view's base table.

Syntax

INSERT
Description of the illustration insert.gif

where DML returning clause is:

return clause
Description of the illustration return.gif

Keywords and Parameters

Keywords and Parameters Description
AT Identifies the database on which the INSERT statement is executed. The database can be identified by either:
db_name A database identifier declared in a previous DECLARE DATABASE statement.
host_variable A host variable whose value is a previously declared db_name. If you omit this clause, the INSERT statement is executed on your default database.
FOR :host_integer Limits the number of times the statement is executed if the VALUES clause contains array host variables. If you omit this clause, Oracle9i executes the statement once for each component in the smallest array.
schema The schema containing the table or view. If you omit schema, Oracle9i assumes the table or view is in your own schema.
table

view

The name of the table into which rows are to be inserted. If you specify view, Oracle9i inserts rows into the view's base table.
db_link A complete or partial name of a database link to a remote database where the table or view is located. For information on referring to database links, see the Oracle Database SQL Language Reference. You can only insert rows into a remote table or view if you are using Oracle9i with the distributed option.

If you omit db_link, Oracle9i assumes that the table or view is on the local database.

part_name The name of partition in the table
column A column of the table or view. In the inserted row, each column in this list is assigned a value from the VALUES clause or the query.

If you omit one of the table's columns from this list, the column's value for the inserted row is the column's default value as specified when the table was created. If you omit the column list altogether, the VALUES clause or query must specify values for all columns in the table.

VALUES Specifies a row of values to be inserted into the table or view. See the syntax description of expr in the Oracle Database SQL Language Reference. Note that the expressions can be host variables with optional indicator variables. You must specify an expression in the VALUES clause for each column in the column list.
subquery A subquery that returns rows that are inserted into the table. The select list of this subquery must have the same number of columns as the column list of the INSERT statement. For the syntax description of a subquery, see "SELECT" in the Oracle Database SQL Language Reference.
DML returning clause See "DML Returning Clause" for a discussion.

Usage Notes

Any host variables that appear in the WHERE clause should be either all scalars or all arrays. If they are scalars, Oracle9 executes the INSERT statement once. If they are arrays, Oracle9i executes the INSERT statement once for each set of array components, inserting one row each time.

Array host variables in the WHERE clause can have different sizes. In this case, the number of times Oracle9i executes the statement is determined by the smaller of the following values:

For more information on this statement, see "The Basic SQL Statements".

Example I

This example illustrates the use of the embedded SQL INSERT statement:

EXEC SQL
         INSERT INTO EMP (ENAME, EMPNO, SAL)
         VALUES (:ENAME, :EMPNO, :SAL)
     END-EXEC.

Example II

This example shows an embedded SQL INSERT statement with a subquery:

EXEC SQL
         INSERT INTO NEWEMP (ENAME, EMPNO, SAL)
         SELECT ENAME, EMPNO, SAL FROM EMP
         WHERE DEPTNO = :DEPTNO
     END-EXEC.

Related Topics

DECLARE DATABASE (Oracle Embedded SQL Directive).

LOB APPEND (Executable Embedded SQL Extension)

Purpose

To append a LOB to the end of another LOB.

Prerequisites

LOB buffering must not be enabled.The destination LOB must have been initialized.

Syntax

LOB APPEND
Description of the illustration lobapp.gif

Usage Notes

For usage notes as well as keywords, parameters, and examples, see "APPEND".

Related Topics

See the other LOB statements.

LOB ASSIGN (Executable Embedded SQL Extension)

Purpose

To assign a LOB or BFILE locator to another locator.

Syntax

LOB ASSIGN
Description of the illustration lobass.gif

Usage Notes

For usage notes as well as keywords, parameters, and examples, see "ASSIGN".

Related Topics

See the other LOB statements.

LOB CLOSE (Executable Embedded SQL Extension)

Purpose

To close an open LOB or BFILE.

Syntax

LOB CLOSE
Description of the illustration lobclose.gif

Usage Notes

For usage notes as well as keywords, parameters, and examples, see "CLOSE" .

Related Topics

See the other LOB statements.

LOB COPY (Executable Embedded SQL Extension)

Purpose

To copy all or part of a LOB value into another LOB.

Syntax

LOB COPY
Description of the illustration lobcop.gif

Usage Notes

For usage notes as well as keywords, parameters, and examples, see "COPY".

Related Topics

See the other LOB statements.

LOB CREATE TEMPORARY (Executable Embedded SQL Extension)

Purpose

To create a temporary LOB.

Syntax

LOB CREATE TEMPORARY
Description of the illustration lobcreat.gif

Usage Notes

For usage notes as well as keywords, parameters, and examples, see "CREATE TEMPORARY".

Related Topics

See the other LOB statements.

LOB DESCRIBE (Executable Embedded SQL Extension)

Purpose

To retrieve attributes from a LOB.

Syntax

LOB DESCRIBE
Description of the illustration lobdesc.gif

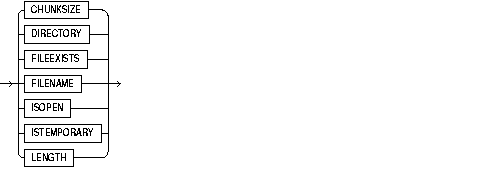

where attrib is:

example
Description of the illustration lobatt.gif

Usage Notes

For usage notes as well as keywords, parameters, and examples, see "DESCRIBE".

Related Topics

See the other LOB statements.

LOB DISABLE BUFFERING (Executable Embedded SQL Extension)

Purpose

To disable LOB buffering.

Syntax

LOB DISABLE BUFFERING
Description of the illustration lobdisab.gif

Usage Notes

For usage notes as well as keywords, parameters, and examples, see "DISABLE BUFFERING".

Related Topics

See the other LOB statements.

LOB ENABLE BUFFERING (Executable Embedded SQL Extension)

Purpose

To enable LOB buffering.

Syntax

LOB ENABLE BUFFERING
Description of the illustration lobenab.gif

Usage Notes

For usage notes as well as keywords, parameters, and examples, see ENABLE BUFFERING

Related Topics

See the other LOB statements.

LOB ERASE (Executable Embedded SQL Extension)

Purpose

To erase a given amount of LOB data starting from a given offset.

Syntax

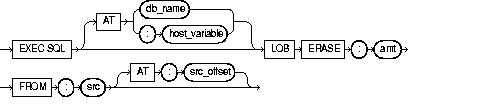

LOB ERASE
Description of the illustration loberas.gif

Usage Notes

For usage notes as well as keywords, parameters, and examples, see "ERASE".

Related Topics

See the other LOB statements.

LOB FILE CLOSE ALL (Executable Embedded SQL Extension)

Purpose

To close all open BFILEs in the current session.

Syntax

LOB FILE CLOSE ALL
Description of the illustration lobficl.gif

Usage Notes

For usage notes as well as keywords, parameters, and examples, see "FILE CLOSE ALL".

Related Topics

See the other LOB statements.

LOB FILE SET (Executable Embedded SQL Extension)

Purpose

To set DIRECTORY and FILENAME in a BFILE locator.

Syntax

LOB FILE SET
Description of the illustration lobfise.gif

Usage Notes

For usage notes as well as keywords, parameters, and examples, see "FILE SET".

Related Topics

See the other LOB statements.

LOB FLUSH BUFFER (Executable Embedded SQL Extension)

Purpose

To write the LOB buffers to the database server.

Syntax

LOB FLUSH BUFFER
Description of the illustration lobflbuf.gif

Usage Notes

For usage notes as well as keywords, parameters, and examples, see "FLUSH BUFFER".

Related Topics

See the other LOB statements.

LOB FREE TEMPORARY (Executable Embedded SQL Extension)

Purpose

To free temporary space for the LOB locator.

Syntax

LOB FREE TEMPORARY
Description of the illustration lobfrtem.gif

Usage Notes

For usage notes as well as keywords, parameters, and examples, see "FREE TEMPORARY".

Related Topics

See the other LOB statements.

LOB LOAD (Executable Embedded SQL Extension)

Purpose

To copy all or part of a BFILE into an internal LOB.

Syntax

LOB LOAD
Description of the illustration loblofr.gif

Usage Notes

For usage notes as well as keywords, parameters, and examples, see "LOAD FROM FILE".

Related Topics

See the other LOB statements.

LOB OPEN (Executable Embedded SQL Extension)

Purpose

To open a LOB or BFILE for read or read/write access.

Syntax

LOB OPEN
Description of the illustration lobopen.gif

Usage Notes

For usage notes as well as keywords, parameters, and examples, see "OPEN".

Related Topics

See the other LOB statements.

LOB READ (Executable Embedded SQL Extension)

Purpose

To read all or part of a LOB or BFILE into a buffer.

Syntax

LOB READ
Description of the illustration lobread.gif

Usage Notes

For usage notes as well as keywords, parameters, and examples, see "READ".

Related Topics

See the other LOB statements.

LOB TRIM (Executable Embedded SQL Extension)

Purpose

To truncate a LOB value.

Syntax

LOB TRIM
Description of the illustration lobtrim.gif

Usage Notes

For usage notes as well as keywords, parameters, and examples, see "TRIM".

Related Topics

See the other LOB statements.

LOB WRITE (Executable Embedded SQL Extension)

Purpose

To write the contents of a buffer to a LOB.

Syntax

LOB WRITE
Description of the illustration lobwri.gif

Usage Notes

For usage notes as well as keywords, parameters, and examples, see "WRITE".

Related Topics

See the other LOB statements.

OPEN (Executable Embedded SQL)

Purpose

To open a cursor, evaluating the associated query and substituting the host variable names supplied by the USING clause into the WHERE clause of the query. It can be used in place of EXECUTE in dynamic SQL. For the ANSI Dynamic SQL syntax, see "OPEN DESCRIPTOR (Executable Embedded SQL)".

Prerequisites

You must declare the cursor with a DECLARE CURSOR embedded SQL statement before opening it.

Syntax

OPEN
Description of the illustration openo.gif

Keywords and Parameters

Keywords and Parameters Description
array_size

integer

Host variable containing the number of rows to be processed.

Number of rows to be processed.

Can only be used when the OPEN is equivalent to EXECUTE.

cursor The (previously declared) cursor to be opened.
host_variable Specifies a host variable with an optional indicator variable to be substituted into the statement associated with the cursor.

CANNOT be used together with an ANSI descriptor (INTO clause).

DESCRIPTOR SQLDA_descriptor Specifies an Oracle descriptor that describes the host variables to be substituted into the WHERE clause of the associated query. The descriptor must be initialized in a previous DESCRIBE statement. The substitution is based on position. The host variable names specified in this statement can be different from the variable names in the associated query.

CANNOT be used together with an ANSI descriptor (INTO clause).


Usage Notes

The OPEN statement defines the active set of rows and initializes the cursor just before the first row of the active set. The values of the host variables at the time of the OPEN are substituted in the statement. This statement does not actually retrieve rows; rows are retrieved by the FETCH statement.

Once you have opened a cursor, its input host variables are not reexamined until you reopen the cursor. To change any input host variables and therefore the active set, you must reopen the cursor.

All cursors in a program are in a closed state when the program is initiated or when they have been explicitly closed using the CLOSE statement.

You can reopen a cursor without first closing it. For more information on this statement, see "Opening a Cursor".

Example

This example illustrates the use of the OPEN statement in a Pro*COBOL program:

EXEC SQL DECLARE EMPCURSOR CURSOR FOR
         SELECT ENAME, EMPNO, JOB, SAL
         FROM EMP
         WHERE DEPTNO = :DEPTNO
     END-EXEC.
     EXEC SQL OPEN EMPCURSOR END-EXEC.

Related Topics

CLOSE (Executable Embedded SQL) .

DECLARE CURSOR (Embedded SQL Directive) .

EXECUTE (Executable Embedded SQL).

FETCH (Executable Embedded SQL).

PREPARE (Executable Embedded SQL) .

OPEN DESCRIPTOR (Executable Embedded SQL)

Purpose

To open a cursor (for ANSI Dynamic SQL Method 4), evaluating the associated query and substituting the input host variable names supplied by the USING clause into the WHERE clause of the query. The INTO clause denotes the output descriptor. It can be used in place of EXECUTE in dynamic SQL.

Prerequisites

You must declare the cursor with a DECLARE CURSOR embedded SQL statement before opening it.

Syntax

OPEN DESCRIPTOR
Description of the illustration opena.gif

Keywords and Parameters

Keywords and Parameters Description
array_size

integer

Host variable containing the number of rows to be processed.

Number of rows to be processed.

Used only with dynamic SQL when it is equivalent to EXECUTE.

cursor The (previously declared) cursor to be opened.
USING DESCRIPTOR

descriptor_name 'descriptor name'

Specifies an ANSI input descriptor with the host variable containing the name of the ANSI descriptor, or the name of the ANSI descriptor.
INTO DESCRIPTOR descriptor_name 'descriptor name' Specifies an ANSI output descriptor with the host variable containing the name of the ANSI descriptor, or the name of the ANSI descriptor.
GLOBAL | LOCAL LOCAL (the default) means file scope, as opposed to GLOBAL, which means application scope.

Usage Notes

Set the precompiler option DYNAMIC to ANSI.

The OPEN statement defines the active set of rows and initializes the cursor just before the first row of the active set. The values of the host variables at the time of the OPEN are substituted in the statement. This statement does not actually retrieve rows; rows are retrieved by the FETCH statement.

Once you have opened a cursor, its input host variables are not reexamined until you reopen the cursor. To change any input host variables and therefore the active set, you must reopen the cursor.

All cursors in a program are in a closed state when the program is initiated or when they have been explicitly closed using the CLOSE statement.

You can reopen a cursor without first closing it. For more information on this statement, see "Inserting Rows".

Example

01 DYN-STATEMENT PIC X(58) VALUE "SELECT ENAME, EMPNO FROM EMP WHERE
       DEPTNO =:DEPTNO-DAT".
 01 DEPTNO-DAT PIC S9(9) COMP VALUE 10.
 ...
     EXEC SQL ALLOCATE DESCRIPTOR 'input-descriptor' END-EXEC.
     EXEC SQL ALLOCATE DESCRIPTOR 'output-descriptor'
     ...
     EXEC SQL PREPARE S FROM :DYN-STATEMENT END-EXEC.
     EXEC SQL DECLARE C CURSOR FOR S END-EXEC.
     ...
     EXEC SQL OPEN C USING DESCRIPTOR 'input-descriptor' END-EXEC.
     ...

Related Topics

CLOSE (Executable Embedded SQL).

DECLARE CURSOR (Embedded SQL Directive).

FETCH DESCRIPTOR (Executable Embedded SQL) .

PREPARE (Executable Embedded SQL).

PREPARE (Executable Embedded SQL)

Purpose

To parse a SQL statement or PL/SQL block specified by a host variable and associate it with an identifier.

Prerequisites

None.

Syntax

PREPARE
Description of the illustration prepare.gif

Keywords and Parameters

Keywords and Parameters Description
db_name A null-terminated string containing the database connection name, as established previously in a CONNECT statement. If it is omitted, or if it is an empty string, the default database connection is assumed.
host_variable A host variable containing the name of the database connection.
array_size

integer

Host variable containing the number of rows to be processed.

Number of rows to be processed.

statement_id The identifier to be associated with the prepared SQL statement or PL/SQL block. If this identifier was previously assigned to another statement or block, the prior assignment is superseded.
host_string A host variable whose value is the text of a SQL statement or PL/SQL block to be prepared.
text A text literal containing the SQL statement or PL/SQL block to be executed. The quotes may be omitted.
select_command A SELECT statement.

Usage Notes

Any variables that appear in the host_string or text are placeholders. The actual host variable names are assigned in the USING clause of the OPEN statement (input host variables) or in the INTO clause of the FETCH statement (output host variables).

A SQL statement is prepared only once, but can be executed any number of times.

Example

This example illustrates the use of a PREPARE statement in a Pro*COBOL embedded SQL program:

EXEC SQL PREPARE MYSTATEMENT FROM :MY-STRING END-EXEC.
     EXEC SQL EXECUTE MYSTATEMENT END-EXEC.

Related Topics

CLOSE (Executable Embedded SQL).

DECLARE CURSOR (Embedded SQL Directive).

FETCH (Executable Embedded SQL).

OPEN (Executable Embedded SQL).

ROLLBACK (Executable Embedded SQL)

Purpose

To undo work done in the current transaction. You can also use this statement to manually undo the work done by an in-doubt distributed transaction.

Prerequisites

To roll back your current transaction, no privileges are necessary.

To manually roll back an in-doubt distributed transaction that you originally committed, you must have FORCE TRANSACTION system privilege. To manually roll back an in-doubt distributed transaction originally committed by another user, you must have FORCE ANY TRANSACTION system privilege.

Syntax

ROLLBACK
Description of the illustration rollb.gif

Keywords and Parameters

Keywords and Parameters Description
db_name A null-terminated string containing the database connection name, as established previously in a CONNECT statement. If it is omitted, or if it is an empty string, the default database connection is assumed.
host_variable A host variable containing the name of the database connection.

If you omit this clause, the savepoint is created on your default database.
WORK Is optional and is provided for ANSI compatibility.
TO Rolls back the current transaction to the specified savepoint. If you omit this clause, the ROLLBACK statement rolls back the entire transaction.
FORCE Manually rolls back an in-doubt distributed transaction. The transaction is identified by the text containing its local or global transaction ID. To find the IDs of such transactions, query the data dictionary view DBA_2PC_PENDING.

ROLLBACK statements with the FORCE clause are not supported in PL/SQL.

RELEASE Frees all resources and disconnects the application from the database server. The RELEASE clause is not allowed with SAVEPOINT and FORCE clauses.
savepoint The name of the savepoint to be rolled back to.

Usage Notes

A transaction (or a logical unit of work) is a sequence of SQL statements that Oracle9i treats as a single unit. A transaction begins with the first executable SQL statement after a COMMIT, ROLLBACK or connection to the database. A transaction ends with a COMMIT statement, a ROLLBACK statement, or disconnection (intentional or unintentional) from the database. Note that Oracle9i issues an implicit COMMIT statement before and after processing any data definition language statement.

Using the ROLLBACK statement without the TO SAVEPOINT clause performs the following operations:

Using the ROLLBACK statement with the TO SAVEPOINT clause performs the following operations:

It is recommended that you explicitly end transactions in application programs using either a COMMIT or ROLLBACK statement. If you do not explicitly commit the transaction and the program terminates abnormally, Oracle9i rolls back the last uncommitted transaction.

Example I

The following statement rolls back your entire current transaction:

EXEC SQL ROLLBACK END-EXEC.

Example II

The following statement rolls back your current transaction to savepoint SP5:

EXEC SQL ROLLBACK TO SAVEPOINT SP5 END-EXEC.

Distributed Transactions

Oracle9i with the distributed option enables you to perform distributed transactions, or transactions that modify data on multiple databases. To commit or roll back a distributed transaction, you need only issue a COMMIT or ROLLBACK statement as you would any other transaction.

If there is a network failure during the commit process for a distributed transaction, the state of the transaction may be unknown, or in-doubt. After consultation with the administrators of the other databases involved in the transaction, you may decide to manually commit or roll back the transaction on your local database. You can manually roll back the transaction on your local database by issuing a ROLLBACK statement with the FORCE clause.

You cannot manually roll back an in-doubt transaction to a savepoint.

A ROLLBACK statement with a FORCE clause only rolls back the specified transaction. Such a statement does not affect your current transaction.

Example III

The following statement manually rolls back an in-doubt distributed transaction:

EXEC SQL ROLLBACK WORK FORCE '25.32.87' END-EXEC.

Related Topics

COMMIT (Executable Embedded SQL).

SAVEPOINT (Executable Embedded SQL).

SAVEPOINT (Executable Embedded SQL)

Purpose

To identify a point in a transaction to which you can later roll back.

Prerequisites

None.

Syntax

SAVEPOINT
Description of the illustration savep.gif

Keywords and Parameters

Keywords and Parameters Description
AT Identifies the database on which the savepoint is created. The database can be identified by either:
db_name A database identifier declared in a previous DECLARE DATABASE statement.
host_variable A host variable whose value is a previously declared db_name. If you omit this clause, the savepoint is created on your default database.
savepoint The name of the savepoint to be created.

Usage Notes

For more information on this statement, see "Using the SAVEPOINT Statement".

Example

This example illustrates the use of the embedded SQL SAVEPOINT statement:

EXEC SQL SAVEPOINT SAVE3 END-EXEC.

Related Topics

COMMIT (Executable Embedded SQL).

ROLLBACK (Executable Embedded SQL).

SELECT (Executable Embedded SQL)

Purpose

To retrieve data from one or more tables, views, or snapshots, assigning the selected values to host variables.

Prerequisites

For you to select data from a table or snapshot, the table or snapshot must be in your own schema or you must have SELECT privilege on the table or snapshot.

For you to select rows from the base tables of a view, the owner of the schema containing the view must have SELECT privilege on the base tables. Also, if the view is in a schema other than your own, you must have SELECT privilege on the view.

The SELECT ANY TABLE system privilege also enables you to select data from any table or any snapshot or any view's base table.

Syntax

SELECT
Description of the illustration select_a.gif

SELECT
Description of the illustration select_b.gif

Keywords and Parameters

Keywords and Parameters Description
AT Identifies the database to which the SELECT statement is issued. The database can be identified by either:
db_name A database identifier declared in a previous DECLARE DATABASE statement.
host_variable A host variable whose value is a previously declared db_name.

If you omit this clause, the SELECT statement is issued to your default database.
select_list Identical to the non-embedded SELECT statement except that a host variables can be used in place of literals.
INTO Specifies output host variables and optional indicator variables to receive the data returned by the SELECT statement. Note that these variables must be either all scalars or all arrays, but arrays need not have the same size.
WHERE Restricts the rows returned to those for which the condition is TRUE. See the syntax description of condition in the Oracle Database SQL Language Reference. The condition can contain host variables, but cannot contain indicator variables. These host variables can be either scalars or arrays.

All other keywords and parameters are identical to the non-embedded SQL SELECT statement.

Usage Notes

If no rows meet the WHERE clause condition, no rows are retrieved and Oracle9i returns an error code through the SQLCODE component of the SQLCA.

You can use comments in a SELECT statement to pass instructions, or hints, to the Oracle9i optimizer. The optimizer uses hints to choose an execution plan for the statement. For more information on hints, see Oracle Database Performance Tuning Guide.

Example

This example illustrates the use of the embedded SQL SELECT statement:

EXEC SQL SELECT ENAME, SAL + 100, JOB
         INTO :ENAME, :SAL, :JOB
         FROM EMP
         WHERE EMPNO = :EMPNO
     END-EXEC.

Related Topics

DECLARE CURSOR (Embedded SQL Directive).

DECLARE DATABASE (Oracle Embedded SQL Directive).

EXECUTE (Executable Embedded SQL).

FETCH (Executable Embedded SQL).

PREPARE (Executable Embedded SQL).

SET DESCRIPTOR (Executable Embedded SQL)

Purpose

Use this ANSI dynamic SQL statement to set information in the descriptor area from host variables.

Prerequisites

Use after a DESCRIBE DESCRIPTOR.

Syntax

SET DESCRIPTOR
Description of the illustration setdesc.gif

where item_name can be one of these choices:

SET DESCRIPTOR
Description of the illustration setdncob.gif

Keywords and Parameters

Keywords and Parameters Description
array_size

integer

Host variable containing the number of rows to be processed.

Number of rows to be processed. The array size clause can only be used with DATA, RETURNED_LENGTH and INDICATOR item names.

GLOBAL | LOCAL LOCAL (the default) means file scope, as opposed to GLOBAL, which means application scope.
descriptor_name

'descriptor name'

Host variable containing the name of the allocated ANSI descriptor.

Name of the allocated ANSI descriptor.

COUNT The total number of input or output variables.
VALUE The position of the referenced host variable in the statement.
item_name See Table 10-6, and Table 10-7 for lists of the item_names, and their descriptions.
host_var Host variable containing the total number of input or output variables.
integer Total number of input or output variables.
host_var The host variables used to set the item.
REF Reference semantics are to be used. Can be used only with RETURNED_LENGTH, DATA, and INDICATOR item names.

Must be used to set RETURNED_LENGTH.


Usage Notes

Use DYNAMIC=ANSI precompiler option. Set CHARACTER_SET_NAME to UTF16 for client-side Unicode support. See "SET DESCRIPTOR" for complete details, including tables of descriptor item names.

Example

EXEC SQL SET DESCRIPTOR GLOBAL :mydescr COUNT = 3 END-EXEC.

Related Topics

ALLOCATE DESCRIPTOR (Executable Embedded SQL).

DEALLOCATE DESCRIPTOR (Embedded SQL Statement).

DESCRIBE DESCRIPTOR (Executable Embedded SQL).

GET DESCRIPTOR (Executable Embedded SQL).

PREPARE (Executable Embedded SQL).

UPDATE (Executable Embedded SQL)

Purpose

To change existing values in a table or in a view's base table.

Prerequisites

For you to update values in a table or snapshot, the table must be in your own schema or you must have UPDATE privilege on the table.

For you to update values in the base table of a view, the owner of the schema containing the view must have UPDATE privilege on the base table. Also, if the view is in a schema other than your own, you must have UPDATE privilege on the view.

The UPDATE ANY TABLE system privilege also enables you to update values in any table or any view's base table.

Syntax

UPDATE
Description of the illustration update.gif

where DML returning clause is:

UPDATE
Description of the illustration return.gif

Keywords and Parameters

Keywords and Parameters Description
AT identifies the database to which the UPDATE statement is issued. The database can be identified by either:
dbname A database identifier declared in a previous DECLARE DATABASE statement.
host_variable A host variable whose value is a previously declared dbname.
- If you omit this clause, the UPDATE statement is issued to your default database.
FOR :host_integer Limits the number of times the UPDATE statement is executed if the SET and WHERE clauses contain array host variables. If you omit this clause, Oracle9i executes the statement once for each component of the smallest array.
schema The schema containing the table or view. If you omit schema, Oracle9i assumes the table or view is in your own schema.
table view The name of the table to be updated. If you specify view, Oracle9i updates the view's base table.
dblink A complete or partial name of a database link to a remote database where the table or view is located. For information on referring to database links, see the Oracle Database SQL Language Reference. You can only use a database link to update a remote table or view if you are using Oracle9i with the distributed option.
part_name Name of partition in the table
alias A name used to reference the table, view, or subquery elsewhere in the statement.
column The name of a column of the table or view that is to be updated. If you omit a column of the table from the SET clause, that column's value remains unchanged.
expr The new value assigned to the corresponding column. This expression can contain host variables and optional indicator variables. See the syntax of expr in the Oracle Database SQL Language Reference.
subquery_1 A subquery that returns new values that are assigned to the corresponding columns. For the syntax of a subquery, see "SELECT" in the Oracle Database SQL Language Reference.
subquery_2 A subquery that return a new value that is assigned to the corresponding column. For the syntax of a subquery, see "SELECT" in the Oracle Database SQL Language Reference.
WHERE Specifies which rows of the table or view are updated:
- condition
- CURRENT OF
- If you omit this clause entirely, Oracle9i updates all rows of the table or view.
DML returning clause See "DML Returning Clause" for a discussion.

Usage Notes

Host variables in the SET and WHERE clauses must be either all scalars or all arrays. If they are scalars, Oracle9i executes the UPDATE statement only once. If they are arrays, Oracle9i executes the statement once for each set of array components. Each execution may update zero, one, or multiple rows.

Array host variables can have different sizes. In this case, the number of times Oracle9i executes the statement is determined by the smaller

of the following values:

The cumulative number of rows updated is returned through the third element of the SQLERRD component of the SQLCA. When arrays are used as input host variables, this count reflects the total number of updates for all components of the array processed in the UPDATE statement. If no rows satisfy the condition, no rows are updated and Oracle9i returns an error message through the SQLCODE element of the SQLCA. If you omit the WHERE clause, all rows are updated and Oracle9i raises a warning flag in the fifth component of the SQLWARN element of the SQLCA.

You can use comments in an UPDATE statement to pass instructions, or hints, to the Oracle9i optimizer. The optimizer uses hints to choose an execution plan for the statement. For more information on hints, see Oracle Database Performance Tuning Guide.

For more information on this statement, see "The Basic SQL Statements" andChapter 3, "Database Concepts".

Examples

The following examples illustrate the use of the embedded SQL UPDATE statement:

EXEC SQL UPDATE EMP
         SET SAL = :SAL, COMM = :COMM INDICATOR :COMM-IND
         WHERE ENAME = :ENAME
     END-EXEC.

     EXEC SQL UPDATE EMP
         SET (SAL, COMM) =
             (SELECT AVG(SAL)*1.1, AVG(COMM)*1.1
             FROM EMP)
         WHERE ENAME = 'JONES'
     END-EXEC.

Related Topics

DECLARE DATABASE (Oracle Embedded SQL Directive).

VAR (Oracle Embedded SQL Directive)

Purpose

To perform host variable equivalencing, to assign a specific Oracle9i external datatype to an individual host variable, overriding the default datatype assignment. There is an optional clause, CONVBUFSZ, that specifies the size of a buffer for character set conversion.

Prerequisites

The host variable must be previously declared in the embedded SQL program.

Syntax

VAR
Description of the illustration var.gif

Keywords and Parameters

Keywords and Parameters Description
host_variable The host variable to be assigned an Oracle9i external datatype.
dtyp An Oracle9i external datatype recognized by Pro*COBOL (not an Oracle9i internal datatype). The datatype may include a length, precision, or scale. This external datatype is assigned to the host_variable. For a list of external datatypes, see "External Datatypes".
size The size in bytes of a buffer in the Oracle9i runtime library used to perform conversion between character sets of the host_variable.

Usage Notes

Datatype equivalencing is useful for any of the following purposes:

For more information about Oracle datatypes, see "Sample Program 4: Datatype Equivalencing".

Example

This example equivalences the host variable DEPT_NAME to the datatype VARCHAR2 and the host variable BUFFER to the datatype RAW(200):

EXEC SQL BEGIN DECLARE SECTION END-EXEC.
     ...
     01 DEPT-NAME  PIC X(15).
* -- default datatype is CHAR
     EXEC SQL VAR DEPT-NAME IS VARCHAR2 END-EXEC.
* -- reset to STRING
     ...
     01 BUFFER-VAR.
          05 BUFFER  PIC X(200).
* -- default datatype is CHAR
     EXEC SQL VAR BUFFER IS RAW(200) END-EXEC.
* -- refer to RAW
     ...
     EXEC SQL END DECLARE SECTION END-EXEC.

Related Topics

None.

WHENEVER (Embedded SQL Directive)

Purpose

To specify the action to be taken when an error or warning results from executing an embedded SQL program.

Prerequisites

None.

Syntax

WHENEVER
Description of the illustration whenever.gif

where DO.CALL.CLAUSE is:

WHENEVER
Description of the illustration docall.gif

Keywords and Parameters

Keywords and Parameters Description
NOT FOUND | NOTFOUND Identifies any exception condition that returns an error code of +1403 to SQLCODE (or a +100 code when MODE=ANSI).
SQLERROR Identifies a condition that results in a negative return code.
SQLWARNING Identifies a non-fatal warning condition.
CONTINUE Indicates that the program should progress to the next statement.
GOTO | GO TO Indicates that the program should branch to the statement named by label.
STOP Stops program execution.
DO PERFORM Indicates that the program should perform a paragraph or section at label.
DO CALL Indicates that the program should execute a subprogram.
subprogram_name The subprogram to be executed. It may have to be inside quotes (").
USING Indicates that the parameters of the subprogram follow.
param A list of subprogram parameters separated by blanks.

The WHENEVER directive enables your program to take one of several possible actions in the event an embedded SQL statement results in an error or warning.

The scope of a WHENEVER statement is positional, rather than logical. A WHENEVER statement applies to all embedded SQL statements that textually follow it in the source file, not in the flow of the program logic. A WHENEVER statement remains in effect until it is superseded by another WHENEVER statement checking for the same condition.

For more information about and examples of the conditions and actions of this directive, see "WHENEVER Directive".

Do not confuse the WHENEVER embedded SQL directive with the WHENEVER SQL*Plus command.

Example

The following example illustrates the use of the WHENEVER directive in a Pro*COBOL embedded SQL program:

EXEC SQL WHENEVER NOT FOUND CONTINUE END-EXEC.
     ...
     EXEC SQL WHENEVER SQLERROR GOTO SQL-ERROR END-EXEC.
     ...
 SQL-ERROR.
     EXEC SQL WHENEVER SQLERROR CONTINUE END-EXEC.
     DISPLAY "ORACLE ERROR DETECTED.".
     EXEC SQL ROLLBACK RELEASE END-EXEC.
     STOP RUN.

Related Topics

None
