2 Getting Started with Oracle XML DB

This chapter provides some preliminary design criteria for consideration when planning your Oracle XML DB solution.

This chapter contains these topics:

Oracle XML DB Installation

Oracle XML DB is installed automatically in the following situations:

You can determine whether or not Oracle XML DB is already installed. If it is installed, then the following are true:

See Also:

When to Use Oracle XML DB

Oracle XML DB is suited for any application where some or all of the data processed by the application is represented using XML. Oracle XML DB provides for high performance ingestion, storage, processing and retrieval of XML data. Additionally, it also provides the ability to quickly and easily generate XML from existing relational data.

The type of applications that Oracle XML DB is particularly suited to include:

A typical Oracle XML DB application has one or more of the following requirements and characteristics:

Designing Your XML Application

Oracle XML DB provides you with the ability to fine tune how XML documents will be stored and processed in Oracle Database. Depending on the nature of the application being developed, XML storage must have at least one of the following features

Application Design with Oracle XML DB

This section discusses the preliminary design criteria you can consider when planning your Oracle XML DB application. Figure 2-1 provides an overview of your main design options for building Oracle XML DB applications.


Will your data be highly structured (mostly XML), semi-structured, or mostly unstructured? If highly structured, will your tables be XML schema-based or non-schema-based? See "How Structured Is Your Data?" and Chapter 3, "Using Oracle XML DB".


How will other applications and users access your XML and other data? How secure must the access be? Do you need versioning? See "Access Models".

Application Language

In which language(s) will you be programming your application? See "Application Language".


Will you need to generate XML? See Chapter 17, "Generating XML Data from the Database".

How often will XML documents be accessed, updated, and manipulated? Will you need to update fragments or the whole document?

Will you need to transform the XML to HTML, WML, or other languages, and how will your application transform the XML? See Chapter 10, "Transforming and Validating XMLType Data".

Does your application need to be primarily database resident or work in both database and middle tier?

Is your application data-centric, document- and content-centric, or integrated (is both data- and document-centric). "Processing Models".

Will you be exchanging XML data with other applications, across gateways? Will you need Advanced Queuing (AQ) or SOAP compliance? See Chapter 37, "Exchanging XML Data with Oracle Streams AQ".


How and where will you store the data, XML data, XML schema, and so on? See "Storage Models".


The choices you make for data structure, access, language, and processing are typically interdependent, but they are not dependent on the storage model you choose.

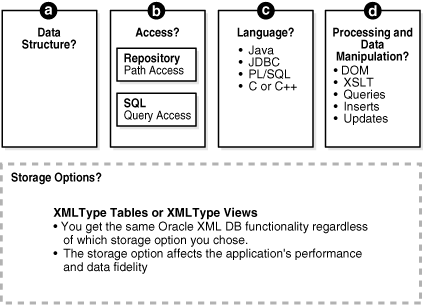

Figure 2-1 Oracle XML DB Design Options

Description of Figure 2-1 follows
Description of "Figure 2-1 Oracle XML DB Design Options"

How Structured Is Your Data?

If your XML data is not XML schema-based, then, regardless of how structured it is, you can store it in an XMLType table or view as binary XML or as a CLOB instance, or you can store it as a file in an Oracle XML DB Repository folder.

If your XML data is XML schema-based then you can use unstructured, structured (object-relational), or binary XML storage for its structured parts. For the unstructured parts, you have the same options as for data that is not XML schema-based. See also "Storage Models".

Access Models

There are two main data access modes to consider when designing your Oracle XML DB applications:

These options for accessing Oracle XML DB Repository data are also discussed in Chapter 21, "Accessing Oracle XML DB Repository Data".

You can also consider the following access model criteria:

Application Language

You can program your Oracle XML DB applications in the following languages:

Processing Models

The following processing options are available and should be considered when designing your Oracle XML DB application:

How often will XML documents be accessed, updated, and manipulated? See Chapter 4, "XMLType Operations" and Chapter 25, "SQL Access Using RESOURCE_VIEW and PATH_VIEW".

Will you need to update fragments or the whole document? You can use XPath expressions to specify individual elements and attributes of your document during updates, without rewriting the entire document. This is more efficient, especially for large XML documents. Chapter 6, "XML Schema Storage and Query: Basic".

Is your application data-centric, document- and content-centric, or integrated (is both data- and document-centric)? See Chapter 3, "Using Oracle XML DB".

Messaging Options

Advanced Queuing (AQ) supports XML and XMLType applications. You can create queues with payloads that contain XMLType attributes. These can be used for transmitting and storing messages that contain XML documents. By defining Oracle Database objects with XMLType attributes, you can do the following:

  • Store more than one type of XML document in the same queue. The documents are stored internally as CLOB values.

  • Selectively dequeue messages with XMLType attributes using SQL functions such as existsNode and extract.

  • Define rule-based subscribers that query message content using SQL functions such as existsNode and extract.

  • Define transformations to convert Oracle Database objects to XMLType.

Storage Models

Figure 2-2 shows the Oracle XML DB storage options for XMLType tables and views.

Figure 2-2 Oracle XML DB Storage Options for XML Data

Description of Figure 2-2 follows
Description of "Figure 2-2 Oracle XML DB Storage Options for XML Data"

If you have existing relational data, you can access it as XML data by creating XMLType views over it. You can use the following to define the XMLType views:

Regardless of which storage options you choose for your application, Oracle XML DB provides the same functionality. Though the storage model you use can affect your application performance and XML data fidelity, it is totally independent of all of the following:

Oracle XML DB Performance

One objection to using XML to represent data is that it generates higher overhead than other representations. Oracle XML DB incorporates a number of features specifically designed to address this issue by significantly improving the performance of XML processing. These are described in the following sections:

XML Storage Requirements

Data represented in XML and stored in a text file averages three times the size of the same data in a Java object or in relational tables. There are two main reasons for this:

  • Tag names (metadata describing the data) and white space (formatting characters) take up a significant amount of space in the document, particularly for highly structured, data-centric XML.

  • All data in an XML file is represented in human readable (string) format.

Storing Structured Documents in Oracle XML DB Saves Space

The string representation of a numeric value needs about twice as many bytes as the native (binary) representation. When XML documents are stored in Oracle XML DB using structured or binary XML storage, the storage process discards all tags and white space in the document.

The amount of space saved by this optimization depends on the ratio of tag names to data, and the number of collections in the document. For highly-structured, data-centric XML data, the savings can be significant. When a document is printed, or when node-based operations such as XPath evaluation take place, Oracle XML DB uses the information contained in the associated XML schema to dynamically reconstruct any necessary tag information.

XML Memory Management

Document Object Model (DOM) is the dominant programming model for XML documents. DOM APIs are easy to use but the DOM Tree that underpins them is expensive to generate, in terms of memory. A typical DOM implementation maintains approximately 80 to 120 bytes of system overhead for each node in the DOM tree. This means that for highly structured data, the DOM tree can require 10 to 20 times more memory than the document on which it is based.

A conventional DOM implementation requires the entire contents of an XML document to be loaded into the DOM tree before any operations can take place. If an application only needs to process a small percentage of the nodes in the document, this is extremely inefficient in terms of memory and processing overhead. The alternative SAX approach reduces the amount of memory required to process an XML document, but its disadvantage is that it only allows linear processing of nodes in the XML Document.

Oracle XML DB Reduces Memory Overhead for XML Schema-Based Documents by Using XML Objects (XOBs)

Oracle XML DB reduces memory overhead associated with DOM programming by managing XML schema-based XML documents using an internal in-memory structure called an XML Object (XOB). A XOB is much smaller than the equivalent DOM since it does not duplicate information like tag names and node types, that can easily be obtained from the associated XML schema. Oracle XML DB automatically uses a XOB whenever an application works with the contents of a schema-based XMLType. The use of the XOB is transparent to you. It is hidden behind the XMLType data type and the C, PL/SQL, and Java APIs.

XOB Uses Lazily-Loaded Virtual DOM

The XOB can also reduce the amount of memory required to work with an XML document using the Lazily-Loaded Virtual DOM feature. This lets Oracle XML DB defer loading in-memory representation of nodes that are part of sub-elements or collection until methods attempt to operate on a node in that object. Consequently, if an application only operates on a few nodes in a document, only those nodes and their immediate siblings are loaded into memory.The XOB can only used when an XML document is based on an XML schema. If the contents of the XML document are not based on an XML schema, a traditional DOM is used instead of the XOB.

XML Parsing Optimizations

To populate a DOM tree the application must parse the XML document. The process of creating a DOM tree from an XML file is very CPU- intensive. In a typical DOM-based application, where the XML documents are stored as text, every document has to be parsed and loaded into the DOM tree before the application can work with it. If the contents of the DOM tree are updated the entire tree must be serialized back into a text format and written out to disk.

With Oracle XML DB No Re-Parsing is Needed

Oracle XML DB eliminates the need to keep re-parsing documents. No parsing is necessary when an XML document is loaded from disk into memory, if the document is stored as structured or binary XML storage. Oracle XML DB maps directly between the on-disk format and the in-memory format using information derived from the associated XML schema. When changes are made to XML schema-based data, Oracle XML DB is able to write just the updated data back to disk. When XML data is not based on an XML schema, a traditional DOM is used instead.

Node-Searching Optimizations

Most DOM implementations use string comparisons when searching for a particular node in the DOM tree. Even a simple search of a DOM tree can require hundreds or thousands of instruction cycles. Searching for a node in a XOB is much more efficient than searching for a node in a DOM. A XOB is based on a computed offset model, similar to a C/C++ object, and uses dynamic hashtables rather than string comparisons to perform node searches.

XML Schema Optimizations

Making use of the powerful features associated with XML schema in a conventional XML application can generate significant amounts of additional overhead. For example, before an XML document can be validated against an XML schema, the schema itself must be located, parsed, and validated.

Minimizing XML Schema Overhead After a Schema Is Registered

Oracle XML DB minimizes the overhead associated with using XML schema. When an XML schema is registered with the database, it is loaded in the Oracle XML DB schema cache, along with all of the metadata required to map between the XML, XOB and on- disk representations of the data. This means that once the XML schema has been registered with the database, no additional parsing or validation of the XML schema is required before it can be used. The schema cache is shared by all users of the database. Whenever an Oracle XML DB operation requires information contained in the XML schema, it can access the required information directly from the cache.

Load Balancing Through Cached XML Schema

Some operations, such as performing a full schema validation, or serializing an XML document back into text form, can still require significant memory and CPU resources. Oracle XML DB let these operations be off-loaded to the client or middle tier processor. Oracle Call Interface (OCI) interface and thick Java Database Connectivity (JDBC) driver both allow the XOB to be managed by the client.The cached representation of the XML schema can also be downloaded to the client. This lets operations such as XML printing, and XML schema validation be performed using client or middle tier resources, rather than server resources.

Reduced Bottlenecks From Code That Is Not Native

Another bottleneck for XML-based Java applications happens when parsing an XML file. Even natively compiled or JIT compiled Java performs XML parsing operations twice as slowly compared to using native C language. One of the major performance bottlenecks in implementing XML applications is the cost of transforming data in an XML document between text, Java, and native server representations. The cost of performing these transformations is proportional to the size and complexity of the XML file and becomes severe even in moderately sized files.

Oracle XML DB Implements Java and PL/SQL APIs Over Native C

Oracle XML DB addresses these issues by implementing all of the Java and PL/SQL interfaces as very thin facades over a native C-language implementation. This provides for language-neutral XML support (Java, C, PL/SQL, and SQL all use the same underlying implementation), as well as the higher performance XML parsing and DOM processing.

Reduced Java Type Conversion Bottlenecks

One of the biggest bottlenecks when using Java and XML is with type conversions. Internally, Java uses UCS-2 to represent character data. Most XML files and databases do not contain UCS-2 encoded data. This means that all data contained in an XML file has to be converted from 8-Bit or UTF-8 encoding to UCS-2 encoding before it can be manipulated in a Java program.

Oracle XML DB Uses Lazy Type Conversion to Avoid Unneeded Type Conversions

Oracle XML DB addresses these problems with lazy type conversions. With lazy type conversions, the content of a node is not converted into the format required by Java until the application attempts to access the contents of the node. Data remains in the internal representation till the last moment. Avoiding unnecessary type conversions can result in significant performance improvements when an application only needs to access a few nodes in an XML document.

Consider a JSP that loads a name from the Oracle Database and prints it out in the generated HTML output. Typical JSP implementations read the name from the database (that probably contains data in the ASCII or ISO8859 character sets), convert the data to UCS-2, and return it to Java as a string. The JSP would not look at the string content, but only print it out after printing the enclosing HTML, probably converting back to the same ASCII or ISO8859 for the client browser. Oracle XML DB provides a write interface on XMLType so that any element can write itself directly to a stream (such as a ServletOutputStream) without conversion through Java character sets. Figure 2-3 shows the Oracle XML DB Application Program Interface (API) stack.

Figure 2-3 Oracle XML DB Application Program Interface (API) Stack

Description of Figure 2-3 follows
Description of "Figure 2-3 Oracle XML DB Application Program Interface (API) Stack"
