11 Character Set Migration

This chapter discusses character set migration, and the impacts of character set conversion. It includes the following topics:

Overview of Character Set Migration

Choosing the appropriate character set for your database is an important decision. When you choose the database character set, consider the following factors:

Changing the database character set for an existing database is called character set migration. When you migrate from one database character set to another you must plan to minimize data loss from the following sources:

Data Truncation

During migration to a new character set, it is important to verify the column widths of existing CHAR and VARCHAR2 columns because they may need to be extended to support an encoding that requires multibyte storage. Truncation of data can occur if conversion causes expansion of data.

When the database is created using byte semantics, the sizes of the CHAR and VARCHAR2 datatypes are specified in bytes, not characters. For example, the specification CHAR(20) in a table definition allows 20 bytes for storing character data. When the database character set uses a single-byte character encoding scheme, no data loss occurs when characters are stored because the number of characters is equivalent to the number of bytes. If the database character set uses a multibyte character set, then the number of bytes no longer equals the number of characters because a character can consist of one or more bytes.

Table 11-1 shows an example of data expansion when single-byte characters become multibyte characters through conversion.

Table 11-1 Single-Byte and Multibyte Encoding

Character WE8MSWIN 1252 Encoding AL32UTF8 Encoding
ä
E4 C3 A4
ö
F6 C3 B6
©
A9 C2 A9

80 E2 82 AC

The first column of Table 11-1 shows selected characters. The second column shows the hexadecimal representation of the characters in the WE8MSWIN1252 character set. The third column shows the hexadecimal representation of each character in the AL32UTF8 character set. Each pair of letters and numbers represents one byte. For example, ä (a with an umlaut) is a single-byte character (E4) in WE8MSWIN1252, but it becomes a two-byte character (C3 A4) in AL32UTF8. Also, the encoding for the euro symbol expands from one byte (80) to three bytes (E2 82 AC).

If the data in the new character set requires storage that is greater than the supported byte size of the datatypes, then you need to consider migrating to new datatypes, or reduce the data in these columns.


See Also:

"Length Semantics"

Additional Problems Caused by Data Truncation

Data truncation can cause the following problems:

  • In the database data dictionary, schema object names cannot exceed 30 bytes in length. You must rename schema objects if their names exceed 30 bytes in the new database character set. For example, one Thai character in the Thai national character set requires 1 byte. In AL32UTF8, it requires 3 bytes. If you have defined a table whose name is 11 Thai characters, then the table name must be shortened to 10 or fewer Thai characters when you change the database character set to AL32UTF8.

  • If existing Oracle usernames or passwords are created based on characters that change in size in the new character set, then users will have trouble logging in because of authentication failures after the migration to a new character set. This occurs because the encrypted usernames and passwords stored in the data dictionary may not be updated during migration to a new character set. For example, if the current database character set is WE8MSWIN1252 and the new database character set is AL32UTF8, then the length of the username scött (o with an umlaut) changes from 5 bytes to 6 bytes. In AL32UTF8, scött can no longer log in because of the difference in the username. Oracle recommends that usernames and passwords be based on ASCII characters. If they are not, then you must reset the affected usernames and passwords after migrating to a new character set


    Note:

    Encrypted usernames and passwords stored in the data dictionary are not updated when migration is accomplished with the CSALTER script, but they are updated if the migration is accomplished with the Import and Export utilities.

  • When CHAR data contains characters that expand after migration to a new character set, space padding is not removed during database export by default. This means that these rows will be rejected upon import into the database with the new character set. The solution is to set the BLANK_TRIMMING initialization parameter to TRUE before importing the CHAR data.


    See Also:

    Oracle Database Reference for more information about the BLANK_TRIMMING initialization parameter

Character Set Conversion Issues

This section includes the following topics:

Replacement Characters that Result from Using the Export and Import Utilities

The Export and Import utilities can convert character sets from the original database character set to the new database character set. However, character set conversions can sometimes cause data loss or data corruption. For example, if you are migrating from character set A to character set B, then the destination character set B should be a superset of character set A. The destination character, B, is a superset if it contains all the characters defined in character set A. Characters that are not available in character set B are converted to replacement characters, which are often specified as ? or ¿ or as a character that is related to the unavailable character. For example, ä (a with an umlaut) can be replaced by a. Replacement characters are defined by the target character set.


Note:

There is an exception to the requirement that the destination character set B should be a superset of character set A. As long as all your source data can be represented by the target character set, you do not need to choose a superset. For example, you can input a dump file from a Unicode database into a US7ASCII database, as long as all the data is in ASCII.

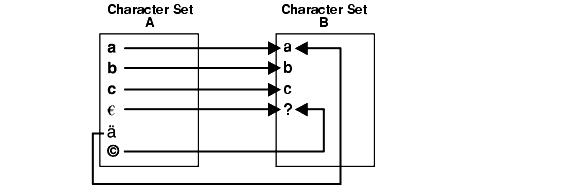

Figure 11-1 shows an example of a character set conversion in which the copyright and euro symbols are converted to ? and ä is converted to a.

Figure 11-1 Replacement Characters in Character Set Conversion

Description of nlspg020.gif follows
Description of the illustration nlspg020.gif

To reduce the risk of losing data, choose a destination character set with a similar character repertoire. Migrating to Unicode can be an attractive option because AL32UTF8 contains characters from all legacy character sets.

Invalid Data That Results from Setting the Client's NLS_LANG Parameter Incorrectly

Another character set migration scenario that can cause the loss of data is migrating a database that contains invalid data. Invalid data usually enters a database when the NLS_LANG parameter is not set properly on the client. The NLS_LANG value should reflect the encoding of the incoming data. For example, in an English Windows environment, the code page is WE8MSWIN1252. When the NLS_LANG parameter is set properly, the database can automatically convert incoming data from the client operating system. When the NLS_LANG parameter is not set properly, then the data coming into the database is not converted properly. For example, suppose that the database character set is AL32UTF8, the client is an English Windows operating system, and the NLS_LANG setting on the client is AL32UTF8. Data coming into the database is encoded in WE8MSWIN1252 and is not converted to AL32UTF8 data because the NLS_LANG setting on the client matches the database character set. Thus Oracle assumes that no conversion is necessary, and invalid data is entered into the database.

This can lead to two possible data inconsistency problems. One problem occurs when a database contains data from a character set that is different from the database character set but the same code points exist in both character sets. For example, if the database character set is WE8ISO8859P1 and the NLS_LANG setting of the Chinese Windows NT client is SIMPLIFIED CHINESE_CHINA.WE8ISO8859P1, then all multibyte Chinese data (from the ZHS16GBK character set) will be treated as single-byte WE8ISO8859P1 characters. Hence all SQL string manipulation functions such as SUBSTR or LENGTH are based on bytes rather than characters. All bytes constituting ZHS16GBK data are legal WE8ISO8859P1 codes. If such a database is migrated to another character set such as AL32UTF8, then character codes are converted as if they were in WE8ISO8859P1. This way, each of the two bytes of a ZHS16GBK character are converted separately, yielding meaningless values in AL32UTF8. Figure 11-2 shows an example of this incorrect character set replacement.

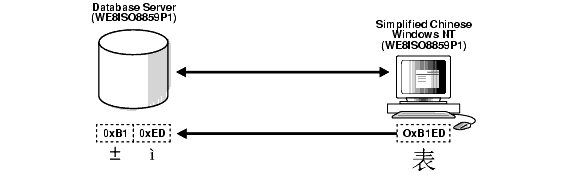

Figure 11-2 Incorrect Character Set Replacement

Description of nlspg021.gif follows
Description of the illustration nlspg021.gif

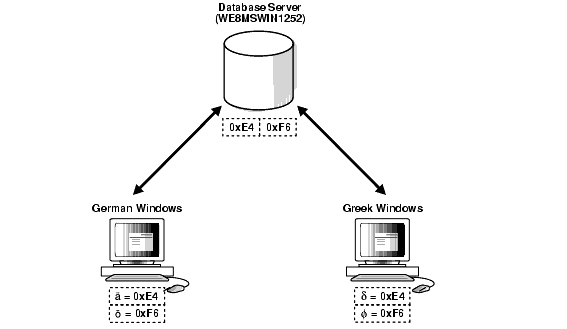

The second possible problem is having data from mixed character sets inside the database. For example, if the data character set is WE8MSWIN1252, and two separate Windows clients using German and Greek are both using WE8MSWIN1252 as the NLS_LANG character set, then the database contains a mixture of German and Greek characters. Figure 11-3 shows how different clients can use different character sets in the same database.

Figure 11-3 Mixed Character Sets

Description of nlspg022.gif follows
Description of the illustration nlspg022.gif

For database character set migration to be successful, both of these cases require manual intervention because Oracle cannot determine the character sets of the data being stored. Incorrect data conversion can lead to data corruption, so perform a full backup of the database before attempting to migrate the data to a new character set.

Changing the Database Character Set of an Existing Database

Database character set migration has two stages: data scanning and data conversion. Before you change the database character set, you need to identify possible database character set conversion problems and truncation of data. This step is called data scanning.

Data scanning identifies the amount of effort required to migrate data into the new character encoding scheme. Some examples of what may be found during a data scan are the number of schema objects where the column widths need to be expanded and the extent of the data that does not exist in the target character repertoire. This information helps to determine the best approach for converting the database character set.

Incorrect data conversion can lead to data corruption, so perform a full backup of the database before attempting to migrate the data to a new character set.

There are three approaches to converting data from one database character set to another if the database does not contain any of the inconsistencies described in "Character Set Conversion Issues". A description of methods to migrate databases with such inconsistencies is out of the scope of this documentation. For more information, contact Oracle Consulting Services for assistance.

The approaches are:

Migrating Character Data Using a Full Export and Import

In most cases, a full export and import is recommended to properly convert all data to a new character set. It is important to be aware of data truncation issues, because columns with character datatypes may need to be extended before the import to handle an increase in size. Existing PL/SQL code should be reviewed to ensure that all byte-based SQL functions such as LENGTHB, SUBSTRB, and INSTRB, and PL/SQL CHAR and VARCHAR2 declarations are still valid.


See Also:

Oracle Database Utilities for more information about the Export and Import utilities

Migrating a Character Set Using the CSALTER Script

The CSALTER script is part of the Database Character Set Scanner utility. The CSALTER script is the most straightforward way to migrate a character set, but it can be used only if all of the schema data is a strict subset of the new character set. The new character set is a strict superset of the current character set if:

  • Each and every character in the current character set is available in the new character set.

  • Each and every character in the current character set has the same code point value in the new character set. For example, many character sets are strict supersets of US7ASCII.

With the strict superset criteria in mind, only the metadata is converted to the new character set by the CSALTER script, with the following exception: the CSALTER script performs data conversion only on CLOB columns in the data dictionary and sample schemas that have been created by Oracle. CLOB columns that users have created may need to be handled separately. Beginning with Oracle9i Database, some internal fields in the data dictionary and sample schemas are stored in CLOB columns. When the database character set is single-byte, CLOB data is encoded in the database character set, similar to the VARCHAR2 datatype. However, when the database character set is multibyte, CLOB data is encoded in a UCS-2 compatible format. Because the CSALTER script converts data only in CLOB columns in the data dictionary and sample schemas that were created by Oracle, any other CLOB columns that are created must be first exported and then dropped from the schema before the CSALTER script can be run.

To change the database character set, perform the following steps:

  1. Shut down the database, using either a SHUTDOWN IMMEDIATE or a SHUTDOWN NORMAL statement.

  2. Do a full backup of the database. The CSALTER script cannot be rolled back.

  3. Start up the database.

  4. Run the Database Character Set Scanner utility.

    CSSCAN /AS SYSDBA FULL=Y...


  5. Run the CSALTER script.

    @@CSALTER.PLB
    SHUTDOWN IMMEDIATE; -- or SHUTDOWN NORMAL;
    STARTUP;



Note that the CSALTER script does not perform any user data conversion. It only changes the character set metadata in the data dictionary.Thus, after the CSALTER operation, Oracle will behave as if the database was created using the new character set.

Using the CSALTER Script in an Oracle Real Application Clusters Environment

In an Oracle Real Application Clusters environment, ensure that no other Oracle background processes are running, with the exception of the background processes associated with the instance through which a user is connected, before attempting to issue the CSALTER script. With DBA privileges, use the following SQL statement to verify that no other Oracle background processes are running:

SELECT SID, SERIAL#, PROGRAM FROM V$SESSION;

Set the CLUSTER_DATABASE initialization parameter to FALSE to allow the character set change to be completed. Reset it to TRUE after the character set has been changed.

Migrating Character Data Using the CSALTER Script and Selective Imports

Another approach to migrating character data is to perform selective exports followed by rescanning and running the CSALTER script. This approach is most common when the subset character set is single-byte and the migration is to a multibyte character set. In this scenario, user-created CLOBs must be converted because the encoding changes from the single- byte character set to a UCS-2-compatible format which Oracle uses for storage of CLOBs regardless of the multibyte encoding. The Database Character Set Scanner identifies these columns as convertible. It is up to the user to export these columns and then drop them from the schema, rescan, and, if the remaining data is clean, run the CSALTER script. When these steps have been completed, then import the CLOB columns to the database to complete migration.

Migrating to NCHAR Datatypes

Beginning with Oracle9i, data that is stored in columns of the NCHAR datatypes is stored exclusively in a Unicode encoding regardless of the database character set. This allows users to store Unicode in a database that does not use Unicode as the database character set.

This section includes the following topics:

Migrating Oracle8i Database NCHAR Columns to Oracle9i Database and Later

In Oracle8 Database, Oracle introduced a national character datatype (NCHAR) that allows a second, alternate character set in addition to the database character set. The NCHAR datatypes support several fixed-width Asian character sets that were introduced to provide better performance when processing Asian character data.

Beginning with Oracle9i Database, the SQL NCHAR datatypes are limited to Unicode character set encoding (UTF8 and AL16UTF16). Any other version 8 character sets that were available for the NCHAR datatype, including Asian character sets such as JA16SJISFIXED are no longer supported.

The steps for migrating existing NCHAR, NVARCHAR2, and NCLOB columns to NCHAR datatypes in Oracle9i Database and later are as follows:

  1. Export all NCHAR columns from the version 8 or Oracle8i database.

  2. Drop the NCHAR columns.

  3. Upgrade the database to the later release.

  4. Import the NCHAR columns into the upgraded database.

The migration utility can also convert Oracle8 and Oracle8i Database NCHAR columns to NCHAR columns in later releases. A SQL NCHAR upgrade script called utlnchar.sql is supplied with the migration utility. Run it at the end of the database migration to convert Oracle8 and Oracle8i Database NCHAR columns to the NCHAR columns in later releases. After the script has been executed, the data cannot be downgraded. The only way to move back to Oracle8 or Oracle8i is to drop all NCHAR columns, downgrade the database, and import the old NCHAR data from a previous version 8 or Oracle8i export file. Ensure that you have a backup (export file) of version 8 or Oracle8i NCHAR data, in case you need to downgrade your database in the future.


See Also:


Changing the National Character Set

Use the CSALTER script to change the national character set.


See Also:

Chapter 12, "Character Set Scanner Utilities" for the syntax of the CSALTER script

Migrating CHAR Columns to NCHAR Columns

You can change a column's datatype definition using the following methods:

  • The ALTER TABLE MODIFY statement

  • Online table redefinition

The ALTER TABLE MODIFY statement has the following advantages over online table redefinition:

  • Easier to use

  • Fewer restrictions

Online table redefinition has the following advantages over the ALTER TABLE MODIFY statement:

  • Faster for columns with a large amount of data

  • Can migrate several columns at one time

  • Table is available for DML during most of the migration process

  • Avoids table fragmentation, which saves space and allows faster access to data.

  • Can be used for migration from the CLOB datatype to the NCLOB datatype

This section contains the following topics:

Using the ALTER TABLE MODIFY Statement to Change CHAR Columns to NCHAR Columns

The ALTER TABLE MODIFY statement can be used to change table column definitions from the CHAR datatypes to NCHAR datatypes. It also converts all of the data in the column from the database character set to the NCHAR character set. The syntax of the ALTER TABLE MODIFY statement is as follows:

ALTER TABLE table_name MODIFY (column_name datatype);

If indexes have been built on the migrating column, then dropping the indexes can improve the performance of the ALTER TABLE MODIFY statement because indexes are updated when each row is updated.

The maximum column lengths for CHAR and VARCHAR2 columns are 2000 and 4000 bytes, repectively. When the NCHAR character set is AL16UTF16, the maximum column lengths for NCHAR and NVARCHAR2 columns are 1000 and 2000 characters, which are 2000 and 4000 bytes. If this size limit is violated during migration, then consider changing the column to the NCLOB datatype instead.


Note:

CLOB columns cannot be migrated to NCLOB columns using the ALTER TABLE MODIFY statement. Use online table redefinition to change a column from the CLOB datatype to the NCLOB datatype.

Using Online Table Redefinition to Migrate a Large Table to Unicode

It takes significant time to migrate a large table with a large number of rows to Unicode datatypes. During the migration, the column data is unavailable for both reading and updating. Online table redefinition can significantly reduce migration time. Using online table redefinition also allows the table to be accessible to DML during most of the migration time.

Perform the following tasks to migrate a table to Unicode datatypes using online table redefinition:

  1. Use the DBMS_REDEFINITION.CAN_REDEF_TABLE PL/SQL procedure to verify that the table can be redefined online. For example, to migrate the scott.emp table, enter the following command:

    DBMS_REDEFINITION.CAN_REDEF_TABLE('scott','emp');


  2. Create an empty interim table in the same schema as the table that is to be redefined. Create it with NCHAR datatypes as the attributes. For example, enter a statement similar to the following:

    CREATE TABLE int_emp(
       empno NUMBER(4),
       ename NVARCHAR2(10),
       job NVARCHAR2(9),
       mgr NUMBER(4),
       hiredate DATE,
       sal NUMBER(7,2),
       deptno NUMBER(2),
       org NVARCHAR2(10));


  3. Start the online table redefinition. Enter a command similar to the following:

    DBMS_REDEFINITION.START_REDEF_TABLE('scott',
       'emp',
       'int_emp',
       'empno empno,
       to_nchar(ename) ename,
       to_nchar(job) job,
       mgr mgr,
       hiredate hiredate,
       sal sal,
       deptno deptno,
       to_nchar(org) org');



    If you are migrating CLOB columns to NCLOB columns, then use the TO_NCLOB SQL conversion function instead of the TO_NCHAR SQL function.

  4. Create triggers, indexes, grants, and constraints on the interim table. Referential constraints that apply to the interim table (the interim table is a parent or child table of the referential constraint) must be created in DISABLED mode. Triggers that are defined on the interim table are not executed until the online table redefinition process has been completed.

  5. You can synchronize the interim table with the original table. If many DML operations have been applied to the original table since the online redefinition began, then execute the DBMS_REDEFINITION.SYNC_INTERIM_TABLE procedure. This reduces the time required for the DBMS_REDEFINITION.FINISH_REDEF_TABLE procedure. Enter a command similar to the following:

    DBMS_REDEFINITION.SYNC_INTERIM_TABLE('scott', 'emp', 'int_emp');


  6. Execute the DBMS_REDEFINITION.FINISH_REDEF_TABLE procedure. Enter a command similar to the following:

    DBMS_REDEFINITION.RINISH_REDEF_TABLE('scott', 'emp', 'int_emp');



    When this procedure has been completed, the following conditions are true:

    • The original table is redefined so that it has all the attributes, indexes, constraints, grants, and triggers of the interim table.

    • The referential constraints that apply to the interim table apply to the redefined original table.

  7. Drop the interim table. Enter a statement similar to the following:

    DROP TABLE int_emp;



The results of the online table redefinition tasks are as follows:

  • The original table is migrated to Unicode columns.

  • The triggers, grants, indexes, and constraints defined on the interim table after the START_REDEF_TABLE subprogram and before the FINISH_REDEF_TABLE subprogram are defined for the redefined original table. Referential constraints that apply to the interim table now apply to the redefined original table and are enabled.

  • The triggers, grants, indexes, and constraints defined on the original table before redefinition are transferred to the interim table and are dropped when you drop the interim table. Referential constraints that applied to the original table before redefinition were applied to the interim table and are now disabled.

  • PL/SQL procedures and cursors that were defined on the original table before redefinition are invalidated. They are automatically revalidated the next time they are used. Revalidation may fail because the table definition has changed.


    See Also:

    Oracle Database Administrator's Guide for more information about online table redefinition

Tasks to Recover Database Schema After Character Set Migration

You may need to perform additional tasks to recover a migrated database schema to its original state. Consider the issues described in Table 11-2.

Table 11-2 Issues During Recovery of a Migrated Database Schema

Issue Description
Indexes When table columns are changed from CHAR datatypes to NCHAR datatypes by the ALTER TABLE MODIFY statement, indexes that are built on the columns are changed automatically by the database. This slows down performance for the ALTER TABLE MODIFY statement. If you drop indexes before issuing the ALTER TABLE MODIFY statement, then re-create them after migration.
Constraints If you disable constraints before migration, then re-enable them after migration.
Triggers If you disable triggers before migration, then re-enable them after migration.
Replication If the columns that are migrated to Unicode datatypes are replicated across several sites, then the changes should be executed at the master definition site. Then they are propagated to the other sites.
Binary order The migration from CHAR datatypes to NCHAR datatypes involves character set conversion if the database and NCHAR data have different character sets. The binary order of the same data in different encodings can be different. This affects applications that rely on binary order.
