4 Application Builder Concepts

This section provides basic conceptual information about Application Builder. Application Builder is the core component within Oracle HTML DB that enables you to build database-centric Web applications.

This section contains the following topics:

About the Workspace Home Page

When you log in to Oracle HTML DB the Workspace home page appears. A workspace is a shared work area within the Oracle HTML DB development environment where multiple developers can create applications.

Figure 4-1 Workspace Home Page

Description of htmldb.gif follows
Description of the illustration htmldb.gif

Your user name and workspace name display in the upper left corner of the page. The following three large icons display in the center of the page:

What Is Application Builder?

In Oracle HTML DB you use Application Builder to build dynamically rendered applications. Each application is a collection of pages linked together using tabs, buttons, or hypertext links.

To access Application Builder:

  1. Log in to an Oracle HTML DB workspace.

    The Workspace home page appears.

  2. Click the Application Builder icon.

    Application Builder appears.

What Is a Page?

A page is the basic building block of an application. When you build an application in Application Builder, you create pages that contain user interface elements, such as tabs, lists, buttons, items, and regions.

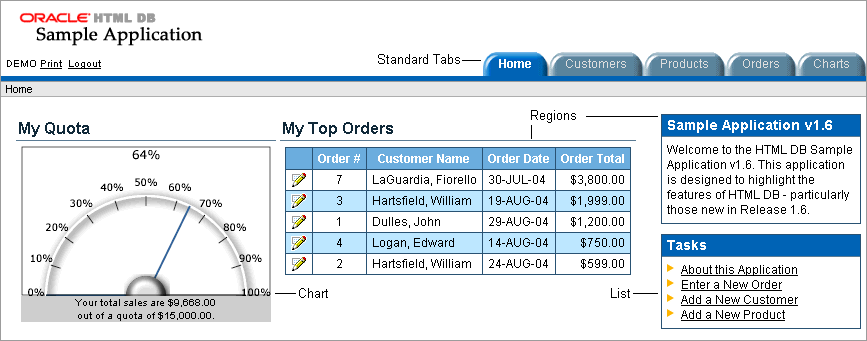

Figure 4-2 Sample Application

Description of sampl_app.gif follows
Description of the illustration sampl_app.gif

Topics in this section include:

About the Page Definition

You add controls to a page on the Page Definition.

To view the Page Definition of an existing page:

  1. Navigate to the Workspace home page.

  2. Click the Application Builder icon.

  3. Select an application.

  4. Select a page.

    The Page Definition appears.

The Page Definition is divided into three sections:

  • Page Rendering lists user interface controls and logic that is executed when the page is rendered.

  • Page Processing lists logic controls (such as computations and processes) that are evaluated and executed when the page is processed.

  • Shared Components lists common components that can display or be applied on every page within an application.

About Page Rendering

The following list briefly describes Page Rendering section on the Page Definition:

  • Regions. Lists regions on the current page. A region is a area on a page that serves as a container for content. Each page can have any number of regions. You control the appearance of a region through a specific region template. You can use regions to group page controls (such as items or buttons). You can also create simple regions that do not generate additional HTML, or create elaborate regions that frame content within HTML tables or images.

  • Buttons. Lists buttons on the current page. Buttons are used to submit a page. When you submit a page, the HTML DB engine processes it, or redirects users to another page without any processing. A button can be implemented as an HTML button, an image, or by using a template.

  • Items. Lists items on the current page grouped by region. Items are HTML form elements such as text fields, select lists, and check boxes with an associated session state.

  • Computations. Lists the computations that are executed at the time the page is rendered. Computations are units of logic used to assign session state to items.

  • Processes. Lists the processes that are executed at the time the page is rendered. Processes are logic controls used to execute data manipulation language (DML) or PL/SQL. For example, you can use a process to populate session state at the time the page is rendered.

About Page Processing

The following list describes Page Processing section on the Page Definition:

  • Computations. Lists the computations that are executed at the time the page is processed. Computations are units of logic used to assign session state to items.

  • Validations. Enables you to create logic controls to verify whether user input is valid. For example, a validation can check whether or not a value has been entered into a mandatory field.

  • Processes. Lists the processes that are executed after the page is submitted. Processes are logic controls used to execute data manipulation language (DML) or PL/SQL.

  • Branches. Enables you to create logic controls that determine how the user navigates through the application.

About Shared Components

Shared components are common elements that can display or be applied on any page within an application. The following section briefly describes the Shared Components section of the Page Definition.

Tabs

Tabs are an effective way to navigate between pages of an application. Application Builder includes two different types of tabs: standard tabs and parent tabs

An application having only one level of tabs uses a standard tab set. A standard tab set is associated with a specific page. You can use standard tabs to link users to other pages within your application. A parent tab set functions as a container to hold a group of standard tabs. Parent tabs give users another level of navigation as well as context (or sense of place) within the application.


See Also:

"Creating Tabs"

Lists of Values

A list of values (LOV) is a static or dynamic definition used to display a specific type of page item, such as a radio group, check box, or select list. LOVs can be static (that is, based on a set of predefined display and return values) or dynamic (based on SQL queries that select values from tables). Once created, a LOV can then be referenced by one or more page items.

You define LOVs at the application level by running the LOV Wizard and adding them to the List of Values repository.

Breadcrumbs

A breadcrumb is a hierarchical list of links that is rendered using a template. For example, you can display breadcrumbs as a list of links or as a breadcrumb path.

Lists

A list is a collection of links that is rendered using a template. For each list entry, you specify display text, a target URL, and other attributes that control when and how the list entry displays. You control the display of the list and the appearance of all list entries by linking the list to a template.


See Also:

"Creating Lists"

Theme

A theme is a named collection of templates that defines the application user interface. Each theme contains templates for every type of application component and page control, including individual pages, regions, reports, lists, labels, menus, buttons, and list of values.


See Also:

"Managing Themes"

Templates

Templates control the look and feel of the pages in your application. As you create your application, you specify templates for pages, regions, reports, lists, labels, menus, buttons, and popup list of values. Groups of templates are organized into named collections called themes.

Security

You can provide security for your application by specifying an authorization scheme. Authorization is a broad term for controlling access to resources based on user privileges.

Navigation Bar

Use a navigation bar to link users to various pages within an application. Typically a navigation bar is used to enable users to log in and log out or link to Help text. The location of a navigation bar depends upon the associated page template. A navigation bar icon enables you to display a link from an image or text. When you create a navigation bar icon you can specify an image name, text, a display sequence, and a target location (a URL or page).

Understanding Page Processing and Page Rendering

When you create an application in Oracle HTML DB, you link pages together using tabs, buttons, or hypertext links. Each page can have buttons and items and can include application logic. You can branch from one page to the next using conditional navigation, perform calculations, validations, and display reports, calendars, and charts. You can generate reports, charts, and forms using built-in wizards, static HTML, or deliver more custom rendering with PL/SQL programming.

Topics in this section include:

How the HTML DB Engine Renders and Processes Pages

The HTML DB engine dynamically renders and processes pages based on data stored in Oracle database tables. To view a rendered version of your application, you request it from the HTML DB engine. When you run an application, the HTML DB engine relies on two processes:

  • Show Page is the page rendering process. It assembles all the page attributes (including regions, items, and buttons) into a viewable HTML page.

  • Accept Page performs page processing. It performs any computations, validations, processes, and branching.

When you request a page using a URL, the engine is runs the Show Page. When you submit a page, the HTML DB engine is running Accept Page or performing page processing during which it saves the submitted values in the session cache and then performs any computations, validations, or processes.

Understanding Conditional Rendering and Processing

A condition is a small unit of logic that helps you control the display of regions, items, buttons, and tabs as well as the execution of processes, computations, and validations. For example, when you apply a condition to a button, the rendering engine evaluates the condition during the rendering (or Show page) process. Whether the condition passes or fails determines if the page control (such as a button) displays.

You specify a condition by selecting a condition type when you create the control or component (for example, the region, item, button, or tab) or by making a selection from the Condition Type attribute. Depending upon the Condition Type you select, enter the appropriate values in the Expressions fields. The condition evaluates to true or false based on the values you enter in the Expression fields.


Note:

Whether you use the Expressions fields depends upon the selected condition type. Some condition types require values in neither field, others require a value only for Expression 1, and other condition types require values in both fields. Although these fields are labeled "Expression 1" and "Expression 2", the values for a given condition type do not necessarily conform to any formal definition of the term expression. They are simply text values appropriate for the selected condition type.

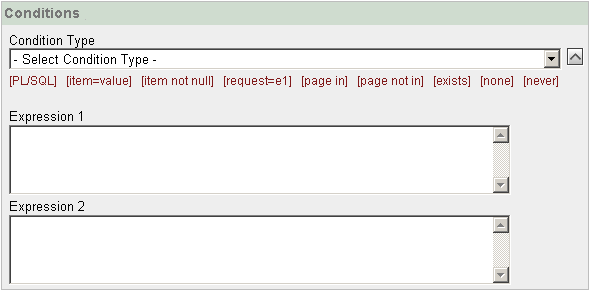

Figure 4-3 Condition Attribute

Description of condition.gif follows
Description of the illustration condition.gif

To view a complete listing of all available conditions for a given component or control click the View icon to the right of the Condition Type list. Shortcuts to common selections appear directly beneath the list. If your condition requires an expression, enter it in the appropriate field.

The following sections offer examples of some commonly used condition types.


See Also:

Appendix A, "Available Conditions" for a detailed listing of condition types available in Oracle HTML DB

Current Page in Expression 1

Current page in Expression 1 evaluates to true if the current page ID is contained within the comma-delimited list of pages in Expression 1. For example:

100

If the current page is 100, then this condition evaluates to true and the condition passes.

Exists

Exists (SQL query returns at least one row) is expressed as a SQL query. If the query returns at least one row, then the condition evaluates as true. For example:

SELECT 1 FROM emp WHERE deptno = :P101_DEPTNO

This example references item P101_DEPTNO as a bind variable. You can use bind variables within application processes and SQL query regions to reference item session state. If one or more employees are in the department identified by the value of P101_DEPTNO, then the condition evaluates as true.

PL/SQL Expression

Use PL/SQL Expression to specify an expression in valid PL/SQL syntax that evaluates to true or false. For example:

NVL(:MY_ITEM,'NO') = 'YES'

If the value of :MY_ITEM is Yes, then the condition evaluates as true. Otherwise, it evaluates as false.

Verifying User Identity

Authentication is the process of establishing users' identities before they can access an application. Authentication may require a user enter a user name and password, or may involve the use of a digital certificate or a secure key.

Oracle HTML DB supports modular authentication, making it easy to switch authentication methods when needed. You can establish a user's identity by selecting from a number of built-in authentication methods, or by using a wizard to create your own custom authentication approach.

Controlling Access to Controls and Components

While conditions control the rendering and processing of specific controls or components on a page, authorization schemes control user access. Authorization is a broad term for controlling access to resources based on user privileges.

Authorization schemes extend the security of your application's authentication scheme. You can specify an authorization scheme for an entire application, a page, or specific page control such as a region, item, or button. For example, you could use an authorization scheme to selectively determine which tabs, regions, or navigations bar entries a user sees.

Understanding Session State Management

HTTP, the protocol over which HTML pages are most often delivered, is a stateless protocol. A Web browser is only connected to the server for as long as it takes to download a complete page. In addition, each page request is treated by the server as an independent event, unrelated to any page requests that happened previously or may occur in the future. This means that to access form values entered on one page on a subsequent page, some form of session state management needs to occur. Typically, when a user enters values into a form on one page, those values are not accessible on later pages. Oracle HTML DB transparently maintains session state and provides developers with the ability to get and set session state values from any page in the application.

Topics in this section include:

What Is a Session?

A session is a logical construct that establishes persistence (or stateful behavior) across page views. Each session is assigned a unique identifier within Oracle HTML DB. The HTML DB engine uses this identifier (or session ID) to store and retrieve an application's working set of data (or session state) before and after each page view.

Because sessions are entirely independent of one another, any number of sessions can exist in the database at the same time. Because sessions persist in the database until purged by an administrator, a user can return to an old session and continue running an application long after first launching it. A user can also run multiple instances of an application simultaneously in different browser sessions.

Oracle HTML DB sessions are logically and physically distinct from Oracle database sessions used to service page requests. A user runs an application in a single Oracle HTML DB session from log in to log out with a typical duration measured in minutes or hours. Each page requested during that session results in the HTML DB engine creating or reusing an Oracle database session to access database resources. Often these database sessions last just a fraction of a second.

Understanding Session IDs

The HTML DB engine establishes the identity (or anonymity) of the user for each page request and the session ID to fetch session state from the database. The most visible location of the session ID is in the URL for a page request. Another visible location is in the page's HTML POST data and indirectly in the contents of a session cookie. This cookie is sent by the HTML DB engine during authentication and is maintained for the life of the application (or browser) session.

POST structures or in a session cookie sent by the HTML DB engine during authentication and maintained for the life of the application (or browser) session.

Oracle HTML DB assigns new session IDs during authentication processing, records the authenticated user's identity with the session ID, and continually checks the session ID in each page request's URL or POST data with the session cookie and the session record in the database. These checks provide users with flexibility and security.

While the session ID is the key to session state, the session cookie (where applicable) and the session record safeguard the integrity of the session ID and the authentication status of the user.

Viewing Session State

The behavior of an HTML DB application is usually driven by values in session state. For example, a button may display conditionally based on the value of an item session state. You can view the session state for a page by clicking Session on the Developer toolbar.

Figure 4-4 Developer Toolbar

Description of d_toolbar.gif follows
Description of the illustration d_toolbar.gif


See Also:

"Using the Developer Toolbar" for more information about the Developer toolbar

About the Session State Page

The Session State page provides valuable information about the current page. To locate a specific page, enter the page ID in the page field and click Go. Table 4-1 describes the various types of information available on the Session State page.

Table 4-1 Information Available on the Session State Page

Heading Description
Application Identifies the application name, session ID, current user, workspace ID, and browser language.
Page Items Identify attributes of the page item, including the application and page IDs, item name, how the item displays (hidden, popup, button, display only HTML), the item value in session state, and status.

The Status column indicates the status of the session state. Available values include:

  • I - Inserted

  • U - Updated

  • R - Reset

Application Items Application items are items that do not reside on a page. Application items are session state variables without the associated user interface properties.

See Also: "Creating an Application-Level Item" and "Using Substitution Strings" for information about referencing item values

Session State Summarizes session state for the current session. Lists applicable application IDs, page IDs, item names, display type, item values, and display labels.

Managing Session State Values

When building interactive, data driven Web applications, the ability to access and manage session state values is critical. In Oracle HTML DB, session state is automatically managed for every page and easily referenced in static HTML or logic controls such as processes or validations.

Topics in this section include:

Referencing Session State

Referencing the value of an item is one of the most common examples of referencing session state. In Oracle HTML DB, an item can be a field, a text area, a password, a select list, or check box. Table 4-2 describes the supported syntax for referencing item values.

Table 4-2 Syntax for Referencing Item Values

Type Syntax Description
SQL :MY_ITEM Standard bind variable syntax for items whose names are no longer than 30 characters. Use this syntax for references within a SQL query and within PL/SQL.
PL/SQL V('MY_ITEM') PL/SQL syntax referencing the item value using the V function.

See Also: "Oracle HTML DB APIs"

PL/SQL NV('MY_NUMERIC_ITEM') Standard PL/SQL syntax referencing the numeric item value using the NV function.

See Also: "Oracle HTML DB APIs"

Static text (exact) &MY_ITEM. Static text. Exact substitution.

Setting Session State

When a user submits a page in Oracle HTML DB, the HTML DB engine automatically stores values typed into fields (items) in session state. For example, suppose you have an application containing two pages. The first page of the application contains a form in which a user can enter a phone number. You defined this form by creating an item named P2_PhoneNo. On the second page, you want to display the information the user enters in the form.

When the page is submitted, Oracle HTML DB captures the value entered in the phone number field and stores the value for future use. The phone number entered by the user can then be retrieved from session state by referencing the item associated with the field on the page.

Clearing Session State

As you develop your applications, you may find it useful to clear the cached value for specific items, all items on a page, all pages in an application, or the current user session. Clearing a cached value resets the value to null. The topics that follow offer specific examples of clearing session state.

Topics in this section include:

Clearing Cache by Item

Clearing cache for a single item resets the value of the item to null. For example, you might use this approach to make sure a specific item's value is null when a page is prepared for rendering.

The following example uses standard f?p syntax to clear the cache for an item. This example calls page 5 of application 100. Placing MY_ITEM in the ClearCache position of the f?p syntax resets the value of MY_ITEM to NULL.

f?p=100:5:&SESSION.::NO:MY_ITEM

The following example resets the value of the items THE_EMPNO and THE_DEPTNO.

f?p=100:5:&SESSION.::NO:THE_EMPNO,THE_DEPTNO

Clearing Cache by Page

Caching application items provides an effective way to maintain session state. However, there are occasions when you may want to clear the cache for all items on a page. For example, suppose you needed to clear all fields on page when a user clicks a link that creates a new order. By clearing the cache for an entire page, you set the value of all items on the page to null.

Clearing Session Cache for Two Pages While Resetting Pagination

This example clears the session cache for two pages and resets pagination.

f?p=6000:6003:&SESSION.::NO:RP,6004,6014

This example:

  • Runs page 6003 of application 6000 and uses the current session ID

  • Indicates to not show debug information (NO)

  • Clears all values maintained by the current session's cache for items of pages 6004 and 6014

  • Resets region pagination (RP) on page 6003 (the requested page)

Clearing Session Cache on a Page and Passing an Item Value

This example shows how to implement an update form. It clears existing information and sets the item's value (typically a primary key).

f?p=6000:6003:&SESSION.::NO:6003:MY_ITEM:1234

This example:

  • Runs page 6003 of application 6000 and use the current session ID

  • Indicates to not show debug information (NO)

  • Clears all values maintained by the current session's cache for items on page 6003

  • Sets the session state of an item called MY_ITEM to the value 1234

Clearing Session Cache on a Page and Passing Values to Multiple Items

This example is similar to the previous example, except it passes values to multiple items.

f?p=6000:6004:&SESSION.::NO:6003:MY_ITEM1,MY_ITEM2,MY_ITEM3:1234,,5678

This example:

  • Runs page 6004 of application 6000 and use the current session ID

  • Clears the current session's cache for items on page 6003

  • Indicates debug information should be hidden (NO)

  • Sets the value of MY_ITEM1 to 1234, sets the value of MY_ITEM2 to null (indicated by the comma used as placeholder), and sets the value of MY_ITEM3 to 5678

Clearing Cache for an Entire Application

You can clear an application's cache by using f?p syntax by creating a Clear Cache argument using the keyword APP using the following syntax:

f?p=App:Page:Session::NO:APP


Note:

Resetting the cache for an entire application does not restore the application to a completely reset state. For example, if an application includes on-new instance computations or on-new instance processes, the HTML DB engine runs these computations and processes when the application session is created. Then, it processes the clear cache request and displays the requested page.

The only way to reset the application completely without a session ID (if no cookie is used to track the session ID) is to request it using a URL without a session ID, or by calling HTMLDB_APPLICATION.CLEAR_APP_CACHE from another application. If the session ID is tracked using a cookie, you will need to logout to reset the state.


Clearing Cache for the Current User Session

You can also clear an application's cache by using f?p syntax. Create a Clear Cache argument using the keyword SESSION. For example:

f?p=6000:6004:12507785108488427528::NO:SESSION

About Bind Variables

You can use bind variables within an application process or SQL query to reference session state of a specified item. For example:

SELECT * FROM emp WHERE name like '%' || :SEARCH_STRING || '%'

In this example, the search string is a page item. If the region type is defined as SQL Query, you can reference the value using standard SQL bind variable syntax. Using bind variables ensures that parsed representations of SQL queries are reused by the database, optimizing memory usage by the server.

When using bind variable syntax, remember the following rules:

  • Bind variable names must correspond to an item name.

  • Bind variable names are not case-sensitive.

  • Bind variable names cannot be longer than 30 characters (that is, they must be a valid Oracle identifier).

    Although page item and application item names can be up to 255 characters, if you intend to use an application item within SQL using bind variable syntax, the item name must be 30 characters or less.

Using Bind Variables in Regions Based on a SQL Query or LOV

If your region type is defined as a SQL Query, SQL Query (plsql function body returning SQL query), or list of values (LOV), you can reference session state using the following syntax:

:MY_ITEM

One common way to do this is to incorporate a session state variable in a WHERE clause. The following example shows how to bind the value of the item THE_DEPTNO into a region defined from a SQL Query.

SELECT ename, job, sal
FROM emp
WHERE deptno = :THE_DEPTNO


See Also:

"Customizing Regions" for information about creating regions

Using Bind Variables in PL/SQL Procedures

For region types defined as a PL/SQL Procedure, regions are constructed using PL/SQL anonymous block syntax. In other words, the beginning and ending are added automatically around the PL/SQL. For example:

INSERT INTO emp (empno, ename, job)
VALUES (:P1_empno, :P1_name, :P1_job);

In this example, the values of the empno, ename, and job are populated by the values of P1_empno, P1_name, and P1_job.

Understanding URL Syntax

Each application has a number (called an application ID) that uniquely identifies it. Similarly, each page also has a unique number (called a page ID). Applications and pages may also have alphanumeric aliases. Application aliases are unique within the workspace and page aliases are unique within each application. When you run an application, the HTML DB engine generates a session number that serves as a key to the user's session state.

Topics in this section include:

Understanding the URL that Displays for a Page

The URL that displays for each page indicates the location of Oracle HTML DB and identifies the application ID, page ID, and session ID. For example:

http://htmldb.oracle.com/pls/otn/f?p=4350:1:220883407765693447

This example indicates:

  • The address of Oracle HTML DB is:

    http://htmldb.oracle.com/pls/otn/


  • The application ID is 4350.

  • The page ID is 1.

  • The session ID is 220883407765693447.

Using f?p Syntax to Link Pages

You can create links between pages in your application using the following syntax:

f?p=App:Page:Session:Request:Debug:ClearCache:itemNames:itemValues:PrinterFriendly

Table 4-3 describes the arguments you can pass when using f?p syntax.

Table 4-3 f?p Syntax Arguments

Syntax Description
App Indicates an application ID or alphanumeric alias.
Page Indicates a page ID or alphanumeric alias.
Session Identifies a session ID. You can reference a session ID to create hypertext links to other pages that maintain the same session state by passing the session number. You can reference the session ID using the syntax:
  • Short substitution string: &SESSION.

  • PL/SQL: V('SESSION')

  • Bind variable: :APP_SESSION

Request Sets the value of REQUEST. Each application button sets the value of REQUEST to the name of the button. This enables accept processing to reference the name of the button when a user clicks it. You can reference REQUEST using the syntax:
  • Substitution string: &REQUEST.

  • PL/SQL: V('REQUEST')

  • Bind variable: :REQUEST

Debug Displays application processing details. Valid values for the DEBUG flag are YES or NO. Setting this flag to YES displays details about application processing. You can reference the Debug flag using the following syntax:
  • Short substitution string: &DEBUG.

  • PL/SQL: V('DEBUG')

  • Bind variable: :DEBUG

ClearCache Clears the cache. Clearing the cache for a single item simply sets the value of the list of names to null. To clear cached items, use a comma-delimited list of page IDs. Comma-delimited lists can also contain collections to be reset or the keyword RP, which resets region pagination on the requested page.
itemNames Comma-delimited list of item names used to set session state with a URL.
itemValues List of item values used to set session state within a URL. Item values cannot include colons, but can contain commas if enclosed with backslashes. To pass a comma in an item value, enclose the characters with backslashes. For example:
\123,45\

PrinterFriendly Determines if the page is being rendered in printer friendly mode. If PrinterFriendly is set to Yes, then the page is rendered in printer friendly mode. The value of PrinterFriendly can be used in rendering conditions to remove elements such as regions from the page to optimize printed output.You can reference the printer friendly preference by using the following syntax:
V('PRINTER_FRIENDLY')

When referenced, the HTML DB engine will not display tabs or navigation bars, and all items will be displayed as text and not as form elements.


Although it is important to understand how f?p syntax works, you rarely have to construct this syntax yourself. Oracle HTML DB includes many wizards that automatically create these references for you. The following sections describe specific instances that utilize f?p syntax to link pages.

Calling a Page Using an Application and Page Alias

Application and page aliases must consist of valid Oracle identifiers, cannot contain any whitespace, and are not case-sensitive. The following example calls a page using an application and a page alias from within an Oracle HTML DB application. It runs the page home of the application myapp and uses the current session ID.

f?p=myapp:home:&SESSION.

Application aliases must be unique within a workspace. If applications in different workspaces within the same Oracle HTML DB instance have the same application alias, use the &c argument to specify the workspace name. For example:

f?p=common_alias:home:&session.&c=WORKSPACE_A

Calling a Page from a Button URL

When you create a button, you can specify a URL to redirect to when the user clicks the button. This example runs page 6001 of application 6000 and uses the current session ID.

f?p=6000:6001:&SESSION.

Note that this is only one approach to using a button in Oracle HTML DB. This method bypasses page submission and acts as a hyperlink on the page. Another method is to submit the page first. In that approach, clicking the button submits the page for processing, allowing forms to be submitted and session state to be saved.


See Also:

"Creating Buttons"

Using Substitution Strings

You can use substitution strings within a page template or region source to replace a character string with another value. As you design your application and enable users to edit items, you will need to use substitution strings in order to pass information.

You can use substitution strings in Oracle HTML DB in the following ways.

Substitution strings used within a template are delimited by the number symbol (#). For example:

#ABC#

To reference page or application items using substitution variables:

  1. Precede the item name with an ampersand (&).

  2. Append a period (.) to the item name.

For example, you would refer to an application item named F101_X in an HTML region, a region title, an item label, or in any of numerous other contexts as:

&F101_X.

Notice the required trailing period. When the page is rendered, HTML DB engine replaces value the substitution string with the value of item F101_X.

Built-in Substitution Strings

Application Builder supports a number of built-in substitution strings. You may need to reference these values to achieve specific types of functionality.

The following sections describe these substitution strings, when to use them, and what supported syntax is currently available. Note that bind variable :USER is not used by Oracle HTML DB as it has special meaning within the database.

Topics in this section include:


See Also:


APP_ALIAS

APP_ALIAS is an alphanumeric name for the current application. APP_ALIAS is different from the APP_ID in that the APP_ID must be unique over all workspaces and all applications hosted in one database. In contrast, APP_ALIAS must be unique within a workspace. For example, by using the same APP_ALIAS you can create the application, ABC, in two different workspaces. You can use APP_ALIAS almost anywhere APP_ID can be used. For example, f?p syntax can use an APP_ALIAS or an application ID as demonstrated in this example:

f?p=ABC:1:&SESSION.

This example runs application ABC, page 1 using the current session.

Table 4-4 describes the supported syntax for referencing APP_ALIAS.

Table 4-4 APP_ALIAS Syntax

Reference Type Syntax
Bind variable :APP_ALIAS
PL/SQL V('APP_ALIAS')
Substitution string &APP_ALIAS.

The following is an HTML example:

Click me to go to page 1 <a href="f?p=&APP_ALIAS.:1:&SESSION."> of the current application</a>

APP_ID

APP_ID identifies the application ID of the currently executing application. Table 4-5 describes the supported syntax for referencing APP_ID.

Table 4-5 APP_ID Syntax

Reference Type Syntax
Bind variable :APP_ID
Direct PL/SQL HTMLDB_APPLICATION.G_FLOW_ID (A NUMBER)
PL/SQL NV('APP_ID')
Substitution string &APP_ID.

The following is an example of a substitution string reference:

f?p=&APP_ID.:40:&SESSION.

APP_IMAGES

Use this substitution string to reference uploaded images, JavaScript, and cascading style sheets that are specific to a given application and are not shared over many applications. If you upload a file and make it specific to an application, then you must use this substitution string, or bind variable. Table 4-6 describes the supported syntax for referencing APP_IMAGES.

Table 4-6 APP_IMAGES Syntax

Reference Type Syntax
Bind variable :APP_IMAGES
Direct PL/SQL Not available.
PL/SQL V('APP_IMAGES')
Substitution string &APP_IMAGES.
Template substitution #APP_IMAGES#

APP_PAGE_ID

APP_PAGE_ID is the current application ID. For example, if your application were on page 3, then the result would be 3. Using this syntax is useful when writing application components that need to work generically in multiple applications. Table 4-7 describes the supported syntax for referencing APP_PAGE_ID.

Table 4-7 APP_PAGE_ID Syntax

Reference Type Syntax
Bind variable :APP_PAGE_ID
Direct PL/SQL HTMLDB_APPLICATION.G_FLOW_STEP_ID (A NUMBER)
Direct PL/SQL :APP_PAGE_ID
PL/SQL NV('APP_PAGE_ID')
Substitution string &APP_PAGE_ID.

The following is an example of a substitution string reference:

f?p=&APP_ID.:&APP_PAGE_ID.:&SESSION.

APP_SESSION

APP_SESSION is one of the most commonly used built-in substitution strings. You can use this substitution string to create hypertext links between application pages that maintain a session state by passing the session number. Table 4-8 describes the supported syntax for referencing APP_SESSION.

Table 4-8 APP_SESSION Syntax

Reference Type Syntax
Bind variable :APP_SESSION
PL/SQL V('APP_SESSION')
Short PL/SQL V('SESSION')
Short substitution string &SESSION.
Substitution string &APP_SESSION.

Consider the following examples:

  • From within an HTML region:

    <a href="f?p=100:5:&SESSION.">click me</a>


  • Using PL/SQL:

    htf.anchor('f?p=100:5:'||V('SESSION'),'click me');


  • Using a SQL query:

    SELECT htf.anchor('f?p=100:5:'||:app_session,'clickme') FROM DUAL;



APP_UNIQUE_PAGE_ID

APP_UNIQUE_PAGE_ID is an integer generated from an Oracle sequence which is unique for each page view. This number is used by applications to prevent duplicate page submissions and can be used for other purposes. For example, if you want to make a unique URL to avoid browser caching issues, you can embed this number in the request or debug column in calls to the f procedure. Table 4-9 describes the supported syntax for referencing APP_UNIQUE_PAGE_ID.

Table 4-9 APP_UNIQUE_PAGE_ID Syntax

Reference Type Syntax
Bind variable :APP_UNIQUE_PAGE_ID
PL/SQL V('APP_UNIQUE_PAGE_ID')
Substitution string &APP_UNIQUE_PAGE_ID.

The following is an HTML example:

SELECT 'f?p=100:1:'||:APP_SESSION||':'||:APP_UNIQUE_PAGE_ID||
    ':::P1_EMPNO:'||empno,
   ename,
    job
FROM emp

Note the use of the APP_UNIQUE_PAGE_ID in the request column. This makes this URL unique and may avoid excessive browser caching problems.

APP_USER

APP_USER is the current user running the application. Depending upon your authentication model, the value of the user is set differently. If the application is running using database authentication, then the value of the user is the same as the database pseudo column USER. If the application uses an authentication scheme that requires the user to authenticate, the value of APP_USER is set by the authentication scheme, usually to the user name used during authentication. Table 4-10 describes the supported syntax for referencing APP_USER.

Table 4-10 APP_USER Syntax

Reference Type Syntax
Bind variable :APP_USER
PL/SQL V('APP_USER')
Short PL/SQL V('USER')
Substitution string &USER.

Consider the following examples:

  • From within an HTML region:

    Hello you are logged in as &USER.


  • Using PL/SQL:

    htp.p('Hello you are logged in as'||V('USER'));


  • As a bind variable:

    SELECT * FROM some_table WHERE user_id = :app_user



    See Also:

    "Authentication" for information about the Public User attribute

AUTHENTICATED_URL_PREFIX

This application-level attribute identifies a valid authenticated prefix (that is, a logged in URL prefix). You can use a relative path or a full path beginning with http. This item is useful if your application can be run in both authenticated (logged in) and public (not logged in) modes. You can use AUTHENTICATED_URL_PREFIX to construct a link to an authenticated page. This item is most useful when using basic database authentication because changes to the URL can require authentication. Table 4-11 describes the supported syntax for referencing AUTHENTICATED_URL_PREFIX.

Table 4-11 AUTHENTICATED_URL_PREFIX Syntax

Reference Type Syntax
Bind variable :AUTHENTICATED_URL_PREFIX
PL/SQL V('AUTHENTICATED_URL_PREFIX')
Substitution string &AUTHENTICATED_URL_PREFIX.

BROWSER_LANGUAGE

BROWSER_LANGUAGE refers to the Web browser's current language preference. Table 4-12 describes the supported syntax for referencing BROWSER_LANGUAGE.

Table 4-12 BROWSER_LANGUAGE Syntax

Reference Type Syntax
Bind variable :BROWSER_LANGUAGE
Direct PL/SQL HTMLDB_APPLICATION.G_BROWSER_LANGUAGE
PL/SQL V('BROWSER_LANGUAGE')
Substitution string :BROWSER_LANGUAGE.
Substitution string &BROWSER_LANGUAGE.

CURRENT_PARENT_TAB_TEXT

CURRENT_PARENT_TAB_TEXT is most useful in page templates, but is only relevant for applications that use two-level tabs (that is, parent and standard tabs). Use this string to reference the parent tab label. This substitution string enables you to repeat the currently selected parent tab within the page template. Table 4-13 describes the supported syntax for referencing CURRENT_PARENT_TAB_TEXT.

Table 4-13 CURRENT_PARENT_TAB_TEXT Syntax

Reference Type Syntax
Bind variable Not Available.
Substitution string &CURRENT_PARENT_TAB_TEXT.

DEBUG

Valid values for the DEBUG flag are Yes or No. Turning debug on shows details about application processing. If you write your own custom code, you may want to generate debug information only if the debug mode is set to Yes. Table 4-14 describes the supported syntax for referencing DEBUG.

Table 4-14 DEBUG Syntax

Reference Type Syntax
Bind variable :DEBUG
Direct PL/SQL HTMLDB_APPLICATION.G_DEBUG
PL/SQL V('DEBUG')
Substitution string &DEBUG.

The following is an example of a substitution string reference that preserves the current value of DEBUG:

f?p=100:1:&SESSION.::&DEBUG

HOME_LINK

HOME_LINK is the home page of an application. The HTML DB engine will redirect to this location if no page is given and if no alternative page is dictated by the authentication scheme's logic. You define the Home Link on the Application Attributes page.

Table 4-15 describes the supported syntax for referencing HOME_LINK.

Table 4-15 HOME_LINK Syntax

Reference Type Syntax
Direct PL/SQL HTMLDB_APPLICATION.G_HOME_LINK
PL/SQL V('HOME_LINK')
Template Reference #HOME_LINK#
Substitution String &HOME_LINK.


See Also:

"Authentication" for information about the Home Link attribute

LOGIN_URL

Use LOGIN_URL to display a link to a login page for users that are not currently logged in. Table 4-16 describes the supported syntax for LOGIN_URL.

Table 4-16 LOGIN_URL Syntax

Reference Type Syntax
Bind variable :LOGIN_URL
Direct PL/SQL HTMLDB_APPLICATION.G_LOGIN_URL
PL/SQL V('LOGIN_URL')
Substitution string &LOGIN_URL.
Template Substitution #LOGIN_URL#

IMAGE_PREFIX

The value of IMAGE_PREFIX determines the virtual path the Web server uses to point to the images directory distributed with Oracle HTML DB. If you want to reference uploaded images, use WORKSPACE_IMAGES and APP_IMAGES. Table 4-17 describes the supported syntax for referencing IMAGE_PREFIX.

Table 4-17 IMAGE_PREFIX Syntax

Reference Type Syntax
Bind variable :IMAGE_PREFIX
Direct PL/SQL HTMLDB_APPLICATION.G_IMAGE_PREFIX
PL/SQL V('IMAGE_PREFIX')
Substitution string &IMAGE_PREFIX.
Template Substitution #IMAGE_PREFIX#

HTML DB SCHEMA OWNER

If you are generating calls to applications from within your PL/SQL code, you may need to reference the owner of the Oracle HTML DB schema. The following describes the correct syntax for a direct PL/SQL reference:

HTMLDB_APPLICATION.G_FLOW_SCHEMA_OWNER

You may also use #FLOW_OWNER# to reference this value in SQL queries and PL/SQL (for example, in a region or a process).

PRINTER_FRIENDLY

The value of PRINTER_FRIENDLY determines if the HTML DB engine is running in print view mode. This setting can be referenced in conditions to eliminate elements not desired in a printed document from a page. Table 4-18 describes the supported syntax for referencing PRINTER_FRIENDLY.

Table 4-18 PRINTER_FRIENDLY Syntax

Reference Type Syntax
Direct PL/SQL HTMLDB_APPLICATION.G_PRINTER_FRIENDLY (VARCHAR2 DATATYPE)
PL/SQL V('PRINTER_FRIENDLY')
Substitution string &PRINTER_FRIENDLY.

LOGOUT_URL

LOGOUT_URL is an application-level attribute used to identify the logout URL. This is a URL that navigates the user to a logout page or optionally directly logs out a user. To create a logout navigation bar entry, add a trailing period to &LOGOUT_URL (&LOGOUT_URL.). If you are coding a page template, use #LOGOUT_URL#. Table 4-19 describes the supported syntax for referencing LOGOUT_URL.

Table 4-19 LOGOUT_URL Syntax

Reference Type Syntax
Bind variable :LOGOUT_URL
PL/SQL V('LOGOUT_URL')
Substitution string &LOGOUT_URL.
Template substitution #LOGOUT_URL#

PROXY SERVER

PROXY SERVER is an application attribute. The attribute may be used by regions whose source comes from a URL. The following is the correct syntax for a direct PL/SQL reference used when you are writing PL/SQL to access remote Web servers from within the database (for example, when using the utl_http package shipped with the database).

HTMLDB_APPLICATION.G_PROXY_SERVER

PUBLIC_URL_PREFIX

PUBLIC_URL_PREFIX is an application-level attribute that identifies a URL to toggle out of a logged in mode to a public view. Table 4-20 describes the supported syntax for referencing PUBLIC_URL_PREFIX.

Table 4-20 PUBLIC_URL_PREFIX Syntax

Reference Type Syntax
Bind variable :PUBLIC_URL_PREFIX
PL/SQL V('PUBLIC_URL_PREFIX')
Substitution string &PUBLIC_URL_PREFIX.
Template substitution #PUBLIC_URL_PREFIX#

REQUEST

Each application button sets the value of REQUEST to the name of the button or to the request value attribute associated with the button. This enables accept processing to reference the name of the button when a user clicks it. In the f?p syntax, REQUEST may be set using the fourth argument.

Referencing the Value of REQUEST

REQUEST is typically referenced during Accept processing (that is, the processing that occurs when you post a page). Table 4-21 describes the supported syntax for referencing REQUEST.

Table 4-21 REQUEST Syntax

Reference Type Syntax
Bind variable :REQUEST
Direct PL/SQL HTMLDB_APPLICATION.G_REQUEST
PL/SQL V('REQUEST')
Substitution string &REQUEST

&REQUEST. (exact syntax match)


Scope and Value of REQUEST for Posted Pages

When you post a page, you initiate Accept processing. Accept processing consists of computations, validations, processes, and branches. The value of REQUEST is available during each phase of the Accept processing. Once Oracle HTML DB branches to a different page then REQUEST is set to NULL.

The value of REQUEST is the name of the button the user clicks, or the name of the tab the user selects. For example, suppose you have a button with a name of CHANGE, and a label Apply Change. When a user clicks the button, the value of REQUEST will be CHANGE.

Referencing REQUEST Using Declarative Conditions

It is common to reference REQUEST using conditions. For example, you may want to reset pagination when a user clicks Go on a report page. You can reset pagination by creating an on-submit page process. The page process can be made conditional using the condition Request = Expression 1.

To create an on-submit page process:

  1. Under Condition, select the condition type Request = Expression 1.

  2. In Expression 1, enter GO.

Using REQUEST for Show Processing

You can also use REQUEST for Show processing when navigating to a page using f?p syntax. For example:

f?p=100:1:&SESSION.:GO

Remember that the fourth argument in the f?p syntax is REQUEST. This example goes to application 100, page 1 for the current session, and sets the value of REQUEST to GO. Any process or region can reference the value of REQUEST using Show processing.

The following is a similar example using PL/SQL:

IF V ('REQUEST') = 'GO' THEN
   htp.p('hello');
END IF;

Note that htp.p('hello') is a call to a PL/SQL Web Toolkit package to print out the specified text string.


See Also:

  • Oracle Database Application Developer's Guide - Fundamentals for information about developing Web applications with PL/SQL

  • >Oracle Database PL/SQL Packages and Types Reference for information about htp packages


SQLERRM

SQLERRM is a template substitution only available in the Applications Region Error Message. The following describes the correct syntax for a region template substitution reference:

#SQLERRM#

SYSDATE_YYYYMMDD

SYSDATE_YYYYMMDD represents the current date on the database server, with the YYYYMMDD format mask applied. You may use this value instead of repeated calls to the SYSDATE() function. The following list describes the supported syntax for referencing SYSDATE_YYYYMMDD.

  • Bind variable

    :SYSDATE_YYYYMMDD


  • PL/SQL

    V('SYSDATE_YYYYMMDD')


  • Direct PL/SQL

    HTMLDB_APPLICATION.G_SYSDATE (DATE DATATYPE)



Table 4-22 SYSDATE_YYYYMMDD Syntax

Reference Type Syntax
Bind variable :SYSDATE_YYYYMMDD
Direct PL/SQL HTMLDB_APPLICATION.G_SYSDATE (DATE DATATYPE)
PL/SQL V('SYSDATE_YYYYMMDD')

WORKSPACE_IMAGES

Use this substitution string to reference uploaded images, JavaScript, and cascading style sheets that are shared over many applications within a workspace. Table 4-23 describes the supported syntax for referencing WORKSPACE_IMAGES.

Table 4-23 WORKSPACE_IMAGES Syntax

Reference Type Syntax
Bind variable :WORKSPACE_IMAGES
Direct PL/SQL Not available
PL/SQL V('WORKSPACE_IMAGES')
Substitution string &WORKSPACE_IMAGES.
Template substitution #WORKSPACE_IMAGES#
