6 Using the JAXB Class Generator

This chapter contains the following topics:


Note:

Use the JAXB class generator for new applications in order to use the object binding feature for XML data. The Oracle9i class generator for Java is deprecated. Oracle Database 10g supports the Oracle9i class generator for backward compatibility.

Introduction to the JAXB Class Generator

This section provides an introduction to the Java Architecture for XML Binding (JAXB). It discusses the following topics:

Prerequisites

This chapter assumes that you already have some familiarity with the following topics:


See Also:

http://java.sun.com/webservices/tutorial.html for an extensive and excellent JAXB tutorial

Standards and Specifications

The Oracle JAXB processor implements JSR-31 "The Java Architecture for XML Binding (JAXB)", Version 1.0, which is a recommendation of the JCP (Java Community Process). You can find the JAXB 1.0 specification at the following URL:

http://java.sun.com/xml/jaxb

The Oracle Database XDK implementation of the JAXB 1.0 specification does not support the following optional features:

  • Javadoc generation

  • Fail Fast validation

  • External customization file

  • XML Schema concepts described in section E.2 of the specification

JSR is a Java Specification Request of the JCP. You can find a description of the JSR at the following URL:

http://jcp.org/en/jsr/overview

See Also:

Chapter 29, "XDK Standards" for a summary of the standards supported by the XDK

JAXB Class Generator Features

The JAXB class generator for Java generates the interfaces and the implementation classes corresponding to an XML Schema. Its principal advantage to Java developers is automation of the mapping between XML documents and Java code, which enables programs to use generated code to read, manipulate, and re-create XML data. The Java classes, which can be extended, give the developer access to the XML data without knowledge of the underlying XML data structure.

In short, the Oracle JAXB class generator provides the following advantages for XML application development in Java:

  • Speed

    Because the schema-to-code conversion is automated, you can rapidly generate Java code from an input XML schema.

  • Ease of use

    You can call generated get and set methods rather than code your own from scratch.

  • Automated data conversion

    You can automate the conversion of XML document data into Java datatypes.

  • Customization

    JAXB provides a flexible framework that enables you to customize the binding of XML elements and attributes.

Marshalling and Unmarshalling with JAXB

JAXB is an API and set of tools that maps XML data to Java objects. JAXB simplifies access to an XML document from a Java program by presenting the XML document to the program in a Java format.

You can use the JAXB API and tools to perform the following basic tasks:

  1. Generate and compile JAXB classes from an XML schema with the orajaxb command-line utility.

    To use the JAXB class generator to generate Java classes you must provide it with an XML schema. DTDs are not supported by JAXB. As explained in "Converting DTDs to XML Schemas", however, you can use the DTD2Schema program to convert a DTD to an XML schema. Afterwards, you can use the JAXB class generator to generate classes from the schema.

    The JAXB compiler generates Java classes that map to constraints in the source XML schema. The classes implements get and set methods that you can use to obtain and specify data for each type of element and attribute in the schema.

  2. Process XML documents by instantiating the generated classes in a Java program.

    Specifically, you can write a program that uses the JAXB binding framework to perform the following tasks:

    1. Unmarshal the XML documents.

      As explained in the JAXB specification, unmarshalling is defined as moving data from an XML document to the Java-generated objects.

    2. Validate the XML documents.

      You can validate before or during the unmarshalling of the contents into the content tree. You can also validate on demand by calling the validation API on the Java object. Refer to "Validation with JAXB".

    3. Modify Java content objects.

      The content tree of data objects represents the structure and content of the source XML documents. You can use the set methods defined for a class to modify the content of elements and attributes.

    4. Marshal Java content objects back to XML.

      In contrast to unmarshalling, marshalling is creating an XML document from Java objects by traversing a content tree of instances of Java classes. You can serialize the data to a DOM tree, SAX content handler, transformation result, or output stream.

Validation with JAXB

A Java content tree is considered valid with respect to an XML schema when marshalling the tree generates a valid XML document.

JAXB applications can perform validation in the following circumstances:

  • Unmarshalling-time validation that notifies the application of errors and warnings during unmarshalling. If unmarshalling includes validation that is error-free, then the input XML document and the Java content tree are valid.

  • On-demand validation of a Java content tree initiated by the application.

  • Fail-fast validation that gives immediate results while updating the Java content tree with set and get methods. As specified in "Standards and Specifications", fail-fast validation is an optional feature in the JAXB 1.0 specification that is not supported in the XDK implementation of the JAXB class generator.

JAXB applications must be able to marshal a valid Java content tree, but they are not required to ensure that the Java content tree is valid before calling one of the marshalling APIs. The marshalling process does not itself validate the content tree. Programs are merely required to throw a javax/xml/bind/MarshalException when marshalling fails due to invalid content.

JAXB Customization

The declared element and type names in an XML schema do not always provide the most useful Java class names. You can override the default JAXB bindings by using custom binding declarations, which are described in the JAXB specification. These declarations enable you to customize your generated JAXB classes beyond the XML-specific constraints in an XML schema to include Java-specific refinements such as class and package name mappings.

You can annotate the schema to perform the following customizations:

  • Bind XML names to user-defined Java class names

  • Name the package, derived classes, and methods

  • Choose which elements to bind to which classes

  • Decide how to bind each attribute and element declaration to a property in the appropriate content class

  • Choose the type of each attribute-value or content specification

Several of the demos programs listed in Table 6-2 illustrate JAXB customizations.


See Also:


Using the JAXB Class Generator: Overview

This section contains the following topics:

Using the JAXB Processor: Basic Process

The XDK JAXB API exposes the following packages:

  • javax.xml.bind, which provides a runtime binding framework for client applications including unmarshalling, marshalling, and validation

  • javax.xml.bind.util, which provides useful client utility classes

The most important classes and interfaces in the javax.xml.bind package are described in Table 6-1. These form the core of most JAXB applications.

Table 6-1 javax.xml.bind Classes and Interfaces

Class/Interface Description Methods
JAXBContext class Provides an abstraction for managing the XML/Java binding information necessary to implement the JAXB binding framework operations: unmarshal, marshal, and validate. A client application obtains new instances of this class by invoking the newInstance() method. The principal methods are as follows:
  • newInstance() creates a JAXB content class. Supply this method the name of the package containing the generated classes.

  • createMarshaller() creates a marshaller that you can use to convert a content tree to XML.

  • createUnmarshaller() creates an unmarshaller that you can use to convert XML to a content tree.

  • createValidator() creates a Validator object that can validate a java content tree against its source schema.

Marshaller interface Governs the process of serializing Java content trees into XML data. The principal methods are as follows:
  • getEventHandler() returns the current or default event handler.

  • getProperty() obtains the property in the underlying implementation of marshaller.

  • marshal() marshals the content tree into a DOM, SAX2 events, output stream, transformation result, or Writer.

  • setEventHandler() creates a Validator object that validates a java content tree against its source schema.

Unmarshaller interface Governs the process of deserializing XML data into newly created Java content trees, optionally validating the XML data as it is unmarshalled. The principal methods are as follows:
  • getEventHandler() returns the current or default event handler.

  • getUnmarshallerHandler() returns an unmarshaller handler object usable as a component in an XML pipeline.

  • isValidating() indicates whether the unmarshaller is set to validate mode.

  • setEventHandler() allows an application to register a ValidationEventHandler.

  • setValidating() specifies whether the unmarshaller should validate during unmarshal operations.

  • marshal() unmarshals XML data from the specified file, URL, input stream, input source, SAX, or DOM.

Validator interface Controls the validation of content trees during runtime. Specifically, this interface controls on-demand validation, which enables clients to receive data about validation errors and warnings detected in the Java content tree. The principal methods are as follows:
  • getEventHandler() returns the current or default event handler.

  • setEventHandler() allows an application to register a ValidationEventHandler.

  • validate() validates Java content trees on-demand at runtime. This method can validate any arbitrary subtree of the Java content tree.

  • validateRoot() validates the Java content tree rooted at rootObj. You can use this method to validate an entire Java content tree.

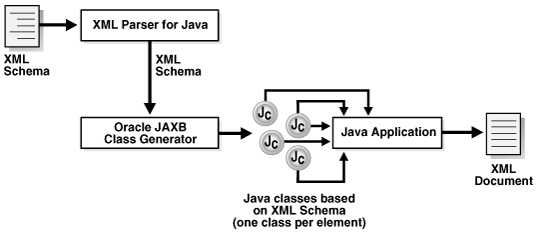

Figure 6-1 depicts the process flow of a framework that uses the JAXB class generator.

Figure 6-1 JAXB Class Generator for Java

This graphic is described in the following text.
Description of the illustration adxdk003.gif

The basic stages of the process illustrated in Figure 6-1 are as follows:

  1. The XML parser parses the XML schema and sends the parsed data to the JAXB class generator.

  2. The class generator creates Java classes and interfaces based on the input XML schema.

    By default, one XML element or type declaration generates one interface and one class. For example, if the schema defines an element named <anElement>, then by default the JAXB class generator generates a source file named AnElement.java and another named AnElementImpl.java. You can use customize binding declarations to override the default binding of XML Schema components to Java representations.

  3. The Java compiler compiles the .java source files into class files. All of the generated classes, source files, and application code must be compiled.

  4. Your Java application uses the compiled classes and the binding framework to perform the following types of tasks:

    • Create a JAXB context. You use this context to create the marshaller and unmarshaller.

    • Build object trees representing XML data that is valid against the XML schema. You can perform this task by either unmarshalling the data from an XML document that conforms to the schema or instantiating the classes.

    • Access and modify the data.

    • Optionally validate the modifications to the data relative to the constraints expressed in the XML schema.

    • Marshal the data to new XML documents.


See Also:


Running the XML Schema Processor Demo Programs

Demo programs for the JAXB class generator for Java are included in $ORACLE_HOME/xdk/demo/java/jaxb. Specifically, the XDK includes the JAXB demos listed in Table 6-2.

Table 6-2 JAXB Class Generator Demos

Program Subdirectory within Oracle Home Demonstrates . . .
SampleApp1.java /xdk/demo/java/jaxb/Sample1 The binding of top-level element and complexType definitions in the sample1.xsd schema to Java classes.
SampleApp2.java /xdk/demo/java/jaxb/Sample2 The binding of a top-level element with an inline simpleType definition in the sample2.xsd schema.
SampleApp3.java /xdk/demo/java/jaxb/Sample3 The binding of a top-level complexType element that is derived by extension from another top-level complexType definition. Refer to "Binding Complex Types" for a detailed explanation of this program.
SampleApp4.java /xdk/demo/java/jaxb/Sample4 The binding of a content model within a complexType that refers to a top-level named group.
SampleApp5.java /xdk/demo/java/jaxb/Sample5 The binding of <choice> with maxOccurs unbounded within a complexType.
SampleApp6.java /xdk/demo/java/jaxb/Sample6 The binding of atomic datatypes.
SampleApp7.java /xdk/demo/java/jaxb/Sample7 The binding a complexType definition in which mixed="true".
SampleApp8.java /xdk/demo/java/jaxb/Sample8 The binding of elements and types declared in two different namespaces.
SampleApp9.java /xdk/demo/java/jaxb/Sample9 The customization of a Java package name.
SampleApp10.java /xdk/demo/java/jaxb/Sample10 The customization of class name in a top-level element. Refer to "Customizing a Class Name in a Top-Level Element" for a detailed explanation of this program.
SampleApp11.java /xdk/demo/java/jaxb/Sample11 The customization of class name of a local element occurring in a repeating model group declared inside a complexType element.
SampleApp12.java /xdk/demo/java/jaxb/Sample12 The customization of the attribute name.
SampleApp13.java /xdk/demo/java/jaxb/Sample13 The javaType customization specified on a global simpleType. The javaType customization specifies the parse and print method declared on a user-defined class.
SampleApp14.java /xdk/demo/java/jaxb/Sample14 The customization of the typesafe enum class name.

You can find documentation that describes how to compile and run the sample programs in the README in the same directory. The basic steps are as follows:

  1. Change into the $ORACLE_HOME/xdk/demo/java/jaxb directory (UNIX) or %ORACLE_HOME%\xdk\demo\java\jaxb directory (Windows).

  2. Make sure that your environment variables are set as described in "Setting Up the Java XDK Environment".

  3. Run make (UNIX) or Make.bat (Windows) at the system prompt. The make utility performs the following sequential actions for each sample subdirectory:

    1. Runs the orajaxb utility to generate Java class files based on an input XML schema. For most of the demos, the output classfiles are written to the generated subdirectory. For example, the make file performs the following commands for the sample1.xsd schema in the Sample1 subdirectory:

      cd ./Sample1; $(JAVA_HOME)/bin/java -classpath "$(MAKE_CLASSPATH)" \
      oracle.xml.jaxb.orajaxb -schema sample1.xsd -targetPkg generated; echo;


    2. Runs the javac utility to compile the Java classes. For example, the make utility performs the following commands for the Java class files in the Sample1/generated/ subdirectory:

      cd ./Sample1/generated; $(JAVA_HOME)/bin/javac -classpath \
      "$(MAKE_CLASSPATH)" *.java


    3. Runs the javac utility to compile a sample Java application that uses the classes compiled in the preceding step. For example, the make utility compiles the SampleApp1.java program:

      cd ./Sample1; $(JAVA_HOME)/bin/javac -classpath "$(MAKE_CLASSPATH)" \
      SampleApp1.java


    4. Runs the sample Java application and writes the results to a log file. For example, the make utility executes the SampleApp1 class and writes the output to sample1.out:

      cd ./Sample1; $(JAVA_HOME)/bin/java -classpath "$(MAKE_CLASSPATH)" \SampleApp1 > sample1.out


Using the JAXB Class Generator Command-Line Utility

The XDK includes orajaxb, which is a command-line Java interface that generates Java classes from input XML schemas. The $ORACLE_HOME/bin/orajaxb and %ORACLE_HOME%\bin\orajaxb.bat shell scripts execute the oracle.xml.jaxb.orajaxb class. To use orajaxb ensure that your CLASSPATH is set as described in "Setting Up the Java XDK Environment".

Table 6-3 lists the orajaxb command-line options.

Table 6-3 orajaxb Command-Line Options

Option Purpose
-help Prints the help message.
-version Prints the release version.
-outputdir OutputDir Specifies the directory in which to generate the Java source files. If the schema has a namespace, then the program generates the java code in the package (corresponding to the namespace) referenced from the outputDir. By default, the current directory is the outputDir.
-schema SchemaFile Specifies the input XML schema.
-targetPkg targetPkg Specifies the target package name. This option overrides any binding customization for package name as well as the default package name algorithm defined in the JAXB Specification.
-interface Generates the interfaces only.
-verbose Lists the generated classes and interfaces.
-defaultCus fileName Generates the default customization file.
-extension Allows vendor specific extensions and does not strictly follow the compatibility rules specified in Appendix E.2 of the JAXB 1.0 specification. When specified, the program ignores JAXB 1.0 unsupported features such as notations, substitution groups, and any attributes.

Using the JAXB Class Generator Command-Line Utility: Example

To test orjaxb, change into the $ORACLE_HOME/xdk/demo/java/jaxb/Sample1 directory. If you have run make, then the directory should contain the following files:

SampleApp1.class
SampleApp1.java
generated/
sample1.out
sample1.xml
sample1.xsd

The sample.xsd file is the XML schema associated with sample1.xml. The generated/ subdirectory contains the classes generated from the input schema. You can test orajaxb by deleting the contents of generated/ and regenerating the classes as follows:

rm generated/*
orajaxb -schema sample1.xsd -targetPkg generated -verbose

The terminal should display the following output:

generated/CType.java
generated/AComplexType.java
generated/AnElement.java
generated/RElemOfCTypeInSameNs.java
generated/RType.java
generated/RElemOfSTypeInSameNs.java

generated/CTypeImpl.java
generated/AComplexTypeImpl.java
generated/AnElementImpl.java
generated/RElemOfCTypeInSameNsImpl.java
generated/RTypeImpl.java
generated/RElemOfSTypeInSameNsImpl.java
generated/ObjectFactory.java

JAXB Features Not Supported in the XDK

The Oracle Database XDK implementation of the JAXB specification does not support the following features:

  • Javadoc generation

  • XML Schema component "any" and substitution groups


See Also:

http://java.sun.com/xml/downloads/jaxb.html for the JAXB specification

Processing XML with the JAXB Class Generator

This section contains the following topics:

Binding Complex Types

The Sample3.java program illustrates how to bind a complex type definition to a Java content interface. One complex type defined in the XML schema is derived by extension from another complex type.

Defining the Schema

Example 6-1 illustrates the XML data document that provides the input to the sample application. The sample3.xml document describes the address of an employee.

Example 6-1 sample3.xml

<?xml version="1.0"?>
<myAddress xmlns = "http://www.oracle.com/sample3/"
           xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
           xsi:schemaLocation = "http://www.oracle.com/sample3 sample3.xsd">
    <name>James Bond</name>
    <doorNumber>420</doorNumber>
    <street>Oracle parkway</street>
    <city>Redwood shores</city>
    <state>CA</state>
    <zip>94065</zip>
    <country>United States</country>
</myAddress>

The XML schema shown in Example 6-2 defines the structure that you use to validate sample3.xml. The schema defines two complex types and one element, which are defined as follows:

  • The first complex type, which is named Address, is a sequence of elements. Each element in the sequence describes one part of the address: name, door number, and so forth.

  • The second complex type, which is named USAddress, uses the <extension base="exp:Address"> element to extend Address by adding U.S.-specific elements to the Address sequence: state, zip, and so forth. The exp prefix specifies the http://www.oracle.com/sample3/ namespace.

  • The element is named myAddress and is of type exp:USAddress. The exp prefix specifies the http://www.oracle.com/sample3/ namespace. In sample3.xml, the myAddress top-level element, which is in namespace http://www.oracle.com/sample3/, conforms to the schema definition.

Example 6-2 sample3.xsd

<?xml version="1.0"?>

<!-- Binding a complex type definition to java content interface
 The complex type definition is derived by extension
-->

<schema xmlns = "http://www.w3.org/2001/XMLSchema"
        xmlns:exp="http://www.oracle.com/sample3/"
        targetNamespace="http://www.oracle.com/sample3/"
        elementFormDefault="qualified">

   <complexType name="Address">
      <sequence>
         <element name="name" type="string"/>
         <element name="doorNumber" type="short"/>
         <element name="street" type="string"/>
         <element name="city" type="string"/>
      </sequence>
   </complexType>

  <complexType name="USAddress">
    <complexContent>
     <extension base="exp:Address">
       <sequence>
          <element name="state" type="string"/>
          <element name="zip" type="integer"/>
          <element name="country" type="string"/>
       </sequence>
     </extension>
    </complexContent>
  </complexType>

  <element name="myAddress" type="exp:USAddress"/>

</schema>

Generating and Compiling the Java Classes

If you have an XML document and corresponding XML schema, then the next stage of processing is to generate the Java classes from the XML schema. You can use the JAXB command-line interface described in "Using the JAXB Class Generator Command-Line Utility" to perform this task.

Assuming that your environment is set up as described in "Setting Up the Java XDK Environment", you can create the source files in the generated package as follows:

cd $ORACLE_HOME/xdk/demo/java/jaxb/Sample3
orajaxb -schema sample1.xsd -targetPkg generated

The preceding orajaxb command should create the following source files in the ./generated/ subdirectory:

Address.java
AddressImpl.java
MyAddress.java
MyAddressImpl.java
ObjectFactory.java
USAddress.java
USAddressImpl.java

The complex types Address and USAddress each has two associated source files, as does the element MyAddress. The source file named after the element contains the interface; the file with the suffix Impl contains the class that implements the interface. For example, Address.java contains the interface Address, whereas AddressImpl.java contains the class that implements Address.

The content of the Address.java source file is shown in Example 6-3.

Example 6-3 Address.java

package generated;
public interface Address
{
   public void setName(java.lang.String n);
   public java.lang.String getName();
   public void setDoorNumber(short d);
   public short getDoorNumber();
   public void setStreet(java.lang.String s);
   public java.lang.String getStreet();
   public void setCity(java.lang.String c);
   public java.lang.String getCity();
}

The Address complex type defined a sequence of elements: name, doorNumber, street, and city. Consequently, the Address interface includes a get and set method signature for each of the four elements. For example, the interface includes getName() for retrieving data in the <name> element and setName() for modifying data in this element.

You can compile the Java source files with javac as follows:

cd $ORACLE_HOME/xdk/demo/java/jaxb/Sample3/generated
javac *.java

Processing the XML Data

Sample3.java shows how you can process the sample3.xml document by using the Java class files that you generated in "Generating and Compiling the Java Classes". The sample program unmarshals the XML data document, marshals it, and uses the generated classes to print and modify the address data.

The Sample3.java program processes the data as follows:

  1. Create strings for the XML data document file name and the name of the directory that contains the generated classes. This name is the package name. For example:

    String fileName = "sample3.xml";
    String instancePath = "generated";


  2. Instantiate a JAXB context by invoking JAXBContext.newInstance(). A client application obtains a new instance of this class by initializing it with a context path. The path contains a list of Java package names that contain the interfaces available to the marshaller. The following statement illustrates this technique:

    JAXBContext jc = JAXBContext.newInstance(instancePath);


  3. Instantiate the unmarshaller. The Unmarshaller class governs the process of deserializing XML data into newly created objects, optionally validating the XML data as it is unmarshalled. The following statement illustrates this technique:

    Unmarshaller u = jc.createUnmarshaller();


  4. Unmarshal the XML document. Invoke the Unmarshaller.unmarshal() method to deserialize the sample3.xml document and return the content trees as an Object. You can create a URL from the XML filename by invoking the fileToUrl() helper method. The following statement illustrates this technique:

    Object obj = u.unmarshal(fileToURL(fileName));


  5. Instantiate a marshaller. The Marshaller class governs the process of serializing Java content trees back into XML data. The following statement illustrates this technique:

    Marshaller m = jc.createMarshaller();


  6. Marshal the content tree. Invoke the Marshaller.marshal() method to marshal the content tree Object returned by the unmarshaller. You can serialize the data to a DOM tree, SAX content handler, transformation result, or output stream. The following statement serializes the XML data, including markup, as an output stream:

    m.marshal(obj, System.out);



    By default, the marshaller uses UTF-8 encoding when writing XML data to an output stream.

  7. Print the contents of the XML document. The program implements a process() method that accepts the content tree and marshaller as parameters.

    The first stage of processing prints the data in the XML document without the XML markup. The method casts the Object generated by the marshaller into type MyAddress. It proceeds to invoke a series of methods whose method names are constructed by prefixing get to the name of an XML element. For example, to obtain the data in the <city> element in Example 6-1, the program invokes getCity(). The following code fragment illustrates this technique:

    public static void process(Object obj, Marshaller m) throws Throwable
    {
       generated.MyAddress elem = (generated.MyAddress)obj;
       System.out.println();
       System.out.println(" My address is: ");
       System.out.println("  name:  "  + elem.getName() + "\n"  +
                          "  doorNumber " + elem.getDoorNumber() + "\n" +
                          "  street: " + elem.getStreet() + "\n" +
                          "  city:   " + elem.getCity() + "\n"  +
                          "  state:  " + elem.getState() + "\n" +
                          "  zip:  " + elem.getZip() + "\n" +
                          "  country:  " + elem.getCountry() + "\n" +
                          "\n" );
    ...


  8. Change the XML data and print it. The process() method continues by invoking set methods that are analogous to the preceding get methods. The name of each set method is constructed by prefixing set to the name of an XML element. For example, setCountry() changes the value in the <country> element. The following statements illustrate this technique:

    short num = 550;
    elem.setDoorNumber(num);
    elem.setCountry("India");
    num = 10100;
    elem.setZip(new java.math.BigInteger("100100"));
    elem.setCity("Noida");
    elem.setState("Delhi");



    After changing the data, the program prints the data by invoking the same get methods as in the previous step.

Customizing a Class Name in a Top-Level Element

The Sample10.java program illustrates one form of JAXB customization. The program shows you can change the name of a class that corresponds to an element in the input XML schema.

Defining the Schema

Example 6-4 shows the XML data document that provides the input to the sample application. The sample10.xml document describes a business.

Example 6-4 sample10.xml

<?xml version="1.0"?>
<business xmlns="http://jaxbcustomized/sample10/">
   <title>Software Development</title>
   <owner>Larry Peterson</owner>
   <id>45123</id>
</business>

Example 6-5 shows the XML schema that defines the structure of sample10.xml. The schema defines one complex type and one element as follows:

  • The complex type, which is named businessType, is a sequence of elements. Each element in the sequence describes a part of the business: title, owner, and id.

  • The element, which is named business, is of type biz:businessType. The biz prefix specifies the http://jaxbcustomized/sample10/ namespace. In sample10.xml, the business top-level element, which is in namespace http://jaxbcustomized/sample10/, conforms to the schema definition.

Example 6-5 sample10.xsd

<?xml version="1.0"?>

<!-- Customization of class name in top level element -->

<schema xmlns="http://www.w3.org/2001/XMLSchema"
        targetNamespace="http://jaxbcustomized/sample10/"
        xmlns:biz="http://jaxbcustomized/sample10/"
        xmlns:jaxb="http://java.sun.com/xml/ns/jaxb"
        jaxb:version="1.0"
        elementFormDefault="qualified">

   <element name="business" type="biz:businessType">
      <annotation>
         <appinfo>
            <jaxb:class name="myBusiness"/>
         </appinfo>
      </annotation>
   </element>

   <complexType name="businessType">
      <sequence>
         <element name="title" type="string"/>
         <element name="owner" type="string"/>
         <element name="id" type="integer"/>
      </sequence>
   </complexType>

</schema>
Customizing the Schema Binding

The schema shown in Example 6-5 customizes the binding of the business element by means of an inline binding declaration. The general form for inline customizations is the following:

<xs:annotation>
   <xs:appinfo>
      .
      .
      binding declarations
      .
      .
   </xs:appinfo>
</xs:annotation>

Example 6-5 uses the <class> binding declaration to bind a schema element to a Java class name. You can use the declaration to customize the name for an interface or the class that implements an interface. The JAXB class generator supports the following syntax for <class> customizations:

<class [ name = "className"] >

The name attribute specifies the name of the derived Java interface. Example 6-5 contains the following customization:

<jaxb:class name="myBusiness"/>

Thus, the schema binds the business element to the interface myBusiness rather than to the interface business, which is the default.

Generating and Compiling the Java Classes

After you have an XML document and corresponding XML schema, the next stage is to generate the Java classes from the XML schema. You can use the JAXB command-line interface to perform this task.

If your environment is set up as described in "Setting Up the Java XDK Environment", then you can create the source files in the generated package as follows:

cd $ORACLE_HOME/xdk/demo/java/jaxb/Sample10
orajaxb -schema sample10.xsd

Because the preceding command does not specify a target package, the package name is constructed from the target namespace of the schema, which is http://jaxbcustomized/sample10/ . Consequently, the utility generates the following source files in the ./jaxbcustomized/sample10/ subdirectory:

BusinessType.java
BusinessTypeImpl.java
MyBusiness.java
MyBusinessImpl.java
ObjectFactory.java

Note that the complex type businessType has two source files, BusinessType.java and BusinessTypeImpl.java. Because of the JAXB customization, the business element is bound to interface MyBusiness and implementing class MyBusinessImpl.

The content of the BusinessType.java source file is shown in Example 6-6.

Example 6-6 BusinessType.java

package jaxbcustomized.sample10;

public interface BusinessType
{
   public void setTitle(java.lang.String t);
   public java.lang.String getTitle();
   public void setOwner(java.lang.String o);
   public java.lang.String getOwner();
   public void setId(java.math.BigInteger i);
   public java.math.BigInteger getId();
}

The BusinessType complex type defined a sequence of elements: title, owner, and id. Consequently, the Address interface includes a get and set method signature for each of the elements. For example, the interface includes getTitle() for retrieving data in the <title> element and setTitle() for modifying data in this element.

You can compile the Java source files with javac as follows:

cd $ORACLE_HOME/xdk/demo/java/jaxb/Sample10/jaxbcustomized/sample10
javac *.java

Processing the XML Data

The Sample10.java source file shows how you can process the data in the sample10.xml document by using the class files that you generated in "Generating and Compiling the Java Classes". The sample program unmarshals the XML document, prints its content, and marshals the XML to standard output.

The Sample10.java program processes the XML data as follows:

  1. Create strings for the XML data document file name and the name of the directory that contains the generated classes. This name is the package name. For example:

    String fileName = "sample10.xml";
    String instancePath = "jaxbcustomized.sample10";


  2. Instantiate a JAXB context by invoking the JAXBContext.newInstance() method. The following statement illustrates this technique:

    JAXBContext jc = JAXBContext.newInstance(instancePath);


  3. Create the unmarshaller. The following statement illustrates this technique:

    Unmarshaller u = jc.createUnmarshaller();


  4. Unmarshal the XML document. The program unmarshals the document twice: it first returns an Object and then uses a cast to return a MyBusiness object. The following statement illustrates this technique:

    Object obj = u.unmarshal(fileToURL(fileName));
    jaxbcustomized.sample10.MyBusiness bus =
             (jaxbcustomized.sample10.MyBusiness) u.unmarshal(fileToURL(fileName));


  5. Print the contents of the XML document. The program invokes the get methods on the MyBusiness object. The following code fragment illustrates this technique:

    System.out.println("My business details are: ");
    System.out.println("    title: " + bus.getTitle());
    System.out.println("    owner: " + bus.getOwner());
    System.out.println("    id:    " + bus.getId().toString());
    System.out.println();


  6. Create a marshaller. The following statement illustrates this technique:

    Marshaller m = jc.createMarshaller();


  7. Configure the marshaller. You can invoke setProperty() to configure various properties the marshaller. The JAXB_FORMATTED_OUTPUT constant specifies that the marshaller should format the resulting XML data with line breaks and indentation. The following statements illustrate this technique:

    m.setProperty(Marshaller.JAXB_FORMATTED_OUTPUT, new Boolean(true));


  8. Marshal the content tree. The following statement serializes the XML data, including markup, as an output stream:

    m.marshal(bus, System.out);



    By default, the marshaller uses UTF-8 encoding when writing XML data to an output stream.
