5 Partitioning in Data Warehouses

Data warehouses often contain large tables and require techniques both for managing these large tables and for providing good query performance across these large tables. This chapter discusses partitioning, a key methodology for addressing these needs.

The following topics are discussed:

Types of Partitioning

This section describes the partitioning features that significantly enhance data access and improve overall application performance. This is especially true for applications that access tables and indexes with millions of rows and many gigabytes of data.

Partitioned tables and indexes facilitate administrative operations by enabling these operations to work on subsets of data. For example, you can add a new partition, organize an existing partition, or drop a partition with minimal to zero interruption to a read-only application.

Using the partitioning methods described in this section can help you tune SQL statements to avoid unnecessary index and table scans (using partition pruning). You can also improve the performance of massive join operations when large amounts of data (for example, several million rows) are joined together by using partition-wise joins. Finally, partitioning data greatly improves manageability of very large databases and dramatically reduces the time required for administrative tasks such as backup and restore.

Granularity in a partitioning scheme can be easily changed by splitting or merging partitions. Thus, if a table's data is skewed to fill some partitions more than others, the ones that contain more data can be split to achieve a more even distribution. Partitioning also allows one to swap partitions with a table. By being able to easily add, remove, or swap a large amount of data quickly, swapping can be used to keep a large amount of data that is being loaded inaccessible until loading is completed, or can be used as a way to stage data between different phases of use. Some examples are current day's transactions or online archives.


See Also:

Oracle Database Concepts for an introduction to the ideas behind partitioning

Partitioning Methods

Oracle offers four partitioning methods:

Each partitioning method has different advantages and design considerations. Thus, each method is more appropriate for a particular situation.

Range Partitioning

Range partitioning maps data to partitions based on ranges of partition key values that you establish for each partition. It is the most common type of partitioning and is often used with dates. For example, you might want to partition sales data into monthly partitions.

Range partitioning maps rows to partitions based on ranges of column values. Range partitioning is defined by the partitioning specification for a table or index in PARTITION BY RANGE(column_list) and by the partitioning specifications for each individual partition in VALUES LESS THAN(value_list), where column_list is an ordered list of columns that determines the partition to which a row or an index entry belongs. These columns are called the partitioning columns. The values in the partitioning columns of a particular row constitute that row's partitioning key.

value_list is an ordered list of values for the columns in the column list. Each value must be either a literal or a TO_DATE or RPAD function with constant arguments. Only the VALUES LESS THAN clause is allowed. This clause specifies a non-inclusive upper bound for the partitions. All partitions, except the first, have an implicit low value specified by the VALUES LESS THAN literal on the previous partition. Any binary values of the partition key equal to or higher than this literal are added to the next higher partition. Highest partition being where MAXVALUE literal is defined. Keyword, MAXVALUE, represents a virtual infinite value that sorts higher than any other value for the data type, including the null value.

The following statement creates a table sales_range that is range partitioned on the sales_date field:

CREATE TABLE sales_range
(salesman_id  NUMBER(5),
salesman_name VARCHAR2(30),
sales_amount  NUMBER(10),
sales_date    DATE)
COMPRESS
PARTITION BY RANGE(sales_date)
(PARTITION sales_jan2000 VALUES LESS THAN(TO_DATE('02/01/2000','DD/MM/YYYY')),
 PARTITION sales_feb2000 VALUES LESS THAN(TO_DATE('03/01/2000','DD/MM/YYYY')),
 PARTITION sales_mar2000 VALUES LESS THAN(TO_DATE('04/01/2000','DD/MM/YYYY')),
 PARTITION sales_apr2000 VALUES LESS THAN(TO_DATE('05/01/2000','DD/MM/YYYY')));


Note:

This table was created with the COMPRESS keyword, thus all partitions inherit this attribute.


See Also:

Oracle Database SQL Reference for partitioning syntax and the Oracle Database Administrator's Guide for more examples

Hash Partitioning

Hash partitioning maps data to partitions based on a hashing algorithm that Oracle applies to a partitioning key that you identify. The hashing algorithm evenly distributes rows among partitions, giving partitions approximately the same size. Hash partitioning is the ideal method for distributing data evenly across devices. Hash partitioning is a good and easy-to-use alternative to range partitioning when data is not historical and there is no obvious column or column list where logical range partition pruning can be advantageous.

Oracle Database uses a linear hashing algorithm and to prevent data from clustering within specific partitions, you should define the number of partitions by a power of two (for example, 2, 4, 8).

The following statement creates a table sales_hash, which is hash partitioned on the salesman_id field:

CREATE TABLE sales_hash
(salesman_id  NUMBER(5),
salesman_name VARCHAR2(30),
sales_amount  NUMBER(10),
week_no       NUMBER(2))
PARTITION BY HASH(salesman_id)
PARTITIONS 4;

See Also:

Oracle Database SQL Reference for partitioning syntax and the Oracle Database Administrator's Guide for more examples


Note:

You cannot define alternate hashing algorithms for partitions.

List Partitioning

List partitioning enables you to explicitly control how rows map to partitions. You do this by specifying a list of discrete values for the partitioning column in the description for each partition. This is different from range partitioning, where a range of values is associated with a partition and with hash partitioning, where you have no control of the row-to-partition mapping. The advantage of list partitioning is that you can group and organize unordered and unrelated sets of data in a natural way. The following example creates a list partitioned table grouping states according to their sales regions:

CREATE TABLE sales_list
(salesman_id  NUMBER(5),
salesman_name VARCHAR2(30),
sales_state   VARCHAR2(20),
sales_amount  NUMBER(10),
sales_date    DATE)
PARTITION BY LIST(sales_state)
(PARTITION sales_west VALUES('California', 'Hawaii') COMPRESS,
 PARTITION sales_east VALUES('New York', 'Virginia', 'Florida'),
 PARTITION sales_central VALUES('Texas', 'Illinois'));

Partition sales_west is furthermore created as a single compressed partition within sales_list. For details about partitioning and compression, see "Partitioning and Table Compression".

An additional capability with list partitioning is that you can use a default partition, so that all rows that do not map to any other partition do not generate an error. For example, modifying the previous example, you can create a default partition as follows:

CREATE TABLE sales_list
(salesman_id  NUMBER(5),
salesman_name VARCHAR2(30),
sales_state   VARCHAR2(20),
sales_amount  NUMBER(10),
sales_date    DATE)
PARTITION BY LIST(sales_state)
(PARTITION sales_west VALUES('California', 'Hawaii'),
 PARTITION sales_east VALUES ('New York', 'Virginia', 'Florida'),
 PARTITION sales_central VALUES('Texas', 'Illinois'),
 PARTITION sales_other VALUES(DEFAULT));


See Also:

Oracle Database SQL Reference for partitioning syntax, "Partitioning and Table Compression" for information regarding data segment compression, and the Oracle Database Administrator's Guide for more examples

Composite Partitioning

Composite partitioning combines range and hash or list partitioning. Oracle Database first distributes data into partitions according to boundaries established by the partition ranges. Then, for range-hash partitioning, Oracle uses a hashing algorithm to further divide the data into subpartitions within each range partition. For range-list partitioning, Oracle divides the data into subpartitions within each range partition based on the explicit list you chose.

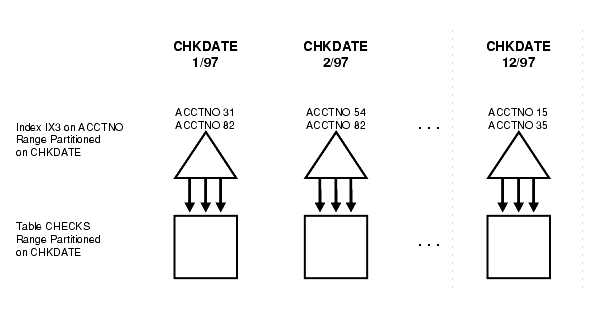

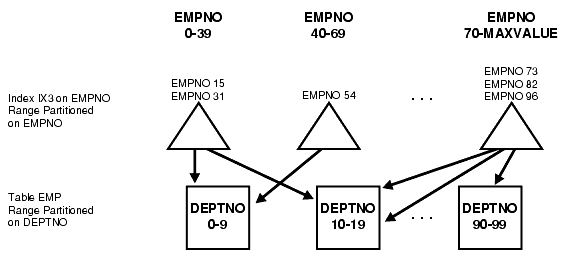

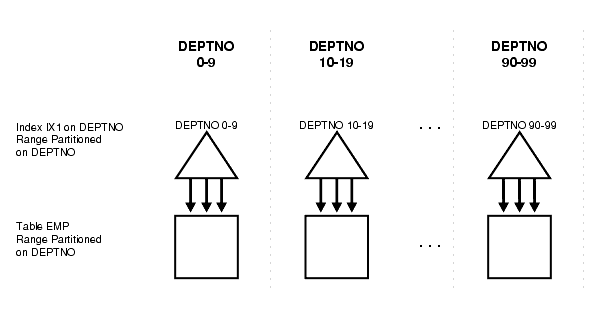

Index Partitioning

You can choose whether or not to inherit the partitioning strategy of the underlying tables. You can create both local and global indexes on a table partitioned by range, hash, or composite methods. Local indexes inherit the partitioning attributes of their related tables. For example, if you create a local index on a composite table, Oracle automatically partitions the local index using the composite method. See Chapter 6, "Indexes" for more information.

Performance Issues for Range, List, Hash, and Composite Partitioning

This section describes performance issues for:

When to Use Range Partitioning

Range partitioning is a convenient method for partitioning historical data. The boundaries of range partitions define the ordering of the partitions in the tables or indexes.

Range partitioning is usually used to organize data by time intervals on a column of type DATE. Thus, most SQL statements accessing range partitions focus on timeframes. An example of this is a SQL statement similar to "select data from a particular period in time." In such a scenario, if each partition represents data for one month, the query "find data of month 98-DEC" needs to access only the December partition of year 98. This reduces the amount of data scanned to a fraction of the total data available, an optimization method called partition pruning.

Range partitioning is also ideal when you periodically load new data and purge old data. It is easy to add or drop partitions.

It is common to keep a rolling window of data, for example keeping the past 36 months' worth of data online. Range partitioning simplifies this process. To add data from a new month, you load it into a separate table, clean it, index it, and then add it to the range-partitioned table using the EXCHANGE PARTITION statement, all while the original table remains online. Once you add the new partition, you can drop the trailing month with the DROP PARTITION statement. The alternative to using the DROP PARTITION statement can be to archive the partition and make it read only, but this works only when your partitions are in separate tablespaces.

In conclusion, consider using range partitioning when:

  • Very large tables are frequently scanned by a range predicate on a good partitioning column, such as ORDER_DATE or PURCHASE_DATE. Partitioning the table on that column enables partition pruning.

  • You want to maintain a rolling window of data.

  • You cannot complete administrative operations, such as backup and restore, on large tables in an allotted time frame, but you can divide them into smaller logical pieces based on the partition range column.

The following example creates the table salestable for a period of two years, 1999 and 2000, and partitions it by range according to the column s_salesdate to separate the data into eight quarters, each corresponding to a partition.

CREATE TABLE salestable
  (s_productid  NUMBER,
   s_saledate   DATE,
   s_custid     NUMBER,
   s_totalprice NUMBER)
PARTITION BY RANGE(s_saledate)
 (PARTITION sal99q1 VALUES LESS THAN (TO_DATE('01-APR-1999', 'DD-MON-YYYY')),
  PARTITION sal99q2 VALUES LESS THAN (TO_DATE('01-JUL-1999', 'DD-MON-YYYY')),
  PARTITION sal99q3 VALUES LESS THAN (TO_DATE('01-OCT-1999', 'DD-MON-YYYY')),
  PARTITION sal99q4 VALUES LESS THAN (TO_DATE('01-JAN-2000', 'DD-MON-YYYY')),
  PARTITION sal00q1 VALUES LESS THAN (TO_DATE('01-APR-2000', 'DD-MON-YYYY')),
  PARTITION sal00q2 VALUES LESS THAN (TO_DATE('01-JUL-2000', 'DD-MON-YYYY')),
  PARTITION sal00q3 VALUES LESS THAN (TO_DATE('01-OCT-2000', 'DD-MON-YYYY')),
  PARTITION sal00q4 VALUES LESS THAN (TO_DATE('01-JAN-2001', 'DD-MON-YYYY')));

When to Use Hash Partitioning

The way Oracle Database distributes data in hash partitions does not correspond to a business or a logical view of the data, as it does in range partitioning. Consequently, hash partitioning is not an effective way to manage historical data. However, hash partitions share some performance characteristics with range partitions. For example, partition pruning is limited to equality predicates. You can also use partition-wise joins, parallel index access, and parallel DML. See "Partition-Wise Joins" for more information.

As a general rule, use hash partitioning for the following purposes:

  • To improve the availability and manageability of large tables.

  • To avoid data skew among partitions. Hash partitioning is an effective means of distributing data because Oracle hashes the data into a number of partitions, each of which can reside on a separate device. Thus, data is evenly spread over a sufficient number of devices to maximize I/O throughput. Similarly, you can use hash partitioning to distribute evenly data among the nodes of an MPP platform that uses Oracle Real Application Clusters.

  • If it is important to use partition pruning and partition-wise joins according to a partitioning key that is mostly constrained by a distinct value or value list.


    Note:

    In hash partitioning, partition pruning uses only equality or IN-list predicates.

If you add or merge a hashed partition, Oracle automatically rearranges the rows to reflect the change in the number of partitions and subpartitions. The hash function that Oracle uses is especially designed to limit the cost of this reorganization. Instead of reshuffling all the rows in the table, Oracles uses an "add partition" logic that splits one and only one of the existing hashed partitions. Conversely, Oracle coalesces a partition by merging two existing hashed partitions.

Although the hash function's use of "add partition" logic dramatically improves the manageability of hash partitioned tables, it means that the hash function can cause a skew if the number of partitions of a hash partitioned table, or the number of subpartitions in each partition of a composite table, is not a power of two. In the worst case, the largest partition can be twice the size of the smallest. So for optimal performance, create a number of partitions and subpartitions for each partition that is a power of two. For example, 2, 4, 8, 16, 32, 64, 128, and so on.

The following example creates four hashed partitions for the table sales_hash using the column s_productid as the partition key:

CREATE TABLE sales_hash
  (s_productid  NUMBER,
   s_saledate   DATE,
   s_custid     NUMBER,
   s_totalprice NUMBER)
PARTITION BY HASH(s_productid)
PARTITIONS 4;

Specify partition names if you want to choose the names of the partitions. Otherwise, Oracle automatically generates internal names for the partitions. Also, you can use the STORE IN clause to assign hash partitions to tablespaces in a round-robin manner.


See Also:

Oracle Database SQL Reference for partitioning syntax and the Oracle Database Administrator's Guide for more examples

When to Use List Partitioning

You should use list partitioning when you want to specifically map rows to partitions based on discrete values.

Unlike range and hash partitioning, multi-column partition keys are not supported for list partitioning. If a table is partitioned by list, the partitioning key can only consist of a single column of the table.

When to Use Composite Range-Hash Partitioning

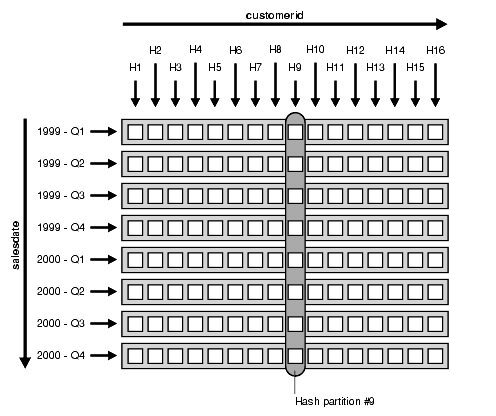

Composite range-hash partitioning offers the benefits of both range and hash partitioning. With composite range-hash partitioning, Oracle first partitions by range. Then, within each range, Oracle creates subpartitions and distributes data within them using the same hashing algorithm it uses for hash partitioned tables.

Data placed in composite partitions is logically ordered only by the boundaries that define the range level partitions. The partitioning of data within each partition has no logical organization beyond the identity of the partition to which the subpartitions belong.

Consequently, tables and local indexes partitioned using the composite range-hash method:

  • Support historical data at the partition level.

  • Support the use of subpartitions as units of parallelism for parallel operations such as PDML or space management and backup and recovery.

  • Are eligible for partition pruning and partition-wise joins on the range and hash partitions.

Using Composite Range-Hash Partitioning

Use the composite range-hash partitioning method for tables and local indexes if:

  • Partitions must have a logical meaning to efficiently support historical data

  • The contents of a partition can be spread across multiple tablespaces, devices, or nodes (of an MPP system)

  • You require both partition pruning and partition-wise joins even when the pruning and join predicates use different columns of the partitioned table

  • You require a degree of parallelism that is greater than the number of partitions for backup, recovery, and parallel operations

Most large tables in a data warehouse should use range partitioning. Composite partitioning should be used for very large tables or for data warehouses with a well-defined need for these conditions. When using the composite method, Oracle stores each subpartition on a different segment. Thus, the subpartitions may have properties that differ from the properties of the table or from the partition to which the subpartitions belong.

The following example partitions the table sales_range_hash by range on the column s_saledate to create four partitions that order data by time. Then, within each range partition, the data is further subdivided into 16 subpartitions by hash on the column s_productid:

CREATE TABLE sales_range_hash(
  s_productid  NUMBER,
  s_saledate   DATE,
  s_custid     NUMBER,
  s_totalprice NUMBER)
PARTITION BY RANGE (s_saledate)
SUBPARTITION BY HASH (s_productid) SUBPARTITIONS 8
 (PARTITION sal99q1 VALUES LESS THAN (TO_DATE('01-APR-1999', 'DD-MON-YYYY')),
  PARTITION sal99q2 VALUES LESS THAN (TO_DATE('01-JUL-1999', 'DD-MON-YYYY')),
  PARTITION sal99q3 VALUES LESS THAN (TO_DATE('01-OCT-1999', 'DD-MON-YYYY')),
  PARTITION sal99q4 VALUES LESS THAN (TO_DATE('01-JAN-2000', 'DD-MON-YYYY')));

Each hashed subpartition contains sales data for a single quarter ordered by product code. The total number of subpartitions is 4x8 or 32.

In addition to this syntax, you can create subpartitions by using a subpartition template. This offers better ease in naming and control of location for tablespaces and subpartitions. The following statement illustrates this:

CREATE TABLE sales_range_hash(
  s_productid  NUMBER,
  s_saledate   DATE,
  s_custid     NUMBER,
  s_totalprice NUMBER)
PARTITION BY RANGE (s_saledate)
SUBPARTITION BY HASH (s_productid)
SUBPARTITION TEMPLATE(
SUBPARTITION sp1 TABLESPACE tbs1,
SUBPARTITION sp2 TABLESPACE tbs2,
SUBPARTITION sp3 TABLESPACE tbs3,
SUBPARTITION sp4 TABLESPACE tbs4,
SUBPARTITION sp5 TABLESPACE tbs5,
SUBPARTITION sp6 TABLESPACE tbs6,
SUBPARTITION sp7 TABLESPACE tbs7,
SUBPARTITION sp8 TABLESPACE tbs8)
(PARTITION sal99q1 VALUES LESS THAN (TO_DATE('01-APR-1999', 'DD-MON-YYYY')),
   PARTITION sal99q2 VALUES LESS THAN (TO_DATE('01-JUL-1999', 'DD-MON-YYYY')),
   PARTITION sal99q3 VALUES LESS THAN (TO_DATE('01-OCT-1999', 'DD-MON-YYYY')),
   PARTITION sal99q4 VALUES LESS THAN (TO_DATE('01-JAN-2000', 'DD-MON-YYYY')));

In this example, every partition has the same number of subpartitions. A sample mapping for sal99q1 is illustrated in Table 5-1. Similar mappings exist for sal99q2 through sal99q4.

Table 5-1 Subpartition Mapping

Subpartition Tablespace
sal99q1_sp1 tbs1
sal99q1_sp2 tbs2
sal99q1_sp3 tbs3
sal99q1_sp4 tbs4
sal99q1_sp5 tbs5
sal99q1_sp6 tbs6
sal99q1_sp7 tbs7
sal99q1_sp8 tbs8


See Also:

Oracle Database SQL Reference for details regarding syntax and restrictions

When to Use Composite Range-List Partitioning

Composite range-list partitioning offers the benefits of both range and list partitioning. With composite range-list partitioning, Oracle first partitions by range. Then, within each range, Oracle creates subpartitions and distributes data within them to organize sets of data in a natural way as assigned by the list.

Data placed in composite partitions is logically ordered only by the boundaries that define the range level partitions.

Using Composite Range-List Partitioning

Use the composite range-list partitioning method for tables and local indexes if:

  • Subpartitions have a logical grouping defined by the user.

  • The contents of a partition can be spread across multiple tablespaces, devices, or nodes (of an MPP system).

  • You require both partition pruning and partition-wise joins even when the pruning and join predicates use different columns of the partitioned table.

  • You require a degree of parallelism that is greater than the number of partitions for backup, recovery, and parallel operations.

Most large tables in a data warehouse should use range partitioning. Composite partitioning should be used for very large tables or for data warehouses with a well-defined need for these conditions. When using the composite method, Oracle stores each subpartition on a different segment. Thus, the subpartitions may have properties that differ from the properties of the table or from the partition to which the subpartitions belong.

This statement creates a table quarterly_regional_sales that is range partitioned on the txn_date field and list subpartitioned on state.

CREATE TABLE quarterly_regional_sales
(deptno NUMBER, item_no VARCHAR2(20),
 txn_date DATE, txn_amount NUMBER, state VARCHAR2(2))
PARTITION BY RANGE (txn_date)
SUBPARTITION BY LIST (state)
(
PARTITION q1_1999 VALUES LESS THAN(TO_DATE('1-APR-1999','DD-MON-YYYY'))
(SUBPARTITION q1_1999_northwest VALUES ('OR', 'WA'),
SUBPARTITION q1_1999_southwest VALUES ('AZ', 'UT', 'NM'),
SUBPARTITION q1_1999_northeast VALUES ('NY', 'VM', 'NJ'),
SUBPARTITION q1_1999_southeast VALUES  ('FL', 'GA'),
SUBPARTITION q1_1999_northcentral VALUES ('SD', 'WI'),
SUBPARTITION q1_1999_southcentral VALUES ('NM', 'TX')),
PARTITION q2_1999 VALUES LESS THAN(TO_DATE('1-JUL-1999','DD-MON-YYYY'))
(SUBPARTITION q2_1999_northwest VALUES ('OR', 'WA'),
SUBPARTITION q2_1999_southwest VALUES ('AZ', 'UT', 'NM'),
SUBPARTITION q2_1999_northeast VALUES ('NY', 'VM', 'NJ'),
SUBPARTITION q2_1999_southeast VALUES ('FL', 'GA'),
SUBPARTITION q2_1999_northcentral VALUES ('SD', 'WI'),
SUBPARTITION q2_1999_southcentral VALUES ('NM', 'TX')),
PARTITION q3_1999 VALUES LESS THAN (TO_DATE('1-OCT-1999','DD-MON-YYYY'))
(SUBPARTITION q3_1999_northwest VALUES ('OR', 'WA'),
SUBPARTITION q3_1999_southwest VALUES  ('AZ', 'UT', 'NM'),
SUBPARTITION q3_1999_northeast VALUES ('NY', 'VM', 'NJ'),
SUBPARTITION q3_1999_southeast VALUES ('FL', 'GA'),
SUBPARTITION q3_1999_northcentral VALUES ('SD', 'WI'),
SUBPARTITION q3_1999_southcentral VALUES ('NM', 'TX')),
PARTITION q4_1999 VALUES LESS THAN (TO_DATE('1-JAN-2000','DD-MON-YYYY'))
(SUBPARTITION q4_1999_northwest VALUES('OR', 'WA'),
SUBPARTITION q4_1999_southwest VALUES('AZ', 'UT', 'NM'),
SUBPARTITION q4_1999_northeast VALUES('NY', 'VM', 'NJ'),
SUBPARTITION q4_1999_southeast VALUES('FL', 'GA'),
SUBPARTITION q4_1999_northcentral VALUES ('SD', 'WI'),
SUBPARTITION q4_1999_southcentral VALUES ('NM', 'TX')));

You can create subpartitions in a composite partitioned table using a subpartition template. A subpartition template simplifies the specification of subpartitions by not requiring that a subpartition descriptor be specified for every partition in the table. Instead, you describe subpartitions only once in a template, then apply that subpartition template to every partition in the table. The following statement illustrates an example where you can choose the subpartition name and tablespace locations:

CREATE TABLE quarterly_regional_sales
(deptno NUMBER,  item_no VARCHAR2(20),
 txn_date DATE,  txn_amount NUMBER,  state VARCHAR2(2))
PARTITION BY RANGE (txn_date)
SUBPARTITION BY LIST (state)
SUBPARTITION TEMPLATE(
SUBPARTITION northwest VALUES ('OR', 'WA') TABLESPACE ts1,
SUBPARTITION southwest VALUES ('AZ', 'UT', 'NM') TABLESPACE ts2,
SUBPARTITION northeast VALUES ('NY', 'VM', 'NJ') TABLESPACE ts3,
SUBPARTITION southeast VALUES ('FL', 'GA') TABLESPACE ts4,
SUBPARTITION northcentral VALUES ('SD', 'WI') TABLESPACE ts5,
SUBPARTITION southcentral VALUES ('NM', 'TX') TABLESPACE ts6)
(
PARTITION q1_1999 VALUES LESS THAN(TO_DATE('1-APR-1999','DD-MON-YYYY')),
PARTITION q2_1999 VALUES LESS THAN(TO_DATE('1-JUL-1999','DD-MON-YYYY')),
PARTITION q3_1999 VALUES LESS THAN(TO_DATE('1-OCT-1999','DD-MON-YYYY')),
PARTITION q4_1999 VALUES LESS THAN(TO_DATE('1-JAN-2000','DD-MON-YYYY')));

See Also:

Oracle Database SQL Reference for details regarding syntax and restrictions

Partitioning and Table Compression

You can compress several partitions or a complete partitioned heap-organized table. You do this by either defining a complete partitioned table as being compressed, or by defining it on a per-partition level. Partitions without a specific declaration inherit the attribute from the table definition or, if nothing is specified on table level, from the tablespace definition.

To decide whether or not a partition should be compressed or stay uncompressed adheres to the same rules as a nonpartitioned table. However, due to the capability of range and composite partitioning to separate data logically into distinct partitions, such a partitioned table is an ideal candidate for compressing parts of the data (partitions) that are mainly read-only. It is, for example, beneficial in all rolling window operations as a kind of intermediate stage before aging out old data. With data segment compression, you can keep more old data online, minimizing the burden of additional storage consumption.

You can also change any existing uncompressed table partition later on, add new compressed and uncompressed partitions, or change the compression attribute as part of any partition maintenance operation that requires data movement, such as MERGE PARTITION, SPLIT PARTITION, or MOVE PARTITION. The partitions can contain data or can be empty.

The access and maintenance of a partially or fully compressed partitioned table are the same as for a fully uncompressed partitioned table. Everything that applies to fully uncompressed partitioned tables is also valid for partially or fully compressed partitioned tables.


See Also:

Chapter 3, "Physical Design in Data Warehouses" for a generic discussion of table compression, Chapter 15, "Maintaining the Data Warehouse" for a sample rolling window operation with a range-partitioned table, and Oracle Database Performance Tuning Guide for an example of calculating the compression ratio

Table Compression and Bitmap Indexes

If you want to use table compression on partitioned tables with bitmap indexes, you need to do the following before you introduce the compression attribute for the first time:

  1. Mark bitmap indexes unusable.

  2. Set the compression attribute.

  3. Rebuild the indexes.

The first time you make a compressed partition part of an already existing, fully uncompressed partitioned table, you must either drop all existing bitmap indexes or mark them UNUSABLE prior to adding a compressed partition. This must be done irrespective of whether any partition contains any data. It is also independent of the operation that causes one or more compressed partitions to become part of the table. This does not apply to a partitioned table having B-tree indexes only.

This rebuilding of the bitmap index structures is necessary to accommodate the potentially higher number of rows stored for each data block with table compression enabled and must be done only for the first time. All subsequent operations, whether they affect compressed or uncompressed partitions, or change the compression attribute, behave identically for uncompressed, partially compressed, or fully compressed partitioned tables.

To avoid the recreation of any bitmap index structure, Oracle recommends creating every partitioned table with at least one compressed partition whenever you plan to partially or fully compress the partitioned table in the future. This compressed partition can stay empty or even can be dropped after the partition table creation.

Having a partitioned table with compressed partitions can lead to slightly larger bitmap index structures for the uncompressed partitions. The bitmap index structures for the compressed partitions, however, are in most cases smaller than the appropriate bitmap index structure before table compression. This highly depends on the achieved compression rates.


Note:

Oracle Database will raise an error if compression is introduced to an object for the first time and there are usable bitmap index segments.

Example of Table Compression and Partitioning

The following statement moves and compresses an already existing partition sales_q1_1998 of table sales:

ALTER TABLE sales
MOVE PARTITION sales_q1_1998 TABLESPACE ts_arch_q1_1998 COMPRESS;

If you use the MOVE statement, the local indexes for partition sales_q1_1998 become unusable. You have to rebuild them afterward, as follows:

ALTER TABLE sales
MODIFY PARTITION sales_q1_1998 REBUILD UNUSABLE LOCAL INDEXES;

The following statement merges two existing partitions into a new, compressed partition, residing in a separate tablespace. The local bitmap indexes have to be rebuilt afterward, as follows:

ALTER TABLE sales MERGE PARTITIONS sales_q1_1998, sales_q2_1998
INTO PARTITION sales_1_1998 TABLESPACE ts_arch_1_1998
COMPRESS UPDATE INDEXES;


See Also:

Oracle Database Performance Tuning Guide for details regarding how to estimate the compression ratio when using table compression

Partition Pruning

Partition pruning is an essential performance feature for data warehouses. In partition pruning, the optimizer analyzes FROM and WHERE clauses in SQL statements to eliminate unneeded partitions when building the partition access list. This enables Oracle Database to perform operations only on those partitions that are relevant to the SQL statement. Oracle Database prunes partitions when you use range, LIKE, equality, and IN-list predicates on the range or list partitioning columns, and when you use equality and IN-list predicates on the hash partitioning columns.

Partition pruning dramatically reduces the amount of data retrieved from disk and shortens the use of processing time, thus improving query performance and resource utilization. If you partition the index and table on different columns (with a global partitioned index), partition pruning also eliminates index partitions even when the partitions of the underlying table cannot be eliminated.

Depending upon the actual SQL statement, Oracle Database may use static or dynamic pruning. Static pruning occurs at compile-time, with the information about the partitions accessed beforehand while dynamic pruning occurs at run-time, meaning that the exact partitions to be accessed by a statement are not known beforehand. A sample scenario for static pruning would be a SQL statement containing a WHERE condition with a constant literal on the partition key column. An example of dynamic pruning is the use of operators or functions in the WHERE condition.

Partition pruning affects the statistics of the objects where pruning will occur and will therefore also affect the execution plan of a statement.

Information that can be Used for Partition Pruning

Oracle Database prunes partitions when you use range, LIKE, equality, and IN-list predicates on the range or list partitioning columns, and when you use equality and IN-list predicates on the hash partitioning columns.

On composite partitioned objects, Oracle can prune at both the range partition level and at the hash or list subpartition level using the relevant predicates. Examine the table sales_range_hash created earlier in this chapter, which is partitioned by range on the column s_salesdate and subpartitioned by hash on the column s_productid, and consider the following example:

SELECT * FROM sales_range_hash
WHERE s_saledate BETWEEN (TO_DATE('01-JUL-1999', 'DD-MON-YYYY'))
  AND (TO_DATE('01-OCT-1999', 'DD-MON-YYYY')) AND s_productid = 1200;

Oracle uses the predicate on the partitioning columns to perform partition pruning as follows:

  • When using range partitioning, Oracle accesses only partitions sal99q2 and sal99q3, representing the partitions for the third and fourth quarters of 1999.

  • When using hash subpartitioning, Oracle accesses only the one subpartition in each partition that stores the rows with s_productid=1200. The mapping between the subpartition and the predicate is calculated based on Oracle's internal hash distribution function.

How to Identify Whether Partition Pruning has been Used

Whether Oracle uses partition pruning or not is reflected in the execution plan of a statement, either in the plan table for the EXPLAIN PLAN statement or in the shared SQL area.

The partition pruning information is reflected in the plan columns PARTITION_START and PARTITION_STOP. In the case of serial statements, the pruning information is also reflected in the OPERATION and OPTIONS columns.

See Oracle Database Performance Tuning Guide for more information about EXPLAIN PLAN and how to interpret it.

Static Partition Pruning

For a number of cases, Oracle determines the partitions to be accessed at compile time. This happens when the predicates on the partitioning columns use a range predicate. In addition, the predicates must only use constants so that Oracle can determine the start and stop partition numbers at compile time. When this happens, the actual partition numbers show up in the partition start partition stop columns of the explain plan. The following is an example:

SQL> explain plan for select * from sales where time_id = to_date('01-jan-2001', 'dd-mon-yyyy');
Explained.

SQL> select * from table(dbms_xplan.display);
PLAN_TABLE_OUTPUT
----------------------------------------------------------------------------------------------
Plan hash value: 3971874201
----------------------------------------------------------------------------------------------
| Id | Operation              | Name  | Rows | Bytes | Cost (%CPU)| Time     | Pstart| Pstop |
----------------------------------------------------------------------------------------------
|  0 | SELECT STATEMENT       |       | 673  | 19517 | 27      (8)| 00:00:01 |       |       |
|  1 |  PARTITION RANGE SINGLE|       | 673  | 19517 | 27      (8)| 00:00:01 | 17    | 17    |
|* 2 |   TABLE ACCESS FULL    | SALES | 673  | 19517 | 27      (8)| 00:00:01 | 17    | 17    |
----------------------------------------------------------------------------------------------
Predicate Information (identified by operation id):
---------------------------------------------------
   2 - filter("TIME_ID"=TO_DATE('2001-01-01 00:00:00', 'yyyy-mm-dd hh24:mi:ss'))

This plan shows that Oracle accesses partition number 17, as shown in the PSTART and PSTOP columns.

Dynamic Partition Pruning

Oracle Database converts the pruning predicates into a partition number at compile time whenever it can. However, there are a number of cases when this is not possible. For example, if a predicate on a partitioning column involves a bind variable, Oracle cannot determine the partition numbers at compile time. Even if bind variables are not used, for certain classes of predicates such as IN-list predicates Oracle accesses a list of predicates not a range. In all these cases, the explain plan will show KEY in the partition start and stop columns. There is also some information about the type of predicate used. For example, if an IN-list predicate was used, the plan output will show KEY(I) in the partition start and stop column. For example, consider the following:

SQL> explain plan for select * from sales s where time_id in ( :a, :b, :c, :d);
Explained.

SQL> select * from table(dbms_xplan.display);
PLAN_TABLE_OUTPUT
---------------------------------------------------------------------------------------------------
Plan hash value: 513834092
---------------------------------------------------------------------------------------------------
| Id | Operation                         |    Name |Rows|Bytes|Cost (%CPU)|  Time  | Pstart| Pstop|
---------------------------------------------------------------------------------------------------
|  0 | SELECT STATEMENT                  |         |2517|72993|    292 (0)|00:00:04|       |      |
|  1 |  INLIST ITERATOR                  |         |    |     |           |        |       |      |
|  2 |   PARTITION RANGE ITERATOR        |         |2517|72993|    292 (0)|00:00:04|KEY(I) |KEY(I)|
|  3 |    TABLE ACCESS BY LOCAL INDEX ROWID| SALES |2517|72993|    292 (0)|00:00:04|KEY(I) |KEY(I)|
|  4 |     BITMAP CONVERSION TO ROWIDS   |         |    |     |           |        |       |      |
|* 5 |      BITMAP INDEX SINGLE VALUE    |SALES_TIME_BIX| |   |           |        |KEY(I) |KEY(I)|
---------------------------------------------------------------------------------------------------
Predicate Information (identified by operation id):
---------------------------------------------------
5 - access("TIME_ID"=:A OR "TIME_ID"=:B OR "TIME_ID"=:C OR "TIME_ID"=:D)

17 rows selected.

For parallel plans only, the partition start and stop columns contain the partition pruning information; the operation column will contain information for the parallel operation, as shown in the following example:

SQL> explain plan for select * from sales where time_id in ( :a, :b, :c, :d);
Explained.

SQL> select * from table(dbms_xplan.display);
PLAN_TABLE_OUTPUT
-------------------------------------------------------------------------------------------------
Plan hash value: 4058105390
-------------------------------------------------------------------------------------------------
| Id| Operation          | Name  |Rows|Bytes|Cost(%CP|  Time  |Pstart| Pstop|  TQ |INOUT| PQ Dis|
-------------------------------------------------------------------------------------------------
|  0| SELECT STATEMENT   |       |2517|72993|  75(36)|00:00:01|      |      |     |     |       |
|  1|  PX COORDINATOR    |       |    |     |        |        |      |      |     |     |       |
|  2|  PX SEND QC(RANDOM)|:TQ10000|2517|72993| 75(36)|00:00:01|      |      |Q1,00| P->S|QC(RAND|
|  3|   PX BLOCK ITERATOR|       |2517|72993|  75(36)|00:00:01|KEY(I)|KEY(I)|Q1,00| PCWC|       |
|* 4|   TABLE ACCESS FULL| SALES |2517|72993|  75(36)|00:00:01|KEY(I)|KEY(I)|Q1,00| PCWP|       |
-------------------------------------------------------------------------------------------------
Predicate Information (identified by operation id):
---------------------------------------------------
  4 - filter("TIME_ID"=:A OR "TIME_ID"=:B OR "TIME_ID"=:C OR "TIME_ID"=:D)

16 rows selected.

See Oracle Database Performance Tuning Guide for more information about EXPLAIN PLAN and how to interpret it.

Basic Partition Pruning Techniques

The optimizer uses a wide variety of predicates for pruning. The three predicate types, equality, range, and IN-list are the most commonly used cases of partition pruning. As an example, consider the following query:

SELECT SUM(amount_sold) day_sales
FROM sales
WHERE time_id = TO_DATE('02-JAN-1998', 'DD-MON-YYYY');

Because there is an equality predicate on the partitioning column of sales, this query will prune down to a single predicate and this will be reflected in the explain plan, as shown in the following:

-----------------------------------------------------------------------------------------------
|  Id | Operation                | Name  | Rows| Bytes | Cost (%CPU)| Time     |Pstart| Pstop |
-----------------------------------------------------------------------------------------------
|   0 | SELECT STATEMENT         |       |     |       | 21 (100)   |          |      |       |
|   1 |  SORT AGGREGATE          |       | 1   | 13    |            |          |      |       |
|   2 |   PARTITION RANGE SINGLE |       | 485 | 6305  | 21 (10)    | 00:00:01 | 5    | 5     |
| * 3 |    TABLE ACCESS FULL     | SALES | 485 | 6305  | 21 (10)    | 00:00:01 | 5    | 5     |
-----------------------------------------------------------------------------------------------
Predicate Information (identified by operation id):
---------------------------------------------------
  3 - filter("TIME_ID"=TO_DATE('1998-01-02 00:00:00', 'yyyy-mm-dd hh24:mi:ss'))

Similarly, a range or an IN-list predicate on the time_id column and the optimizer would be used to prune to a set of partitions.

The partitioning type plays a role in which predicates can be used. Range predicates cannot be used for pruning on hash partitioned tables while they can be used for all other partitioning strategies. However, on list partitioned tables, range predicates do not map to a range predicates do not map to a range of partitions. Equality and IN-list predicates can be used to prune with all the partitioning methods.

Advanced Partition Pruning Techniques

Oracle also prunes in the presence of more complex predicates or SQL statements involving partitioned tables. A common situation is when a partitioned table is joined to the subset of another table, limited by a WHERE condition. For example, consider the following query:

SELECT t.day_number_in_month, SUM(s.amount_sold)
FROM sales s, times t
WHERE s.time_id = t.time_id
  AND t.calendar_month_desc='2000-12'
GROUP BY t.day_number_in_month;

If we performed a nested loop join with times on the right hand side, then we would only access the partition corresponding to this row from the times table. But, if we performed a hash or sort merge join, this would not be possible. If the table with the WHERE predicate is relatively small compared to the partitioned table, and the expected reduction of records or partitions for the partitioned table is significant, Oracle will perform dynamic partition pruning using a recursive subquery. The decision whether or not to invoke subquery pruning is an internal cost-based decision of the optimizer.

A sample plan using a hash join operation would look like the following:

--------------------------------------------------------------------------------------------------
| Id| Operation                    |  Name |  Rows | Bytes| Cost (%CPU)|  Time  | Pstart | Pstop |
--------------------------------------------------------------------------------------------------
|  0| SELECT STATEMENT             |       |       |      | 761 (100)  |        |        |       |
|  1|  HASH GROUP BY               |       |    20 | 640  | 761 (41)   |00:00:10|        |       |
|* 2|   HASH JOIN                  |       | 19153 | 598K | 749 (40)   |00:00:09|        |       |
|* 3|    TABLE ACCESS FULL         | TIMES |    30 |  570 |  17 (6)    |00:00:01|        |       |
|  4|     PARTITION RANGE SUBQUERY |       |  918K | 11M  |   655 (33) |00:00:08| KEY(SQ)|KEY(SQ)|
|  5|      TABLE ACCESS FULL       | SALES |   918 | 11M  |   655 (33) |00:00:08| KEY(SQ)|KEY(SQ)|
--------------------------------------------------------------------------------------------------
Predicate Information (identified by operation id):
---------------------------------------------------
PLAN_TABLE_OUTPUT
--------------------------------------------------------------------------------------------------
  2 - access("S"."TIME_ID"="T"."TIME_ID")
  3 - filter("T"."CALENDAR_MONTH_DESC"='2000-12')

This plan shows that dynamic partition pruning occurred on the sales table.

Another example using advanced pruning is the following, which uses an OR predicate:

SELECT p.promo_name promo_name, (s.profit - p.promo_cost) profit
FROM
   promotions p,
   (SELECT
      promo_id,
      SUM(sales.QUANTITY_SOLD * (costs.UNIT_PRICE - costs.UNIT_COST)) profit
   FROM
      sales, costs
   WHERE
      ((sales.time_id BETWEEN TO_DATE('01-JAN-1998','DD-MON-YYYY',
                  'NLS_DATE_LANGUAGE = American') AND
      TO_DATE('01-JAN-1999','DD-MON-YYYY', 'NLS_DATE_LANGUAGE = American')
OR
      (sales.time_id BETWEEN TO_DATE('01-JAN-2001','DD-MON-YYYY',
                  'NLS_DATE_LANGUAGE = American') AND
      TO_DATE('01-JAN-2002','DD-MON-YYYY', 'NLS_DATE_LANGUAGE = American')))
      AND sales.time_id = costs.time_id
      AND sales.prod_id = costs.prod_id
   GROUP BY
      promo_id) s
WHERE s.promo_id = p.promo_id
ORDER BY profit
DESC;

This query joins the sales and costs tables in the sh sample schema. The sales table is partitioned by range on the column time_id. One of the conditions in the query are two predicates on time_id, which are combined with an OR operator. This OR predicate is used to prune the partitions in sales table and a single join between sales and costs table is performed. The plan is as follows:

--------------------------------------------------------------------------------------------------
| Id| Operation               |  Name    |Rows |Bytes |TmpSp|Cost(%CPU)| Time    | Pstart| Pstop |
--------------------------------------------------------------------------------------------------
|  0| SELECT STATEMENT        |          | 4   |  200 |     | 3556 (14)| 00:00:43|       |       |
|  1|  SORT ORDER BY          |          | 4   |  200 |     | 3556 (14)| 00:00:43|       |       |
|* 2|   HASH JOIN             |          | 4   |  200 |     | 3555 (14)| 00:00:43|       |       |
|  3|    TABLE ACCESS FULL    |PROMOTIONS| 503 | 16599|     |    16 (0)| 00:00:01|       |       |
|  4|    VIEW                 |          |   4 |   68 |     | 3538 (14)| 00:00:43|       |       |
|  5|     HASH GROUP BY       |          |   4 |  164 |     | 3538 (14)| 00:00:43|       |       |
|  6|      PARTITION RANGE OR |          | 314K|   12M|     |  3321 (9)| 00:00:40|KEY(OR)|KEY(OR)|
|* 7|       HASH JOIN         |          | 314K|   12M| 440K|  3321 (9)| 00:00:40|       |       |
|* 8|        TABLE ACCESS FULL| SALES    | 402K| 7467K|     |  400 (39)| 00:00:05|KEY(OR)|KEY(OR)|
|  9| TABLE ACCESS FULL       | COSTS    |82112| 1764K|     |   77 (24)| 00:00:01|KEY(OR)|KEY(OR)|
--------------------------------------------------------------------------------------------------
Predicate Information (identified by operation id):
---------------------------------------------------
  2 - access("S"."PROMO_ID"="P"."PROMO_ID")
  7 - access("SALES"."TIME_ID"="COSTS"."TIME_ID" AND "SALES"."PROD_ID"="COSTS"."PROD_ID")
  8 - filter("SALES"."TIME_ID"<=TO_DATE('1999-01-01 00:00:00', 'yyyy-mm-dd hh24:mi:ss') AND
      "SALES"."TIME_ID">=TO_DATE('1998-01-01 00:00:00', 'yyyy-mm-dd hh24:mi:ss') OR
      "SALES"."TIME_ID">=TO_DATE('2001-01-01 00:00:00', 'yyyy-mm-dd hh24:mi:ss') AND
      "SALES"."TIME_ID"<=TO_DATE('2002-01-01 00:00:00', 'yyyy-mm-dd hh24:mi:ss'))

Oracle also does additional pruning when a column is range partitioned on multiple columns. As long as Oracle can guarantee that a particular predicate cannot be satisfied in a particular partition, the partition will be skipped. This allows Oracle to optimize cases where there are range predicates on more than one column or in the case where there are no predicates on a prefix of the partitioning columns.

Partition Pruning Tips

When using partition pruning, you should consider the following:

Partition Pruning Using DATE Columns

A common mistake occurs when using the Oracle DATE datatype. An Oracle DATE datatype is not a character string, but is only represented as such when querying the database; the format of the representation is defined by the NLS setting of the instance or the session. Consequently, the same reverse conversion has to happen when inserting data into a DATE filed or specifying a predicate on such a field.

A conversion can either happen implicitly or explicitly by specifying a TO_DATE conversion. Only a properly applied TO_DATE function guarantees that Oracle is capable of uniquely determining the date value and using it potentially for static pruning, which is especially beneficial for single partition access.

Rewriting the example of the "Basic Partition Pruning Techniques" slightly, using the two-digit date format RR causes the predicate to become non-deterministic, thus causing dynamic pruning:

SELECT SUM(amount_sold) day_sales
FROM sales,
WHERE time_id = '02-JAN-98';

The plan now should be similar to the following:

----------------------------------------------------------------------------------------------
| Id | Operation             | Name  | Rows| Bytes | Cost (%CPU) | Time     | Pstart | Pstop |
----------------------------------------------------------------------------------------------
|  0 | SELECT STATEMENT      |       |     |       | 31 (100)    |          |        |       |
|  1 |  SORT AGGREGATE       |       | 1   |    13 |             |          |        |       |
|  2 |   PARTITION RANGE SINGLE|     | 629 |  8177 | 31 (46)     | 00:00:01 |    KEY |   KEY |
|* 3 |    TABLE ACCESS FULL  | SALES | 629 |  8177 | 31 (46)     | 00:00:01 |    KEY |   KEY |
----------------------------------------------------------------------------------------------
Predicate Information (identified by operation id):
---------------------------------------------------
  3 – filter("TIME_ID"='02-JAN-98')

The keyword KEY for both columns means that partition pruning occurs at run-time. See Oracle Database SQL Reference for details about the DATE datatype and Oracle Database Globalization Support Guide for details about NLS settings and globalization issues.

SQL Constructs to Avoid

There are several cases when the optimizer cannot perform any pruning. One of the most common reasons is when an operator is on top of a partitioning column. This could be an explicit operator (for example, a function) or even an implicit operator introduced by Oracle as part of the necessary data type conversion for executing the statement. For example, consider the following query:

EXPLAIN PLAN FOR
SELECT SUM(quantity_sold)
FROM sales
WHERE time_id = TO_TIMESTAMP('1-jan'2000', 'dd-mon-yyyy');

Because time_id is of type DATE and Oracle needs to promote it to the TIMESTAMP type to get the same datatype, this predicate is internally rewritten as:

TO_TIMESTAMP(time_id) = TO_TIMESTAMP('1-jan-2000', 'dd-mon-yyyy')

The explain plan for this statement is as follows:

--------------------------------------------------------------------------------------------
|Id | Operation            | Name  | Rows  | Bytes | Cost (%CPU)| Time     | Pstart| Pstop |
--------------------------------------------------------------------------------------------
| 0 | SELECT STATEMENT     |       |     1 |    11 |     6  (17)| 00:00:01 |       |       |
| 1 |  SORT AGGREGATE      |       |     1 |    11 |            |          |       |       |
| 2 |   PARTITION RANGE ALL|       |    10 |   110 |     6  (17)| 00:00:01 |     1 |    16 |
|*3 |    TABLE ACCESS FULL | SALES |    10 |   110 |     6  (17)| 00:00:01 |     1 |    16 |
--------------------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------
3 - filter(INTERNAL_FUNCTION("TIME_ID")=TO_TIMESTAMP('1-jan-2000',:B1))

15 rows selected

Partition-Wise Joins

Partition-wise joins reduce query response time by minimizing the amount of data exchanged among parallel execution servers when joins execute in parallel. This significantly reduces response time and improves the use of both CPU and memory resources. In Oracle Real Application Clusters environments, partition-wise joins also avoid or at least limit the data traffic over the interconnect, which is the key to achieving good scalability for massive join operations.

Partition-wise joins can be full or partial. Oracle decides which type of join to use.

Full Partition-Wise Joins

A full partition-wise join divides a large join into smaller joins between a pair of partitions from the two joined tables. To use this feature, you must equipartition both tables on their join keys. For example, consider a large join between a sales table and a customer table on the column customerid. The query "find the records of all customers who bought more than 100 articles in Quarter 3 of 1999" is a typical example of a SQL statement performing such a join. The following is an example of this:

SELECT c.cust_last_name, COUNT(*)
FROM sales s, customers c
WHERE s.cust_id = c.cust_id AND
s.time_id BETWEEN TO_DATE('01-JUL-1999', 'DD-MON-YYYY') AND
     (TO_DATE('01-OCT-1999', 'DD-MON-YYYY'))
GROUP BY c.cust_last_name HAVING COUNT(*) > 100;

This large join is typical in data warehousing environments. The entire customer table is joined with one quarter of the sales data. In large data warehouse applications, this might mean joining millions of rows. The join method to use in that case is obviously a hash join. You can reduce the processing time for this hash join even more if both tables are equipartitioned on the customerid column. This enables a full partition-wise join.

When you execute a full partition-wise join in parallel, the granule of parallelism is a partition. As a result, the degree of parallelism is limited to the number of partitions. For example, you require at least 16 partitions to set the degree of parallelism of the query to 16.

You can use various partitioning methods to equipartition both tables on the column customerid with 16 partitions. These methods are described in these subsections.

Hash-Hash

This is the simplest method: the customers and sales tables are both partitioned by hash into 16 partitions, on the s_customerid and c_customerid columns. This partitioning method enables full partition-wise join when the tables are joined on c_customerid and s_customerid, both representing the same customer identification number. Because you are using the same hash function to distribute the same information (customer ID) into the same number of hash partitions, you can join the equivalent partitions. They are storing the same values.

In serial, this join is performed between pairs of matching hash partitions, one at a time. When one partition pair has been joined, the join of another partition pair begins. The join completes when the 16 partition pairs have been processed.


Note:

A pair of matching hash partitions is defined as one partition with the same partition number from each table. For example, with full partition-wise joins we join partition 0 of sales with partition 0 of customers, partition 1 of sales with partition 1 of customers, and so on.

Parallel execution of a full partition-wise join is a straightforward parallelization of the serial execution. Instead of joining one partition pair at a time, 16 partition pairs are joined in parallel by the 16 query servers. Figure 5-1 illustrates the parallel execution of a full partition-wise join.

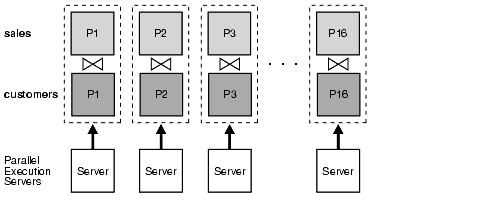

Figure 5-1 Parallel Execution of a Full Partition-wise Join

Description of dwhsg105.gif follows
Description of the illustration dwhsg105.gif

Hash-Hash

In Figure 5-1, assume that the degree of parallelism and the number of partitions are the same, in other words, 16 for both. Defining more partitions than the degree of parallelism may improve load balancing and limit possible skew in the execution. If you have more partitions than query servers, when one query server completes the join of one pair of partitions, it requests that the query coordinator give it another pair to join. This process repeats until all pairs have been processed. This method enables the load to be balanced dynamically when the number of partition pairs is greater than the degree of parallelism, for example, 64 partitions with a degree of parallelism of 16.


Note:

To guarantee an equal work distribution, the number of partitions should always be a multiple of the degree of parallelism.

In Oracle Real Application Clusters environments running on shared-nothing or MPP platforms, placing partitions on nodes is critical to achieving good scalability. To avoid remote I/O, both matching partitions should have affinity to the same node. Partition pairs should be spread over all nodes to avoid bottlenecks and to use all CPU resources available on the system.

Nodes can host multiple pairs when there are more pairs than nodes. For example, with an 8-node system and 16 partition pairs, each node receives two pairs.

(Composite-Hash)-Hash

This method is a variation of the hash-hash method. The sales table is a typical example of a table storing historical data. For all the reasons mentioned under the heading When to Use Range Partitioning range is the logical initial partitioning method.

For example, assume you want to partition the sales table into eight partitions by range on the column s_salesdate. Also assume you have two years and that each partition represents a quarter. Instead of using range partitioning, you can use composite partitioning to enable a full partition-wise join while preserving the partitioning on s_salesdate. Partition the sales table by range on s_salesdate and then subpartition each partition by hash on s_customerid using 16 subpartitions for each partition, for a total of 128 subpartitions. The customers table can still use hash partitioning with 16 partitions.

When you use the method just described, a full partition-wise join works similarly to the one created by the hash-hash method. The join is still divided into 16 smaller joins between hash partition pairs from both tables. The difference is that now each hash partition in the sales table is composed of a set of 8 subpartitions, one from each range partition.

Figure 5-2 illustrates how the hash partitions are formed in the sales table. Each cell represents a subpartition. Each row corresponds to one range partition, for a total of 8 range partitions. Each range partition has 16 subpartitions. Each column corresponds to one hash partition for a total of 16 hash partitions; each hash partition has 8 subpartitions. Note that hash partitions can be defined only if all partitions have the same number of subpartitions, in this case, 16.

Hash partitions are implicit in a composite table. However, Oracle does not record them in the data dictionary, and you cannot manipulate them with DDL commands as you can range partitions.

Figure 5-2 Range and Hash Partitions of a Composite Table

Description of dwhsg026.gif follows
Description of the illustration dwhsg026.gif

(Composite-Hash)-Hash partitioning is effective because it lets you combine pruning (on s_salesdate) with a full partition-wise join (on customerid). In the previous example query, pruning is achieved by scanning only the subpartitions corresponding to Q3 of 1999, in other words, row number 3 in Figure 5-2. Oracle then joins these subpartitions with the customer table, using a full partition-wise join.

All characteristics of the hash-hash partition-wise join apply to the composite-hash partition-wise join. In particular, for this example, these two points are common to both methods:

  • The degree of parallelism for this full partition-wise join cannot exceed 16. Even though the sales table has 128 subpartitions, it has only 16 hash partitions.

  • The rules for data placement on MPP systems apply here. The only difference is that a hash partition is now a collection of subpartitions. You must ensure that all these subpartitions are placed on the same node as the matching hash partition from the other table. For example, in Figure 5-2, store hash partition 9 of the sales table shown by the eight circled subpartitions, on the same node as hash partition 9 of the customers table.

(Composite-List)-List

The (Composite-List)-List method resembles that for (Composite-Hash)-Hash partition-wise joins.

(Composite-Composite (Hash/List Dimension)

If needed, you can also partition the customer table by the composite method. For example, you partition it by range on a postal code column to enable pruning based on postal code. You then subpartition it by hash on customerid using the same number of partitions (16) to enable a partition-wise join on the hash dimension.

Range-Range and List-List

You can also join range partitioned tables with range partitioned tables and list partitioned tables with list partitioned tables in a partition-wise manner, but this is relatively uncommon. This is more complex to implement because you must know the distribution of the data before performing the join. Furthermore, if you do not correctly identify the partition bounds so that you have partitions of equal size, data skew during the execution may result.

The basic principle for using range-range and list-list is the same as for using hash-hash: you must equipartition both tables. This means that the number of partitions must be the same and the partition bounds must be identical. For example, assume that you know in advance that you have 10 million customers, and that the values for customerid vary from 1 to 10,000,000. In other words, you have 10 million possible different values. To create 16 partitions, you can range partition both tables, sales on s_customerid and customers on c_customerid. You should define partition bounds for both tables in order to generate partitions of the same size. In this example, partition bounds should be defined as 625001, 1250001, 1875001, ... 10000001, so that each partition contains 625000 rows.

Range-Composite, Composite-Composite (Range Dimension)

Finally, you can also subpartition one or both tables on another column. Therefore, the range-composite and composite-composite methods on the range dimension are also valid for enabling a full partition-wise join on the range dimension.

Partial Partition-Wise Joins

Oracle can perform partial partition-wise joins only in parallel. Unlike full partition-wise joins, partial partition-wise joins require you to partition only one table on the join key, not both tables. The partitioned table is referred to as the reference table. The other table may or may not be partitioned. Partial partition-wise joins are more common than full partition-wise joins.

To execute a partial partition-wise join, Oracle dynamically repartitions the other table based on the partitioning of the reference table. Once the other table is repartitioned, the execution is similar to a full partition-wise join.

The performance advantage that partial partition-wise joins have over joins in non-partitioned tables is that the reference table is not moved during the join operation. Parallel joins between non-partitioned tables require both input tables to be redistributed on the join key. This redistribution operation involves exchanging rows between parallel execution servers. This is a CPU-intensive operation that can lead to excessive interconnect traffic in Oracle Real Application Clusters environments. Partitioning large tables on a join key, either a foreign or primary key, prevents this redistribution every time the table is joined on that key. Of course, if you choose a foreign key to partition the table, which is the most common scenario, select a foreign key that is involved in many queries.

To illustrate partial partition-wise joins, consider the previous sales/customer example. Assume that sales is not partitioned or is partitioned on a column other than s_customerid. Because sales is often joined with customers on customerid, and because this join dominates our application workload, partition sales on s_customerid to enable partial partition-wise join every time customers and sales are joined. As in full partition-wise join, you have several alternatives:

Hash-List

The simplest method to enable a partial partition-wise join is to partition sales by hash on s_customerid. The number of partitions determines the maximum degree of parallelism, because the partition is the smallest granule of parallelism for partial partition-wise join operations.

The parallel execution of a partial partition-wise join is illustrated in Figure 5-3, which assumes that both the degree of parallelism and the number of partitions of sales are 16. The execution involves two sets of query servers: one set, labeled set 1 in Figure 5-3, scans the customers table in parallel. The granule of parallelism for the scan operation is a range of blocks.

Rows from customers that are selected by the first set, in this case all rows, are redistributed to the second set of query servers by hashing customerid. For example, all rows in customers that could have matching rows in partition P1 of sales are sent to query server 1 in the second set. Rows received by the second set of query servers are joined with the rows from the corresponding partitions in sales. Query server number 1 in the second set joins all customers rows that it receives with partition P1 of sales.

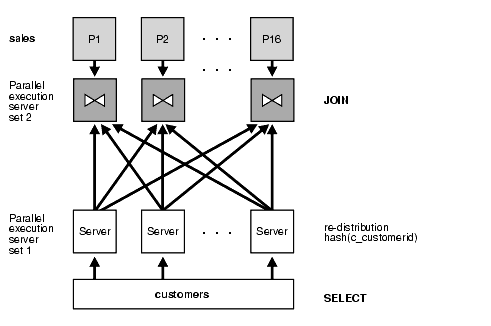

Figure 5-3 Partial Partition-Wise Join

Description of dwhsg074.gif follows
Description of the illustration dwhsg074.gif


Note:

This section is based on range-hash, but it also applies for range-list partial partition-wise joins.

Considerations for full partition-wise joins also apply to partial partition-wise joins:

  • The degree of parallelism does not need to equal the number of partitions. In Figure 5-3, the query executes with two sets of 16 query servers. In this case, Oracle assigns 1 partition to each query server of the second set. Again, the number of partitions should always be a multiple of the degree of parallelism.

  • In Oracle Real Application Clusters environments on shared-nothing platforms (MPPs), each hash partition of sales should preferably have affinity to only one node in order to avoid remote I/Os. Also, spread partitions over all nodes to avoid bottlenecks and use all CPU resources available on the system. A node can host multiple partitions when there are more partitions than nodes.

Composite

As with full partition-wise joins, the prime partitioning method for the sales table is to use the range method on column s_salesdate. This is because sales is a typical example of a table that stores historical data. To enable a partial partition-wise join while preserving this range partitioning, subpartition sales by hash on column s_customerid using 16 subpartitions for each partition. Pruning and partial partition-wise joins can be used together if a query joins customers and sales and if the query has a selection predicate on s_salesdate.

When sales is composite, the granule of parallelism for a partial partition-wise join is a hash partition and not a subpartition. Refer to Figure 5-2 for an illustration of a hash partition in a composite table. Again, the number of hash partitions should be a multiple of the degree of parallelism. Also, on an MPP system, ensure that each hash partition has affinity to a single node. In the previous example, the eight subpartitions composing a hash partition should have affinity to the same node.


Note:

This section is based on range-hash, but it also applies for range-list partial partition-wise joins.

Range

Finally, you can use range partitioning on s_customerid to enable a partial partition-wise join. This works similarly to the hash method, but a side effect of range partitioning is that the resulting data distribution could be skewed if the size of the partitions differs. Moreover, this method is more complex to implement because it requires prior knowledge of the values of the partitioning column that is also a join key.

Benefits of Partition-Wise Joins

Partition-wise joins offer benefits described in this section:

Reduction of Communications Overhead

When executed in parallel, partition-wise joins reduce communications overhead. This is because, in the default case, parallel execution of a join operation by a set of parallel execution servers requires the redistribution of each table on the join column into disjoint subsets of rows. These disjoint subsets of rows are then joined pair-wise by a single parallel execution server.

Oracle can avoid redistributing the partitions because the two tables are already partitioned on the join column. This enables each parallel execution server to join a pair of matching partitions.

This improved performance from using parallel execution is even more noticeable in Oracle Real Application Clusters configurations with internode parallel execution. Partition-wise joins dramatically reduce interconnect traffic. Using this feature is for large DSS configurations that use Oracle Real Application Clusters.

Currently, most Oracle Real Application Clusters platforms, such as MPP and SMP clusters, provide limited interconnect bandwidths compared with their processing powers. Ideally, interconnect bandwidth should be comparable to disk bandwidth, but this is seldom the case. As a result, most join operations in Oracle Real Application Clusters experience high interconnect latencies without parallel execution of partition-wise joins.

Reduction of Memory Requirements

Partition-wise joins require less memory than the equivalent join operation of the complete data set of the tables being joined.

In the case of serial joins, the join is performed at the same time on a pair of matching partitions. If data is evenly distributed across partitions, the memory requirement is divided by the number of partitions. There is no skew.

In the parallel case, memory requirements depend on the number of partition pairs that are joined in parallel. For example, if the degree of parallelism is 20 and the number of partitions is 100, 5 times less memory is required because only 20 joins of two partitions are performed at the same time. The fact that partition-wise joins require less memory has a direct effect on performance. For example, the join probably does not need to write blocks to disk during the build phase of a hash join.

Performance Considerations for Parallel Partition-Wise Joins

The optimizer weighs the advantages and disadvantages when deciding whether or not to use partition-wise joins.

  • In range partitioning where partition sizes differ, data skew increases response time; some parallel execution servers take longer than others to finish their joins. Oracle recommends the use of hash (sub)partitioning to enable partition-wise joins because hash partitioning, if the number of partitions is a power of two, limits the risk of skew.

  • The number of partitions used for partition-wise joins should, if possible, be a multiple of the number of query servers. With a degree of parallelism of 16, for example, you can have 16, 32, or even 64 partitions. If there is an even number of partitions, some parallel execution servers are used less than others. For example, if there are 17 evenly distributed partition pairs, only one pair will work on the last join, while the other pairs will have to wait. This is because, in the beginning of the execution, each parallel execution server works on a different partition pair. At the end of this first phase, only one pair is left. Thus, a single parallel execution server joins this remaining pair while all other parallel execution servers are idle.

  • Sometimes, parallel joins can cause remote I/Os. For example, on Oracle Real Application Clusters environments running on MPP configurations, if a pair of matching partitions is not collocated on the same node, a partition-wise join requires extra internode communication due to remote I/O. This is because Oracle must transfer at least one partition to the node where the join is performed. In this case, it is better to explicitly redistribute the data than to use a partition-wise join.

Partition Maintenance

Maintaining partitions is one of the most important and time-consuming tasks when working with partitions. See Oracle Database Administrator's Guide and Chapter 15, "Maintaining the Data Warehouse" for more information.

Partitioning and Subpartitioning Columns and Keys

The partitioning columns (or subpartitioning columns) of a table or index consist of an ordered list of columns whose values determine how the data is partitioned or subpartitioned. This list can include up to 16 columns, and cannot include any of the following types of columns:

A row's partitioning key is an ordered list of its values for the partitioning columns. Similarly, in composite partitioning a row's subpartitioning key is an ordered list of its values for the subpartitioning columns. Oracle applies either the range, list, or hash method to each row's partitioning key or subpartitioning key to determine which partition or subpartition the row belongs in.

Partition Bounds for Range Partitioning

In a range-partitioned table or index, the partitioning key of each row is compared with a set of upper and lower bounds to determine which partition the row belongs in:

The partition bounds collectively define an ordering of the partitions in a table or index. The first partition is the partition with the lowest VALUES LESS THAN clause, and the last or highest partition is the partition with the highest VALUES LESS THAN clause.

Comparing Partitioning Keys with Partition Bounds

If you attempt to insert a row into a table and the row's partitioning key is greater than or equal to the partition bound for the highest partition in the table, the insert will fail.

When comparing character values in partitioning keys and partition bounds, characters are compared according to their binary values. However, if a character consists of more than one byte, Oracle compares the binary value of each byte, not of the character. The comparison also uses the comparison rules associated with the column data type. For example, blank-padded comparison is done for the ANSI CHAR data type. The NLS parameters, specifically the initialization parameters NLS_SORT and NLS_LANGUAGE and the environment variable NLS_LANG, have no effect on the comparison.

The binary value of character data varies depending on which character set is being used (for example, ASCII or EBCDIC). For example, ASCII defines the characters A through Z as less than the characters a through z, whereas EBCDIC defines A through Z as being greater than a through z. Thus, partitions designed for one sequence will not work with the other sequence. You must repartition the table after importing from a table using a different character set.

MAXVALUE

You can specify the keyword MAXVALUE for any value in the partition bound value_list. This keyword represents a virtual infinite value that sorts higher than any other value for the data type, including the NULL value.

For example, you might partition the OFFICE table on STATE (a CHAR(10) column) into three partitions with the following partition bounds:

  • VALUES LESS THAN ('I'): States whose names start with A through H

  • VALUES LESS THAN ('S'): States whose names start with I through R

  • VALUES LESS THAN (MAXVALUE): States whose names start with S through Z, plus special codes for non-U.S. regions

Nulls

NULL cannot be specified as a value in a partition bound value_list. An empty string also cannot be specified as a value in a partition bound value_list, because it is treated as NULL within the database server.

For the purpose of assigning rows to partitions, Oracle Database sorts nulls greater than all other values except MAXVALUE. Nulls sort less than MAXVALUE.

This means that if a table is partitioned on a nullable column, and the column is to contain nulls, then the highest partition should have a partition bound of MAXVALUE for that column. Otherwise the rows that contain nulls will map above the highest partition in the table and the insert will fail.

DATE Datatypes

If the partition key includes a column that has the DATE datatype and the NLS date format does not specify the century with the year, you must specify partition bounds using the TO_DATE function with a 4-character format mask for the year. Otherwise, you will not be able to create the table or index. For example, with the sales_range table using a DATE column:

CREATE TABLE sales_range
(salesman_id  NUMBER(5),
salesman_name VARCHAR2(30),
sales_amount  NUMBER(10),
sales_date    DATE)
COMPRESS
PARTITION BY RANGE(sales_date)
(PARTITION sales_jan2000 VALUES LESS THAN(TO_DATE('02/01/2000','DD/MM/YYYY')),
 PARTITION sales_feb2000 VALUES LESS THAN(TO_DATE('03/01/2000','DD/MM/YYYY')),
 PARTITION sales_mar2000 VALUES LESS THAN(TO_DATE('04/01/2000','DD/MM/YYYY')),
 PARTITION sales_apr2000 VALUES LESS THAN(TO_DATE('05/01/2000','DD/MM/YYYY')));

When you query or modify data, it is recommended that you use the TO_DATE function in the WHERE clause so that the value of the date information can be determined at compile time. However, the optimizer can prune partitions using a selection criterion on partitioning columns of type DATE when you use another format, as in the following examples:

SELECT * FROM sales_range
  WHERE sales_date BETWEEN TO_DATE('01-JUL-00', 'DD-MON-YY')
  AND TO_DATE('01-OCT-00', 'DD-MON-YY');

SELECT * FROM sales_range
  WHERE sales_date BETWEEN '01-JUL-2000' AND '01-OCT-2000';

In this case, the date value will be complete only at runtime. Therefore you will not be able to see which partitions Oracle is accessing as is usually shown on the partition_start and partition_stop columns of the EXPLAIN PLAN statement output on the SQL statement. Instead, you will see the keyword KEY for both columns.

Multicolumn Partitioning Keys

When a table or index is partitioned by range on multiple columns, each partition bound and partitioning key is a list (or vector) of values. The partition bounds and keys are ordered according to ANSI SQL2 vector comparison rules. This is also the way Oracle orders multicolumn index keys.

To compare a partitioning key with a partition bound, you compare the values of their corresponding columns until you find an unequal pair and then that pair determines which vector is greater. The values of any remaining columns have no effect on the comparison.


See Also:

Oracle Database Administrator's Guide for more information regarding multicolumn partitioning keys

Implicit Constraints Imposed by Partition Bounds

If you specify a partition bound other than MAXVALUE for the highest partition in a table, this imposes an implicit CHECK constraint on the table. This constraint is not recorded in the data dictionary, but the partition bound itself is recorded.

Index Partitioning

The rules for partitioning indexes are similar to those for tables:

However, partitioned indexes are more complicated than partitioned tables because there are three types of partitioned indexes:

These types are described in the following section. Oracle supports all three types.

Local Partitioned Indexes

In a local index, all keys in a particular index partition refer only to rows stored in a single underlying table partition. A local index is created by specifying the LOCAL attribute.

Oracle constructs the local index so that it is equipartitioned with the underlying table. Oracle partitions the index on the same columns as the underlying table, creates the same number of partitions or subpartitions, and gives them the same partition bounds as corresponding partitions of the underlying table.

Oracle also maintains the index partitioning automatically when partitions in the underlying table are added, dropped, merged, or split, or when hash partitions or subpartitions are added or coalesced. This ensures that the index remains equipartitioned with the table.

A local index can be created UNIQUE if the partitioning columns form a subset of the index columns. This restriction guarantees that rows with identical index keys always map into the same partition, where uniqueness violations can be detected.

Local indexes have the following advantages:

  • Only one index partition needs to be rebuilt when a maintenance operation other than SPLIT PARTITION or ADD PARTITION is performed on an underlying table partition.

  • The duration of a partition maintenance operation remains proportional to partition size if the partitioned table has only local indexes.

  • Local indexes support partition independence.

  • Local indexes support smooth roll-out of old data and roll-in of new data in historical tables.

  • Oracle can take advantage of the fact that a local index is equipartitioned with the underlying table to generate better query access plans.

  • Local indexes simplify the task of tablespace incomplete recovery. In order to recover a partition or subpartition of a table to a point in time, you must also recover the corresponding index entries to the same point in time. The only way to accomplish this is with a local index. Then you can recover the corresponding table and index partitions or subpartitions together.


  • See Also:

    Oracle Database PL/SQL Packages and Types Reference for a description of the DBMS_PCLXUTIL package

Local Prefixed Indexes

A local index is prefixed if it is partitioned on a left prefix of the index columns. For example, if the sales table and its local index sales_ix are partitioned on the week_num column, then index sales_ix is local prefixed if it is defined on the columns (week_num, xaction_num). On the other hand, if index sales_ix is defined on column product_num then it is not prefixed.

Local prefixed indexes can be unique or nonunique.

Figure 5-4 illustrates another example of a local prefixed index.

Figure 5-4 Local Prefixed Index

Description of dwhsg118.gif follows
Description of the illustration dwhsg118.gif

Local Nonprefixed Indexes

A local index is nonprefixed if it is not partitioned on a left prefix of the index columns.

You cannot have a unique local nonprefixed index unless the partitioning key is a subset of the index key.

Figure 5-5 illustrates an example of a local nonprefixed index.

Figure 5-5 Local Nonprefixed Index

Description of dwhsg117.gif follows
Description of the illustration dwhsg117.gif

Global Partitioned Indexes

In a global partitioned index, the keys in a particular index partition may refer to rows stored in more than one underlying table partition or subpartition. A global index can be range or hash partitioned, though it can be defined on any type of partitioned table.

A global index is created by specifying the GLOBAL attribute. The database administrator is responsible for defining the initial partitioning of a global index at creation and for maintaining the partitioning over time. Index partitions can be merged or split as necessary.

Normally, a global index is not equipartitioned with the underlying table. There is nothing to prevent an index from being equipartitioned with the underlying table, but Oracle does not take advantage of the equipartitioning when generating query plans or executing partition maintenance operations. So an index that is equipartitioned with the underlying table should be created as LOCAL.

A global partitioned index contains a single B-tree with entries for all rows in all partitions. Each index partition may contain keys that refer to many different partitions or subpartitions in the table.

The highest partition of a global index must have a partition bound all of whose values are MAXVALUE. This insures that all rows in the underlying table can be represented in the index.

Prefixed and Nonprefixed Global Partitioned Indexes

A global partitioned index is prefixed if it is partitioned on a left prefix of the index columns. See Figure 5-6 for an example. A global partitioned index is nonprefixed if it is not partitioned on a left prefix of the index columns. Oracle does not support global nonprefixed partitioned indexes.

Global prefixed partitioned indexes can be unique or nonunique.

Nonpartitioned indexes are treated as global prefixed nonpartitioned indexes.

Management of Global Partitioned Indexes

Global partitioned indexes are harder to manage than local indexes:

  • When the data in an underlying table partition is moved or removed (SPLIT, MOVE, DROP, or TRUNCATE), all partitions of a global index are affected. Consequently global indexes do not support partition independence.

  • When an underlying table partition or subpartition is recovered to a point in time, all corresponding entries in a global index must be recovered to the same point in time. Because these entries may be scattered across all partitions or subpartitions of the index, mixed in with entries for other partitions or subpartitions that are not being recovered, there is no way to accomplish this except by re-creating the entire global index.

Figure 5-6 Global Prefixed Partitioned Index

Description of dwhsg119.gif follows
Description of the illustration dwhsg119.gif

Summary of Partitioned Index Types

Table 5-2 summarizes the types of partitioned indexes that Oracle supports. The key points are:

  • If an index is local, it is equipartitioned with the underlying table. Otherwise, it is global.

  • A prefixed index is partitioned on a left prefix of the index columns. Otherwise, it is nonprefixed.

Table 5-2 Types of Partitioned Indexes

Type of Index Index Equipartitioned with Table Index Partitioned on Left Prefix of Index Columns UNIQUE Attribute Allowed Example: Table Partitioning Key Example: Index Columns Example: Index Partitioning Key
Local Prefixed (any partitioning method) Yes Yes Yes A A, B A
Local Nonprefixed (any partitioning method) Yes No YesFoot 1  A B, A A
Global Prefixed (range partitioning only) NoFoot 2  Yes Yes A B B

Footnote 1 For a unique local nonprefixed index, the partitioning key must be a subset of the index key.
Footnote 2 Although a global partitioned index may be equipartitioned with the underlying table, Oracle does not take advantage of the partitioning or maintain equipartitioning after partition maintenance operations such as DROP or SPLIT PARTITION.

The Importance of Nonprefixed Indexes

Nonprefixed indexes are particularly useful in historical databases. In a table containing historical data, it is common for an index to be defined on one column to support the requirements of fast access by that column, but partitioned on another column (the same column as the underlying table) to support the time interval for rolling out old data and rolling in new data.

Consider a sales table partitioned by week. It contains a year's worth of data, divided into 13 partitions. It is range partitioned on week_no, four weeks to a partition. You might create a nonprefixed local index sales_ix on sales. The sales_ix index is defined on acct_no because there are queries that need fast access to the data by account number. However, it is partitioned on week_no to match the sales table. Every four weeks, the oldest partitions of sales and sales_ix are dropped and new ones are added.

Performance Implications of Prefixed and Nonprefixed Indexes

It is more expensive to probe into a nonprefixed index than to probe into a prefixed index.

If an index is prefixed (either local or global) and Oracle is presented with a predicate involving the index columns, then partition pruning can restrict application of the predicate to a subset of the index partitions.

For example, in Figure 5-4, if the predicate is deptno=15, the optimizer knows to apply the predicate only to the second partition of the index. (If the predicate involves a bind variable, the optimizer will not know exactly which partition but it may still know there is only one partition involved, in which case at run time, only one index partition will be accessed.)

When an index is nonprefixed, Oracle often has to apply a predicate involving the index columns to all N index partitions. This is required to look up a single key, or to do an index range scan. For a range scan, Oracle must also combine information from N index partitions. For example, in Figure 5-5, a local index is partitioned on chkdate with an index key on acctno. If the predicate is acctno=31, Oracle probes all 12 index partitions.

Of course, if there is also a predicate on the partitioning columns, then multiple index probes might not be necessary. Oracle takes advantage of the fact that a local index is equipartitioned with the underlying table to prune partitions based on the partition key. For example, if the predicate in Figure 5-4 is chkdate<3/97, Oracle only has to probe two partitions.

So for a nonprefixed index, if the partition key is a part of the WHERE clause but not of the index key, then the optimizer determines which index partitions to probe based on the underlying table partition.

When many queries and DML statements using keys of local, nonprefixed, indexes have to probe all index partitions, this effectively reduces the degree of partition independence provided by such indexes.

Table 5-3 Comparing Prefixed Local, Nonprefixed Local, and Global Indexes

Index Characteristics Prefixed Local Nonprefixed Local Global
Unique possible? Yes Yes Yes. Must be global if using indexes on columns other than the partitioning columns
Manageability Easy to manage Easy to manage Harder to manage
OLTP Good Bad Good
Long Running (DSS) Good Good Not Good

Guidelines for Partitioning Indexes

When deciding how to partition indexes on a table, consider the mix of applications that need to access the table. There is a trade-off between performance on the one hand and availability and manageability on the other. Here are some of the guidelines you should consider:

  • For OLTP applications:

    • Global indexes and local prefixed indexes provide better performance than local nonprefixed indexes because they minimize the number of index partition probes.

    • Local indexes support more availability when there are partition or subpartition maintenance operations on the table. Local nonprefixed indexes are very useful for historical databases.

  • For DSS applications, local nonprefixed indexes can improve performance because many index partitions can be scanned in parallel by range queries on the index key.

    For example, a query using the predicate "acctno between 40 and 45" on the table checks of Figure 5-4 causes parallel scans of all the partitions of the nonprefixed index ix3. On the other hand, a query using the predicate "deptno BETWEEN 40 AND 45" on the table deptno of Figure 5-5 cannot be parallelized because it accesses a single partition of the prefixed index ix1.

  • For historical tables, indexes should be local if possible. This limits the impact of regularly scheduled drop partition operations.

  • Unique indexes on columns other than the partitioning columns must be global because unique local nonprefixed indexes whose key does not contain the partitioning key are not supported.

Physical Attributes of Index Partitions

Default physical attributes are initially specified when a CREATE INDEX statement creates a partitioned index. Because there is no segment corresponding to the partitioned index itself, these attributes are only used in derivation of physical attributes of member partitions. Default physical attributes can later be modified using ALTER INDEX MODIFY DEFAULT ATTRIBUTES.

Physical attributes of partitions created by CREATE INDEX are determined as follows:

  • Values of physical attributes specified (explicitly or by default) for the index are used whenever the value of a corresponding partition attribute is not specified. Handling of the TABLESPACE attribute of partitions of a LOCAL index constitutes an important exception to this rule in that in the absence of a user-specified TABLESPACE value (at both partition and index levels), that of the corresponding partition of the underlying table is used.

  • Physical attributes (other than TABLESPACE, as explained in the preceding) of partitions of local indexes created in the course of processing ALTER TABLE ADD PARTITION are set to the default physical attributes of each index.

Physical attributes (other than TABLESPACE) of index partitions created by ALTER TABLE SPLIT PARTITION are determined as follows:

  • Values of physical attributes of the index partition being split are used.

Physical attributes of an existing index partition can be modified by ALTER INDEX MODIFY PARTITION and ALTER INDEX REBUILD PARTITION. Resulting attributes are determined as follows:

  • Values of physical attributes of the partition before the statement was issued are used whenever a new value is not specified. Note that ALTER INDEX REBUILD PARTITION can be used to change the tablespace in which a partition resides.

Physical attributes of global index partitions created by ALTER INDEX SPLIT PARTITION are determined as follows:

  • Values of physical attributes of the partition being split are used whenever a new value is not specified.

  • Physical attributes of all partitions of an index (along with default values) may be modified by ALTER INDEX, for example, ALTER INDEX indexname NOLOGGING changes the logging mode of all partitions of indexname to NOLOGGING.


See Also:

Oracle Database Administrator's Guide for more detailed examples of adding partitions and examples of rebuilding indexes
