SET

Syntax

set::=

Description of set.gif follows
Description of the illustration set.gif

setRmanOption::=

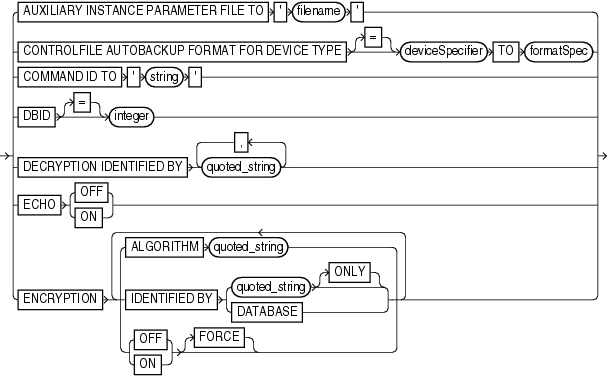

Description of setrmanoption.gif follows
Description of the illustration setrmanoption.gif

setRunOption::=

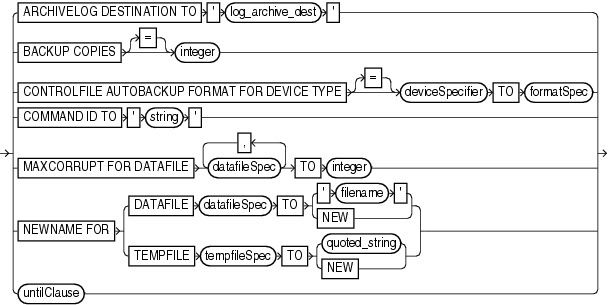

Description of setrunoption.gif follows
Description of the illustration setrunoption.gif

Purpose

You can use the SET command either at the RMAN prompt or within a RUN block.

When used outside a RUN block, attributes changed by SET remain in effect until you exit the RMAN client.

Outside of a RUN block, the SET command supports the attributes shown in "setRmanOption". Use this form of the SET command to:

Within a RUN block, the SET command supports the attributes shown in "setRunOption". Changes made with SET within a RUN block persist until the end of the RUN block, or the next SET command that changes the value of the same attribute.

Use SET specified within a RUN block to:

Restrictions and Usage Notes for SET Command Within RUN

The following restrictions apply to SET when issued within a RUN command:

Restrictions and Usage Notes for the SET DBID Command

You should only run the SET DBID command in the following specialized circumstances:

Keywords and Parameters

setRmanOption

Syntax Element Description
AUXILIARY INSTANCE PARAMETER FILE TO 'filename' For use in customizing TSPITR with an automatic auxiliary instance, or in online tablespace cloning with RMAN. Specifies the path (on the host running the RMAN client) to the parameter file to use in starting the instance.

Note: This is a client-side location, not a location on the database node.

See Also: Oracle Database Reference for more on V$SESSION.CLIENT_INFO

COMMAND ID TO 'string' Enters the specified string into the V$SESSION.CLIENT_INFO column of all channels. Use this information to determine which database server sessions correspond to which RMAN channels. The SET COMMAND ID command applies only to channels that are already allocated.

The V$SESSION.CLIENT_INFO column contains information for each RMAN server session. The data appears in one of the following formats:

  • id=string

  • id=string, ch=channel_id

The first form appears in the RMAN target database connection. The second form appears in all allocated channels. When the current job is complete, the V$SESSION.CLIENT_INFO column will be cleared.

See Also: Oracle Database Reference for more on V$SESSION.CLIENT_INFO

CONTROLFILE AUTOBACKUP FORMAT FOR DEVICE TYPE deviceSpecifier TO formatSpec Overrides the default filename format for the control file autobackup on the specified device type. The override occurs at the session level only. You can run this command either in RUN or at the RMAN prompt. The order of precedence is as follows:
  1. SET CONTROLFILE AUTOBACKUP executed within a RUN block

  2. SET CONTROLFILE AUTOBACKUP executed at the RMAN prompt

  3. CONFIGURE CONTROLFILE AUTOBACKUP FORMAT

Note that the %F substitution variable is required to be in the new formatSpec, and that no other substitution variable is legal in a control file autobackup formatSpec.

See Also: "formatSpec" for the semantics of the %F substitution variable.

DBID integer Specifies the DBID, which is a unique 32-bit identification number computed when the database is created. RMAN displays the DBID upon connection to the target database. You can obtain the DBID by querying the V$DATABASE view or the RC_DATABASE and RC_DATABASE_INCARNATION recovery catalog views.

See Also: "Restrictions and Usage Notes for the SET DBID Command"

DECRYPTION IDENTIFIED BY password [, password... ] Specifies one or more decryption passwords to be used when reading dual-mode or password-encrypted backups. When RMAN reads encrypted backup pieces, it tries each password in the list until it finds the correct one to decrypt that backup piece. An error is signaled if none of the specified keys work.

See Also: "Encryption of Backup Sets" for more details on encryption of backup sets

ECHO {ON | OFF} Controls whether RMAN commands are displayed in the message log. When reading commands from a command file, RMAN automatically echoes those commands to the message log. When reading commands from standard input, RMAN does not echo those commands to the message log. To force RMAN to echo the commands, run the SET ECHO ON command before running your command file.

The command is useful when stdin and stdout have been redirected. For example, in UNIX you can redirect RMAN's input and output in this manner:

% rman TARGET sys/pwd@prod1 CATALOG rman/rman@rcat < in_file > out_file

By running SET ECHO ON, you enable the commands contained in in_file to be visible in out_file.

ENCRYPTION Specifies encryption-related options that apply to BACKUP commands that create backup sets for the duration of the RMAN session.

See Also: "Encryption of Backup Sets" for more details on encryption of backup sets

ALGORITHM

algorithm_name

Specifies the algorithm used during this RMAN session. Overrides the configured default encryption algorithm. Possible values are listed in V$RMAN_ENCRYPTION_ALGORITHMS.
IDENTIFIED BY

password

[ ONLY ]

Specifies whether to use a user-specified password in encryption.
  • Omit IDENTIFIED BY password clause to specify transparent-mode encrypted backups.

  • Use IDENTIFIED BY password ONLY to specify password-mode encrypted backups.

  • Use IDENTIFIED BY password without ONLY to create dual-mode encrypted backups.

See "Encryption of Backup Sets" for details on the different encryption modes.

Note: If the password provided is not surrounded by quotes, then it is translated internally into upper case. Thus, the following are all synonyms for IDENTIFIED BY "FOO":

  • IDENTIFIED BY foo

  • IDENTIFIED BY Foo

  • IDENTIFIED BY fOo

{ OFF | ON }

[ FOR ALL TABLESPACES ]

If SET... ENCRYPTION ON or OFFis used without FOR ALL TABLESPACES, then this setting turns on or off encryption of backups for tablespaces where CONFIGURE ENCRYPTION FOR TABLESPACE tablespace_name ]ON or OFF has not been used to specify encryption behavior.

If SET... ENCRYPTION ON or OFF FOR ALL TABLESPACES is used, this command turns on or off encryption for all tablespaces, overriding any CONFIGURE ENCRYPTION FOR TABLESPACE tablespace_name ON or OFF setting.

If OFF, then the default is to not encrypt backup sets.

If ON, then the default is to encrypt backup sets.


setRunOption

Syntax Element Description
NEWNAME FOR DATAFILE datafileSpec TO Sets the default name for all subsequent RESTORE or SWITCH commands that affect the specified datafile. If you do not issue this command before the datafile restore operation, then RMAN restores the file to its default location.

After you restore a datafile to a new location, then you can run SWITCH to rename the file in the control file to the NEWNAME. If you do not run SWITCH, then the restored file functions as a datafile copy and is recorded as such in the repository.

Note: The SET NEWNAME command supports Automatic Storage Management disk groups.

See Also: "datafileSpec"

NEWNAME FOR TEMPFILE tempfileSpec TO password | NEW Sets the new tempfile name for a subsequent SWITCH command that renames the specified tempfile to the specified name. If a filename is passed, that will be the new name of the tempfile after the database is recovered and opened. If NEW is passed the new name will be an OMF filename. The tempfile is created in DB_CREATE_FILE_DEST when the database is opened.

Note: The SET NEWNAME command supports Automatic Storage Management disk groups.

See Also: "tempfileSpec"

'filename' Specifies a user-defined filename or Automatic Storage Management disk group for the restored datafile. If you set the NEWNAME to a disk group and run a RESTORE, then RMAN restores the file to the disk group.
NEW Creates an Oracle-managed file in the directory specified in DB_CREATE_FILE_DEST. If the original file is an Oracle Managed File or is on an Automatic Storage Management disk group, then RMAN attempts to delete the original file.

You cannot use this option when using the DUPLICATE command or performing RMAN TSPITR.

See Also: Oracle Database Administrator's Guide for information about Oracle Managed Files

MAXCORRUPT FOR DATAFILE datafileSpec TO integer Sets a limit on the number of previously undetected block corruptions that the database will allow in a specified datafile or group of datafiles. If a BACKUP or CREATE CATALOG command detects more than the specified number of corruptions, then the command terminates. The default limit is zero, meaning that RMAN tolerates no corrupt blocks.

Note: If you specify CHECK LOGICAL, then the MAXCORRUPT limit applies to the sum of logical and physical corruptions detected. Otherwise, MAXCORRUPT only applies to the number of physical block corruptions.

See Also: "datafileSpec"

ARCHIVELOG DESTINATION TO 'log_archive_dest' Overrides the LOG_ARCHIVE_DEST_1 initialization parameter in the target database when forming names for restored archive logs during subsequent RESTORE and RECOVER commands. RMAN restores the logs to the destination specified in 'log_archive_dest'. Use this parameter to restore archived redo logs that are not already on disk.

Use this command to stage many archived logs to different locations while a database restore is occurring. RMAN knows where to find the newly restored archive logs; it does not require them to be in the destination specified by LOG_ARCHIVE_DEST_1. For example, if you specify a different destination from the one in the parameter file and restore archived redo log backups, subsequent restore and recovery operations will detect this new location. RMAN always looks for archived redo logs on disk first before restoring them from backup sets.

untilClause
Specifies an end time, SCN, or log sequence number for a subsequent RESTORE or RECOVER command.

See Also: "untilClause"

BACKUP COPIES = integer Specifies the number of copies of each backup piece that the channels should create: 1, 2, 3, or 4. The SET BACKUP COPIES command, which affects only the BACKUP command, affects all channels allocated in the session. The order of precedence is as follows, with settings higher on the list overriding settings lower on the list:
  • BACKUP COPIES

  • SET BACKUP COPIES

  • CONFIGURE ... BACKUP COPIES

The names of the backup pieces are dependent on the FORMAT clause in the BACKUP command. You can specify up to four FORMAT strings. RMAN uses the second, third, and fourth values only when BACKUP COPIES, SET BACKUP COPIES, or CONFIGURE ... BACKUP COPIES is in effect. When choosing which format to use for each backup piece, RMAN uses the first format value for copy 1, the second format value for copy 2, and so on. If the number of format values exceeds the number of copies, then the extra formats are not used. If the number of format values is less than the number of copies, RMAN reuses the format values, starting with the first one.

Note: BACKUP COPIES option is not valid when files are created in flash recovery area. Backups to the flash recovery area cannot be duplexed..

Note: Control file autobackups on disk are a special case and are never duplexed: RMAN always writes one and only copy.

COMMAND ID TO 'string' Enters the specified string into the V$SESSION.CLIENT_INFO column of all channels. Use this information to determine which database server sessions correspond to which RMAN channels. The SET COMMAND ID command applies only to channels that are already allocated.

The V$SESSION.CLIENT_INFO column contains information for each RMAN server session. The data appears in one of the following formats:

  • id=string

  • id=string, ch=channel_id

The first form appears in the RMAN target database connection. The second form appears in all allocated channels. When the current job is complete, the V$SESSION.CLIENT_INFO column will be cleared.

See Also: Oracle Database Reference for more on V$SESSION.CLIENT_INFO

CONTROLFILE AUTOBACKUP FORMAT FOR DEVICE TYPE deviceSpecifier TO formatSpec Overrides the default filename format for the control file autobackup on the specified device type. The override occurs at the session level only. You can run this command either in RUN or at the RMAN prompt. The order of precedence is as follows:
  1. SET CONTROLFILE AUTOBACKUP executed within a RUN block

  2. SET CONTROLFILE AUTOBACKUP executed at the RMAN prompt

  3. CONFIGURE CONTROLFILE AUTOBACKUP FORMAT

Note that the %F substitution variable is required to be in the new formatSpec, and that no other substitution variable is legal in a control file autobackup formatSpec.

See Also: "formatSpec" for the semantics of the %F substitution variable.


Examples

Restoring the Control File When Databases Share the Same Name: Example The following example uses the DBID to restore the control file because multiple target databases share the same DB_NAME in the catalog. After you have restored the target control file, you can mount the database to restore the rest of the database:

rman TARGET / CATALOG rman/rman@catdb
RMAN> STARTUP FORCE NOMOUNT;
RMAN> SET DBID = 862893450; # needed to distinguish target from others with same DB_NAME
RMAN> RESTORE CONTROLFILE; # assuming catalog has automatic channel allocation information
RMAN> ALTER DATABASE MOUNT;

Setting the Command ID: Example This example sets the command ID, backs up the users tablespace, then archives the online redo logs:

RUN
{
  ALLOCATE CHANNEL t1 DEVICE TYPE DISK FORMAT '/disk1/%U';
  ALLOCATE CHANNEL t2 DEVICE TYPE DISK FORMAT '/disk2/%U';
  SET COMMAND ID TO 'rman';
  BACKUP INCREMENTAL LEVEL 0 MAXSETSIZE 5M TABLESPACE users;
  SQL 'ALTER SYSTEM ARCHIVE LOG ALL';

}

Duplexing a Backup Set: Example Assume that you have used the CONFIGURE command to set duplexing as follows:

CONFIGURE ARCHIVELOG COPIES FOR DEVICE TYPE sbt TO 4;
CONFIGURE DATAFILE COPIES FOR DEVICE TYPE sbt TO 3;

The following example overrides these configurations and makes two copies of each datafile and archived log in the backup:

RUN
{
  ALLOCATE CHANNEL dev1 DEVICE TYPE sbt;
  SET BACKUP COPIES = 2;
  BACKUP DATAFILE 1,2,3,4,5;
  BACKUP ARCHIVELOG ALL;
}

Overriding the Autobackup Format During a Restore: Example This example sets the DBID, sets a boundary time for the restore, then restores a control file autobackup with a nondefault format. First start RMAN and then run:

CONNECT TARGET / NOCATALOG
STARTUP FORCE NOMOUNT
SET DBID 676549873;
RUN
{
  SET UNTIL TIME '10/10/2001 13:45:00';
  SET CONTROLFILE AUTOBACKUP FORMAT FOR DEVICE TYPE DISK TO '?/oradata/cf_%F.bak';
  RESTORE CONTROLFILE FROM AUTOBACKUP MAXSEQ 100;
}
ALTER DATABASE MOUNT;

Restoring the Server Parameter File: Example This example restores a lost server parameter file:

CONNECT TARGET / CATALOG rman/rman@catdb
SET DBID 676549873;  # set dbid so rman knows the database name
STARTUP FORCE NOMOUNT # rman starts database with a dummy server parameter file
RESTORE SPFILE;
STARTUP FORCE; # needed so that RMAN restarts database with restored server parameter file
