Uploading Files Using CGI and Perl

Matt Doyle
Matt works for Elated.com, which offers great Webmaster resources, from free templates and stock images through to tutorials and forums.

Would you like to give your visitors the ability to upload files to your site? Letting them upload content with their Web browsers can be very useful, and fun too! You can let them contribute pictures, sounds and other binary files to your site. And you can use a file upload facility on your own Website to update your site's content easily via your own Web browser.

If you've ever used a Web-based email service such as Yahoo! Mail or Hotmail, you've probably sent email with attachments. To add attachments to your emails, you simply click the "Browse..." button on the Web page to select the file from your hard drive, and then your browser sends the file to the server. This is file upload in action!

But how does it work? In this article I'm going to talk you through the process of file upload, and show you how to build a simple file upload example using CGI and Perl. The example we'll go through will allow people to upload photos of themselves to your Web server.


What You'll Need
To build your own file upload script, you'll need the following:

  • Access to a Web server that supports CGI (nearly all do)
  • A copy of Perl running on the Web server
  • The Perl CGI library, CGI.pm, installed on your Web server. This is probably pre-installed, but if it's not, you can grab it here.


How Does It Work?

File upload works by using a special type of form field called "file", and a special type of form encoding called "multipart/form-data". The file form field displays a text box for the filename of the file to upload, and a "Browse..." button:

474browsebutton

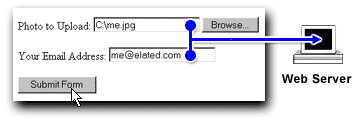

The user clicks the "Browse..." button to bring up the file selector, and chooses the file they wish to upload. Then, when they click the "Submit" button on the form, the file's data is uploaded to the Web server, along with the rest of the form's data:

474transferdiag

At the Web server end, the software (in our case, a CGI script) interprets the form data that's sent from the browser, and extracts the file name and contents, along with the other form fields. Usually, the file is then saved to a directory on the server.

Now, let's create a file upload form that allows your users to upload files to your Web server.


Creating the File Upload Form

1. The FORM Tag

The first line of code for a file upload form is the FORM tag, as follows:

  <FORM ACTION="/cgi-bin/upload.cgi" METHOD="post"
ENCTYPE="multipart/form-data">

Note the special multipart/form-data encoding type, which is what we use for file upload. Note also that the form will post the data to our upload script, called upload.cgi, which we'll create in the next section.

2. The INPUT TYPE=FILE Tag

The second part of the file upload form is the upload field itself. In this example we're creating a form so that our users can upload their photos, so we need an upload field called "photo":

Photo to Upload: <INPUT TYPE="file" NAME="photo">

3. Other INPUT Tags

You can include other, normal form fields in your form as well as the INPUT TYPE=FILE field. Here we're going to allow the user to submit their email address along with their photo:

Your Email Address: <INPUT TYPE="text" NAME="email_address">

4. The Submit Button

As with a regular form, we need a "Submit" button so that the user can send the form to the Web server:

<INPUT TYPE="submit" NAME="Submit" VALUE="Submit Form">

The Finished Form

So our complete file upload form looks like this:

<HTML>
<HEAD></HEAD>
<BODY>
<FORM ACTION="upload.cgi" METHOD="post" ENCTYPE="multipart/form-data">
Photo to Upload: <INPUT TYPE="file" NAME="photo">
<br><br>
Your Email Address: <INPUT TYPE="text" NAME="email_address">
<br><br>
<INPUT TYPE="submit" NAME="Submit" VALUE="Submit Form">
</FORM>
</BODY>
</HTML>

Save this file somewhere on your hard drive, and call it something like "file_upload.html".

So far so good! Now let's look at how to write the server CGI script, upload.cgi.

Creating the File Upload Script

Handling the data that the browser sends when it uploads a file is quite a complex process. Fortunately, the Perl CGI library, CGI.pm, does most of the dirty work for us!

Using two methods of the CGI query object, param() and upload(), we can retrieve the uploaded file's filename and file handle respectively. Using the file handle, we can read the contents of the file, and save it out to a new file in our file upload area on the server.

1. First Things First

The first things we need to do in our script are, of course, create the shebang line, and use the Perl CGI library:

  #!/usr/bin/perl -w

use CGI;

Note the use of the -w to make Perl warn us of any potential dangers in our code. It's nearly always a good idea to put the -w in!

2. The Upload Directory

We need a location on our server where we can store the uploaded files. We want these files (photos) to be visible on our Website, so we should store them in a directory under our document root, for example:

  $upload_dir = "/home/mywebsite/htdocs/upload";

So you'll need to create a directory called "upload" on your Website's document root, then set $upload_dir to the absolute path to that directory, as I've done above.

3. Reading the Form Variables

The next step is to read in the filename of our uploaded file, and the email address that the user entered into the form:

  $query = new CGI;

$filename = $query->param("photo");
$email_address = $query->param("email_address");

Some browsers pass the whole path to the file, instead of just the filename, so it's a good idea to strip off everything that includes backslashes (Windows browsers) and forward slashes (Unix browsers) and which might appear before the filename:

  $filename =~ s/.*[\/\\](.*)/$1/;

4. Getting the File Handle

As I mentioned above, we can use the upload() method to grab the file handle of the uploaded file (which actually points to a temporary file created by CGI.pm). We do this as follows:

  $upload_filehandle = $query->upload("photo");

5. Saving the File

Now that we have a handle to our uploaded file, we can read its contents and save it out to a new file in our file upload area. We'll use the uploaded file's filename as the name of our new file:

  open UPLOADFILE, ">$upload_dir/$filename";

while ( <$upload_filehandle> )
{
print UPLOADFILE;
}

close UPLOADFILE;

6. Thank the User

We've now uploaded our file! The last step is to display a quick thank-you note to the user, and to show them their uploaded photo and email address:

  print $query->header ( );
print <<END_HTML;

<HTML>
<HEAD>
<TITLE>Thanks!</TITLE>
</HEAD>

<BODY>

<P>Thanks for uploading your photo!</P>
<P>Your email address: $email_address</P>
<P>Your photo:</P>
<img src="/upload/$filename" border="0">

</BODY>
</HTML>

END_HTML

The Finished Script

Your finished CGI script should look something like this:

  #!/usr/bin/perl -w

use CGI;

$upload_dir = "/home/mywebsite/htdocs/upload";

$query = new CGI;

$filename = $query->param("photo");
$email_address = $query->param("email_address");
$filename =~ s/.*[\/\\](.*)/$1/;
$upload_filehandle = $query->upload("photo");

open UPLOADFILE, ">$upload_dir/$filename";

while ( <$upload_filehandle> )
{
print UPLOADFILE;
}

close UPLOADFILE;

print $query->header ( );
print <<END_HTML;

<HTML>
<HEAD>
<TITLE>Thanks!</TITLE>
</HEAD>

<BODY>

<P>Thanks for uploading your photo!</P>
<P>Your email address: $email_address</P>
<P>Your photo:</P>
<img src="/upload/$filename" border="0">

</BODY>
</HTML>

END_HTML

Save this file on your hard drive, and call it "upload.cgi".

Now we've created our server-side script, we can place both the script and the form on our server and test the file upload.

Putting It All Together

1. Place the Files on your Server

Place the HTML form somewhere under your Website's document root, and your CGI script in your Website's cgi-bin directory.

Note: don't forget to make the CGI script executable if you're on a UNIX server - chmod a+rx upload.cgi or chmod 755 upload.cgi

2. Set the Correct Paths and URLs

If necessary, change the "upload.cgi" URL in the <FORM> tag to point to the correct URL for the CGI script:

  <FORM ACTION="/cgi-bin/upload.cgi" METHOD="post"
ENCTYPE="multipart/form-data">

Also, don't forget to set the correct path to Perl in your CGI script, and the correct absolute path to the 'upload' directory that you created on your server:

  #!/usr/bin/perl -w
$upload_dir = "/home/mywebsite/htdocs/upload";

3. Test the Script

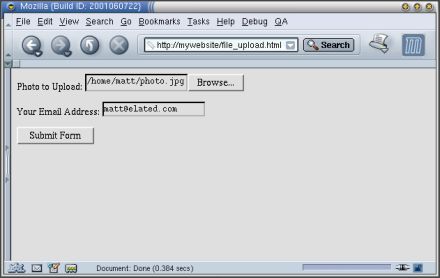

Let's try it out! Go to the URL of your file upload form on your server, select a photo to upload, and enter your email address:

474uploadform

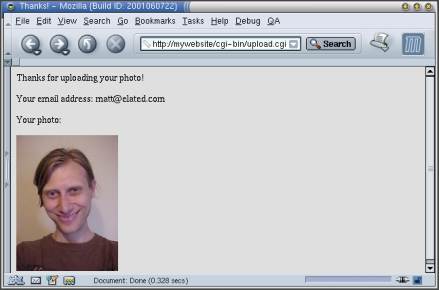

Press the "Submit Form" button. If all goes well, the photo will be uploaded to the server, and you should see the "Thanks!" page, which also displays your photo and email address:

474thanksscreen

Congratulations - you've written a file upload handler script!

If you get Internal Server Errors, double-check the permissions, paths and URLs described above, and look for other common CGI script pitfalls. For instance, editing a file on Windows and then uploading it to your Web server in Binary format will cause the script to crash on Unix servers.


Final Thoughts

A couple of points about this script are worth a mention:

If you were doing this on a real Website with lots of users, it would be a good idea to create a separate upload directory for each user, so that one user's photo won't be overwritten with another user's photo of the same name!

File upload isn't perfect. All browsers handle file uploads slightly differently, and some browsers can have trouble uploading files to certain types of servers and scripts. On the whole, though, most users won't have any problem with the most popular browsers.

That's it. Have fun with your file uploads!
